Knipex MultiCrimp 97 33 02 Crimper Non-insulated open end connectors, Insulated cable lugs, Insulated connectors, Ferrul
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 210.08 / piece)
€ 210.08
plus VAT.
Highlights & Details
Crimping pliers with quick changer magazine KNIPEX MultiCrimp
- Only one tool for the most common crimp applications
- Fast and simple changing of the crimp inserts without additional tools
- Secure and protected storage of changeable inserts in a round magazine
- Comfortable, powerful crimping pliers in professional quality
- Reliable crimp results as in the case of fixed mounted crimp insets
Technical specifications
- Product type
Crimper
- Manufacturer part #
97 33 02
- Range of uses
Non-insulated open end connectors
Insulated cable lugs
Insulated connectors
Ferrules
Non-insulated cable lugs
- Length
250 mm
- Material
Chromium-vanadium electric furnace steel
- Material properties
burnished
tempered
- Width
260 mm
- Height
29 mm
- Weight
870 g
- Features
Incl. spare magazine
- Suitable for
Non-insulated, open plug connector, insulated cable lug + plug connector, cable end sleeves, non-insulated cable lug + plug connector, non-insulated butt connector
- Type
97 33 02
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 821056 Knipex MultiCrimp 97 33 02 Crimper Non-insulated open end connectors, Insulated cable lugs, Insulated connectors, Ferrul
User & Safety Instructions
User & Safety Instructions 821056 Knipex MultiCrimp 97 33 02 Crimper Non-insulated open end connectors, Insulated cable lugs, Insulated connectors, Ferrul
Information
Information 821056 Knipex MultiCrimp 97 33 02 Crimper Non-insulated open end connectors, Insulated cable lugs, Insulated connectors, Ferrul
Description
Also for insulated and non-insulated wire-end sleeves 10 / 16 / 25 mm². Universal mandrel crimp inset for non-insulated connectors. Set consists of pliers and fast changing magazine for common crimp requirements. For solder-free electrical connections Consistently high crimping quality through precision inserts and very sensitive force-barrier (unlock). Cirmping pressure is precisely set (calibrated) at the factory Ergonomically designed, two-colored multi-component grip covers for one-and two-handed operation. Very simple and fast changing of the crimp inserts without additional tools. Safe stop of the change inserts in the tool. Secure and dust proof storage of changeable inserts in a round magazine. Round magazine with convenient belt clip-Exchangeable always on you. Chromium-vanadium electro-steel in special quality, oil-hardened Round magazine: plastic, glass fiber reinforced.
This text is machine translated.
This text is machine translated.
Features
- Change of crimp-casting without additional tools
- Safe stopping of the casting in the tool by reliable locking system
- Lock for changing the casting
- Marking of the casting by pictograms: Visible in magazine and pliers

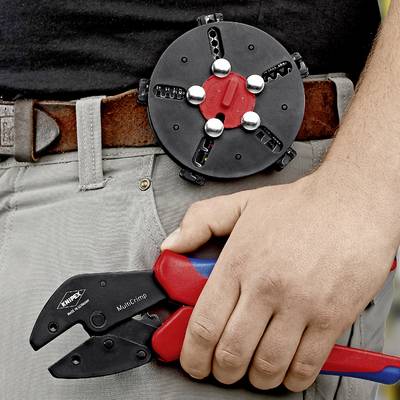

- Round magazine with belt clip: Changing-application always at hands
- Continuously high crimping quality by precision profiles and very sensitive force-barrier (unlock-able)
- Crimping pressure is factory-precisely adjusted (calibrated)
- 2-components grip covers
Scope of delivery
- Crimping pliers with round magazine and 3 changing application for non-insulated cable, open plug connector 0.5 - 6 mm², insulated cable lug + plug connector 0.5 - 6 mm², cable end sleeves 0.25 - 6.0 mm², non-insulated cable lug + plug connector 0.5 - 10 mm², non-insulated butt connector 1.5 - 10 mm².
