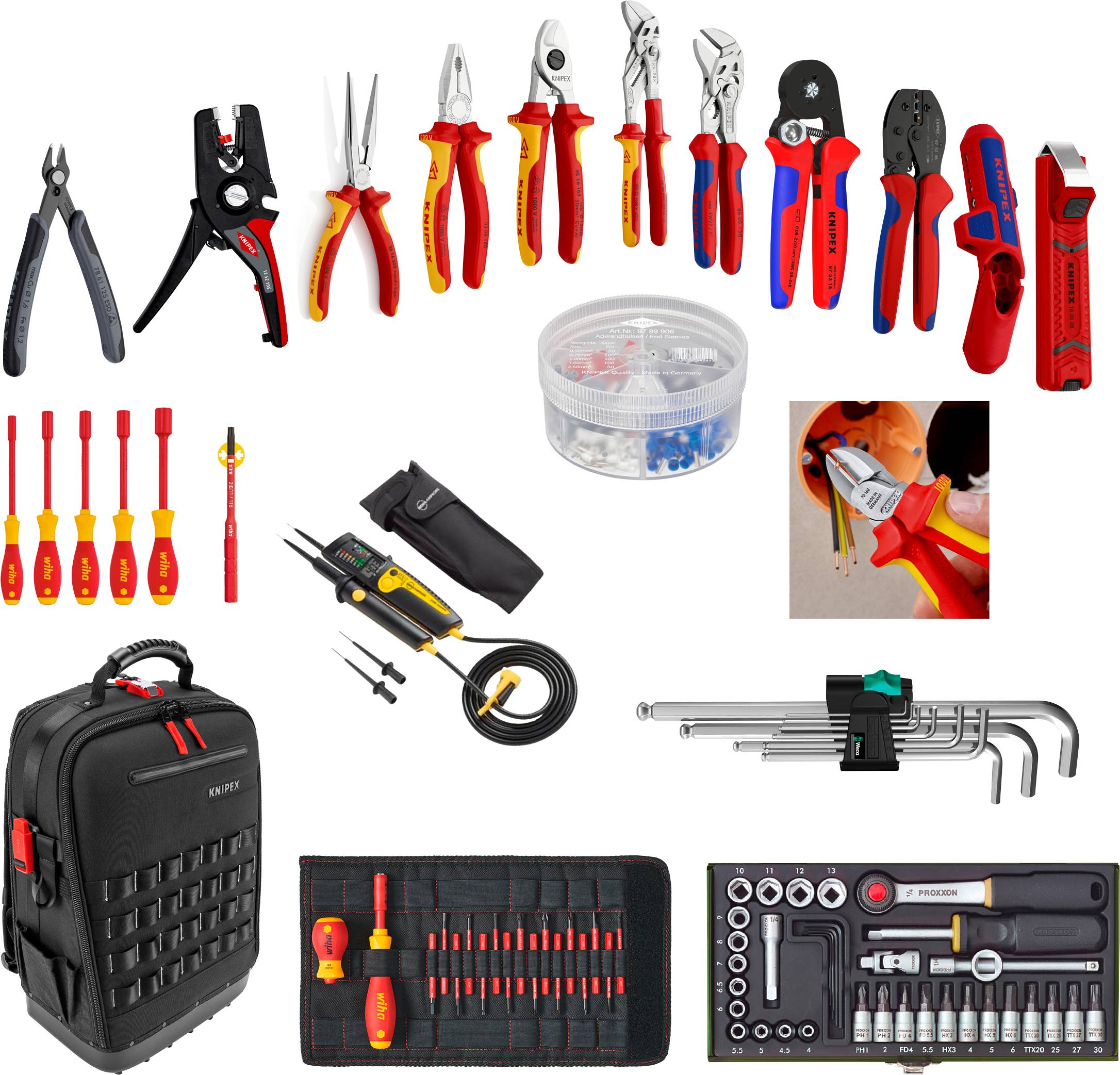

Knipex RR-3790184 Tool backpack (equipped)

Digital voltage and continuity tester DUSPOL digital
The DUSPOL digital is a digital TRUE RMS voltage and continuity tester with resistance and frequency range. The voltage tester is suitable for electrical engineering, industry, maintenance, service (troubleshooting) and photovoltaic areas.


Case DPlus 2013
Practical carrying case with Velcro fastener and belt loop made of durable polyamide for DUSPOL.


Screwdriver set SoftFinish® electric hexagonal socket wrench, 5 pcs. (29466)
The protective insulation lets you work on components carrying voltages up to 1,000 V AC. For hexagon head screws and hexagonal nuts. Handle: Ergonomic Wiha SoftFinish® multi-component handle with roll-off protection. Blade made of chromium-vanadium steel, hardened throughout, bronzed. Protective insulation sprayed directly on to the blade. With internal bore for protruding threaded shanks. DIN 3125 standard. IEC 60900:2004 certified.


Knipex 95 16 165 cable shears insulated with multi-component covers, VDE-tested chrome-plated 165 mm
95 16 165 Cable shears cuts smoothly and cleanly, without crushing. Easy cut for one-handed operation. Adjustable screw joint, self-securing. Cuts copper and aluminum multi-conductor cable fine-wired up to Ø 15 mm (50 mm²). Not suitable for steel wire or hard-drawn copper wire Hardened cutting with precision-cut With pinch protection. - Cutting value Cu-cable, multi-wired: 50mm² - Cutting value Cu-cable, multi-wired: Ø 15mm - AWG: 1 / 0 - VDE-tested: Yes


Knipex 03 06 180 combination pliers insulated with multi-component covers, VDE-tested, chrome-plated 180 mm
03 06 180 combination pliers With grip zones for flat and round material for a versatile use. Blades for soft and hard wire Long blades for thicker cables. Induction hardened blades. Blade hardness approx. 60 HRC - Wire hardness medium hard wire (diameter): Ø 3.4mm - Cutting value hard wire (diameter): Ø 2.2mm - Cutting value Cu-cable, multi-wire: Ø 12.0mm - Cutting value Cu-cable, multi-wire: 16.0mm² - VDE-tested: Yes


Knipex 87 02 180 Cobra® high-tech water pump pliers with comfort handles, gray atramentized 180 mm
87 02 180 Knipex Cobra® adjustment at the touch of a button directly on the workpiece. Fine adjustment for optimum adjustment to different sizes of work-piece and comfortable grip Self-locking on pipes and nuts: no slipping on the workpiece and power saving work Gripping surfaces with special hardened teeth, teeth hardness approx. 61 HRC: low wear and very stable gripping Box-joint design: high stability because of double guide Secure locking of hinge bolt: no unintentional adjustment Pinch protection prevents pinch-type injuries. With Comfort handles made of three ergonomic components for optimized handling and with two KNIPEXtend interfaces for extensions. - Adjustment positions: 18 - Capacity for pipes (diameter): Ø 1 1/2in - Capacity for nuts, width of width (mm): 36mm - Capacity for pipes (diameter): Ø 42mm


Knipex 87 02 300 Cobra® high-tech water pump pliers with comfort handles, gray atramentized 300 mm
87 02 300 Knipex Cobra® adjustment at the touch of a button directly on the workpiece. Fine adjustment for optimum adjustment to different sizes of work-piece and comfortable grip Self-locking on pipes and nuts: no slipping on the workpiece and power saving work Gripping surfaces with special hardened teeth, teeth hardness approx. 61 HRC: low wear and very stable gripping Box-joint design: high stability because of double guide Secure locking of hinge bolt: no unintentional adjustment Pinch protection prevents pinch-type injuries. With Comfort handles made of three ergonomic components for optimized handling and with two KNIPEXtend interfaces for extensions. - Adjustment positions: 30 - Capacity for pipes (diameter): Ø 2 3/4in - Capacity for nuts, width of width (mm): 60mm - Capacity for pipes (diameter): Ø 70mm


Knipex 97 53 14 self-setting crimping pliers for wire-end sleeves with side insertion with multi-component covers bronzed 180 mm
97 53 14 Self-adjusting crimping pliers for wire-end sleeves For wire-end sleeves up to 16 mm². Automatic adjustment to the desired wire-end sleeve size for exact and fast crimping. Standard crimping of cable end sleeves DIN 46228 part 1 + 4. UL approval in conjunction with Knipex cable end sleeves 97 99 330 - 399. consistently high crimping quality through locking device (can be unlocked) Crimp-pressure is set precisely ex-factory (calibrated) High crimping power thanks to efficient lever transmission. Small handle width. Ergonomic, handy design, smooth-running and with low weight. Chromium-vanadium electro-steel in special quality, oil-hardened. With hexagonal pressing. Also for all twin cable end sleeves up to 2 x 10 mm² or 2 x AWG 8.


Knipex 70 06 160 side cutter insulated with multi-component covers, VDE-tested chrome-plated 160 mm
70 06 160 Side cutter narrow head shape for use in work areas difficult to access. The indispensable side-cutter for versatile use High-quality material and precise finish for a long shelf life. Precision cutting for soft and hard wire Clean cut in case of thin Cu-wires, also at the cutting tips. Cutting edges additionally induction hardened, cutting edge hardness approx. 61 HRC VDE-tested safety up to 1000 volt. With bevel. - Wire values soft wire (diameter): Ø 4.0mm - Wire values medium-hard wire (diameter): Ø 3.0mm - Cutting values hard wire (diameter): Ø 2.0mm - VDE-approved: Yes


Knipex 26 16 200 needle-nose pliers with cutter (needle-nose pliers) insulated with multi-component covers, VDE-tested, chrome-plated, 200 mm
26 16 200 needle-nose pliers with cutting edge, flat-round, long, tapered jaws. Distortion-tolerant, elastic precision tips. Suitable for fine gripping and cutting work, also in places that are difficult to reach. With cutting edges for soft, medium and hard wire. Cutting edges additionally induction hardened, cutting edge hardness approx. 61 HRC. Straight jaws. - Wire hardness medium hard wire (diameter): Ø 3.2mm - Wire hardness hard wire (diameter): Ø 2.2mm - Jaw thickness (at joint) (T1): 9.5mm - Tip width (W4): 3.0mm - Peak thickness (T2): 2.5mm - Jaw length (L3): 73.0mm - Head width (W3): 18mm - VDE-tested: Yes


Knipex 16 20 28 SB stripping tool with drag blade Impact-resistant plastic housing 130 mm
16 20 28 SB stripping tool for stripping all common round cables. Self-tightening holding bar. With cutting depth adjustment via adjusting screw. Self-rotating trailing blade for circumference and longitudinal cut. Spare blade in housing. Secure grip by soft component insert as non-slip protection on handle and holding bracket. - Wire stripping values (diameter): Ø 8.0 — 28.0mm


Knipex 97 52 36 PreciForce® crimping pliers with multi-component sleeves browned 220 mm
97 52 36 Knipex PreciForce® Consistent high crimping quality through precision inserts and lock (unlocked). Crimp-pressure is set precisely ex-factory (calibrated) High crimping power thanks to efficient lever transmission. Good handling through a favorable grip position, low weight, short design and ergonomically shaped handles. Crimp insert cannot be replaced. - Application: Insulated wire connectors - Capacity square millimeters: 0.5 — 6.0mm² - Number of nests: 3 - AWG: 20 — 10


Kraftform compact W 1 maintenance, 35-piece
Compact tool set with the 35 most important screw tools for internal and external maintenance. With VDE hand-holder including 12 VDE blades; 1 Joker double wrench with retaining function, end stop, small drawback angle and extremely gripping teeth; with the unbelievably fast 1/4" ratchet Cyclops speed including accessories; 1 hand and machine nuts size 247-13, 8 universal bit holder; 7 25mm bits; 1 screw claw for holding screws; 1 single-pole phase tester 5.5; Textile box with a very high strength and long life; can be positioned upright for clear storage in the workshop shelf; additional surface protection thanks to textile outer material; low weight and volume for simplified mobility.


Knipex 16 95 01 SB ErgoStrip® Universal stripping tool for right-handed 135 mm
16 95 01 SB Knipex ErgoStrip® For fast and precise stripping and stripping of all common round and wet room cables (e.g. NYM cables 3 x 1.5 mm² to 5 x 2.5 mm²), data cables (e.g. twisted pair) and coaxial cables. Innovative, ergonomic pistol-grip design for easy cutting, pulling and longitudinal cutting of the sheath. Conically slender tool ends for better accessibility in confined spaces. Wire stripping device for cross sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm². Simplified insertion of single conductor for stripping through point strips. With opening spring and locking device. Comfortable insertion of coaxial and data cable thanks to opening help. Multi-component design with soft plastic zone for comfortable handling and secure hold. - Wire stripping values round cable (diameter): Ø 8 – 13mm - Wire and wire stripping value: 0.2 — 4.0mm² - Wire stripping values coaxial cable (diameter): Ø 4.8 – 7.5mm - Wire stripping value Data cable: CAT 5 - 7, Twisted pair (UTP/STP) - Wire stripping values: Ø 8.0 – 13.0mm


Screw driver and bit set slimVario® mixed 19-piece. Incl. folding bag (41231)
When working at different places of use such as construction sites, solar panels and cabinets, many different screw profiles are required. The slimVario® screwdriver and bit set covers all common screw profiles and is therefore suitable for flexible use. The electrician's tools are securely stored and arranged in a sturdy bag and are perfectly suitable for mobile use. The 19-piece The tool set offers optimum space saving through an extensive change bit system. Thanks to the Wiha slimTECHNOLOGY, the included slimBits can easily reach even deep-lying screw and spring elements with their up to 33% slimmer blade. Together with the extra short Stubby-grip the screws can be achieved easily, especially at narrow places. The longitudinal grip is used for deep-lying screws and in greater power transmission. Each tool in the set has been subjected to a routine test according to the international standard IEC 60900 and enables a safe working in the area of conducting parts up to 1,000 V AC.


Knipex 78 06 125 Electronic Super Knips VDE insulated with multi-component covers, VDE-tested 125 mm
78 06 125 Electronic Super Knips VDE-tested precision pliers for very fine cutting work, e.g. in electronics and precision mechanics. Complete your VDE toolstock. Ground, very sharp cutting without bevel. Cut-out with controlled micro edge offset for long life and ultra-precise cutting even on thinnest wires. Precisely shaped tips cut adjacent wires starting from Ø 0.2 mm. Joint with stainless steel rivet. Extremely soft motion for fatigue-free working With opening spring and limit stop. Cutting hardness approx. 54 HRC. - Wire hardness medium hard wire (diameter): Ø 1.0mm - Wire hardness soft wire (diameter): Ø 0.2 – 1.6mm - Jaw length (B): 9mm - Jaw thickness (at joint) (D): 7.5mm - Head width (A): 13.5mm - VDE-tested: Yes


Knipex 12 52 195 PreciStrip16® Automatic stripping pliers 190 mm
12 52 195 Knipex PreciStrip16® Simple, precise stripping of fine-wire to solid round cables with a large capacity range from 0.08 to 16 mm² with just one pair of pliers. Good grip thanks to semicircular metal retainer jaws with comb profile, exact cut thanks to parabolic insulation blades. An automatic mechanism controls the cutting depth of the stripping blades; the zero point of this automatic mechanism can be adjusted in fine steps under special conditions of use (insulation material, temperature). Optional: Knife block (12 49 32) designed for very hard halogen-free cables of 4 - 16 mm². With an adjustable length stop for precise, repeat-precision work. With overhead cable cutter for copper and aluminum wires, fine-stranded up to 16 mm² (AWG 6), single-wired up to 6 mm² (AWG 10). Labelling area for individualization. Comfortable to use thanks to two-component ergonomic handle. With mounting eyelet, suitable for Knipex tethered tools-accessories. Easily replaceable blade cartridge. - Wire stripping values square millimeters: 0.08 — 16.0mm² - AWG: 28 — 6


Knipex 00 21 50 LE modular X18 tool backpack empty 530 mm
00 21 50 LE Knipex Modular X18 Fits you and your tool: Convenient and comfortable thanks to fully foldable front and rear side, removable tool panel and ergonomic back cushion. As individual as you are: Optimal flexibility thanks to innovative FIDLOCK® magnetic closures and MOLLE tapes. Fit for every challenge: With two separate inner pockets for tools, measuring devices, laptop or tablet. max. Load capacity 18 kg 18 liter capacity. Resistant fabric made of sustainable recycling synthetic fibers: Water-proof and easy to clean. Waterproof floor tray made of impact resistant plastic for stable conditions in open and closed state, 6 cm high. Inside and outside four MOLLE-bands for mounting any adapter, carabiner, accessories as required. Fast FIDLOCK® magnetic fasteners are fixed or released in an instant. With a total of 21 retaining straps and 37 pockets, some with zippers. With case strap for fixing at telescopic handles of tool cases. 53 x 34 x 21 cm (H x W x D), empty weight 2.9 kg, tested load capacity up to 18 kg tool weight. - External dimension (inside): 370mm 340mm - External dimension (inside): 210mm 190mm - External dimension (inside): 530mm
