Buy Knipex TwinForce 73 71 180 Workshop Kraft side cutter non-flush type 180 mm

Hand-operated side cutters with a red handle and black cutting head, suitable for cutting thin wires and cables.

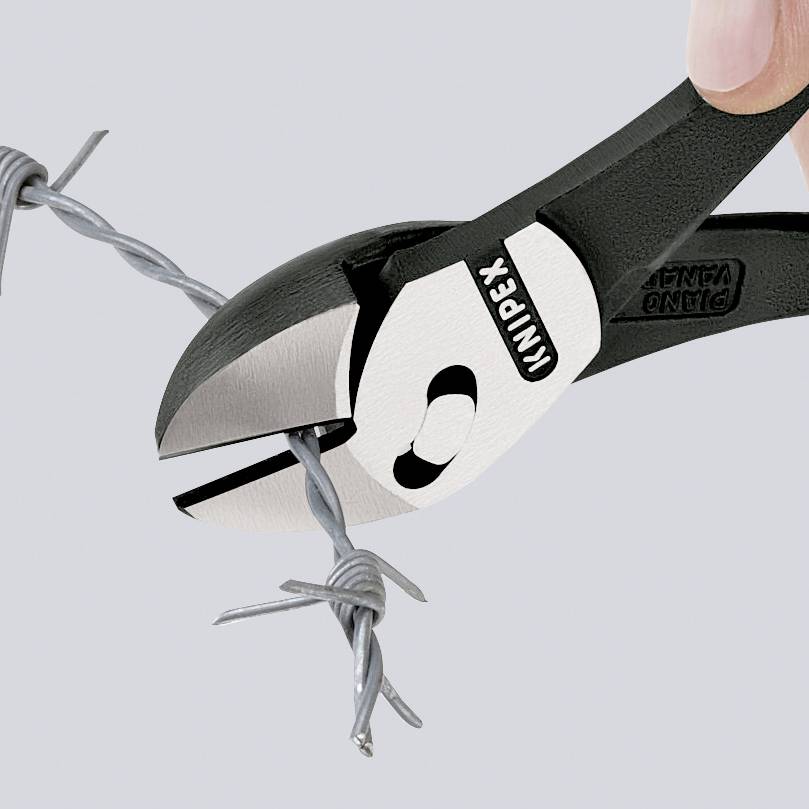

A hand holds pliers and cuts through barbed wire.

The image shows a red Knipex cutting pliers used for cutting wires. The pliers have a red handle and metallic cutting edges.

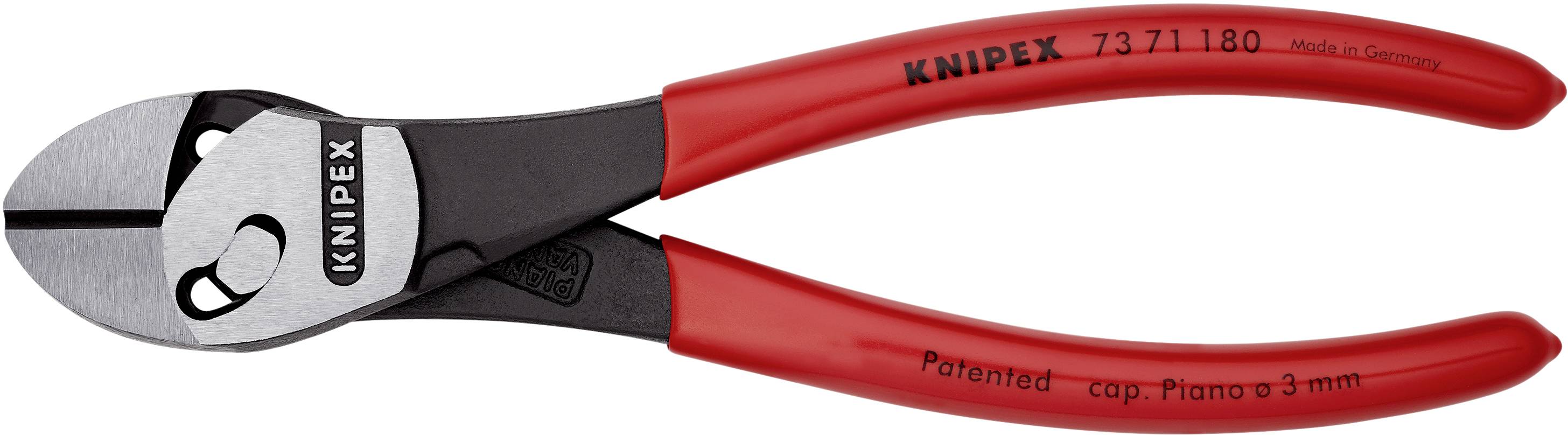

Red KNIPEX side cutters with patented design, suitable for cutting piano wire up to 3 mm in diameter.

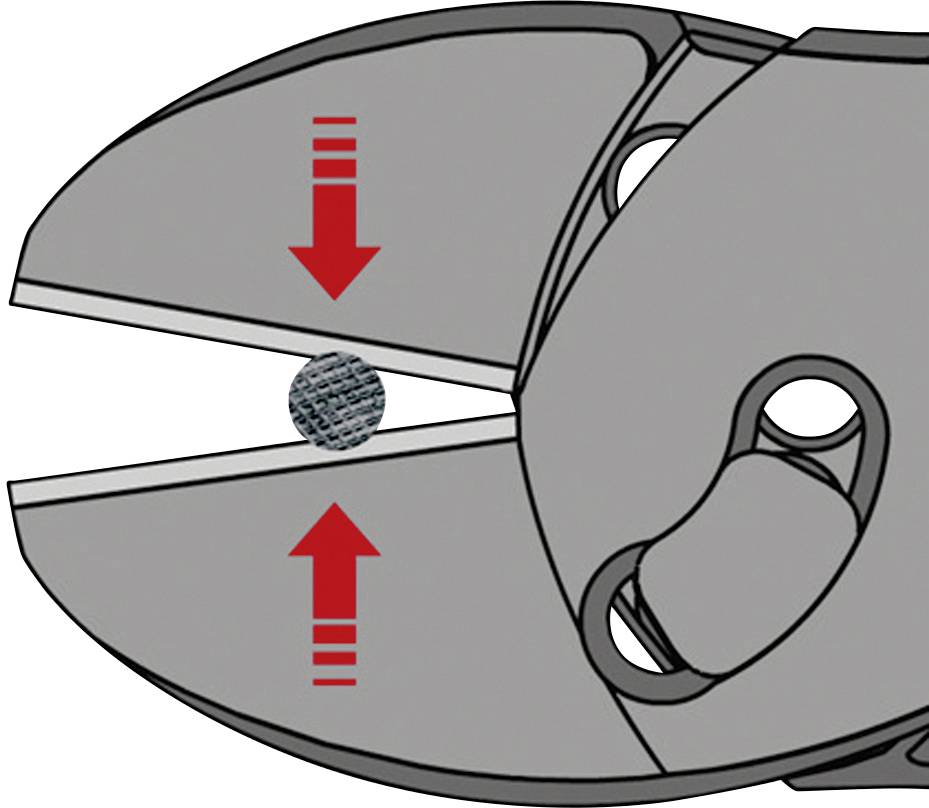

Zange squeezes a metal ball. Red arrows indicate the direction of pressure.

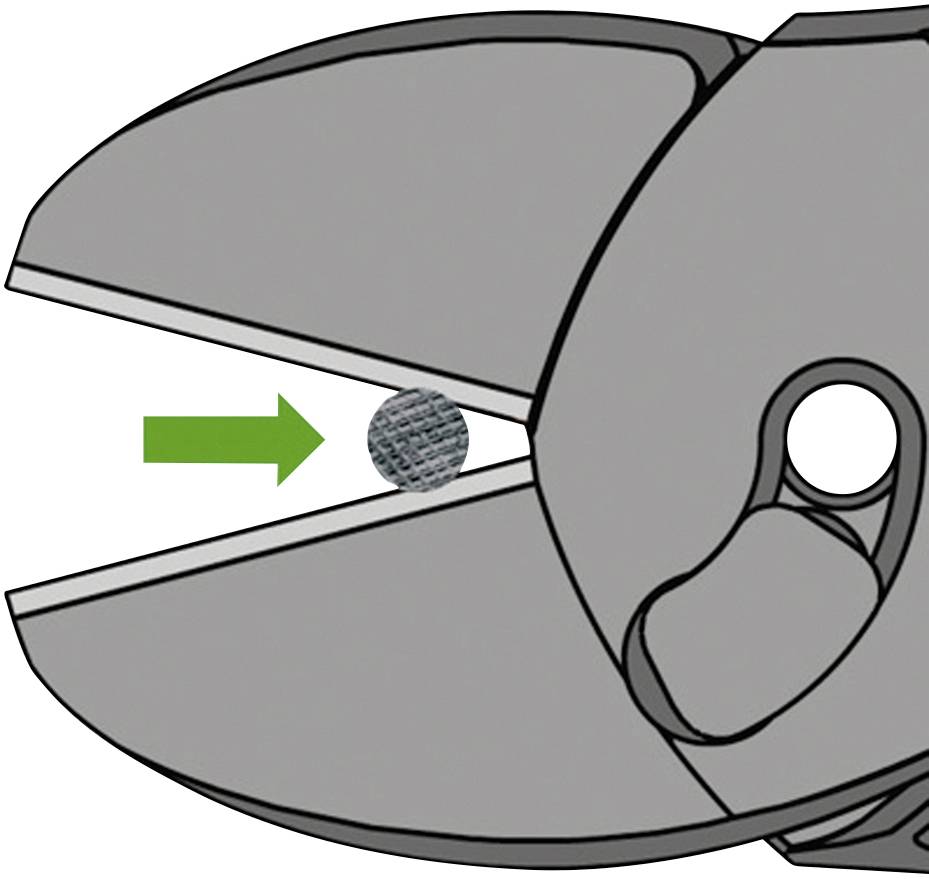

A pair of pliers cuts through a wire cable running from left to right. A green arrow points to the wire.

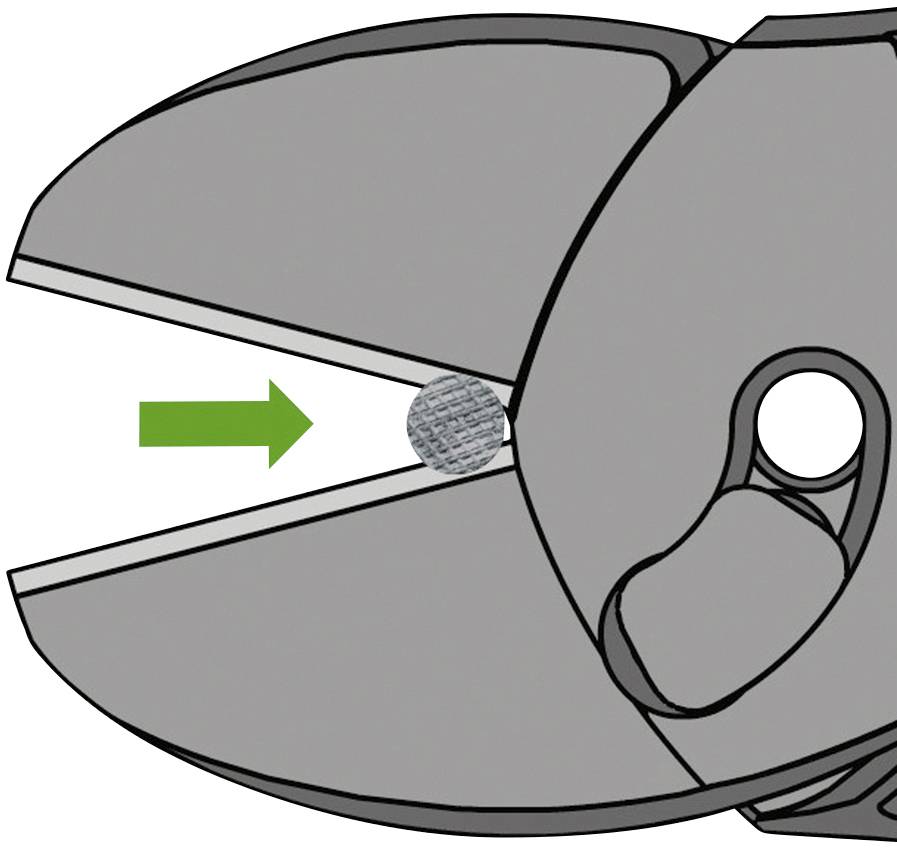

Diagram shows a bolt cutter cutting a wire. A green arrow illustrates the cutting motion.

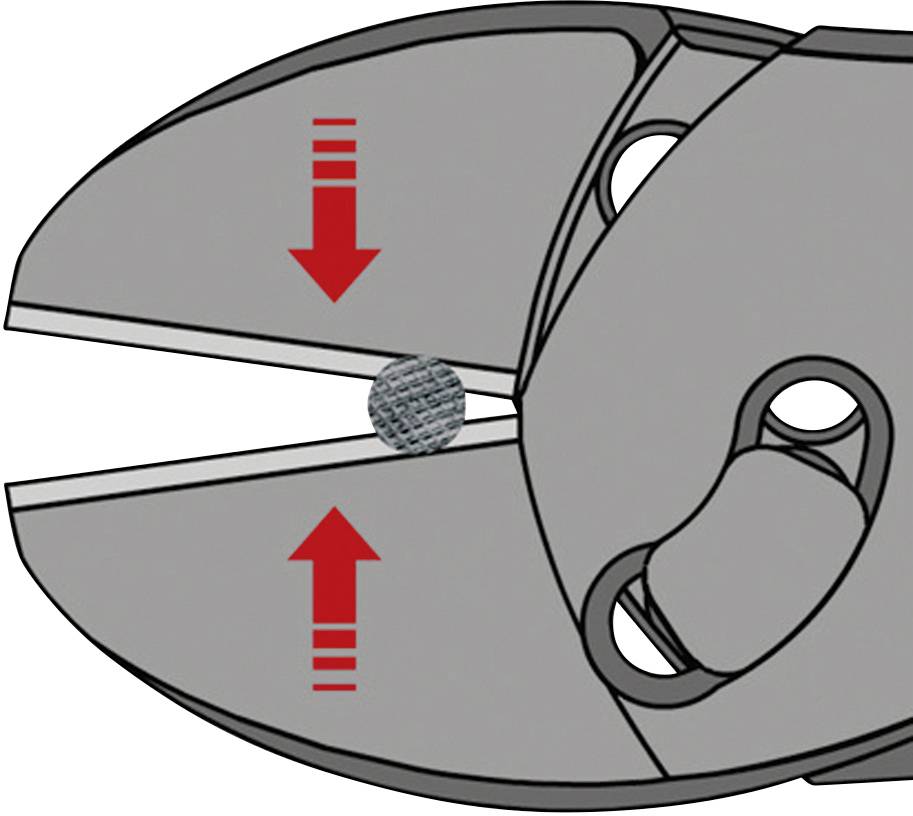

A crimping plier with arrows indicates the direction of the crimping movement on a wire positioned between the jaws.

1/9

Fast track dispatch on Thu, 1 Oct

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 47.05 / piece)

€ 47.05

plus VAT.

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

KNIPEX TwinForce High Performance Diagonal Cutter 180 mm

The Superior Power Wire Cutters with the patented double joint
Optimum transmission by double joint construction
Cuts reliably all types of wire but also tape material
For rough and finest cutting
Little impact shock: The Hand is protected. Muscles and tendons are also relieved

Technical specifications

soft wire: 5,5 Ø mm
medium hard wire: 4,6 Ø mm
hard wire: 3,2 Ø mm
piano wire: 3 Ø mm
Length: 180 mm

Product type: Kraft side cutter

Manufacturer part #: 73 71 180

Range of use: Workshop

Length: 180 mm

Material: Chromium-vanadium steel

Material properties: tempered
polishing

Wire hardness (max.) soft wire: 5.5 mm

Wire hardness (max.) medium wire: 4.6 mm

Wire hardness (max.) hard wire: 3.2 mm

Wire hardness piano wire (max.): 3.0 mm

Width: 49 mm

Weight: 255 g

Features: non-flush type

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 816252 Knipex TwinForce 73 71 180 Workshop Kraft side cutter non-flush type 180 mm

Description

Ideal transmission of force due to double-hinged design
Extremely easy cutting with little strain: cuts again 50 % easier than the tried and tested KNIPEX high leverage diagonal cutters
Reliably cuts all types of wire, including steel tape
For rough or very fine cutting
Low cutting impact: gentle on hands. The tension on muscles and tendons is relieved
For comfortable cutting, repetitive cutting or extremely hard cutting jobs
High degree of stability and zero-backlash due to precisely milled forged-in axles
Chrome vanadium heavy-duty steel, forged, oil-hardened

Features

Extremely easy cutting with low Kraftuafwand
Cuts again 50% lighter than the tried-and-tested KNIPEX power side cutter
Cuts reliably all sorts of wire as well as band material
Little impact shock as a result of which the hand-protected, the tendons and muscles, relieves
Use with more comfort, for much cutter or for particularly harsh cutting cases
High stability and play free response by forged and precision machined joint axes
Chromium-vanadium high-grade steel forged and oil-hardened.
