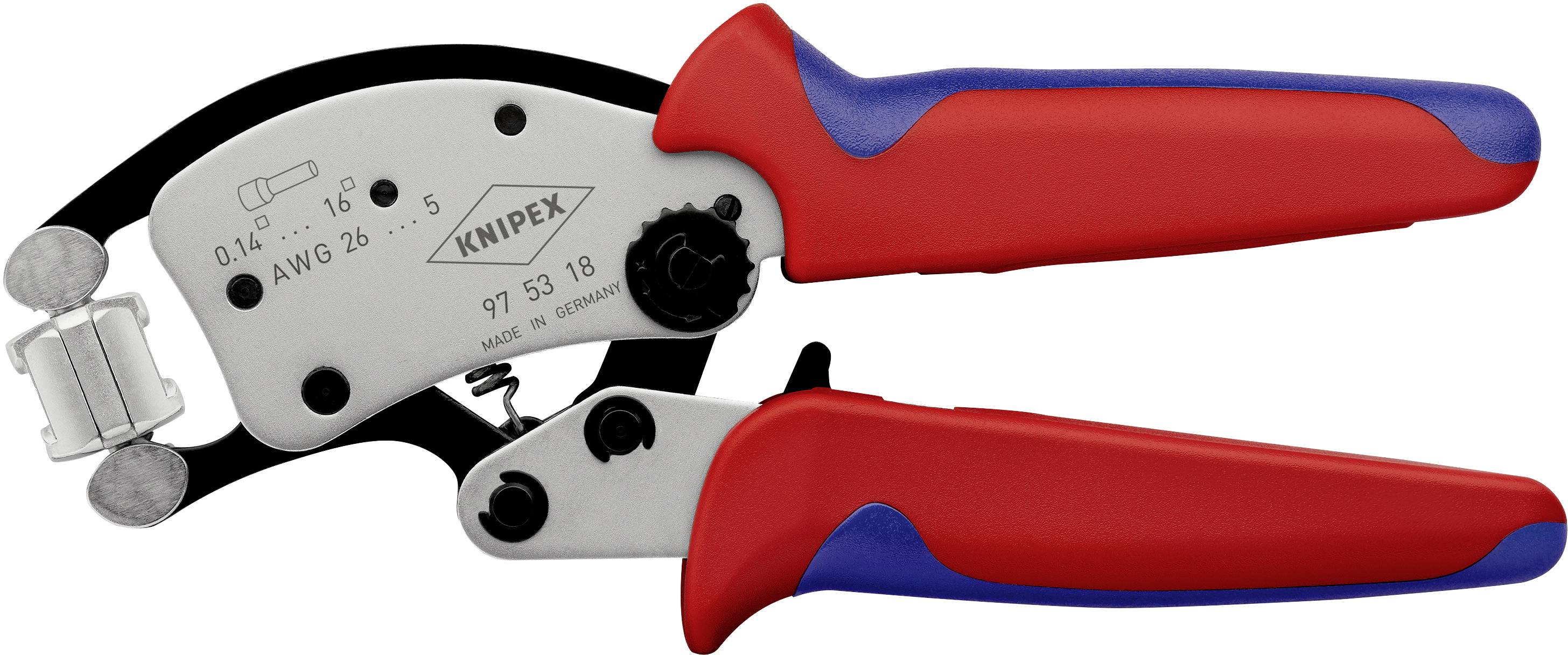

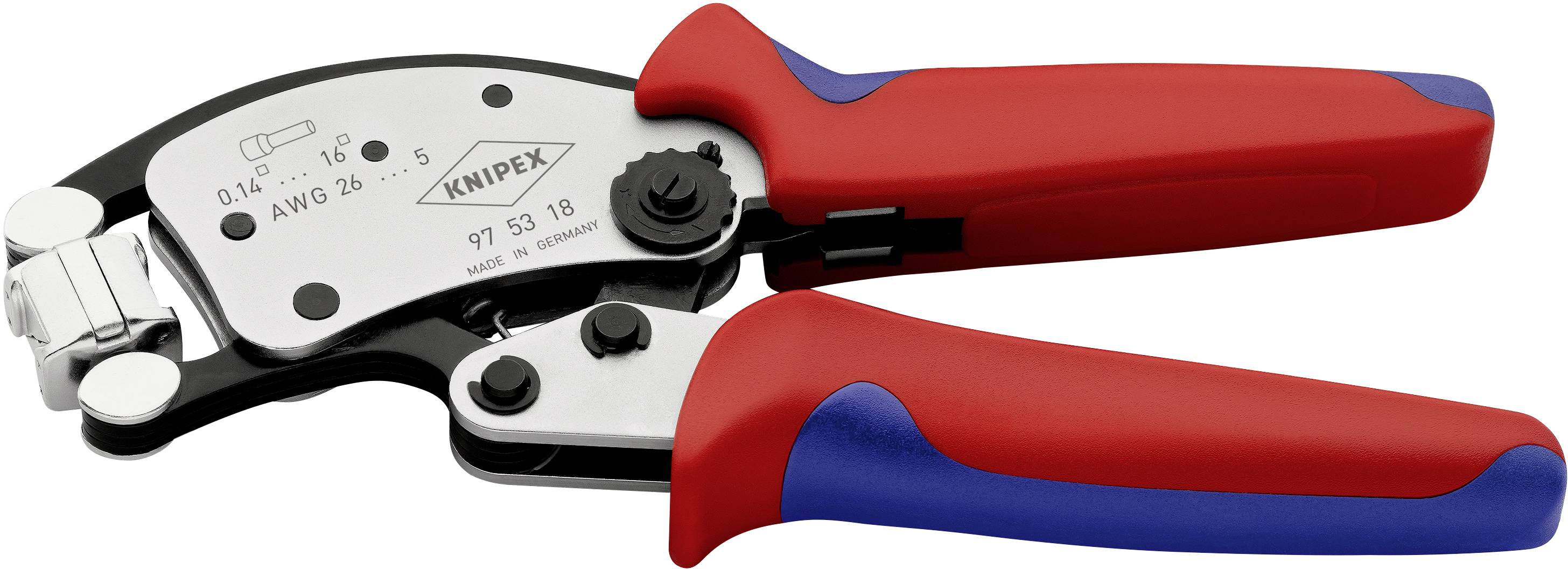

Knipex Twistor16 97 53 18 Crimper Ferrules 0.14 up to 16 mm²
EAN:
Part number:
Item no:
Wire-end sleeves crimping pliers Twistor 16
Highlights & Details

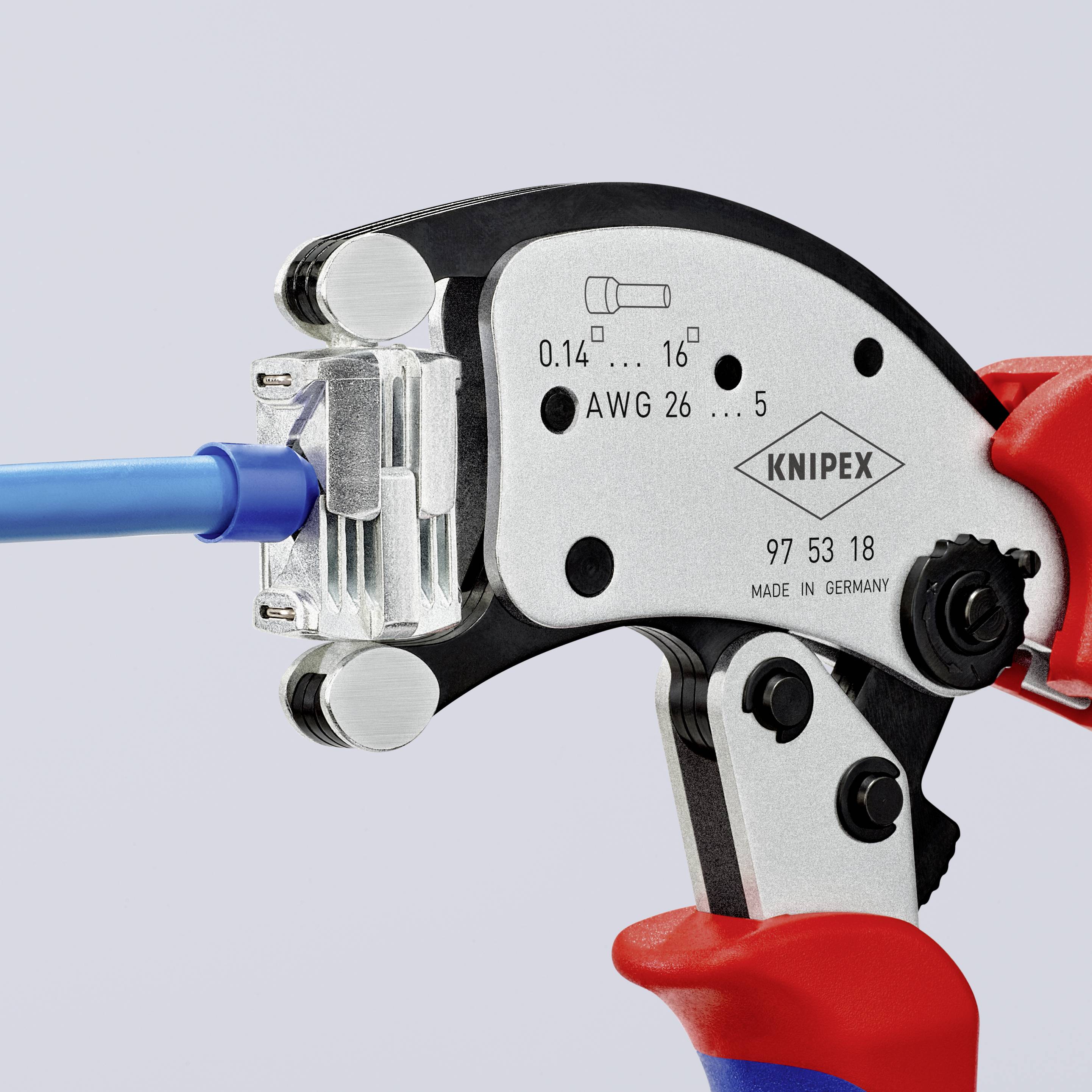

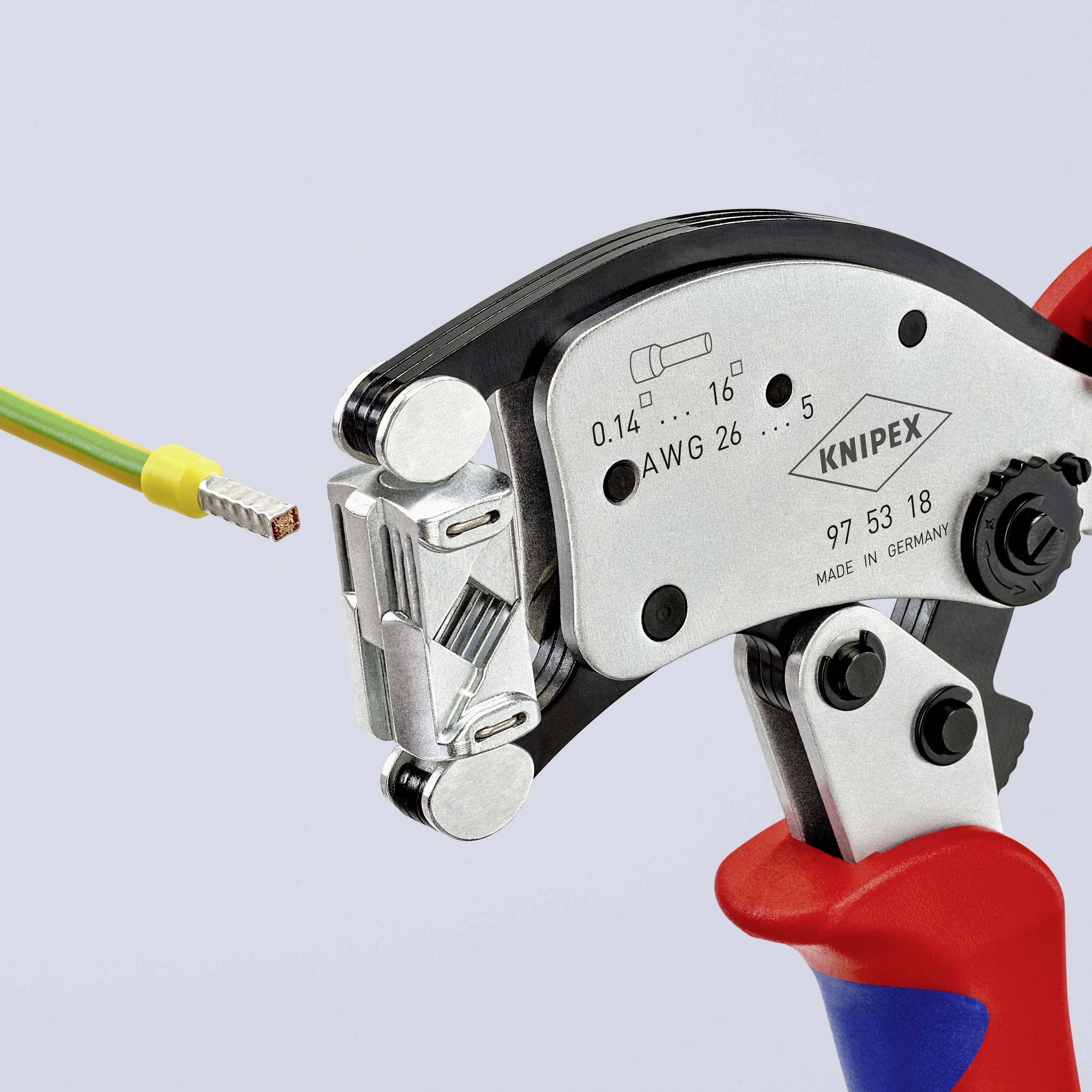

- For pressing of wire end sleeves DIN 46228 Part 1 + 4
- Square crimping profile, large capacity range of ,14 up to 16mm²
- 36° rotating crimp insert with 8tangible positions
- Self-adjusting adjustment to the desired wire end sleeves size: no crimp errors by using the wrong crimp insert or a wrong setting
- Crimping Twin wire-end sleeves up to 2 x 6 mm² possible
Technical specifications
- Product type
Crimper
- Manufacturer part #
97 53 18
- Range of uses
Ferrules
- Crimp area
0.14 up to 16 mm²
- Crimp area AWG
5 up to 26 awg
- Crimp area (min.)
0.14 mm²
- Crimp area (max.)
16 mm²
- Crimp area AWG (min.)
26 awg
- Crimp area AWG (max.)
5 awg
- Length
200 mm
- Material
Chromium-vanadium electric furnace steel
- Width
80 mm
- Height
300 mm
- Weight
478 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1674878 Knipex Twistor16 97 53 18 Crimper Ferrules 0.14 up to 16 mm²
Description
For pressing of wire end sleeves DIN 46228 Part 1 + 4 Square crimping profile, large capacity range from 0.14 to 16mm². 360° rotating crimp insert. With 8 tangible positions. Self-adjusting adjustment to the desired wire end sleeves size: no crimp errors by using the wrong crimp insert or a wrong setting. Crimping Twin wire-end sleeves up to 2 x 6 mm². Slim head for optimum accessibility. consistently high crimping quality through locking device (can be unlocked) Favorable translation ratios through toggle lever mechanism. Crimping pressure is factory-precisely adjusted (calibrated), operating positions. High usage comfort through handy design and low weight. Chromium-vanadium electro-steel in special quality, oil-hardened
