Knipex X-Cut 73 02 160 Workshop Side cutter non-flush type 160 mm
EAN:
Part number:
Item no:
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
Only 8 Piece(s) available
X-Cut compact side cutting pliers, 73 02 160
Highlights & Details
- Powerful, easily and universally

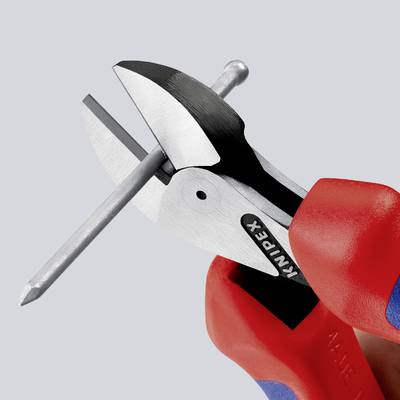

- Precise Cuts finest wires as well as multi-strand cables and hard piano wire
- Box joint: highest stability combined with low weight
- High cutting power with low application of force through optimum matching of cutting angle and transmission ratio
- 4% less effort required in comparison to standard side cutting pliers of the same length
Technical specifications
- Product type
Side cutter
- Manufacturer part #
73 02 160
- Range of use
Workshop
- Length
160 mm
- Material
Chromium-vanadium steel
- Material properties
tempered
polishing
- Wire hardness (max.) soft wire
4.8 mm
- Wire hardness (max.) medium wire
3.8 mm
- Wire hardness (max.) hard wire
2.7 mm
- Wire hardness piano wire (max.)
2.2 mm
- Width
55 mm
- Height
22 mm
- Weight
175 g
- Features
non-flush type
- Type
Pliers black atramentised, polished head, grips with multi-component sheaths.
- Type
73 02 160
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 816409 Knipex X-Cut 73 02 160 Workshop Side cutter non-flush type 160 mm
Description
Precise Cuts finest wires as well as multi-strand cables and hard piano wire. Powerful, easy and universal. High cutting power with low application of force through optimum matching of cutting angle and transmission ratio Box joint: highest stability combined with low weight Doubly supported joint axis for heavy-duty, continuous use Large opening angle for thicker cables Precise cutting even for fine CU wires Compact, lightweight design Can be used universally in mounting, maintenance and production 40% less effort required in comparison to standard side cutting pliers of the same length. Chrome-vanadium high speed steel, forged, oil-hardened multi-level
This text is machine translated.
This text is machine translated.
Features
- Box joint: highest stability combined with low weight
- Doubly supported joint axis for heavy-duty, continuous use
- High cutting power with low application of force through optimum combination of cutting edge angle and transmission ratio with laterally offset fulcrum
- Large opening angle for thicker cables
- Precise cutting even for fine CU wires
- Compact, lightweight design
- Can be used universally in mounting, maintenance and production
- Chrome vanadium high-performance steel, forged, oil-hardened.
