Knipex X-Cut 73 05 160 T Workshop Side cutter 160 mm
EAN:
Part number:
Item no:
Highlights & Details
Bolt cutter X-Cut ®
- Compact and 25% lighter. Powerful and precise

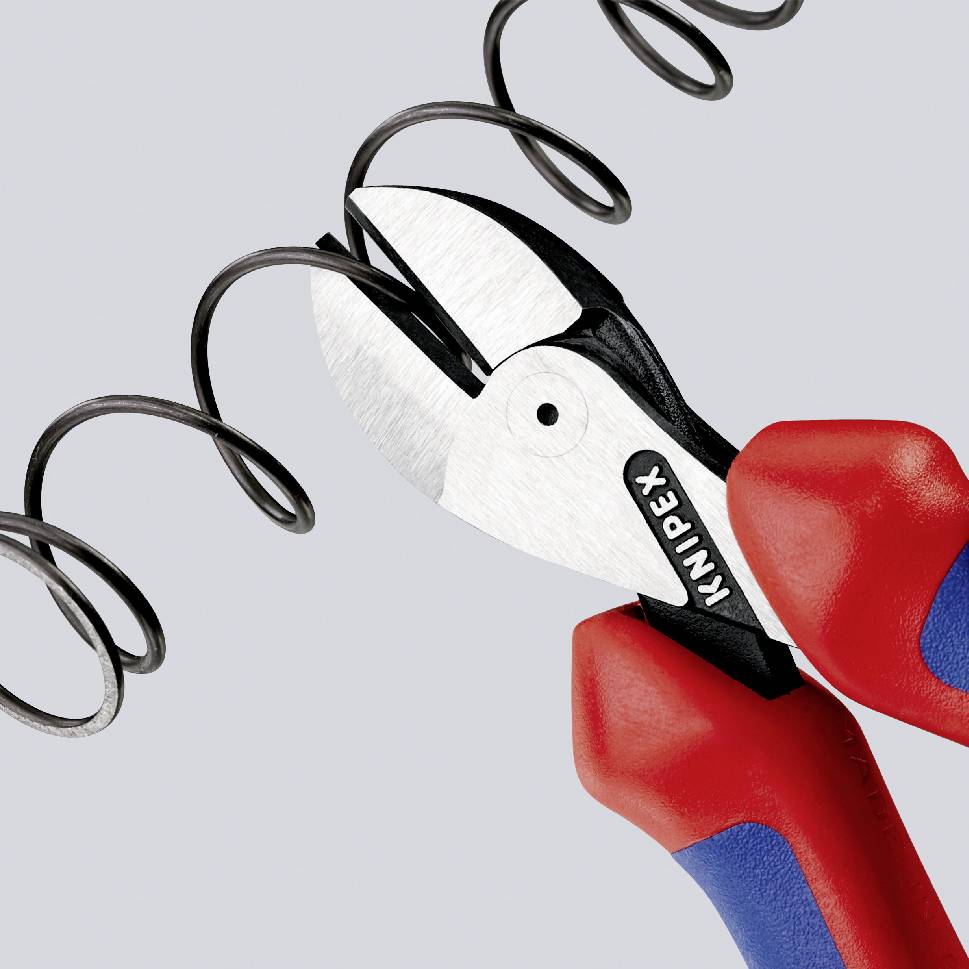

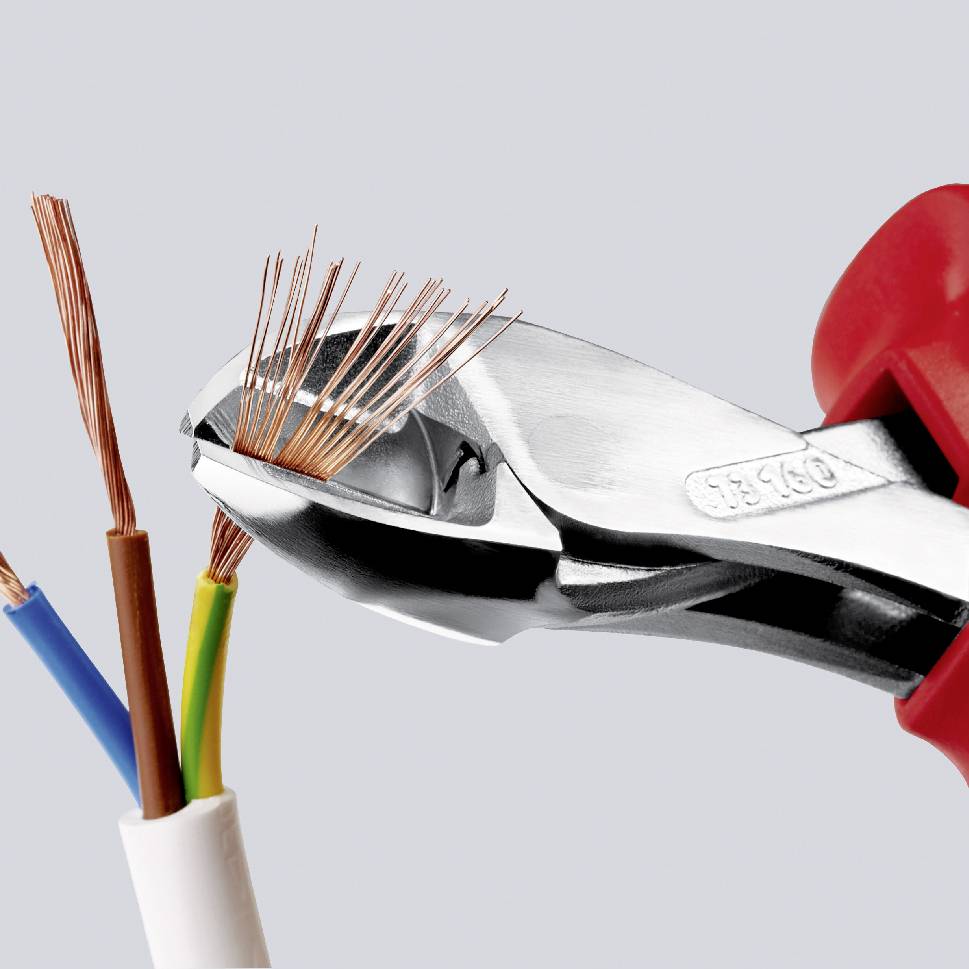

- Precise Cuts finest wires as well as multi-strand cables and hard piano wire
- Box joint: highest stability combined with low weight
- Doubly supported joint axis for heavy-duty, continuous use
- High cutting power with low application of force through optimum matching of cutting angle and transmission ratio
Technical specifications
- Cutting value for copper cables, multi-wired (dia.) 12.00 mm
- Product type
Side cutter
- Manufacturer part #
73 05 160 T
- Range of use
Workshop
- Length
160 mm
- Material
Chromium-vanadium premium steel
- Material properties
chrome plated
- Wire hardness (max.) soft wire
4.8 mm
- Wire hardness (max.) medium wire
3.8 mm
- Wire hardness (max.) hard wire
2.7 mm
- Wire hardness piano wire (max.)
2.2 mm
- Width
55 mm
- Weight
180 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1462209 Knipex X-Cut 73 05 160 T Workshop Side cutter 160 mm
Description
Compact and 25% lighter. Powerful and precise. Cuts finest wires as well as multi-strand cables and hard piano wire. Box joint: highest stability combined with low weight Doubly supported joint axis for heavy-duty, continuous use High cutting power with low application of force through optimum matching of cutting angle and transmission ratio 40 % less effort required in comparison to power side cutting pliers of the same length. Large opening angle for thicker cables Precise cutting even for fine CU wires Compact, lightweight design Can be used universally in mounting, maintenance and production Chrome vanadium high-performance steel, forged, oil-hardened. Pliers with Eyelet for attaching a fall protection.
