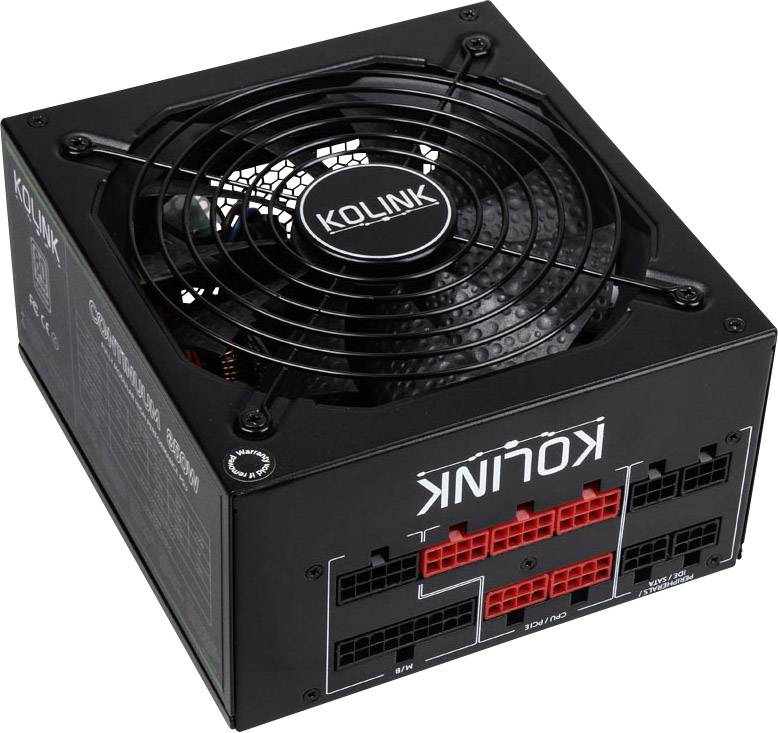

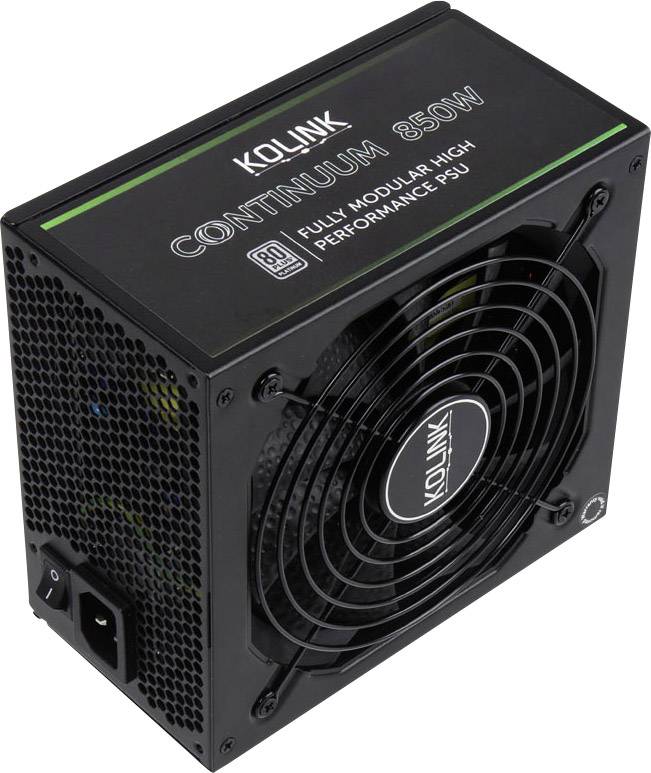

Kolink KL-C850PL PC power supply unit 850 W ATX 80 PLUS Platinum
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
850 W
Modular
Yes
Certification
80 PLUS Platinum
Form factor
ATX
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
14-day return policy included
Kolink KL-C850PL PC power supply unit
Highlights & Details
- Power supply unit output 850 W
- PCI-Express (6+2-Pin) 6x
- Cable management Yes
- 80 PLUS Platinum
Technical specifications
- Product type
PC power supply unit
- PSU output power
850 W
- Modular
Yes
- Certification
80 PLUS Platinum
- Form factor
ATX
- Dim
(W x H x D) 150 x 86 x 180 mm
- Depth
180 mm
- Height
86 mm
- Width
150 mm
- -12V / DC
0.3 A
- +12 V/DC (1)
70.9 A
- +5V / DC SB
3 A
- 8-pin 12 V
1
- 20+4-pin.
1
- 4-pin Molex
6
- 4+4 pin ATX/EPS 12V
1
- 6-pin PCIe
6
- 5-pin SATA
8
- Output rating > 700 W
850 W
- Power rating
751 W -
- 3.3V DC
22 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1678487 Kolink KL-C850PL PC power supply unit 850 W ATX 80 PLUS Platinum
Description
With high-end models with more than 850 watts nominal power and 80 Plus Platinum efficiency is the well-known brands in Germany Kolink immediately in anything. For such power sets kolink on top-class technology. The Continuum power supply with the entire nominal performance when you need it on the +12 volt rail under stress. Straight on systems with multiple main processors and graphics cards are very different load states commonplace that kolink the new direction controllers from the outset with extremely scenarios designed.

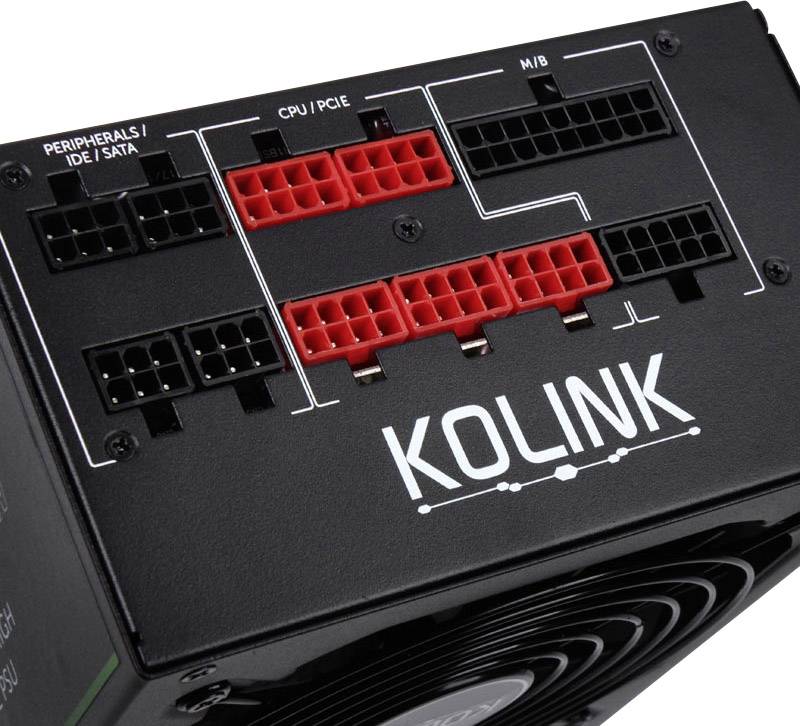

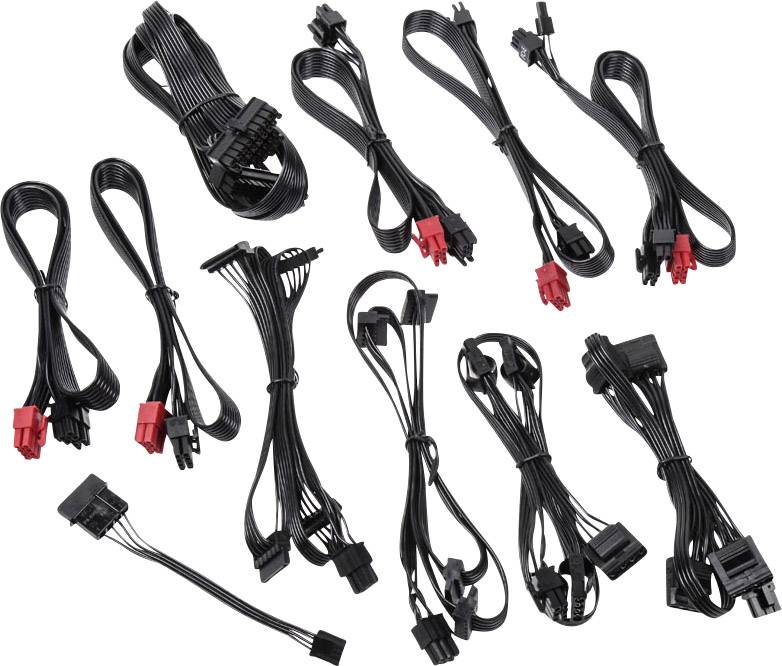

A clear highlight of the fully modular Kolink Continuum C850 PL is the gigantic facilities with connections. In addition to the 20+4-pin ATX-plug for the Board, each with a 4+4-pin and a 8-pin 12V EPS-plug up to two high-processors. For the graphics cards are all six 6+2-pin-Ie-Steckern at three wire harnesses. The other components are with eight SATA and six 4-pin molex plugs are supplied. Thus, every power supply of the new continuum series permanently special services. A successful entry into the market for high-end power supplies!
This text is machine translated.
A clear highlight of the fully modular Kolink Continuum C850 PL is the gigantic facilities with connections. In addition to the 20+4-pin ATX-plug for the Board, each with a 4+4-pin and a 8-pin 12V EPS-plug up to two high-processors. For the graphics cards are all six 6+2-pin-Ie-Steckern at three wire harnesses. The other components are with eight SATA and six 4-pin molex plugs are supplied. Thus, every power supply of the new continuum series permanently special services. A successful entry into the market for high-end power supplies!
This text is machine translated.
Hints
For the benefit of the environment dispensed with the manufacturer of the mitlieferung of a cold-device cable for connecting to the mains.
