KOPOS KSK 175_DPO Cable splitter (L x W x H) 176 x 126 x 88 mm Orange 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 62.18 / piece)
€ 62.18
plus VAT.
14-day return policy included
Technical specifications
- According to the standard EN 60670-1
- Product type
Cable splitter
- Factory colour
Orange
- Dim

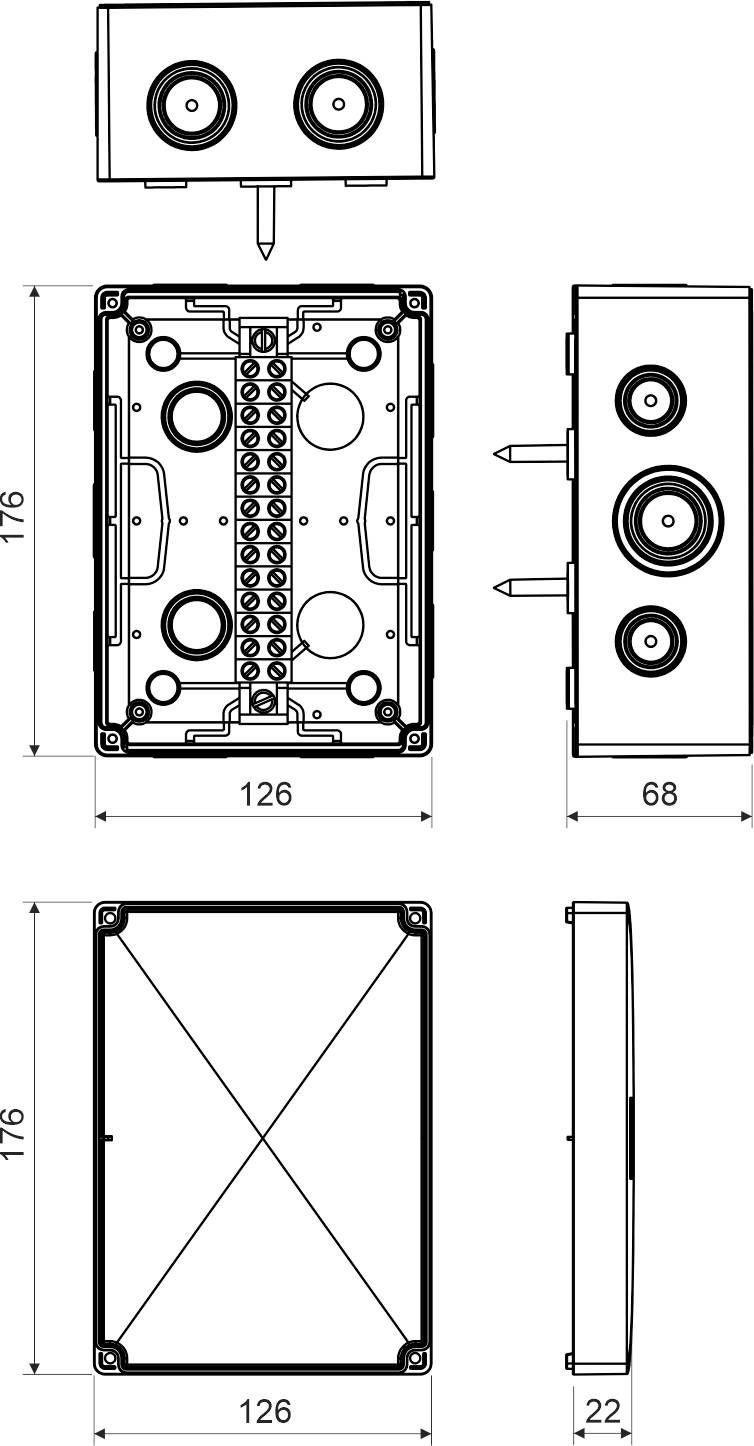

(L x W x H) 176 x 126 x 88 mm
- Features
Halogen-free
- Content
1 pc(s)
- Width
126 mm
- Height
88 mm
- Length
176 mm
Documents & Downloads
Datasheet
Datasheet 2497018 KOPOS KSK 175_DPO Cable splitter (L x W x H) 176 x 126 x 88 mm Orange 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2497018 KOPOS KSK 175_DPO Cable splitter (L x W x H) 176 x 126 x 88 mm Orange 1 pc(s)
Description
Suitable for installation which requires maintenance in case of a fire. Use only for network cables (data)With function maintenance. The box contains a ceramic terminal with functional retention - this is suitable for 14 conductors with cross-section of 0.5 to 4 mm².The can is attached to the concrete with the attached anchor. The soft puncture membranes enable a simple cable gland with compliance with the protection class IP 66.The cover is secured by the supplied stainless steel screws.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Junction box
- Stainless steel screws
- Ceramic terminal
