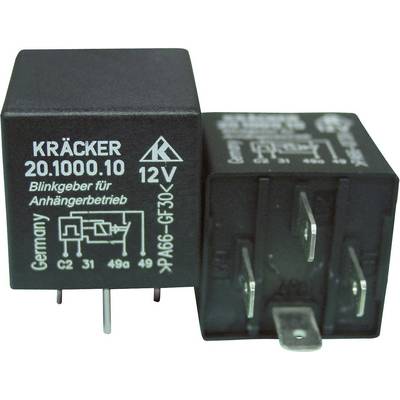

Kräcker 20.1000.10 Automotive relay 12 V DC 20 A 1 maker
EAN:
Part number:
Item no:
Product type
Automotive relay
Coil nominal voltage
12 V DC
Contact type
1 maker
Connection
Type C CEE 7/16 plug 6.3 mm
Switching voltage (max.)
12 V DC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 15.96
-32 %
€ 10.92
plus VAT.
14-day return policy included
Highlights & Details
Kräcker Original Equipment Manufacturer Car-Relay
Technical specifications
- Description: Warn-Blink-Relay for agricultural trailer
- Product type
Automotive relay
- Type
20.1000.10
- Features
w/o elbow mount
- Coil nominal voltage
12 V DC
- Contact type
1 maker
- Connection
Type C CEE 7/16 plug 6.3 mm
- Switching voltage (max.)
12 V DC
- Switching current (max.)
20 A
- NO switching current (max.)
20 A
- Resistance (coil)
68 Ω
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Width
30 mm
- Height
30 mm
- Length
30 mm
- Dim
(L x W x H) 30 x 30 x 30 mm
- RoHS-compliant
Yes
- Nominal voltage (details)
12 V DC
- Switching voltage
12 V DC
- Switching current
20 A
- Type
20.1000.10
- Description
Warn-Blink-Relay for agricultural trailer
Documents & Downloads
Datasheet
Datasheet 504046 Kräcker 20.1000.10 Automotive relay 12 V DC 20 A 1 maker
User & Safety Instructions
User & Safety Instructions 504046 Kräcker 20.1000.10 Automotive relay 12 V DC 20 A 1 maker
Information
Information 504046 Kräcker 20.1000.10 Automotive relay 12 V DC 20 A 1 maker
Description
These car relays are used as original equipment by many car manufacturers (you can find the checklist at our site in the Internet). Top-class quality and hundred percent form-fitness are thus guaranteed.
Hints
Switch current information refers to peak current. Full details free to download from our comprehensive product documents library.
