Name: Krause 710147 Gerüstaufstockung Aluminium 2nd height extension Operating height (max.): 7.00 m Silver 36.1 kg
Brand: Krause
SKU: 2521523

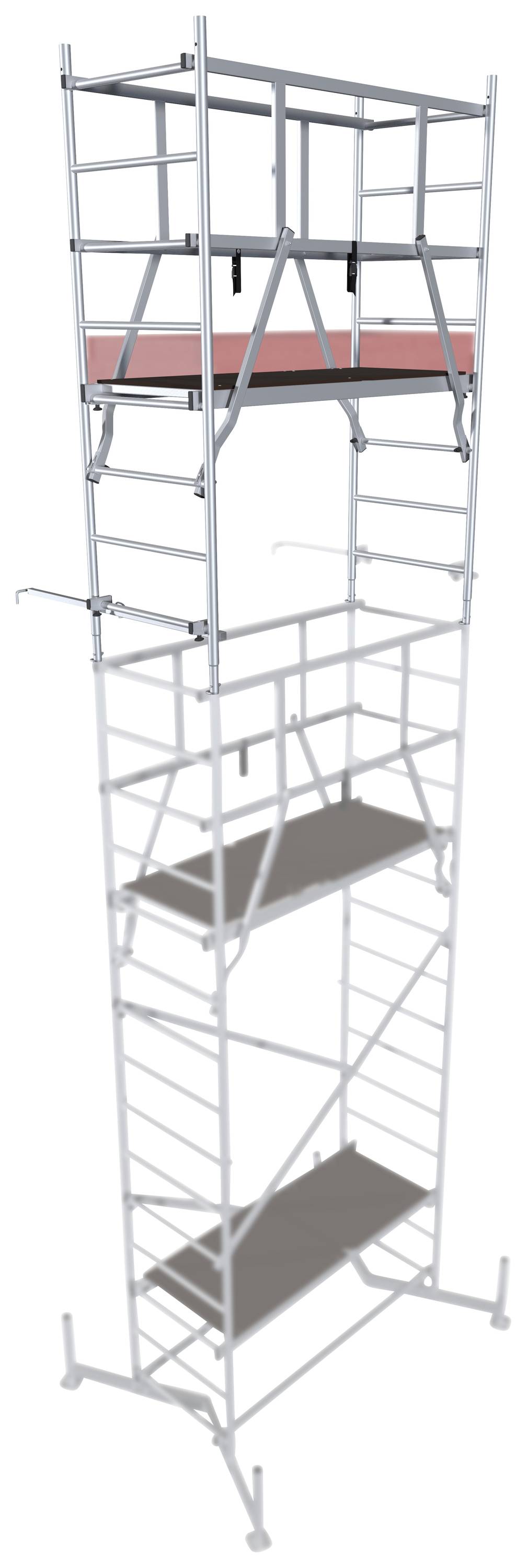

A multi-level scaffold with two work platforms positioned at different heights, suitable for high-altitude construction work.

A mobile scaffolding with multiple working levels, suitable for construction work or repairs on tall buildings.

Close-up of a metallic frame joint. A black rotary knob is visible, connecting two silver tubes.

A simple metal bed frame with a headboard in a minimalist design. It features a dark wooden surface as the sleeping area.

A silver scaffolding with a platform and safety barrier. The scaffolding has ladders on both sides. Ideal for construction work.

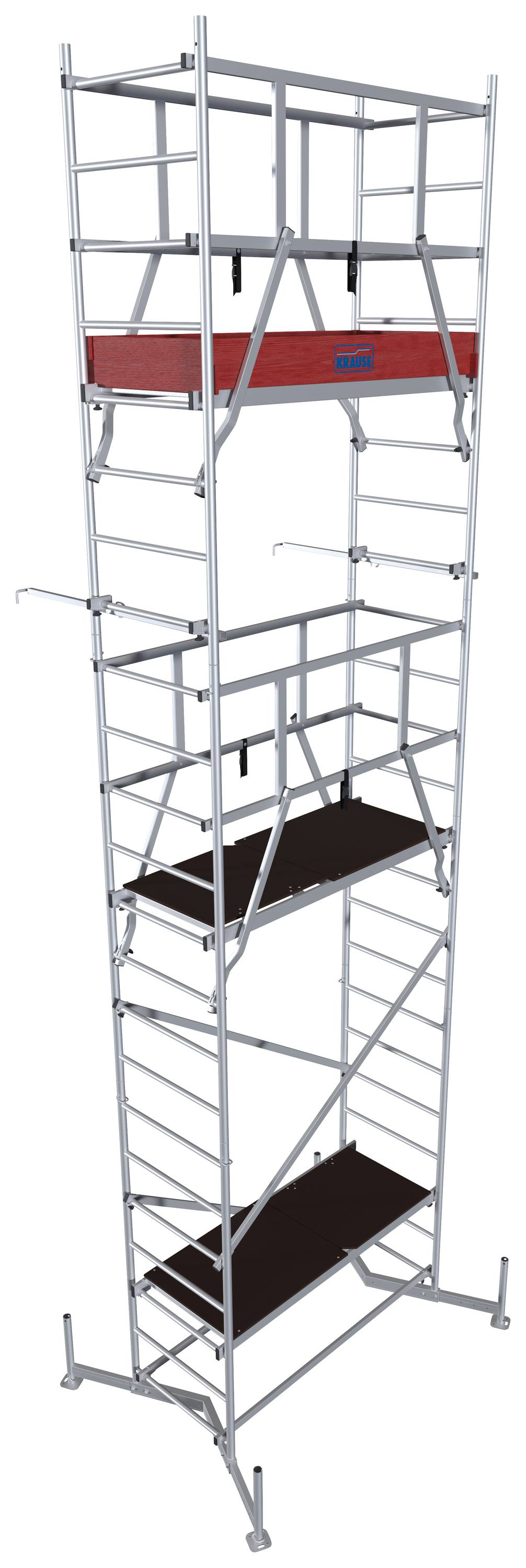

'A tall scaffolding structure with two platforms and a red element in the middle, suitable for construction and renovation work. Safe and stable.'

A person is standing on scaffolding and holding onto the upper rungs. They are wearing a red T-shirt and blue jeans.

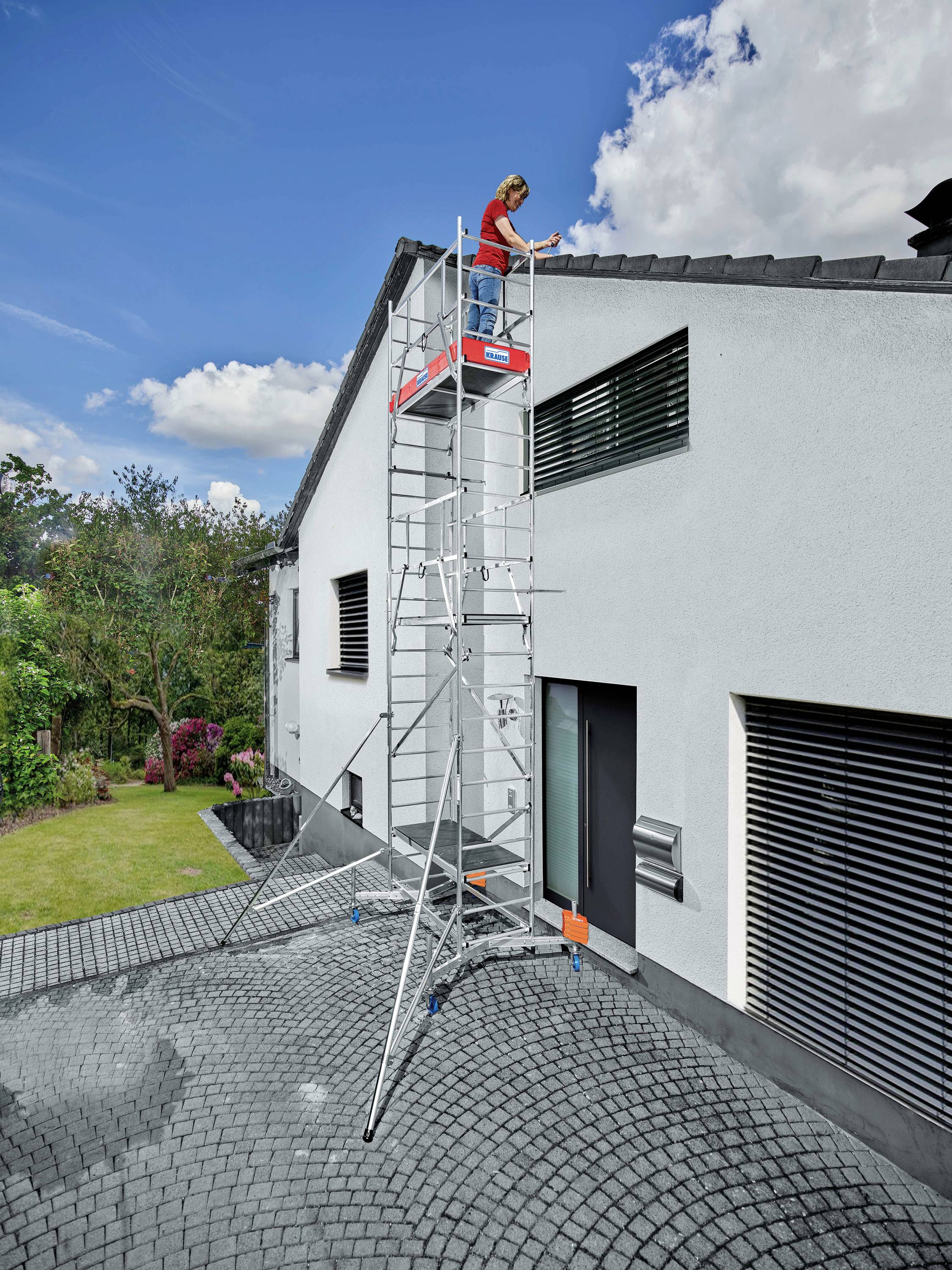

A person is standing on a tall, sturdy ladder against the side wall of a house and working on the roof. The surroundings are a garden.

Image of an aluminium scaffold with two platforms marked by a vertical red line and '2m', used for height measurement.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

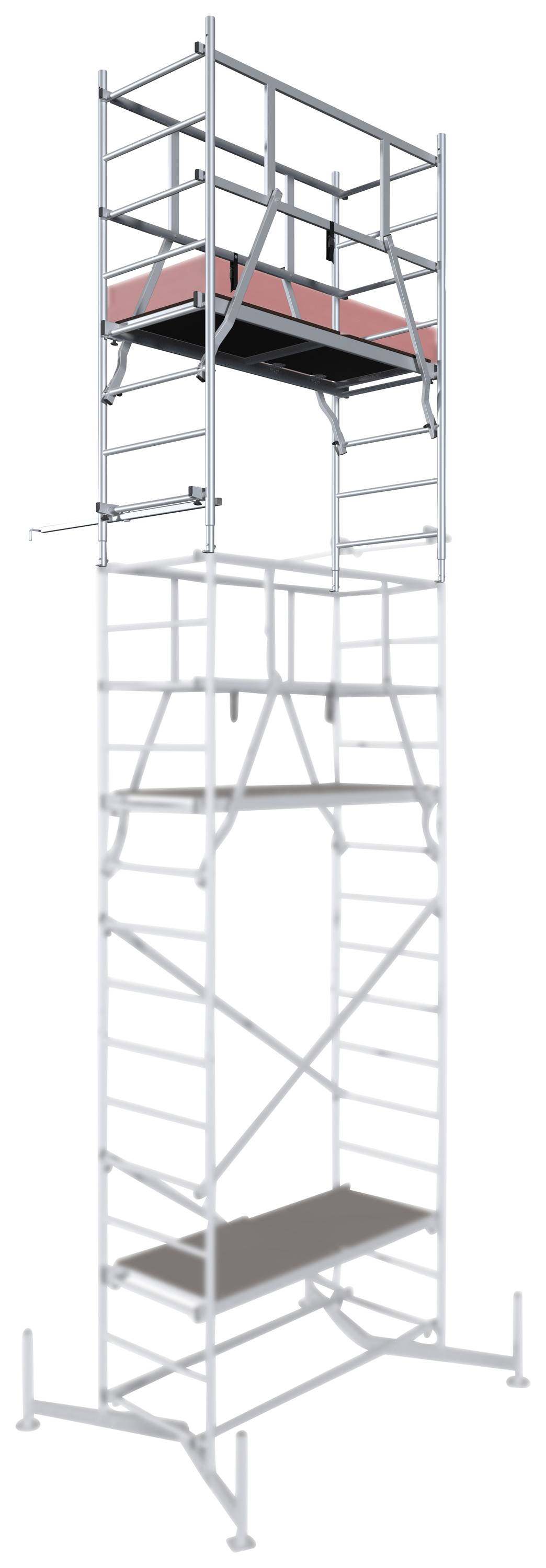

MONTO ClimTec aluminum work frame, 2. Height of extension, working height approx. 7.00 m.

TUV-tested, load capacity 200 kg/m² according to DIN EN 1004-1

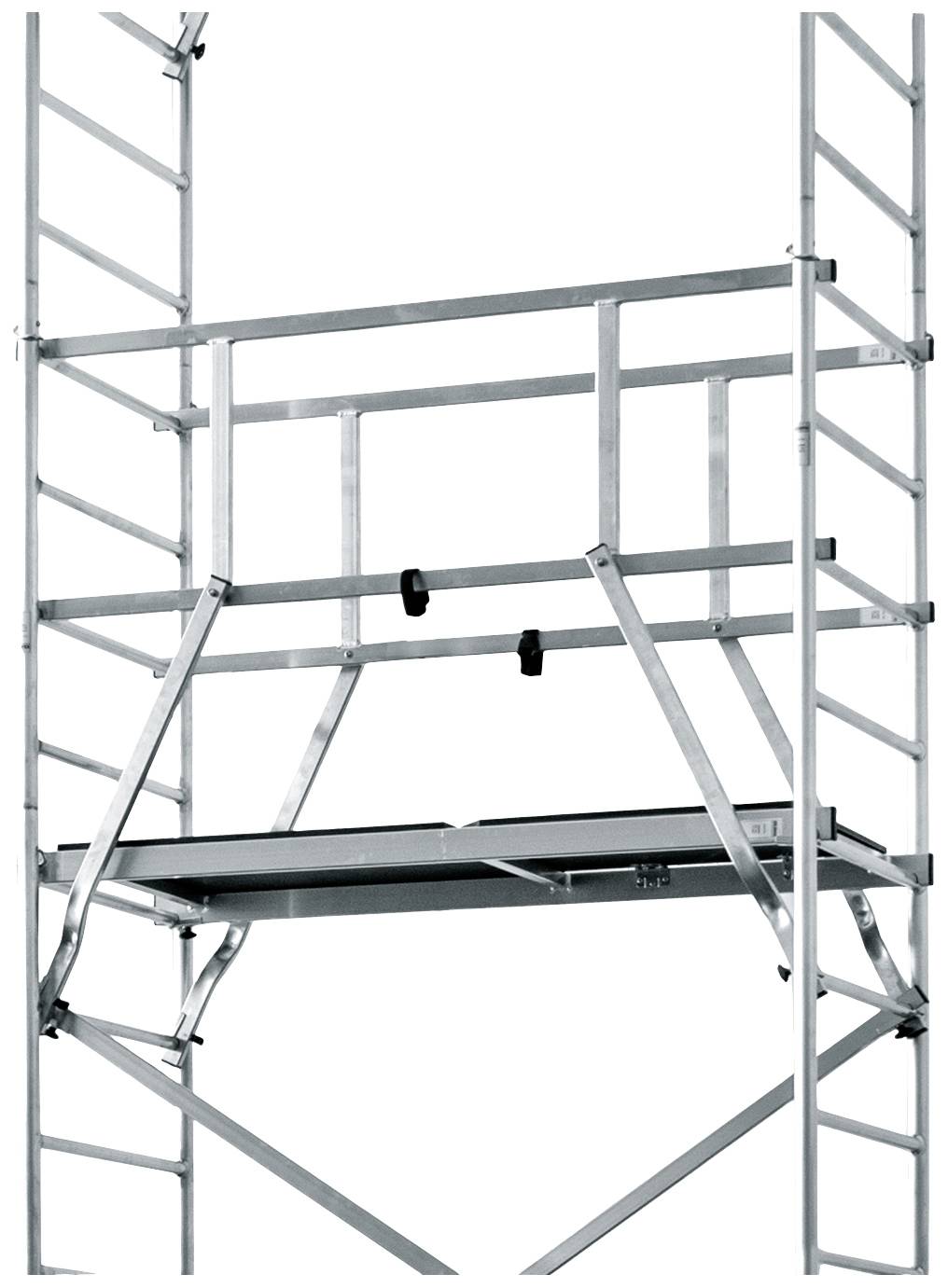

The GuardMatic system can be folded together to save space for transport or storage
The innovative shape of the diagonals offers a maximum usable surface on the surface stage and does not disturb in any way
The 6-point fixing of the GuardMatic system provides for maximum stability in height

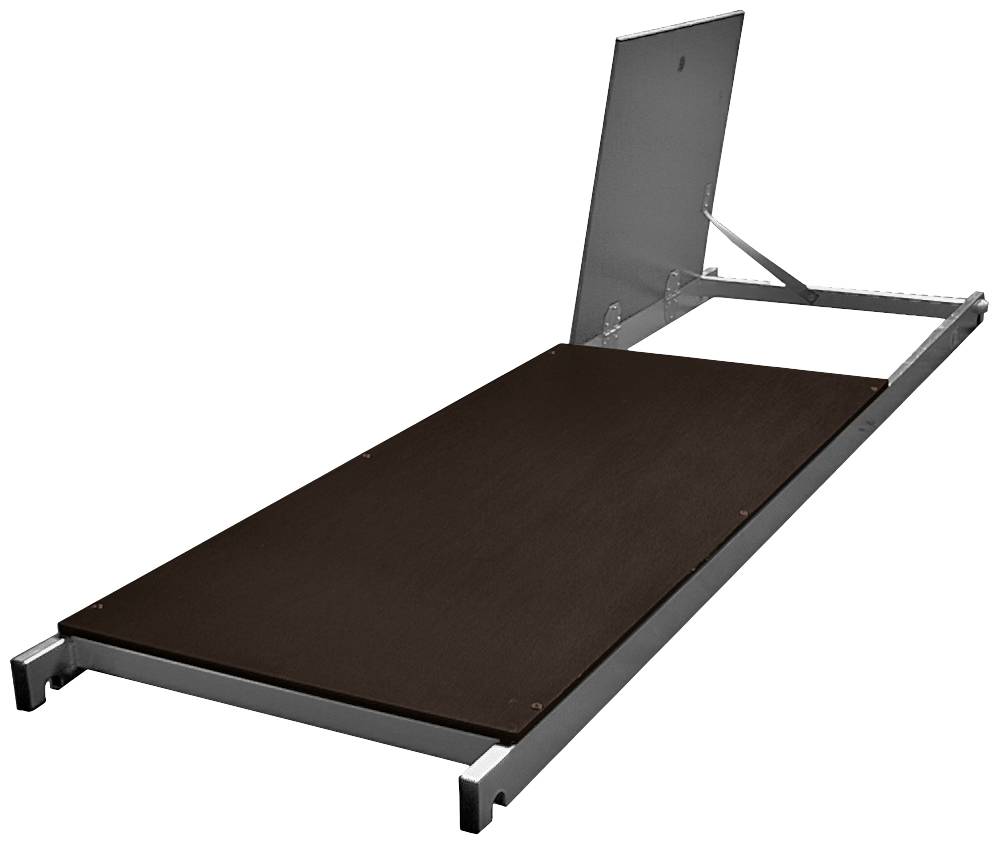

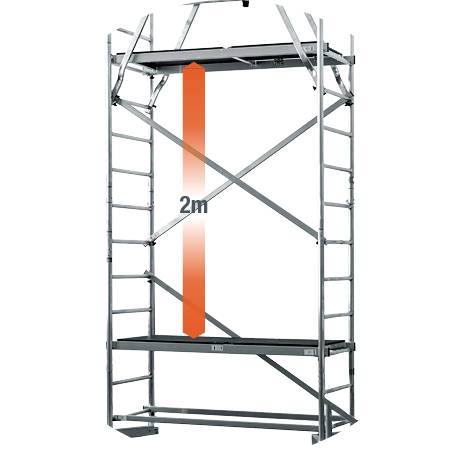

Each package is equipped with a lining platform, so that a maximum distance of 2 m is ensured

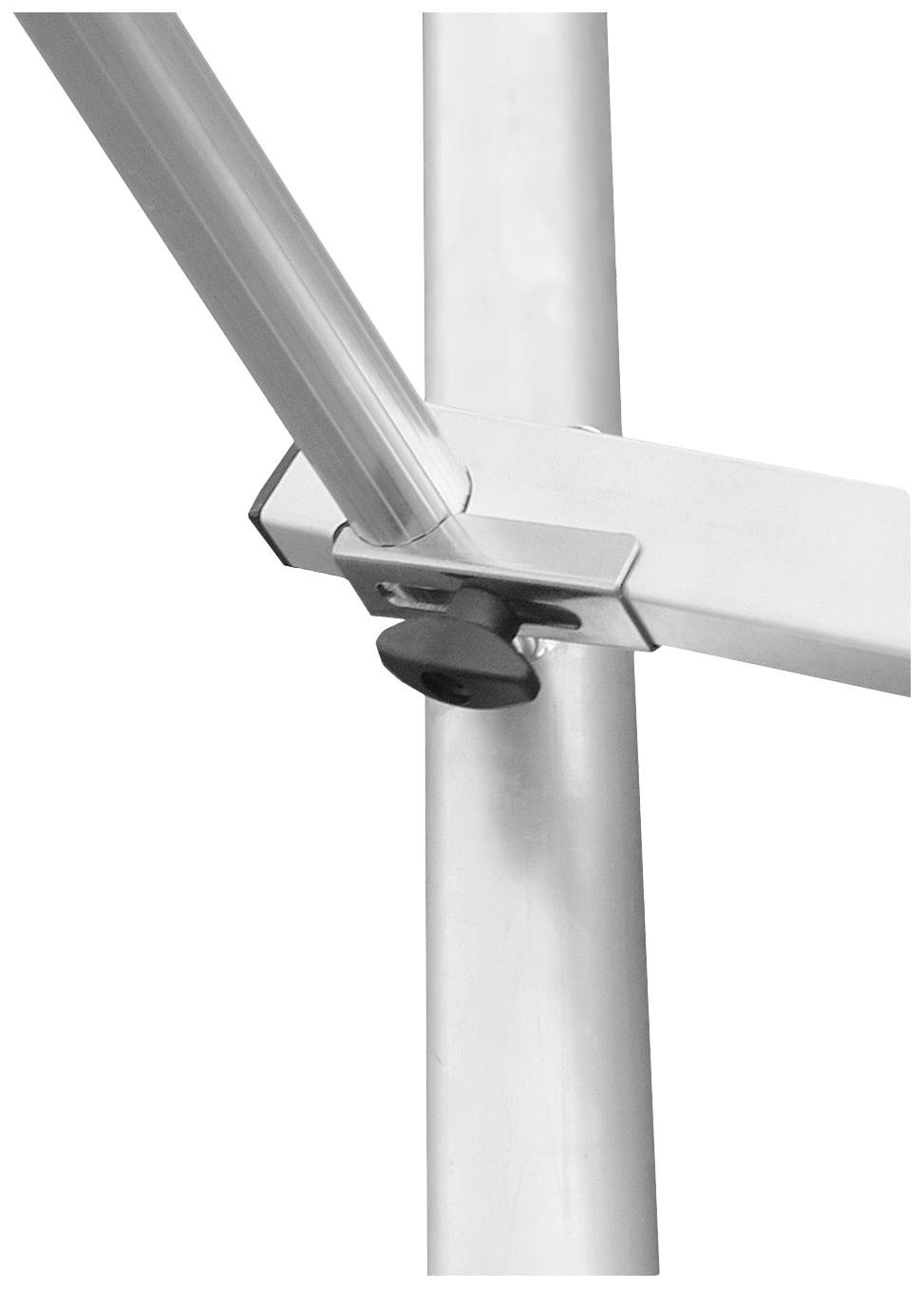

Quick, tool-free construction through the use of form and force-fit terminal connections as well as plug-on frame system parts

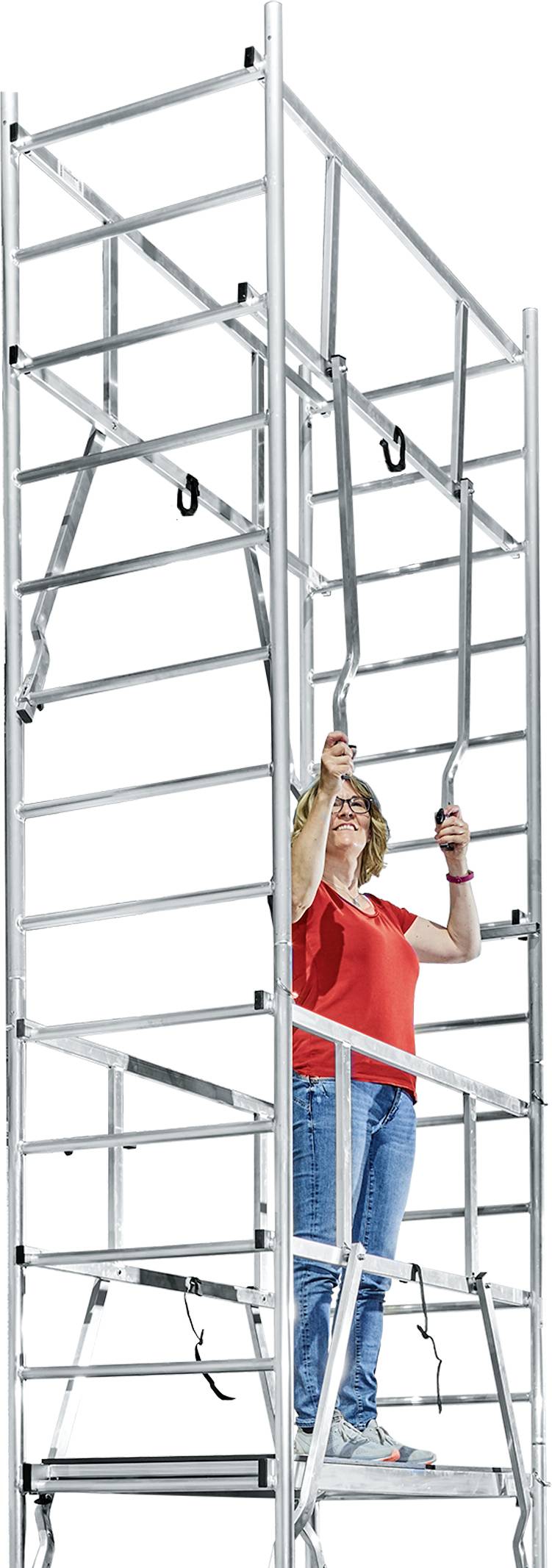

Secure inner ascent through non-slip profiled rungs
The ClimTec workstand can also be used on stairs and paragraphs

Technical specifications

Product type: 2nd height extension

Max. load: 200 kg/m²

Working height range: 6.1 m - 7 m

Factory colour: Silver

Material: Aluminium

Weight: 36.1 kg

Operating height (max.): 7.00 m

Platform width: 1.95 m

Platform depth: 1.45 m

Maximum height: 5.00 m

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2521523 Krause 710147 Gerüstaufstockung Aluminium 2nd height extension Operating height (max.): 7.00 m Silver 36.1 kg

User & Safety Instructions

User & Safety Instructions 2521523 Krause 710147 Gerüstaufstockung Aluminium 2nd height extension Operating height (max.): 7.00 m Silver 36.1 kg

Description

The aluminum work frame for flexible and fast indoor and outdoor use. The secure structure is ensured by the attachment of the GuardMatic system railing frame before the next higher surface stage is suspended. When climbing through the belagbühne, a complete railing and thus a fall protection is available. The integration of the diagonals in the GuardMatic system ensures a simple and safe installation. The ClimTec basic frame can be easily pushed through the doors due to the retractable crossbars in the built-up state and is thus the ideal frame for interior fittings. The V-shaped cross rail offers optimum safety by increasing the footprint in the longitudinal and transverse direction and enables work to be carried out close to the wall.

This text is machine translated.
