Name: Krause 771032 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.40 m Silver 139.5 kg
Brand: Krause
SKU: 2521507

Metal scaffolding tower with platforms and blue castors. Suitable for work at height. Freestanding with safety guardrails.

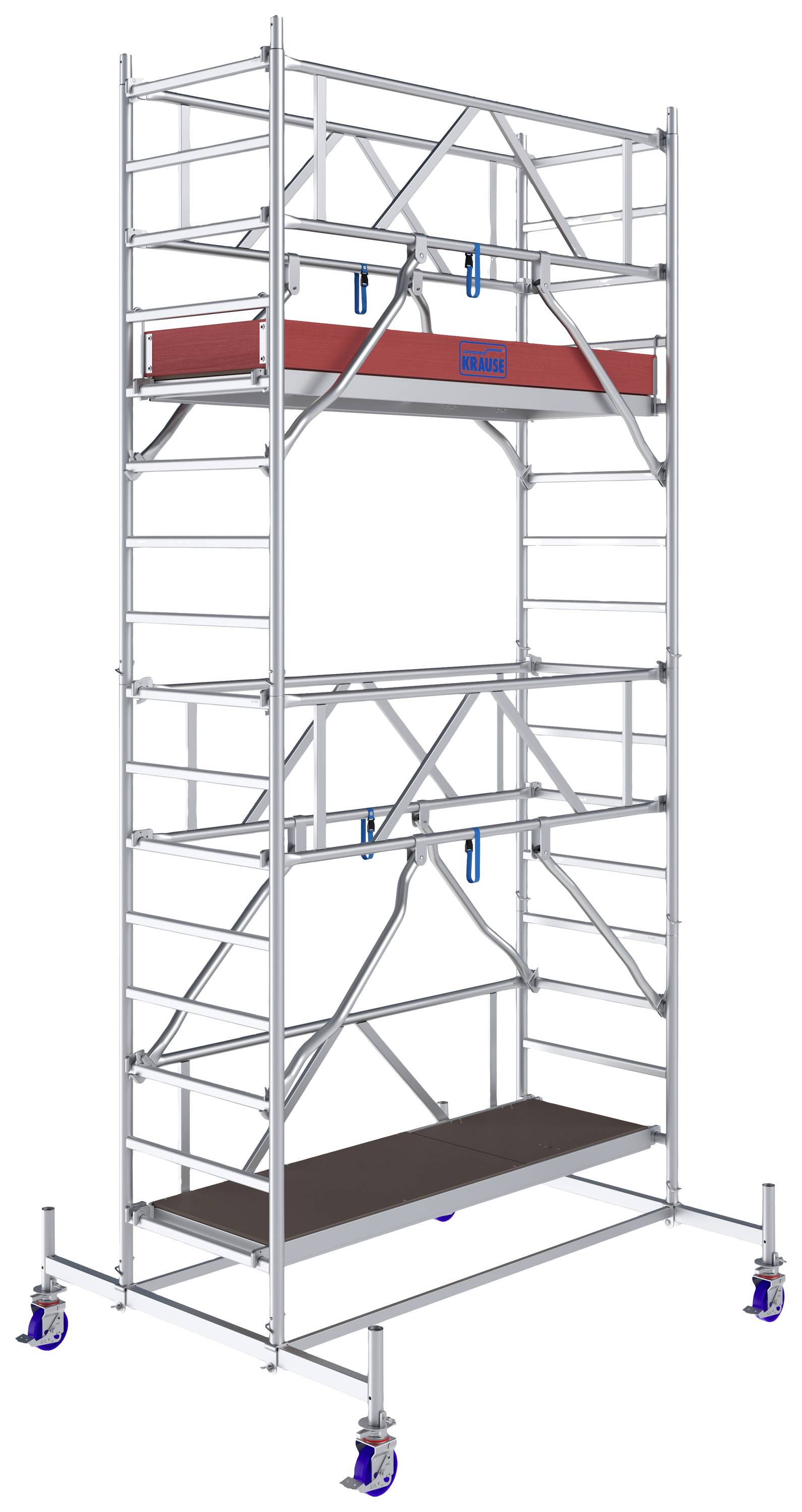

A silver scaffold with red and blue components, mounted on wheels for mobility. It has multiple levels for working at height.

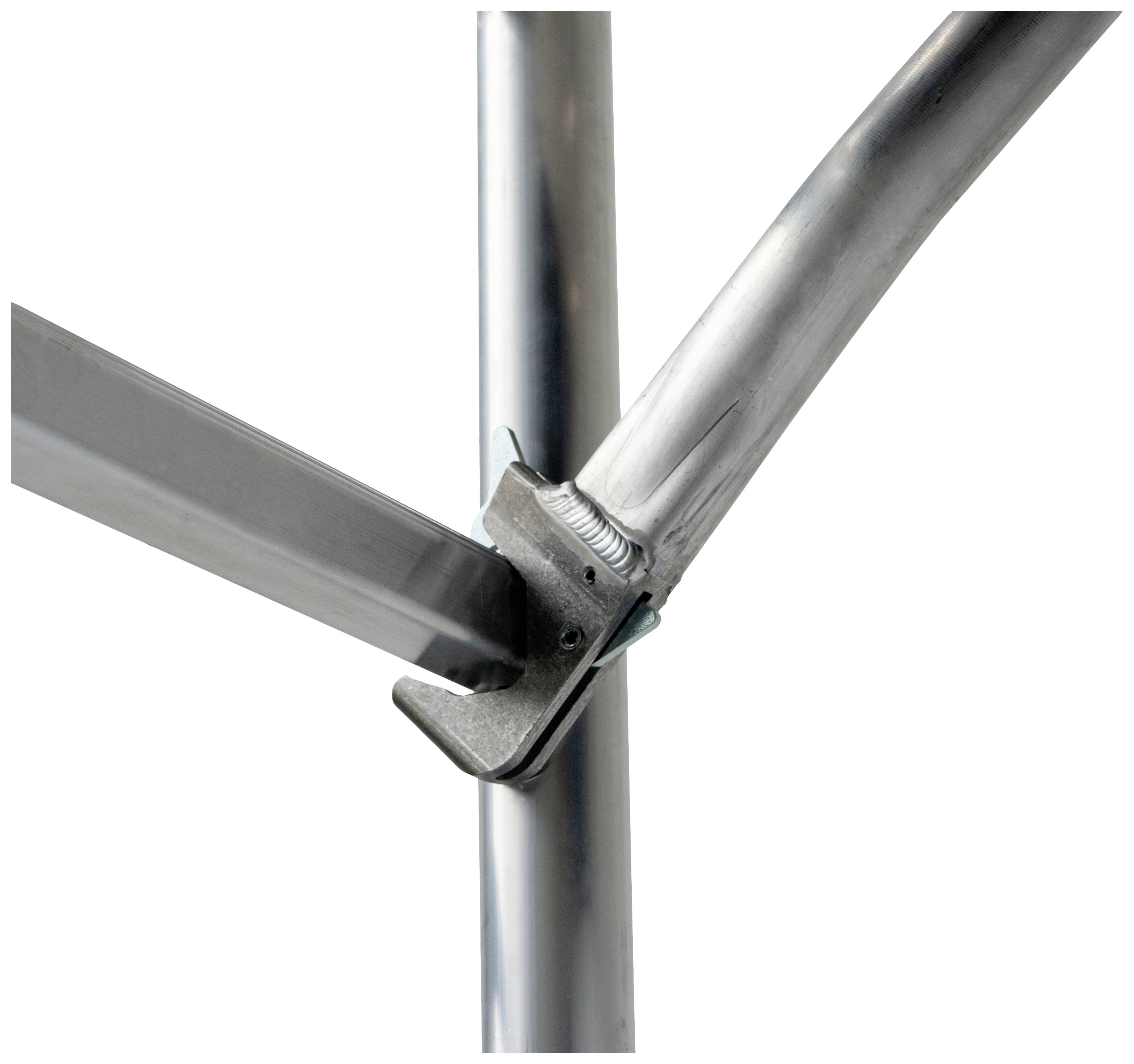

Metal connection of two pipes in a scaffolding system, showing a clamp that connects a cross-pipe with a vertical pipe.

A blue castoring system with a metal screw and a locking mechanism on top for flexible mounting and stability.

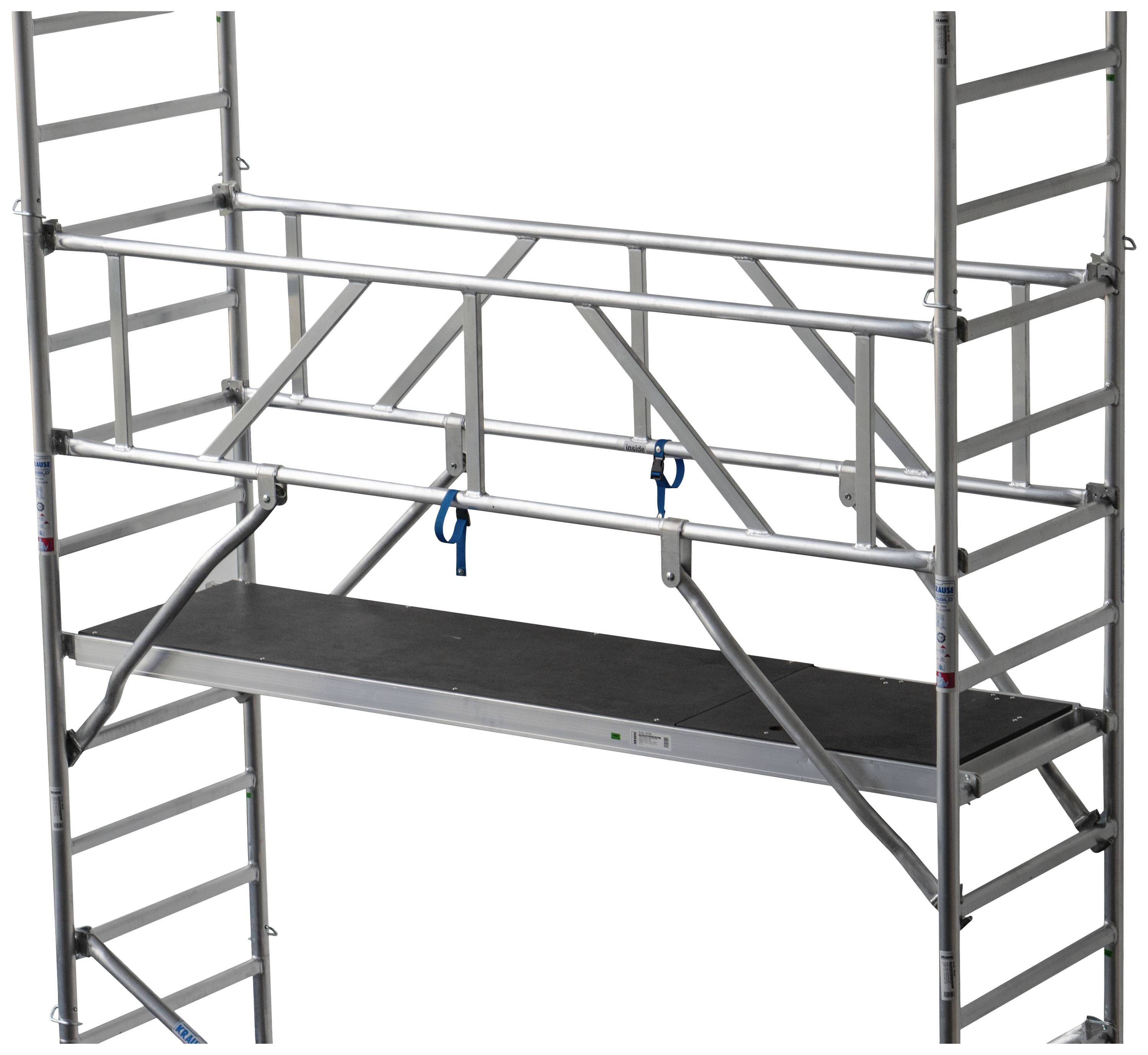

A metal scaffolding with a non-slip platform and side safety barriers, suitable for working at height.

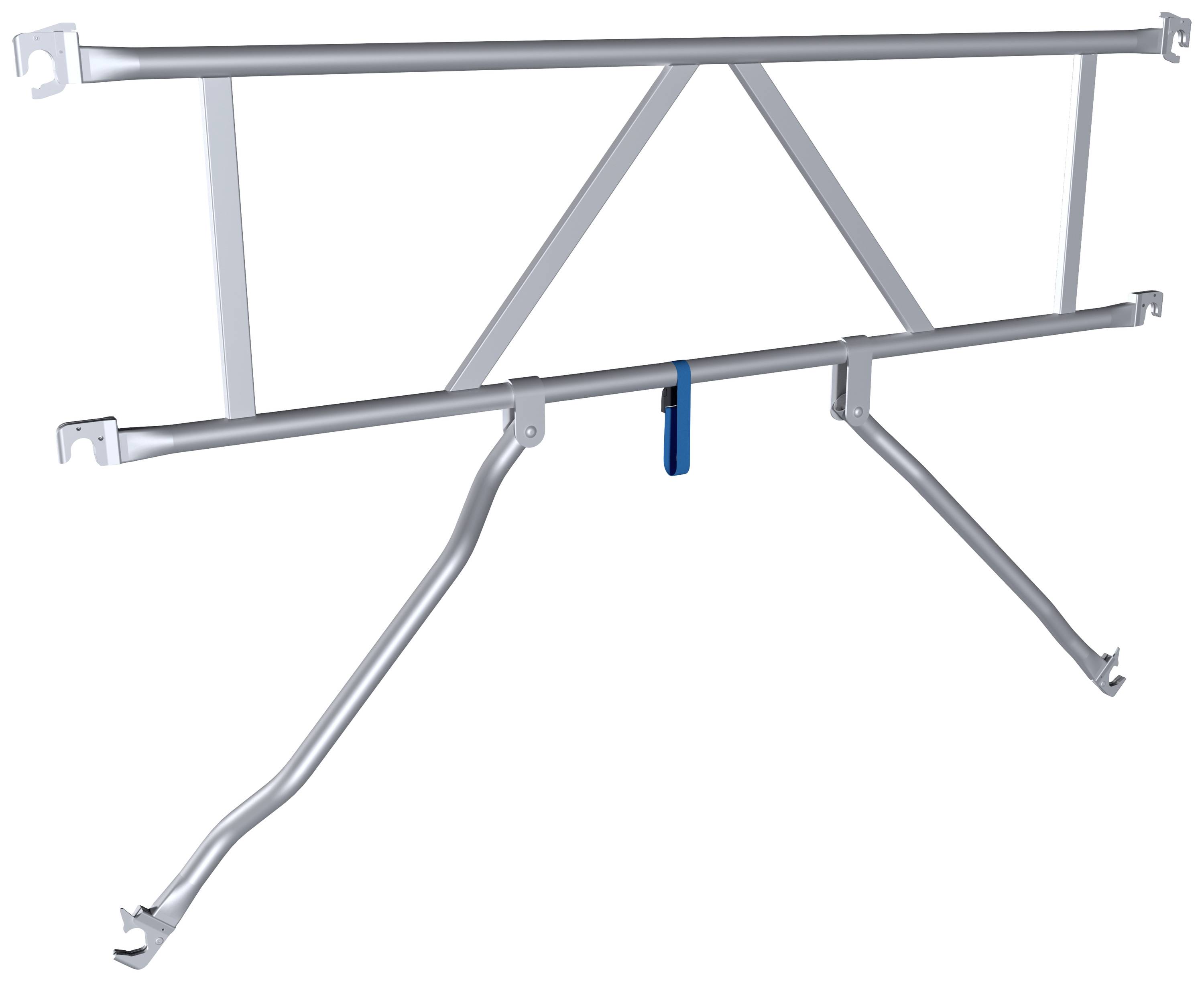

A metal scaffolding component with hooks at the ends, potentially for construction work or structural connections, including a blue handle for stabilisation.

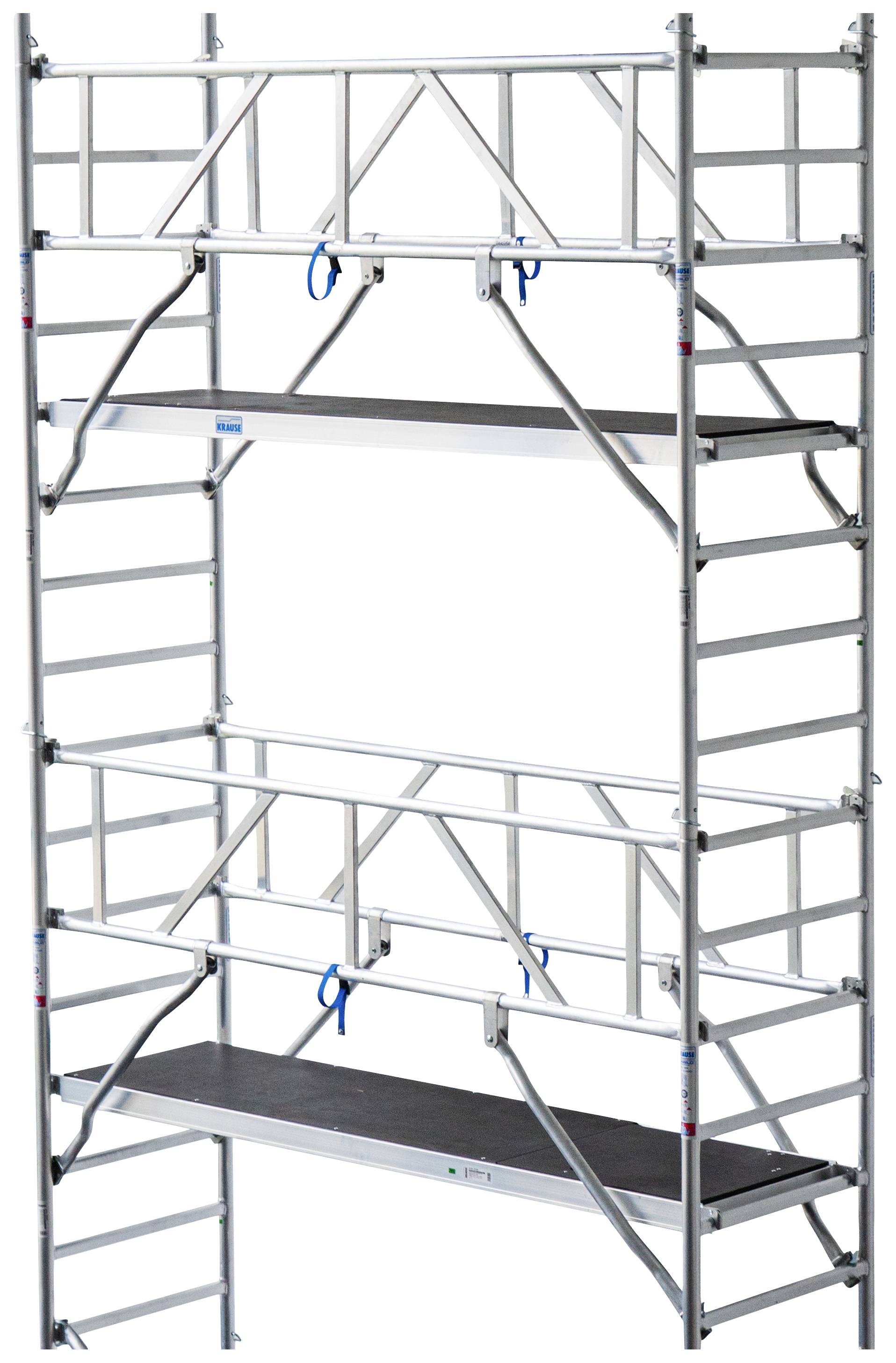

A multi-level metal scaffolding with two black platforms and blue safety ropes, suitable for construction or renovation work.

A man in workwear is climbing a scaffolding structure. He is wearing a hard hat and gloves as he moves upwards.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

STABILO Series 10 mast, field length 2.00 m, working height approx. 5.40 m.

TUV-tested, load capacity 200 kg/m² (frame group 3) according to DIN EN 1004-1
The 6-point fixing of the GuardMatic system provides for maximum stability in height. The unique self-locking KRAUSE locking system with a positive connection enables easy, fast and safe installation and removal
Maximum spacing of 2 m for comfortable and safe construction without auxiliary equipment
Stable steel traverse provides for a secure stand (starting from working height 4.40 m)
Height-adjustable castors (Ø 150 mm) ensure that they can also be used on uneven terrain thanks to the integrated spindle thread (stepless adjustment range: 220 - 335 mm)
Easy to mount boom with infinitely telescopic swivel base (adjustment range up to 230 mm) ensures a secure support and stability for high heights from a working height of 7.40 m on any surface

Technical specifications

Product type: Mobile scaffold

Max. load: 200 kg/m²

Working height range: 5.1 m - 6 m

Factory colour: Silver

Material: Aluminium

Weight: 139.5 kg

Operating height (max.): 5.40 m

Features: Mobile

Platform width: 2.00 m

Platform depth: 0.75 m

Maximum height: 3.40 m

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Working height range

Krause 771032 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.40 m Silver 139.5 kg

Item no:2521507

Unavailable

Conrad Electronic

This article

5.1 m - 6 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 771018 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 3 m Silver 49.5 kg

Item no:2521509

Unavailable

Conrad Electronic

2.1 m - 3 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 771025 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 4.40 m Silver 105.5 kg

Item no:2521508

Unavailable

Conrad Electronic

4.1 m - 5 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 771049 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 6.40 m Silver 146.5 kg

Item no:2521506

Unavailable

Conrad Electronic

6.1 m - 7 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 771056 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 7.40 m Silver 193.5 kg

Item no:2521505

Unavailable

Conrad Electronic

7.1 m - 8 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 771063 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 8.40 m Silver 201 kg

Item no:2521504

Unavailable

Conrad Electronic

8.1 m - 9 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 771070 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 9.40 m Silver 248 kg

Item no:2521503

Unavailable

Conrad Electronic

9.1 m - 10 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 771087 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 10.40 m Silver 255 kg

Item no:2521502

Unavailable

Conrad Electronic

10.1 m - 11 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 771094 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 11.40 m Silver 289 kg

Item no:2521501

Unavailable

Conrad Electronic

11.1 m - 12 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 771100 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 12.40 m Silver 296.50 kg

Item no:2521500

Unavailable

Conrad Electronic

12.1 m - 13 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2521507 Krause 771032 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.40 m Silver 139.5 kg

User & Safety Instructions

User & Safety Instructions 2521507 Krause 771032 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.40 m Silver 139.5 kg

Description

The professional aluminum mast for quick and secure installation. The secure structure is ensured by the attachment of the GuardMatic system railing frame before the next higher lining stage is suspended. When climbing through the belagbühne, a complete railing and thus a fall protection is available. The integration of the diagonals in the GuardMatic system ensures a simple and safe installation. For transport or storage, the rail frame can be folded together to save space. The innovative shape of the diagonals offers a maximum usable surface on the surface stage and does not disturb in any way.
