Name: Krause 774033 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 6.50 m Silver 178.5 kg
Brand: Krause
SKU: 2521450

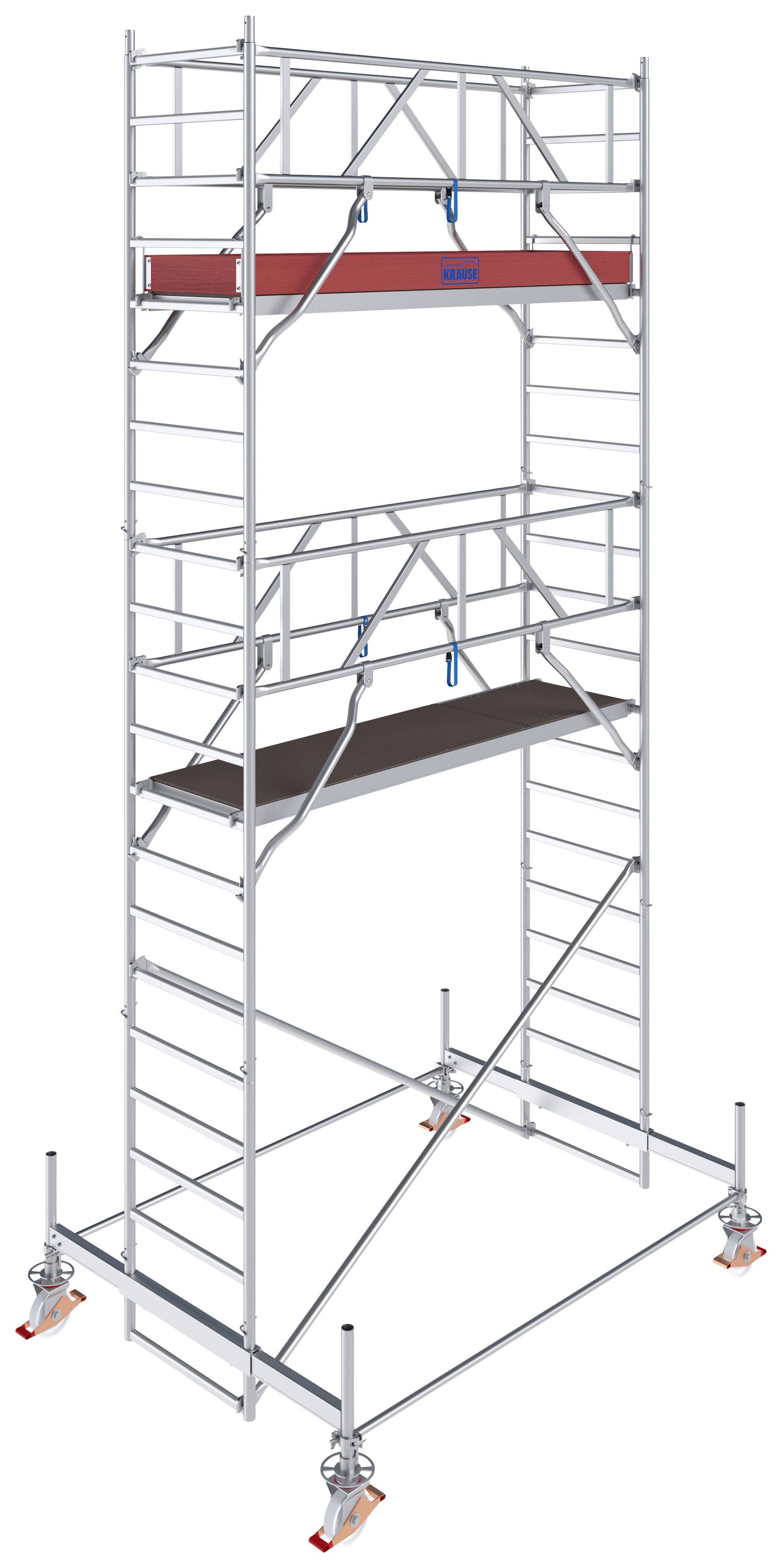

A mobile metal scaffolding with multiple levels and platforms. Suitable for construction work at height, with stabilising legs.

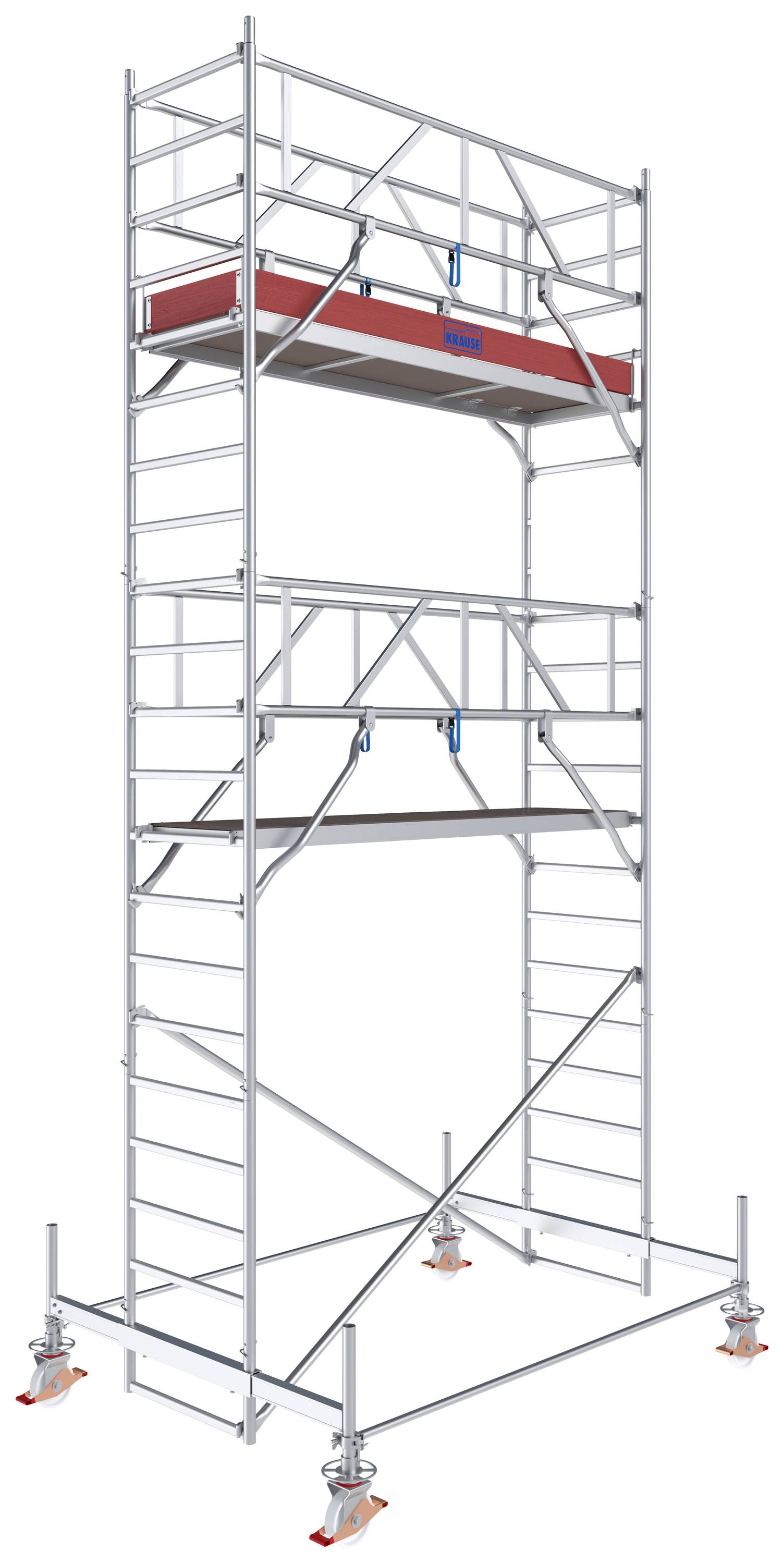

A mobile metal scaffolding structure with platforms at different heights. Equipped with eight wheels for flexible movement and stability.

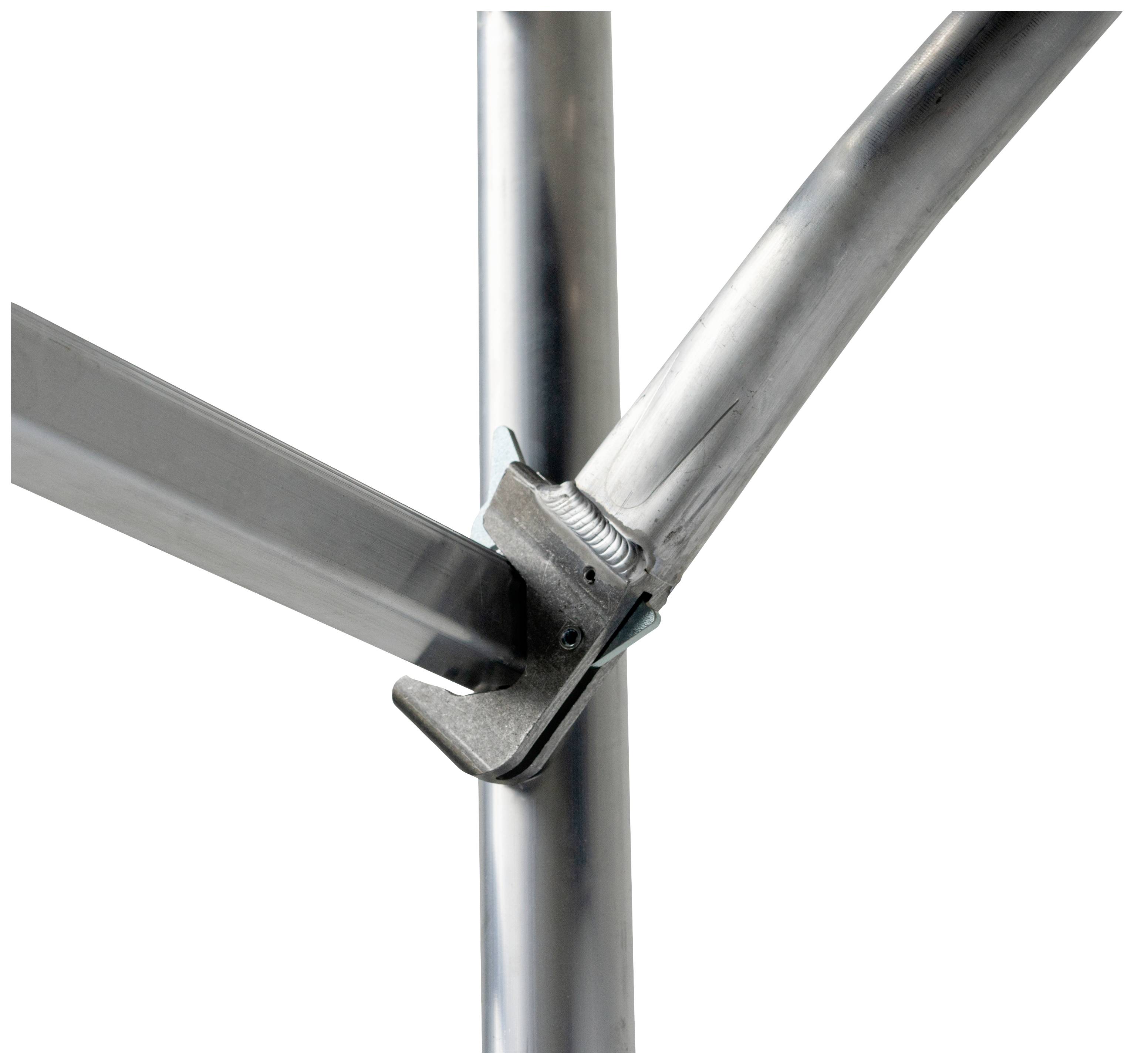

Metal connection with welded pipes standing at right angles to each other.

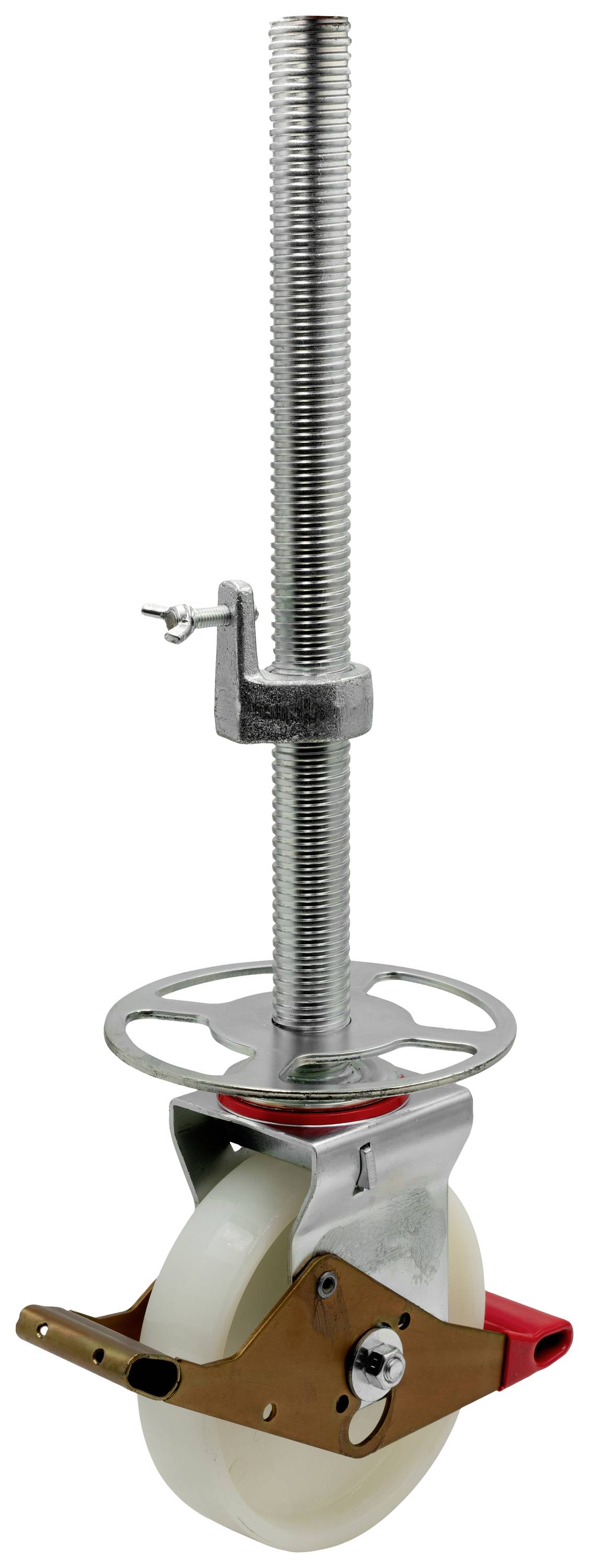

'Rotatable plastic castor wheel with threaded rod, locking screw and mounting bracket, suitable for furniture or wheeled equipment.'

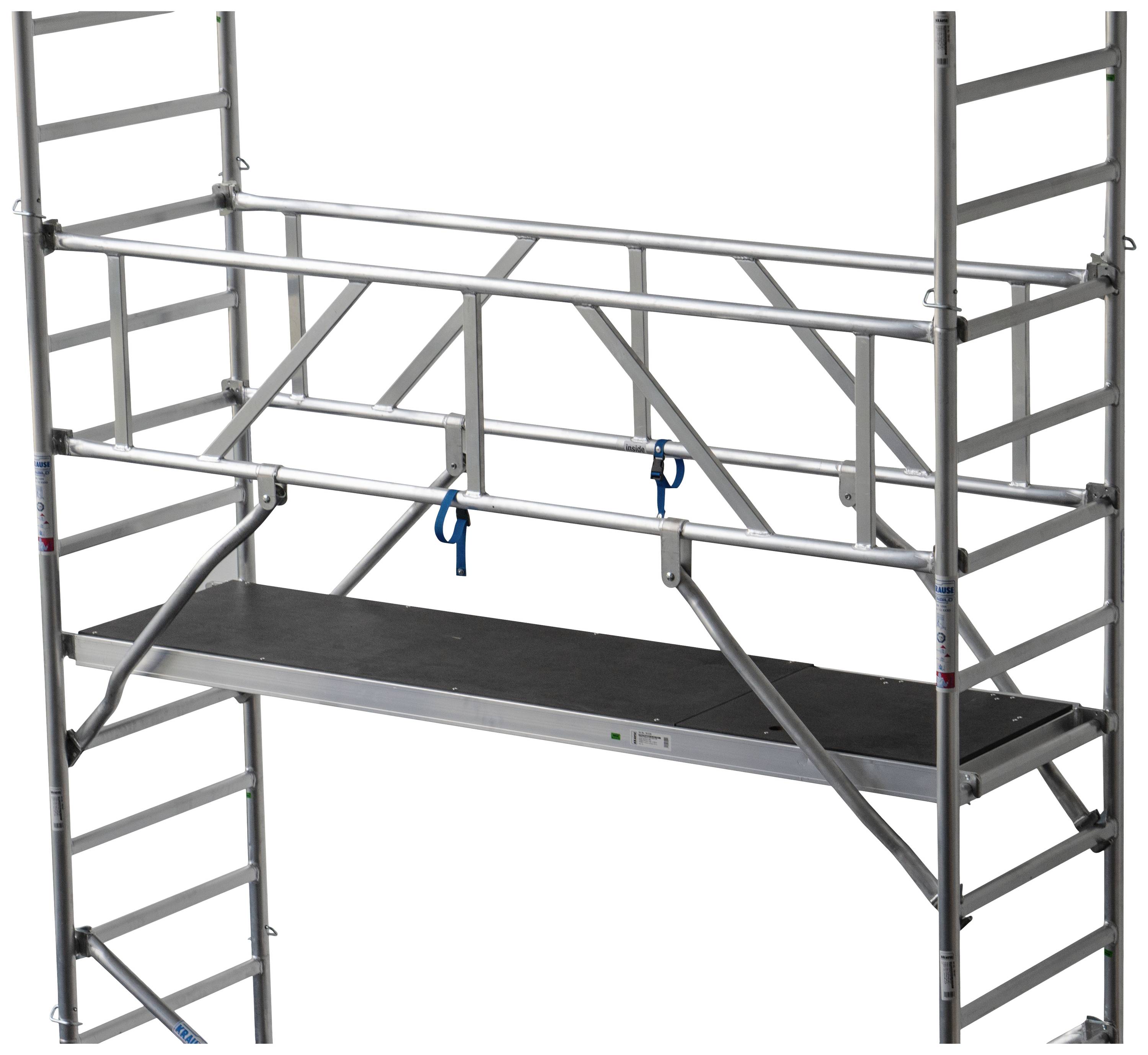

'Aluminium scaffolding with a black work platform in the centre. The scaffolding has side braces and blue locks.'

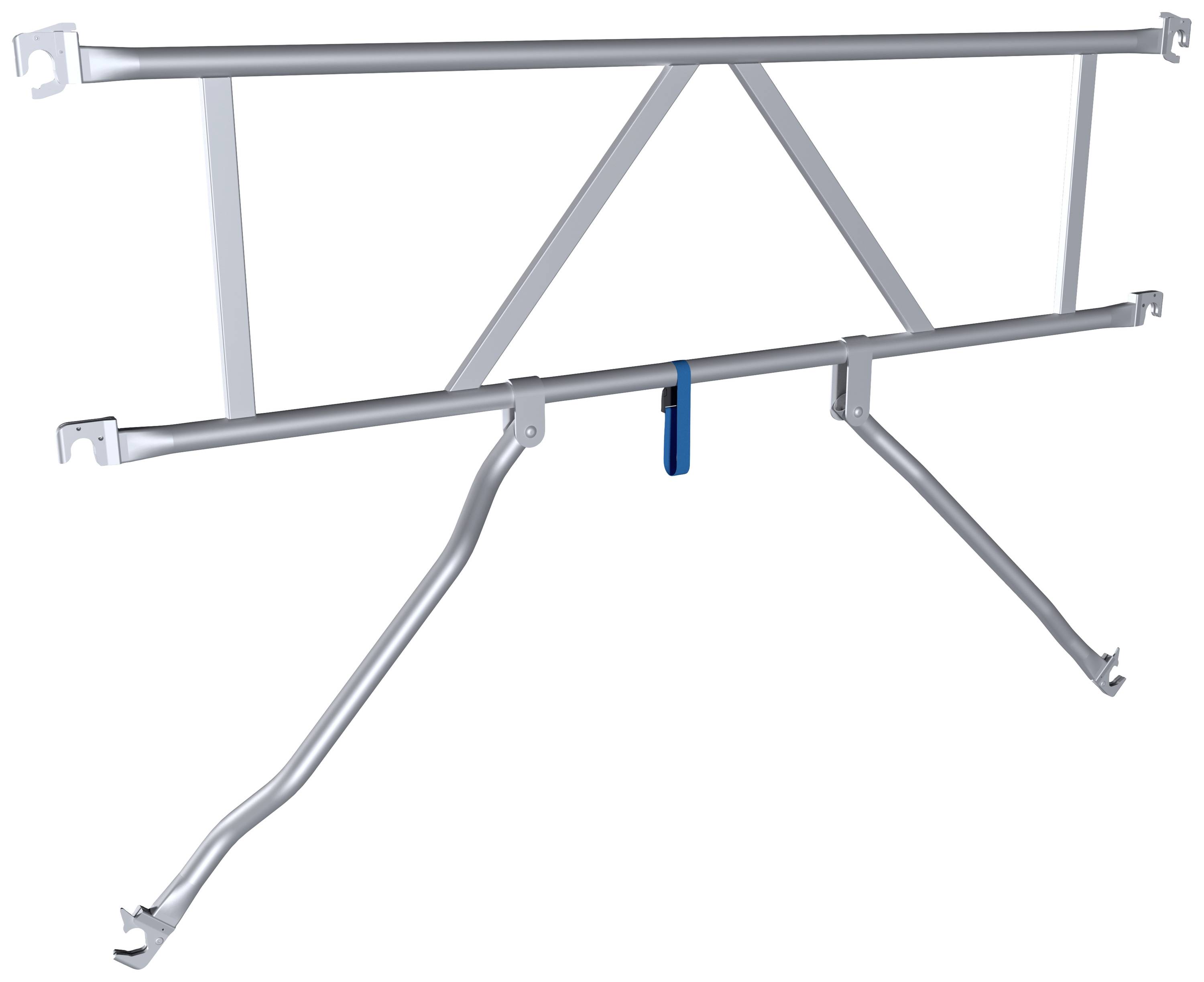

Metal scaffolding component with blue locking mechanism, suitable for building scaffolds, provides stability and safety during construction work.

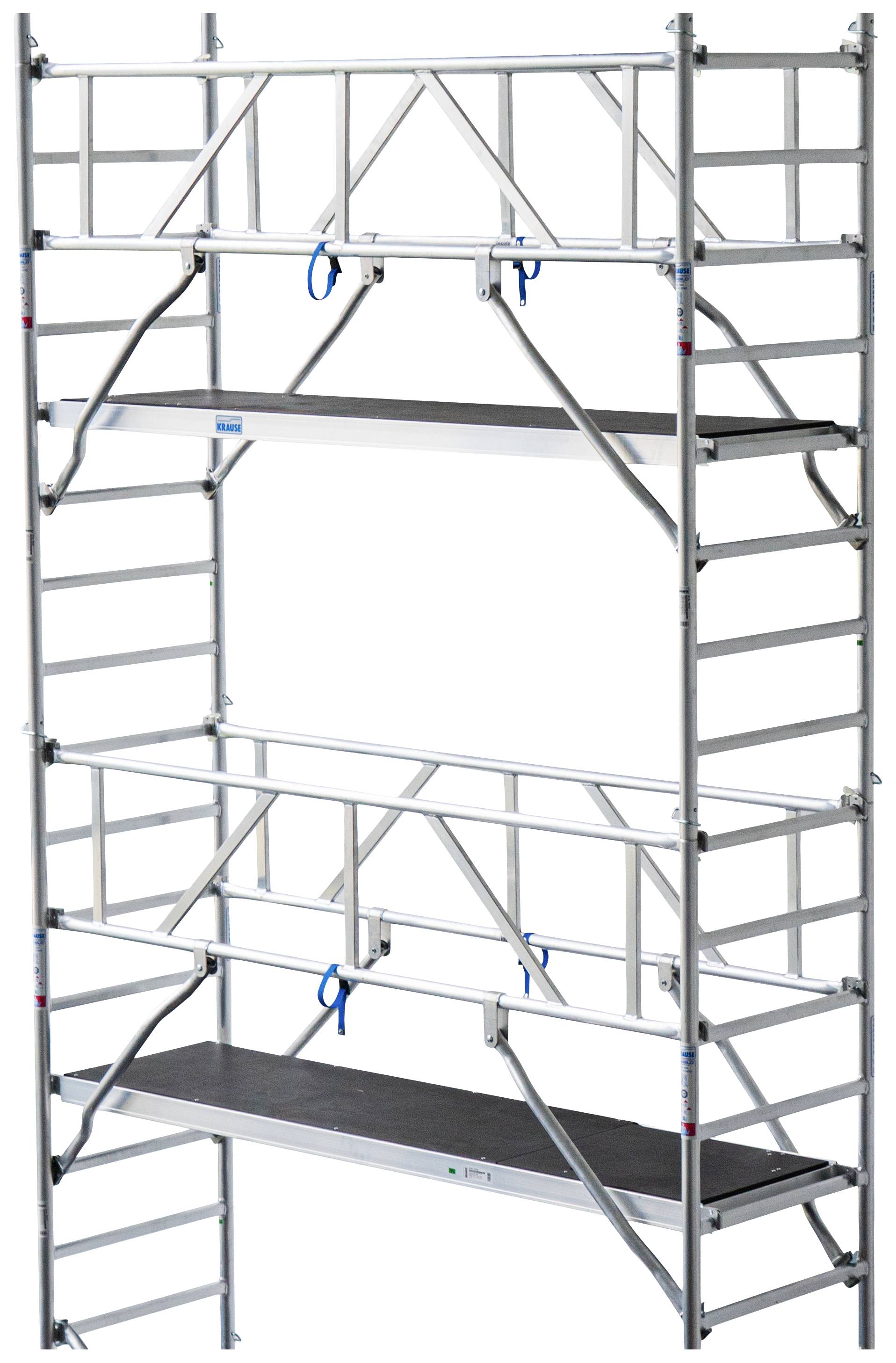

Metal scaffolding with two work platforms and side ladders, suitable for construction or renovation work.

A person in work attire and a hard hat is climbing a scaffolding, focused on the task.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

STABILO 100 series mast, field length 2.50 m, working height approx. 6.50 m.

TUV-tested, load capacity 200 kg/m² (frame group 3) according to DIN EN 1004-1
The 6-point fixing of the GuardMatic system provides for maximum stability in height. The unique self-locking KRAUSE locking system with a positive connection enables easy, fast and safe installation and removal
Maximum spacing of 2 m for comfortable and safe construction without auxiliary equipment
The frame can be positioned easily on the traverse
Height-adjustable castors (Ø 200 mm) ensure that they can also be used on uneven terrain thanks to the integrated spindle thread (stepless adjustment range: 300 - 580 mm)
Easy to mount boom with infinitely telescopic swivel base (adjustment range up to 230 mm) ensures a secure support and stability for high heights from a working height of 7.50 m on any surface

Technical specifications

Product type: Mobile scaffold

Max. load: 200 kg/m²

Working height range: 6.1 m - 7 m

Factory colour: Silver

Material: Aluminium

Weight: 178.5 kg

Operating height (max.): 6.50 m

Features: Mobile

Platform width: 2.50 m

Platform depth: 0.75 m

Maximum height: 4.50 m

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Working height range

Krause 774033 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 6.50 m Silver 178.5 kg

Item no:2521450

Unavailable

Conrad Electronic

This article

6.1 m - 7 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 773012 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 4.50 m Silver 121 kg

Item no:2521461

Unavailable

Conrad Electronic

4.1 m - 5 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 773029 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.50 m Silver 155 kg

Item no:2521460

Unavailable

Conrad Electronic

5.1 m - 6 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 773036 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 6.50 m Silver 162 kg

Item no:2521459

Unavailable

Conrad Electronic

6.1 m - 7 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 773043 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 7.50 m Silver 209 kg

Item no:2521458

Unavailable

Conrad Electronic

7.1 m - 8 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 773050 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 8.50 m Silver 216.5 kg

Item no:2521457

Unavailable

Conrad Electronic

8.1 m - 9 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 773067 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 9.50 m Silver 263 kg

Item no:2521456

Unavailable

Conrad Electronic

9.1 m - 10 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 773074 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 10.50 m Silver 270.5 kg

Item no:2521455

Unavailable

Conrad Electronic

10.1 m - 11 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 773081 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 11.50 m Silver 304.5 kg

Item no:2521454

Unavailable

Conrad Electronic

11.1 m - 12 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 773098 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 12.50 m Silver 312 kg

Item no:2521453

Unavailable

Conrad Electronic

12.1 m - 13 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2521450 Krause 774033 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 6.50 m Silver 178.5 kg

User & Safety Instructions

User & Safety Instructions 2521450 Krause 774033 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 6.50 m Silver 178.5 kg

Description

The professional aluminum mast with light aluminum telescopic traverse. The secure structure is ensured by the attachment of the GuardMatic system railing frame before the next higher lining stage is suspended. When climbing through the belagbühne, a complete railing and thus a fall protection is available. The integration of the diagonals in the GuardMatic system ensures a simple and safe installation. For transport or storage, the rail frame can be folded together to save space. The innovative shape of the diagonals offers a maximum usable surface on the surface stage and does not disturb in any way.
