Name: Krause 783011 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 4.50 m Silver 155.5 kg
Brand: Krause
SKU: 2521441

A silver mobile scaffolding with red platforms, equipped with wheels and safety guardrails for construction or maintenance work.

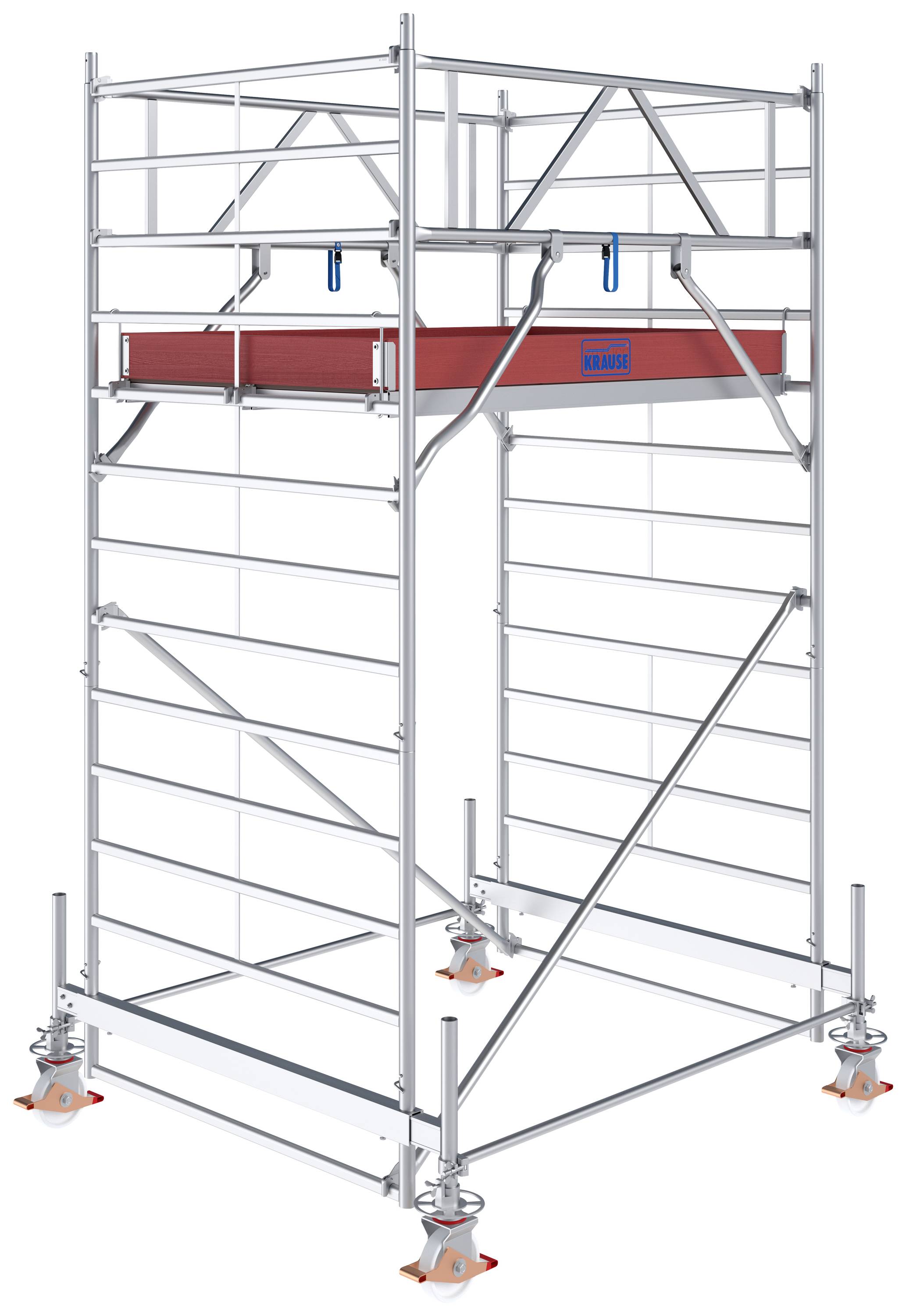

A metal scaffolding with a red platform, stabilised by four supporting feet. Primarily used for construction or maintenance work.

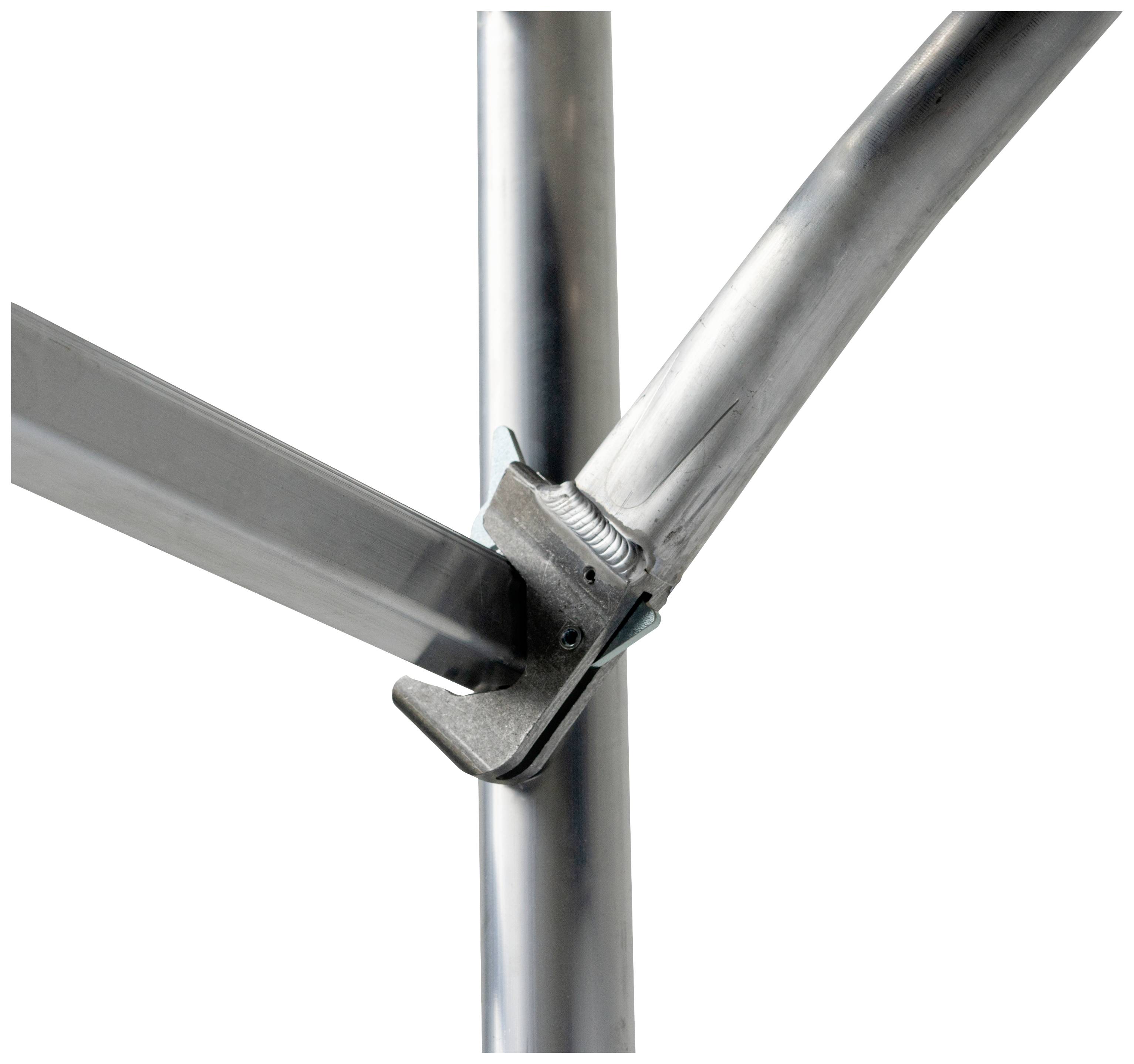

Metal cross-joint connection, showing a stable connection between two metal struts. Suitable for scaffolding or construction.

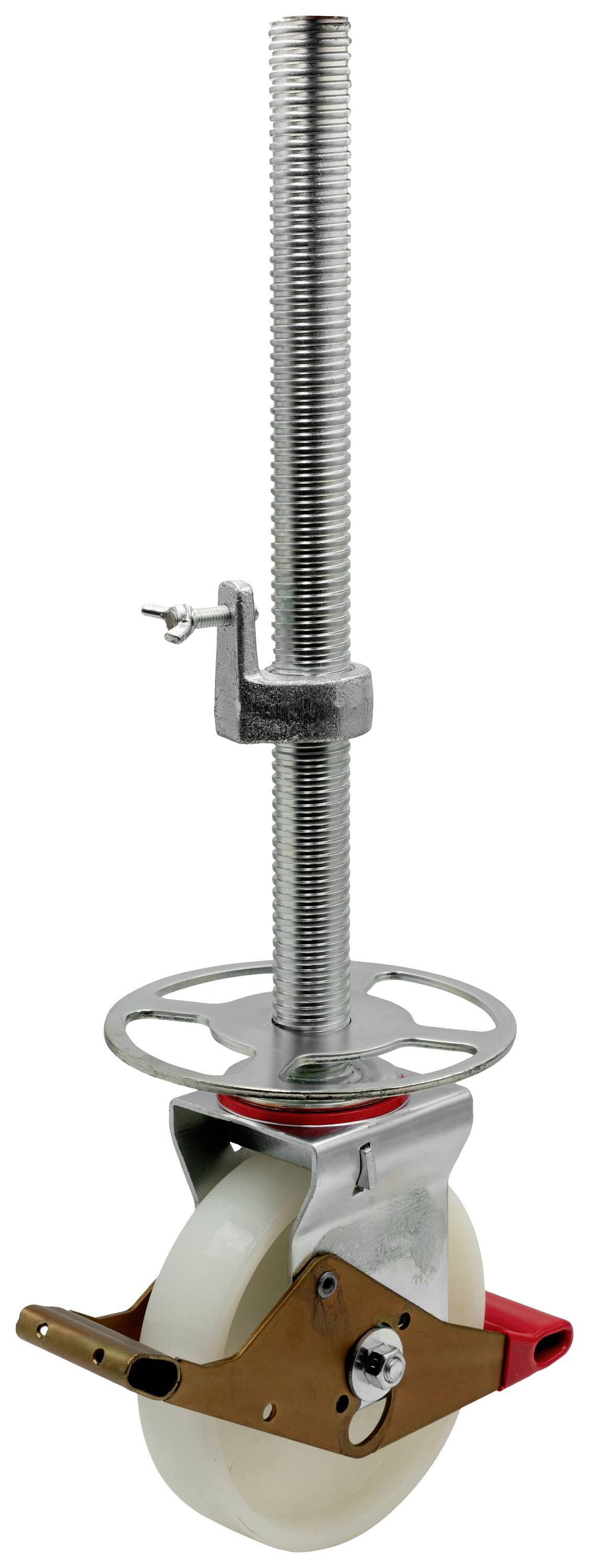

Height-adjustable transport castor with white wheel and metal mounting, suitable for heavy-duty applications and industrial use.

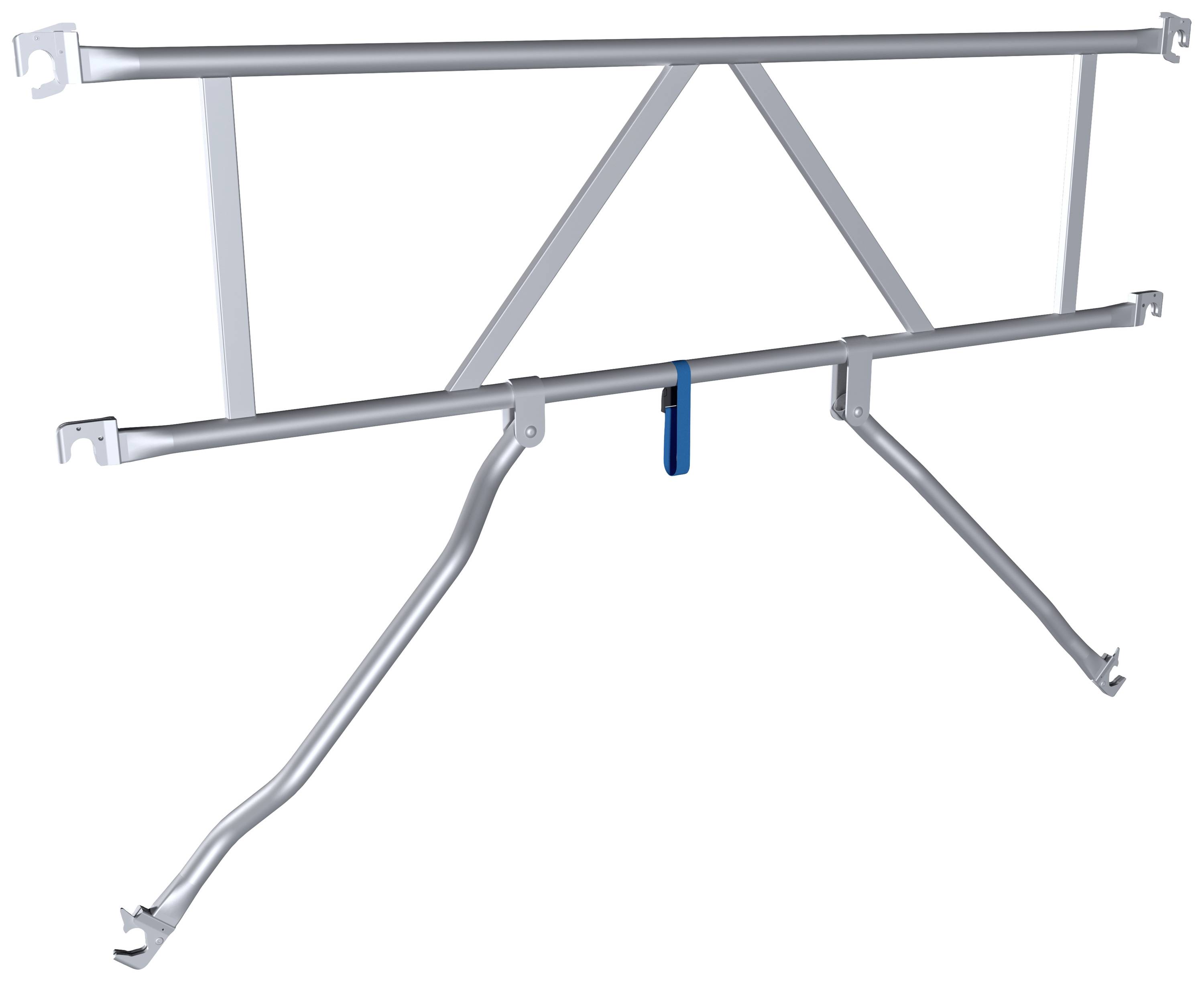

Metal framework with crossbar and blue fastening, likely part of a scaffolding or temporary structure.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

STABILO 500 series mast, field length 2.00 m, working height approx. 4.50 m.

TUV-tested, load capacity 200 kg/m² (frame group 3) according to DIN EN 1004-1
The 6-point fixing of the GuardMatic system provides for maximum stability in height. The unique self-locking KRAUSE locking system with a positive connection enables easy, fast and safe installation and removal
Maximum spacing of 2 m for comfortable and safe construction without auxiliary equipment
The frame can be positioned easily on the traverse
Height-adjustable castors (Ø 200 mm) ensure that they can also be used on uneven terrain thanks to the integrated spindle thread (stepless adjustment range: 300 - 580 mm)
The stand area of over 3,00 m² offers a large and safe workplace for personnel and material
Easy to mount boom with infinitely telescopic swivel base (adjustment range up to 230 mm) ensures a secure support and stability for high heights from a working height of 8.50 m on any surface

Technical specifications

Product type: Mobile scaffold

Max. load: 200 kg/m²

Working height range: 4.1 m - 5 m

Factory colour: Silver

Material: Aluminium

Weight: 155.5 kg

Operating height (max.): 4.50 m

Features: Mobile

Platform width: 2.00 m

Platform depth: 1.50 m

Maximum height: 2.50 m

Variants(All information is without VAT, plus shipping costs)

Working height range

Krause 783011 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 4.50 m Silver 155.5 kg

Item no:2521441

Unavailable

Conrad Electronic

This article

4.1 m - 5 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783028 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.50 m Silver 208 kg

Item no:2521440

Unavailable

Conrad Electronic

5.1 m - 6 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783035 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 6.50 m Silver 219.5 kg

Item no:2521439

Unavailable

Conrad Electronic

6.1 m - 7 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783042 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 7.50 m Silver 272.5 kg

Item no:2521438

Unavailable

Conrad Electronic

7.1 m - 8 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783059 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 8.50 m Silver 309.5 kg

Item no:2521437

Unavailable

Conrad Electronic

8.1 m - 9 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783066 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 9.50 m Silver 362 kg

Item no:2521436

Unavailable

Conrad Electronic

9.1 m - 10 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783073 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 10.50 m Silver 373.5 kg

Item no:2521435

Unavailable

Conrad Electronic

10.1 m - 11 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783080 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 11.50 m Silver 426 kg

Item no:2521434

Unavailable

Conrad Electronic

11.1 m - 12 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783097 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 12.50 m Silver 438 kg

Item no:2521433

Unavailable

Conrad Electronic

12.1 m - 13 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 784018 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 4.50 m Silver 170 kg

Item no:2521432

Unavailable

Conrad Electronic

4.1 m - 5 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2521441 Krause 783011 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 4.50 m Silver 155.5 kg

User & Safety Instructions

User & Safety Instructions 2521441 Krause 783011 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 4.50 m Silver 155.5 kg

Description

The professional aluminum mast with light aluminum telescopic traverse and double platform surface. The secure structure is ensured by the attachment of the GuardMatic system railing frame before the next higher lining stage is suspended. When climbing through the belagbühne, a complete railing and thus a fall protection is available. The integration of the diagonals in the GuardMatic system ensures a simple and safe installation. For transport or storage, the rail frame can be folded together to save space. The innovative shape of the diagonals offers a maximum usable surface on the surface stage and does not disturb in any way.

This text is machine translated.
