Name: Krause 784025 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.50 m Silver 229 kg
Brand: Krause
SKU: 2521431

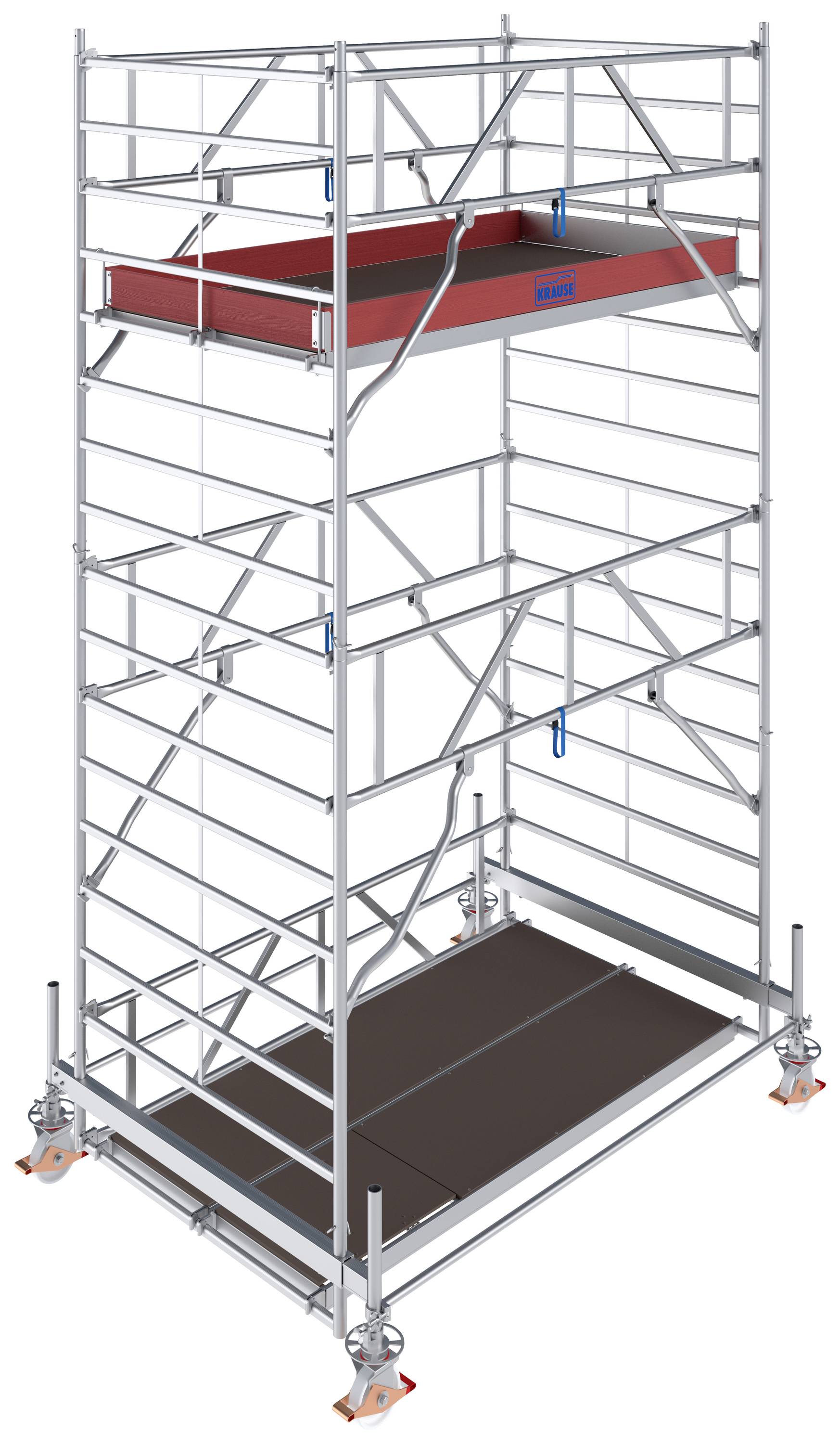

Metal scaffolding with platforms, suitable for construction work at height. Silver structure on wheels for mobility.

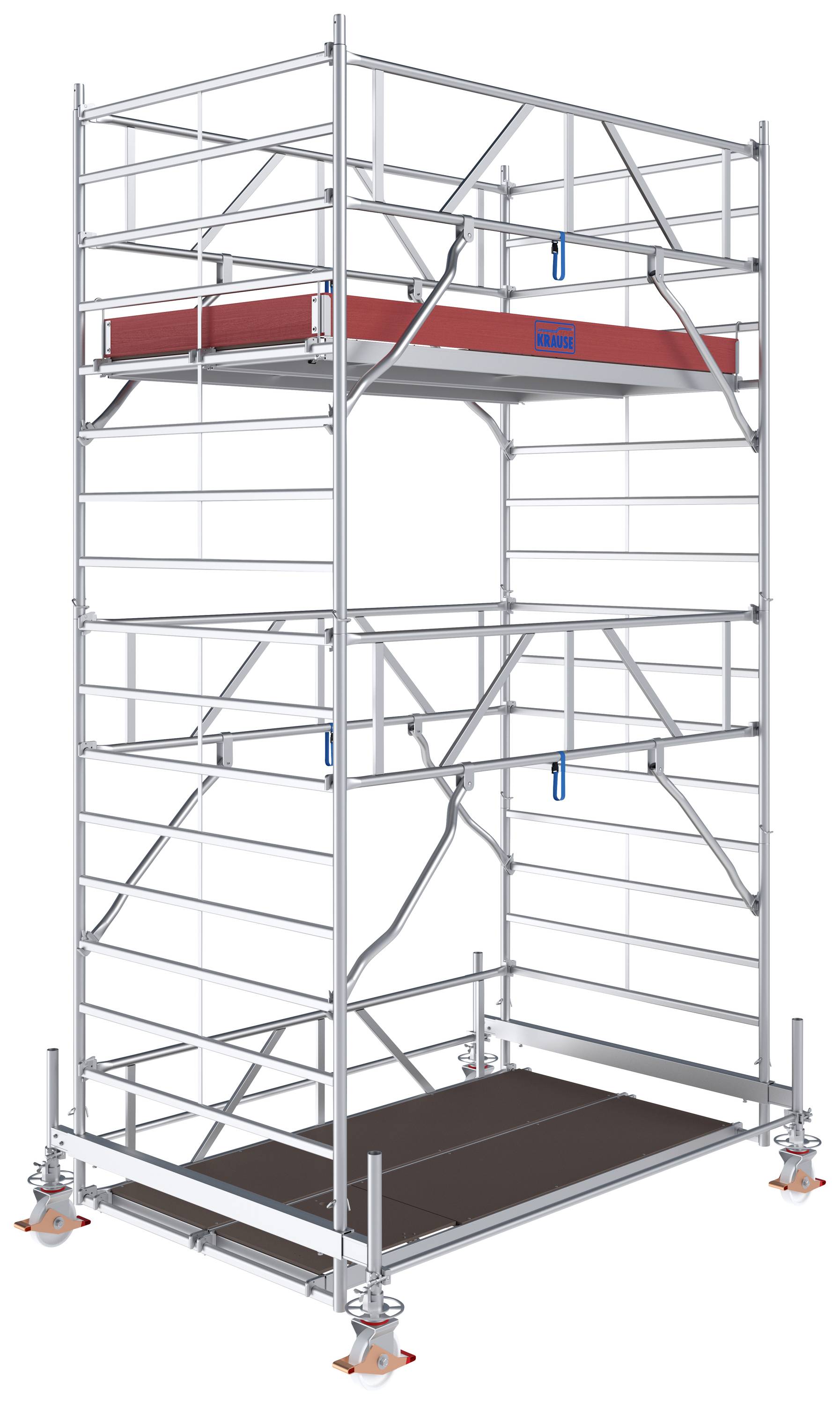

Mobile metal scaffolding tower with multiple platforms, suitable for construction or repair work at various heights.

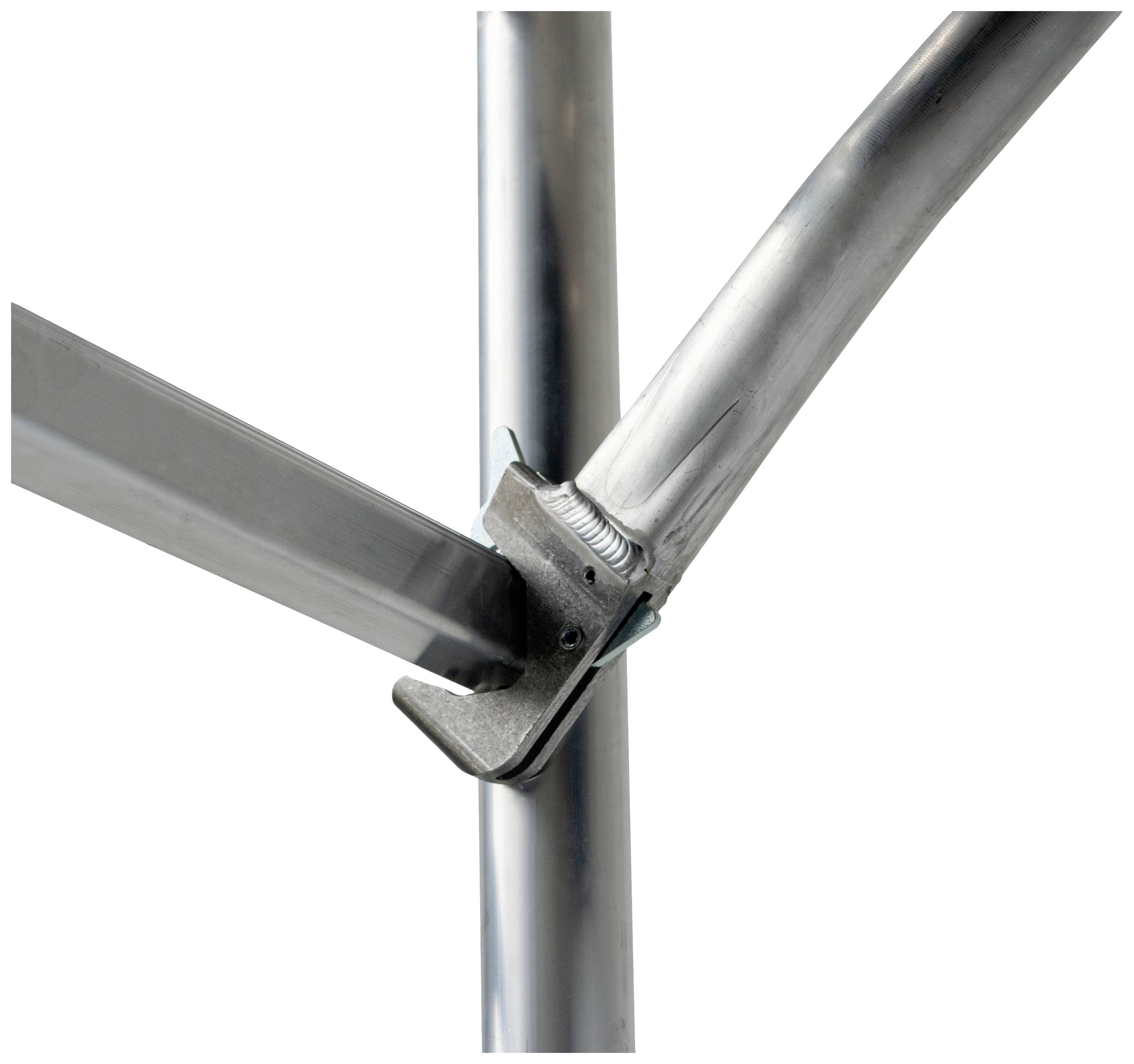

Metal connection comprising a welded holder and two metal rods at an angle. Key characteristics are structure and stability.

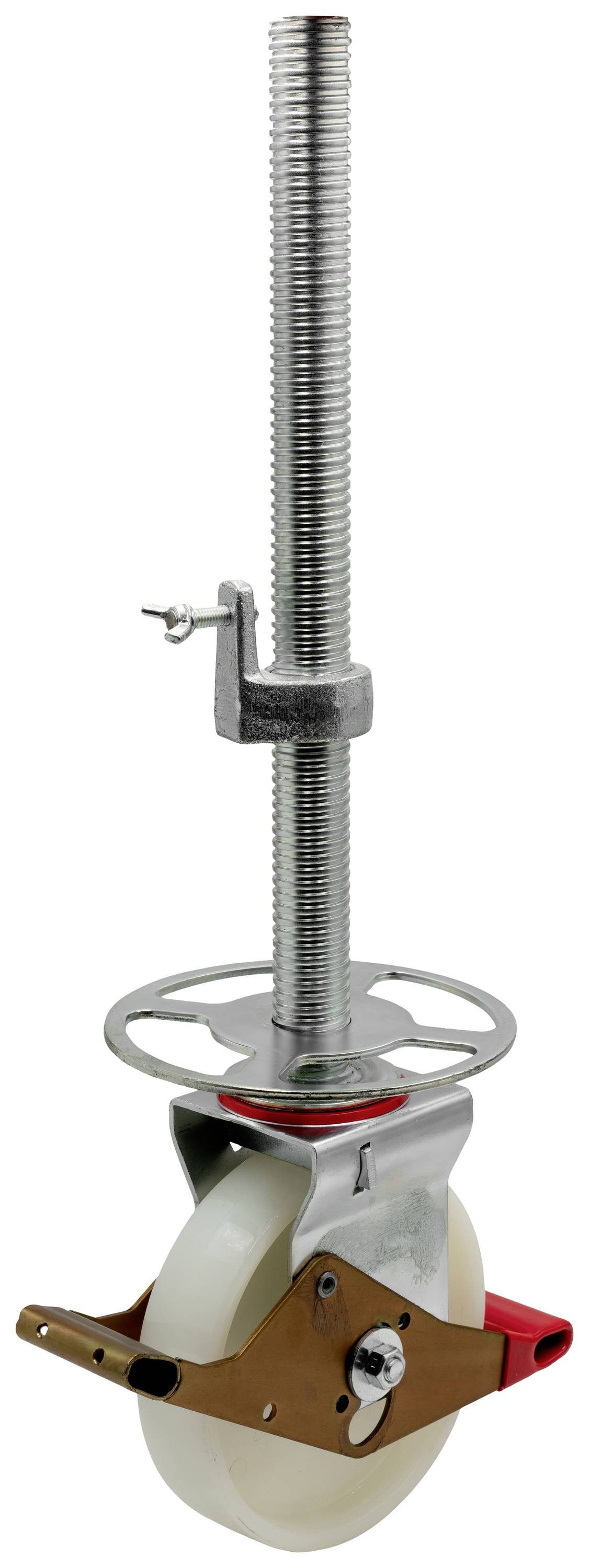

A heavy-duty steering castor wheel with a white wheel, mounted on an adjustable, grooved rod with a screw lock and additional mounting bracket.

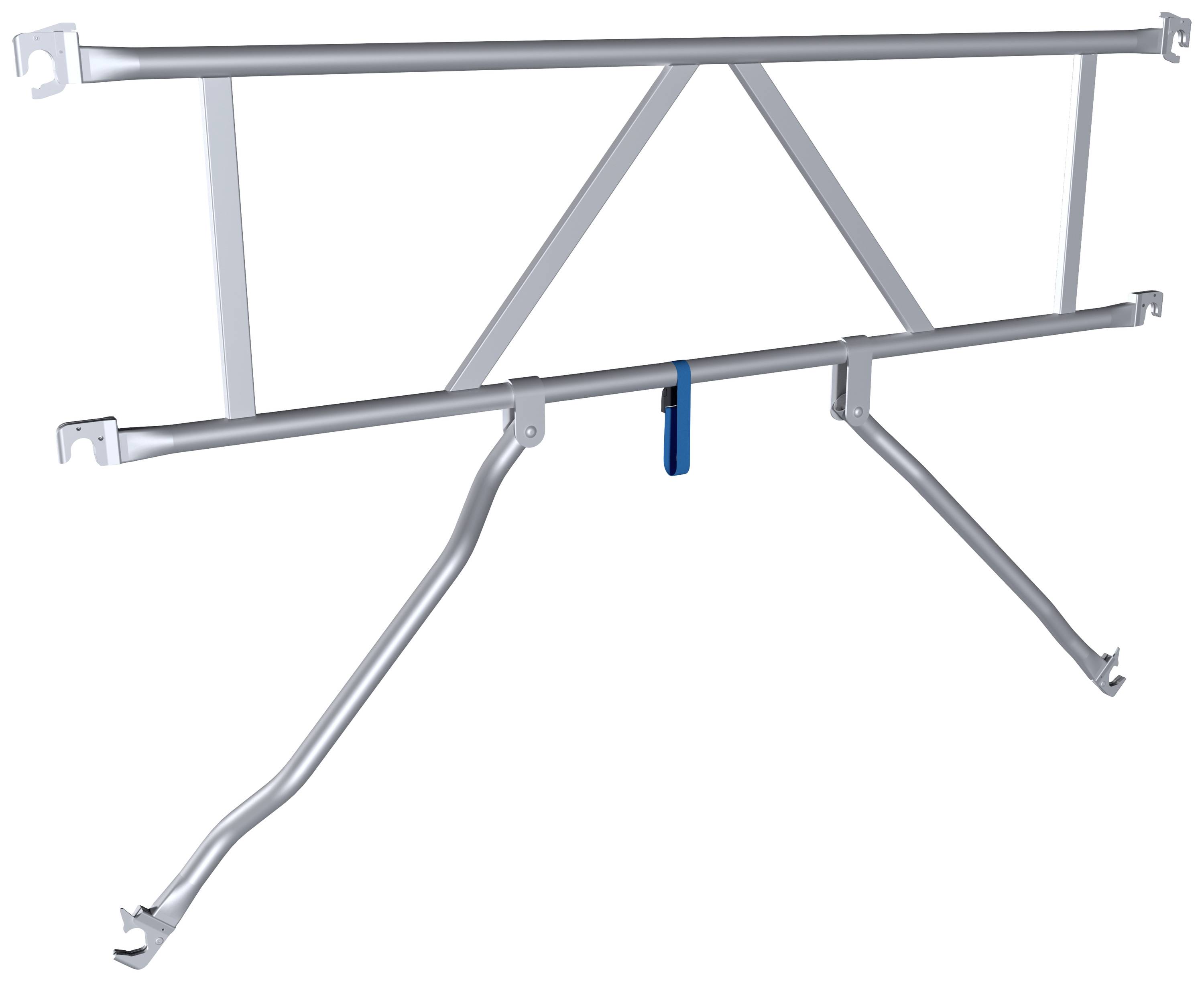

Silver frame with hooks at the ends and a blue mounting bracket in the centre. Structural design with cross and longitudinal bracing.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

STABILO 500 series mast, field length 2.50 m, working height approx. 5.50 m.

TUV-tested, load capacity 200 kg/m² (frame group 3) according to DIN EN 1004-1
The 6-point fixing of the GuardMatic system provides for maximum stability in height. The unique self-locking KRAUSE locking system with a positive connection enables easy, fast and safe installation and removal
Maximum spacing of 2 m for comfortable and safe construction without auxiliary equipment
The frame can be positioned easily on the traverse
Height-adjustable castors (Ø 200 mm) ensure that they can also be used on uneven terrain thanks to the integrated spindle thread (stepless adjustment range: 300 - 580 mm)
The stand area of over 3,00 m² offers a large and safe workplace for personnel and material
Easy to mount boom with infinitely telescopic swivel base (adjustment range up to 230 mm) ensures a secure support and stability for high heights from a working height of 8.50 m on any surface

Technical specifications

Product type: Mobile scaffold

Max. load: 200 kg/m²

Working height range: 5.1 m - 6 m

Factory colour: Silver

Material: Aluminium

Weight: 229 kg

Operating height (max.): 5.50 m

Features: Mobile

Platform width: 2.50 m

Platform depth: 1.50 m

Maximum height: 3.50 m

Variants(All information is without VAT, plus shipping costs)

Working height range

Krause 784025 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.50 m Silver 229 kg

Item no:2521431

Unavailable

Conrad Electronic

This article

5.1 m - 6 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783011 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 4.50 m Silver 155.5 kg

Item no:2521441

Unavailable

Conrad Electronic

4.1 m - 5 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783028 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.50 m Silver 208 kg

Item no:2521440

Unavailable

Conrad Electronic

5.1 m - 6 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783035 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 6.50 m Silver 219.5 kg

Item no:2521439

Unavailable

Conrad Electronic

6.1 m - 7 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783042 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 7.50 m Silver 272.5 kg

Item no:2521438

Unavailable

Conrad Electronic

7.1 m - 8 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783059 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 8.50 m Silver 309.5 kg

Item no:2521437

Unavailable

Conrad Electronic

8.1 m - 9 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783066 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 9.50 m Silver 362 kg

Item no:2521436

Unavailable

Conrad Electronic

9.1 m - 10 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783073 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 10.50 m Silver 373.5 kg

Item no:2521435

Unavailable

Conrad Electronic

10.1 m - 11 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783080 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 11.50 m Silver 426 kg

Item no:2521434

Unavailable

Conrad Electronic

11.1 m - 12 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 783097 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 12.50 m Silver 438 kg

Item no:2521433

Unavailable

Conrad Electronic

12.1 m - 13 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2521431 Krause 784025 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.50 m Silver 229 kg

User & Safety Instructions

User & Safety Instructions 2521431 Krause 784025 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.50 m Silver 229 kg

Description

The professional aluminum mast with light aluminum telescopic traverse and double platform surface. The secure structure is ensured by the attachment of the GuardMatic system railing frame before the next higher lining stage is suspended. When climbing through the belagbühne, a complete railing and thus a fall protection is available. The integration of the diagonals in the GuardMatic system ensures a simple and safe installation. For transport or storage, the rail frame can be folded together to save space. The innovative shape of the diagonals offers a maximum usable surface on the surface stage and does not disturb in any way.

This text is machine translated.
