Name: Krause 940124 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.30 m Silver 115 kg
Brand: Krause
SKU: 2521528

Lightweight, mobile scaffolding with wheels, suitable for working at height, including a platform for secure footing.

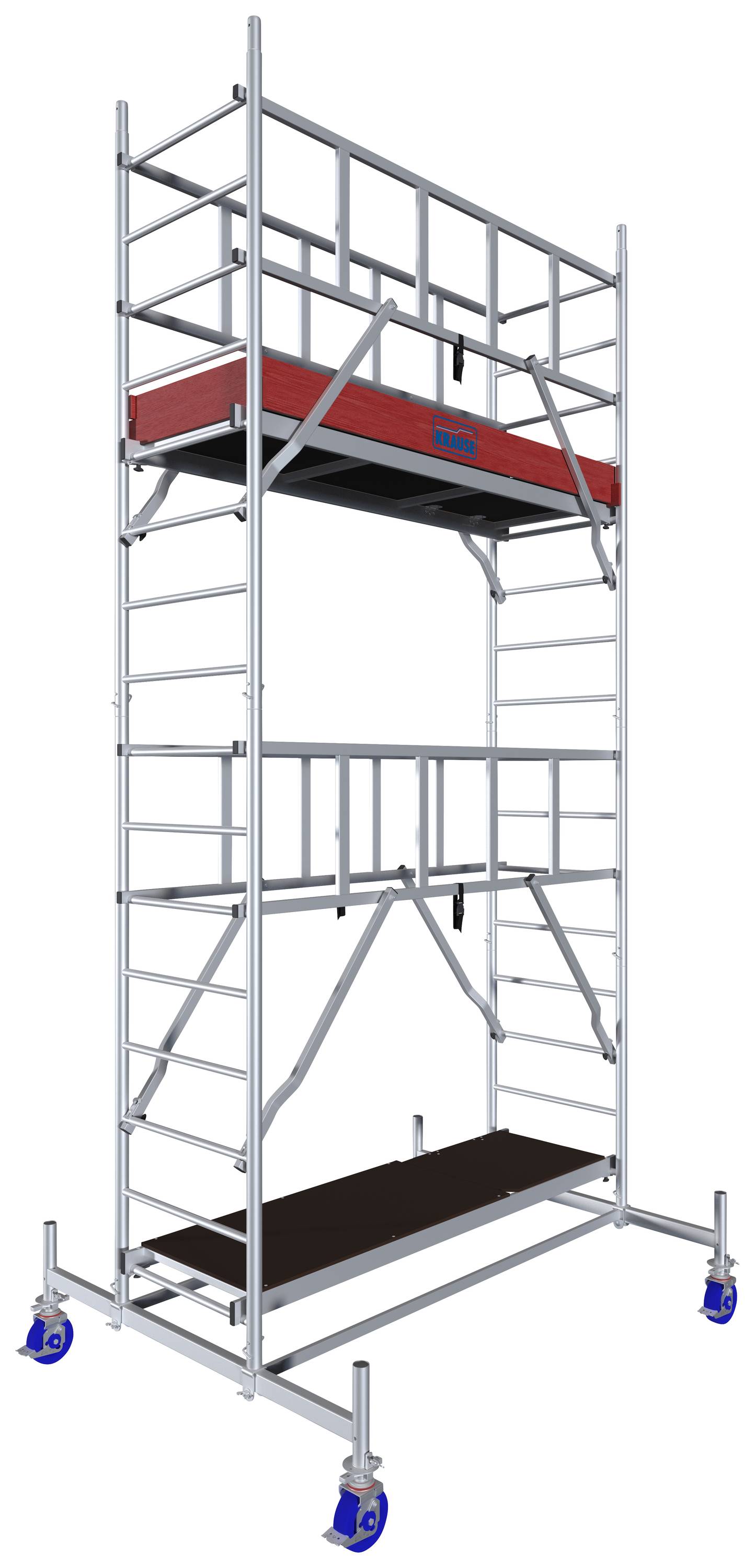

A mobile metal scaffolding with two platform levels, the upper one red, the lower one black, mounted on blue wheels.

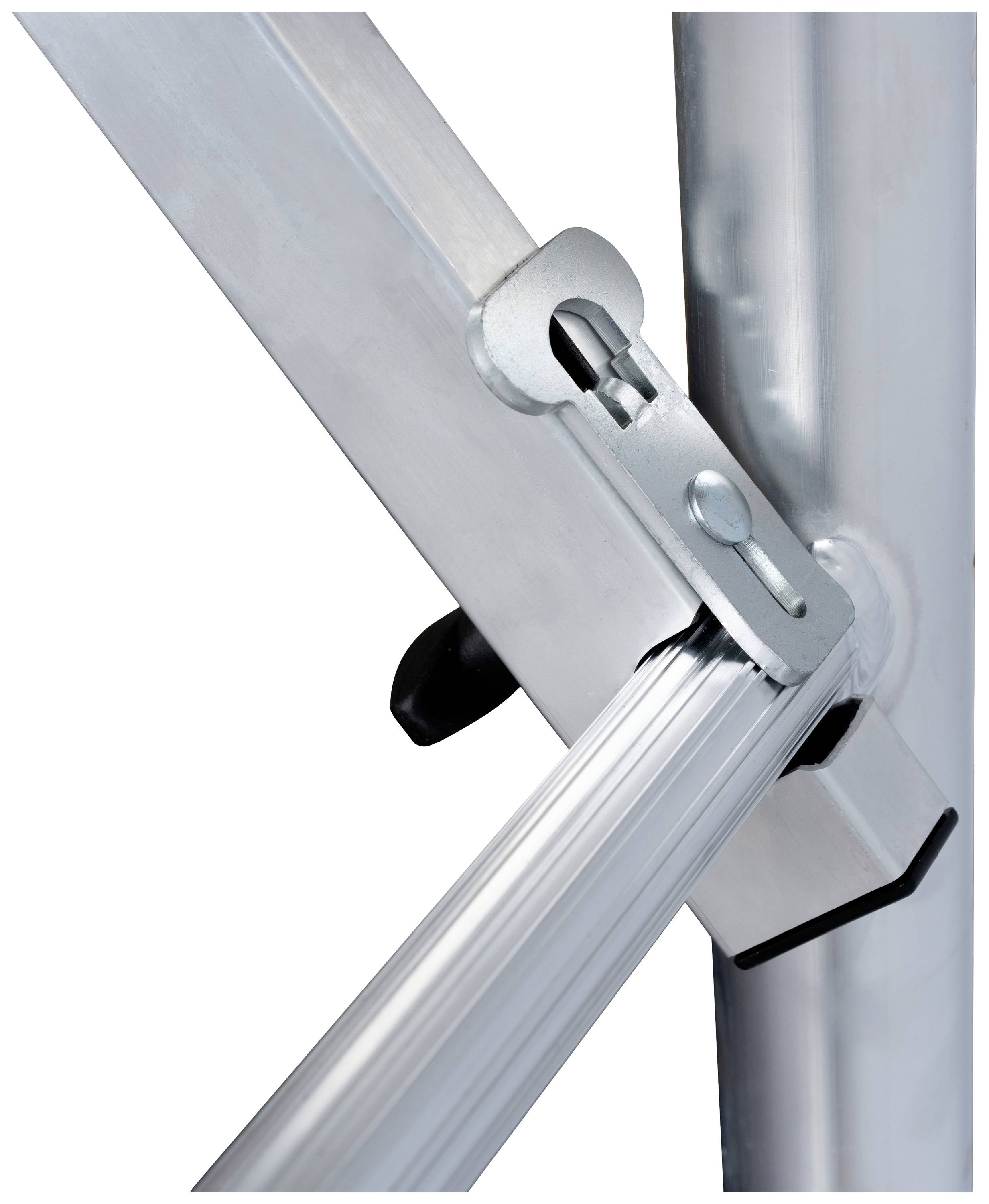

Close-up of a metal mechanism showing a connection between two pipes, likely part of a tripod or framework.

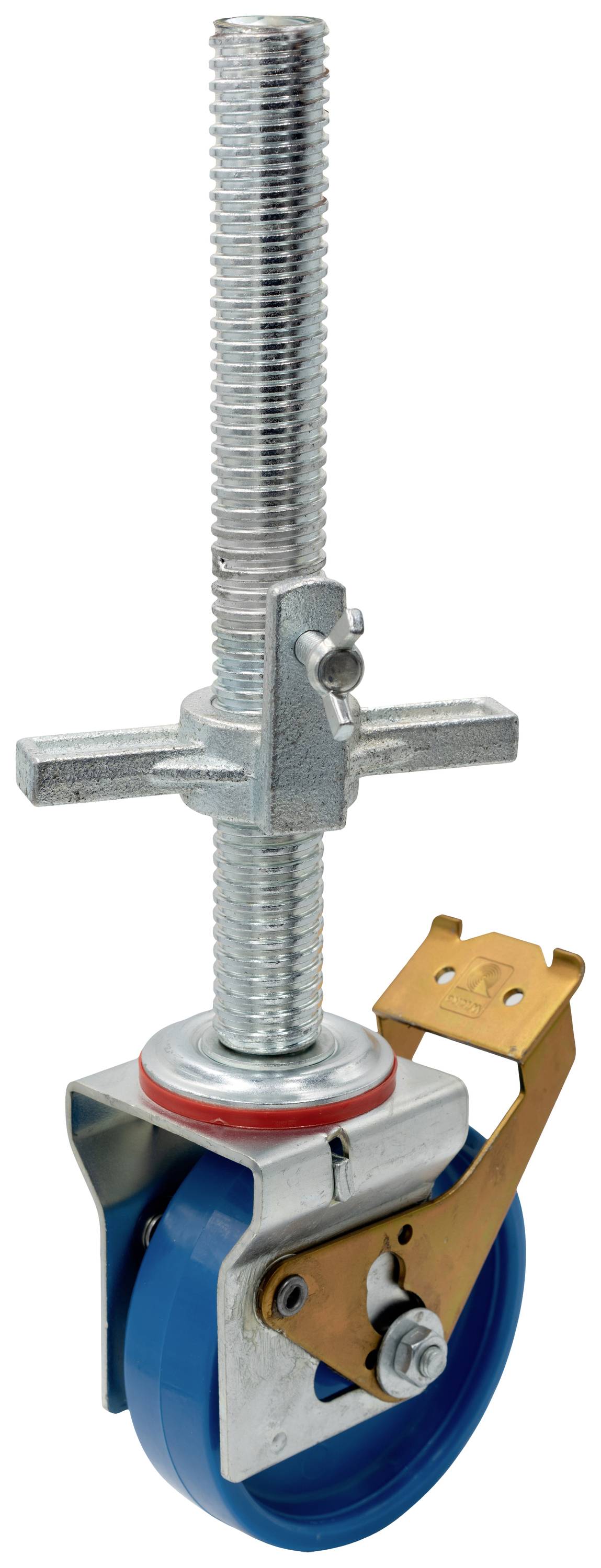

A blue swivel castor with a screw mechanism and brake, mounted on a metal housing with threaded bolt for height adjustment.

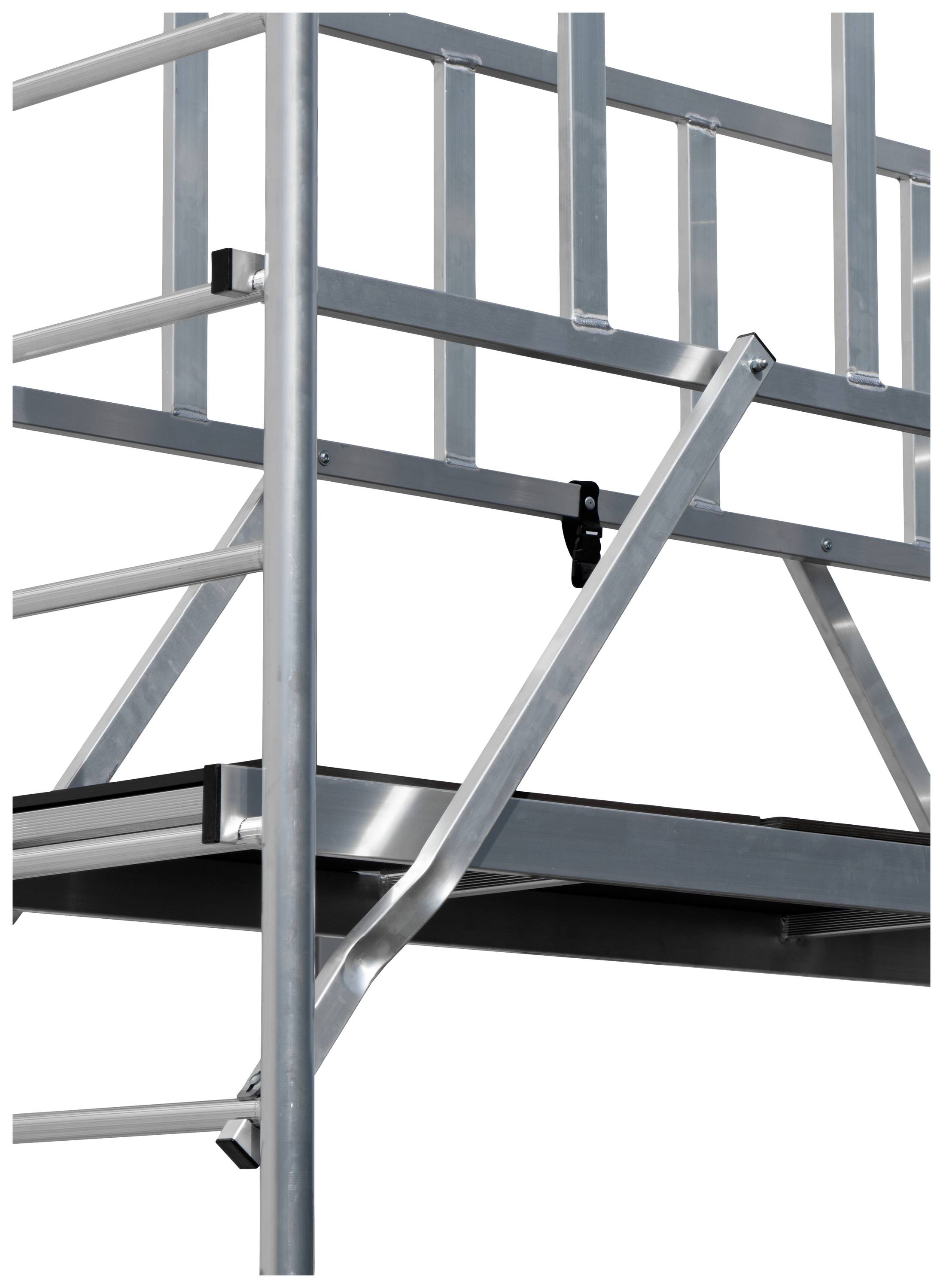

A detailed image of a silver metal framework reinforced with struts. Suitable for construction or engineering works.

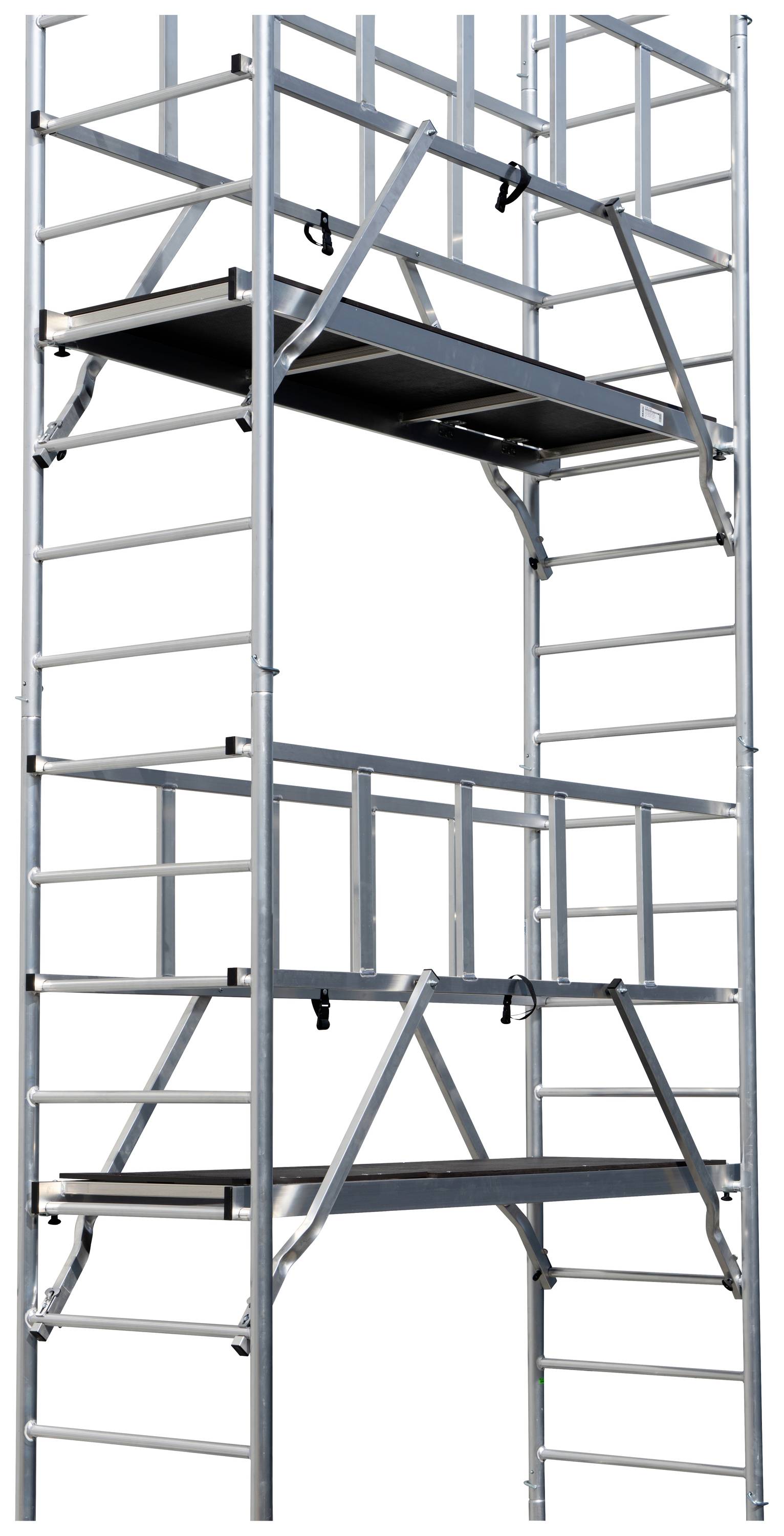

Aluminium scaffold with two work platforms, positioned vertically. Both platforms are connected by ladders and have safety guardrails.

1/6

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

MONTO ProTec aluminum mast, working height approx. 5.30 m.

TUV-tested, load capacity 200 kg/m² according to DIN EN 1004-1
The 6-point fixing of the GuardMatic system provides for maximum stability in height
Power-positive semi-automatic diagonal connections enable simple, fast and safe construction
The innovative shape of the diagonals offers a maximum usable surface on the surface stage and does not disturb in any way
Maximum spacing of 2 m for comfortable and safe construction without auxiliary equipment
Secure inner ascent through non-slip profiled rungs
Two 1-meter vertical frames included in the delivery, which can be plugged together to form a 2-meter vertical frame, enable flexible construction
Weatherproof and anti-slip platforms (2.00 x 0.60 m)
Braked, height-adjustable castors to compensate for uneven ground surfaces
Easy-to-install radial arms provide additional stability from a working height of 7.30 m.

Technical specifications

Product type: Mobile scaffold

Max. load: 200 kg/m²

Working height range: 5.1 m - 6 m

Factory colour: Silver

Material: Aluminium

Weight: 115 kg

Operating height (max.): 5.30 m

Features: Mobile

Platform width: 2.00 m

Platform depth: 0.60 m

Maximum height: 3.30 m

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Working height range

Krause 940124 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.30 m Silver 115 kg

Item no:2521528

Unavailable

Conrad Electronic

This article

5.1 m - 6 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 940100 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 2.90 m Silver 45 kg

Item no:2521526

Unavailable

Conrad Electronic

2.1 m - 3 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 940117 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 4.30 m Silver 89 kg

Item no:2521527

Unavailable

Conrad Electronic

4.1 m - 5 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 940131 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 6.30 m Silver 123 kg

Item no:2521529

Unavailable

Conrad Electronic

6.1 m - 7 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 940148 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 7.30 m Silver 159 kg

Item no:2521530

Unavailable

Conrad Electronic

7.1 m - 8 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 940155 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 8.30 m Silver 177 kg

Item no:2521531

Unavailable

Conrad Electronic

8.1 m - 9 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 940162 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 9.30 m Silver 203 kg

Item no:2521532

Unavailable

Conrad Electronic

9.1 m - 10 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 940179 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 10.30 m Silver 211 kg

Item no:2521533

Unavailable

Conrad Electronic

10.1 m - 11 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 940186 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 11.30 m Silver 237 kg

Item no:2521534

Unavailable

Conrad Electronic

11.1 m - 12 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 940193 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 12.30 m Silver 245 kg

Item no:2521535

Unavailable

Conrad Electronic

12.1 m - 13 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2521528 Krause 940124 FahrGerüst Aluminium Mobile scaffold Mobile Operating height (max.): 5.30 m Silver 115 kg

Description

The solid aluminum chassis for demanding applications with height-adjustable, braked rollers. The secure structure is ensured by the attachment of the GuardMatic system railing frame before the next higher lining stage is suspended. When climbing through the belagbühne, a complete railing and thus a fall protection is available. The integration of the diagonals in the GuardMatic system ensures a simple and safe installation. For transport or storage, the rail frame can be folded together to save space.
