Name: Krause 942128 FahrGerüst Aluminium Folding scaffold Mobile, Folding Operating height (max.): 4.80 m Silver 111 kg
Brand: Krause
SKU: 2521517

A mobile aluminium scaffold with a red and black work platform in the centre. It has blue wheels at the four corners.

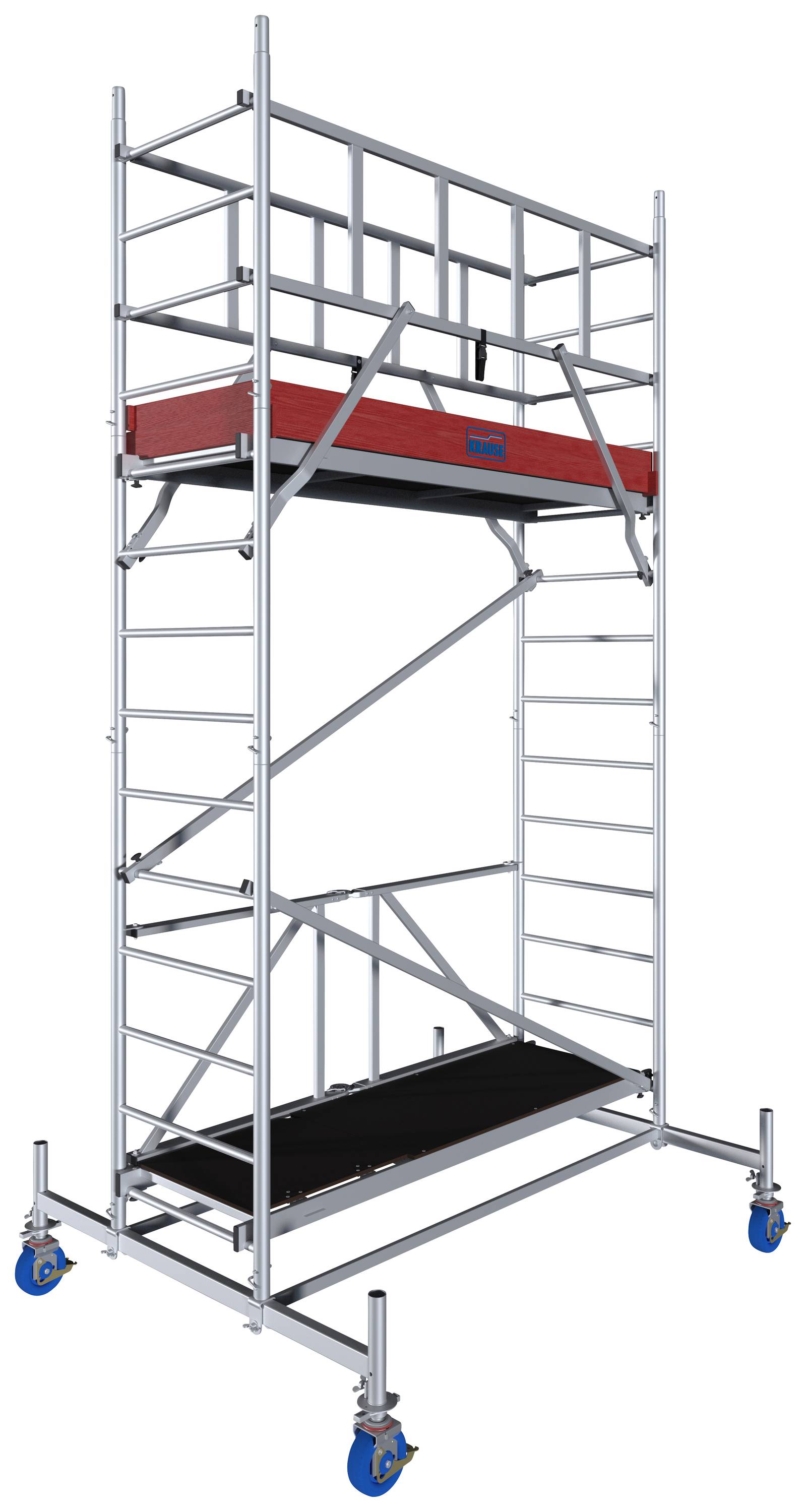

A mobile, silver scaffolding with two platforms and blue wheels, suitable for work at height.

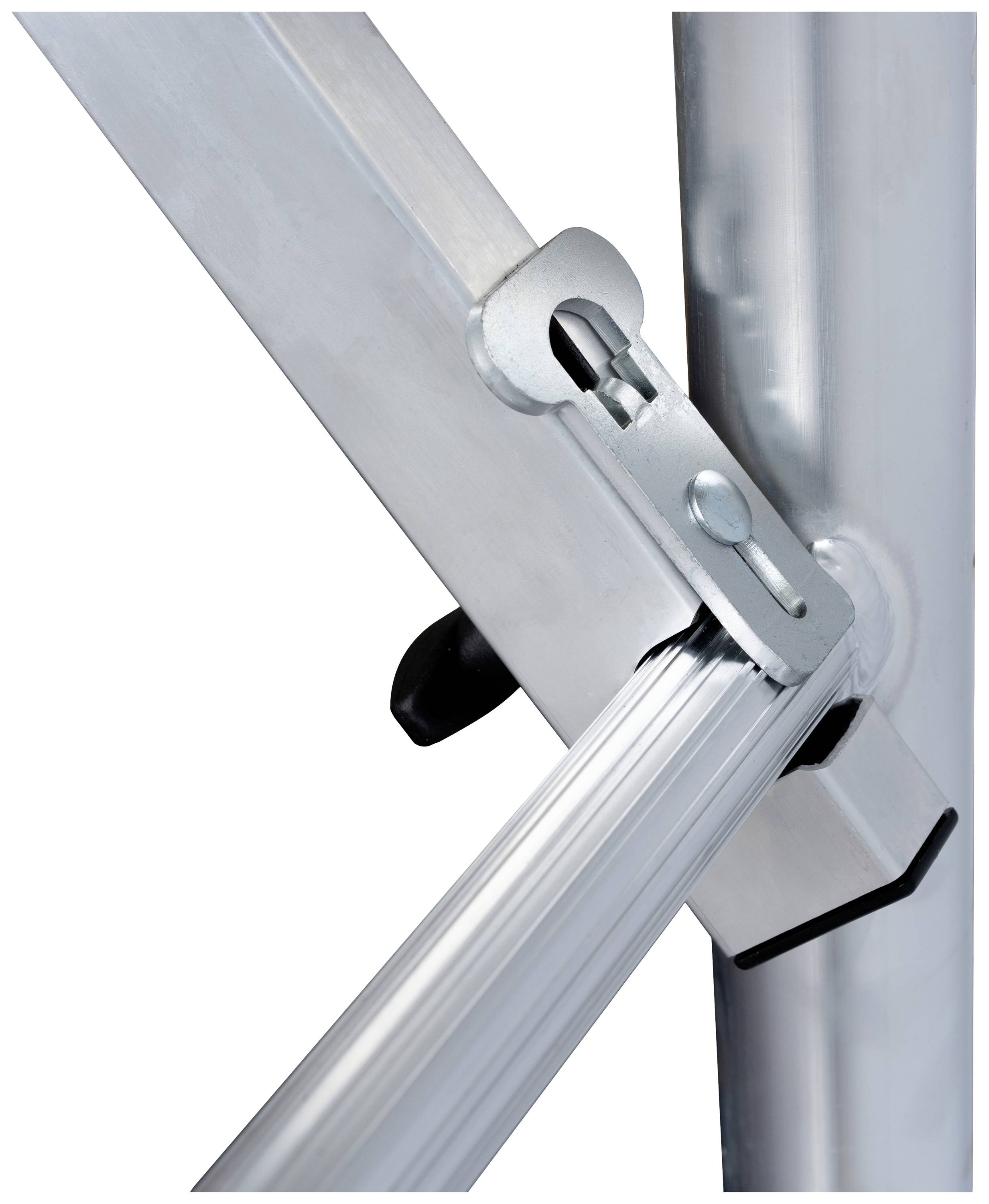

A silver metal frame with a locking mechanism and levers. It shows components of a scaffolding or stand.

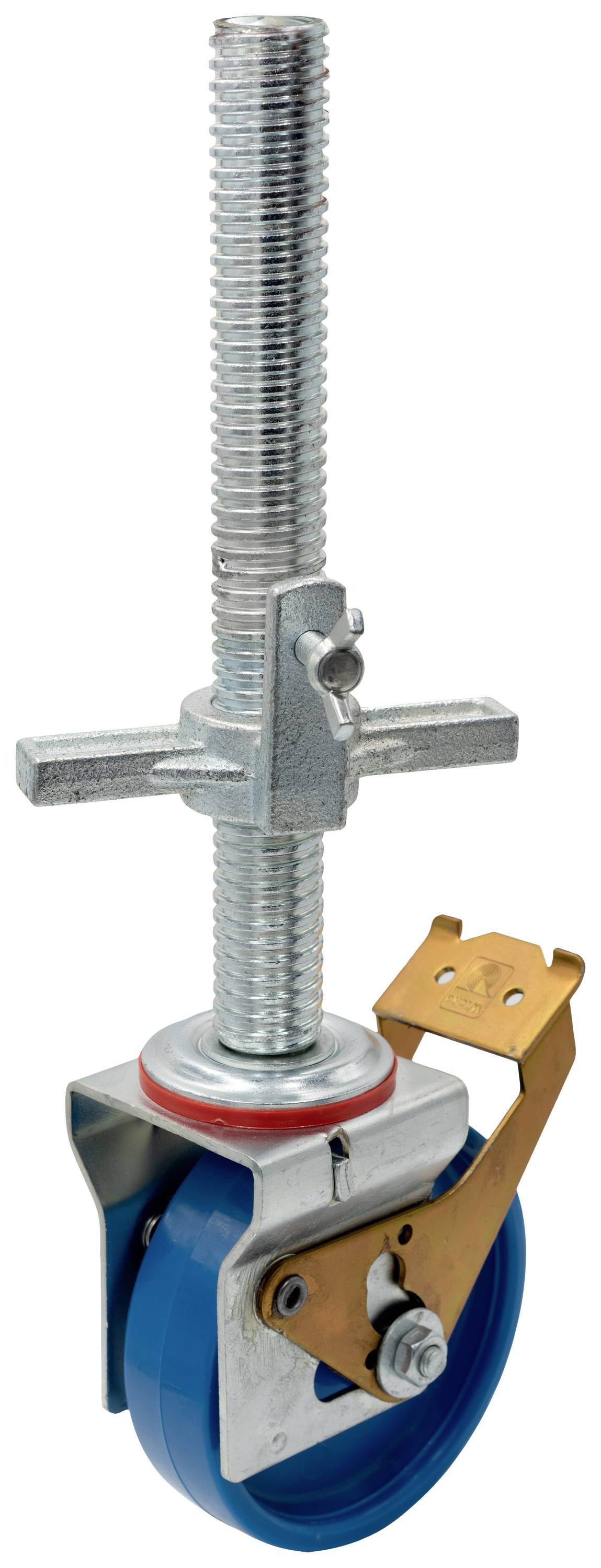

'Deflection pulley with blue rubber coating, metal mounting bracket and threaded rod for height adjustment, with side braking mechanism.'

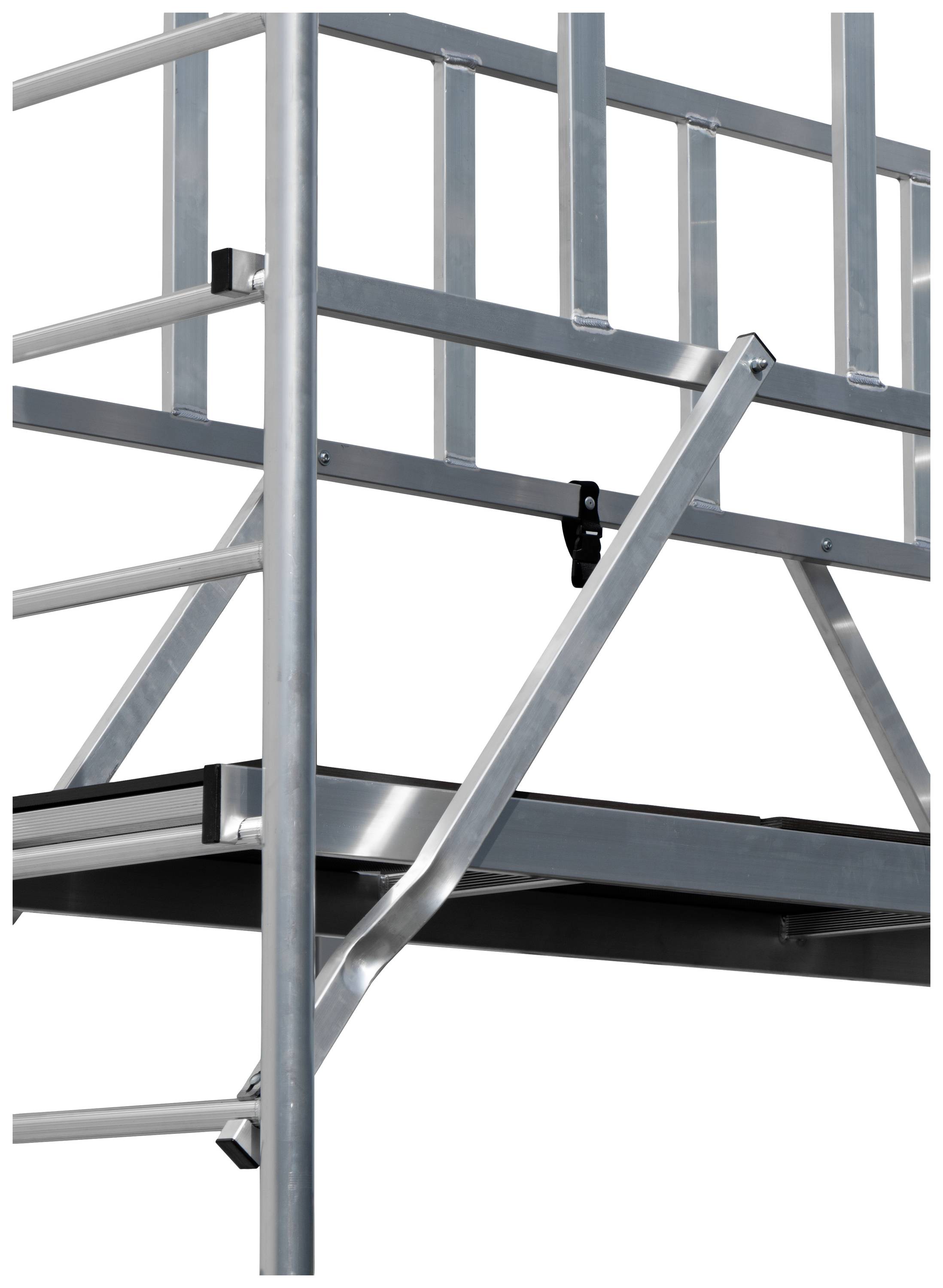

'Detailed view of an aluminium scaffolding with robust transverse and longitudinal braces, focusing on the safety interlocking mechanism of the connecting components.'

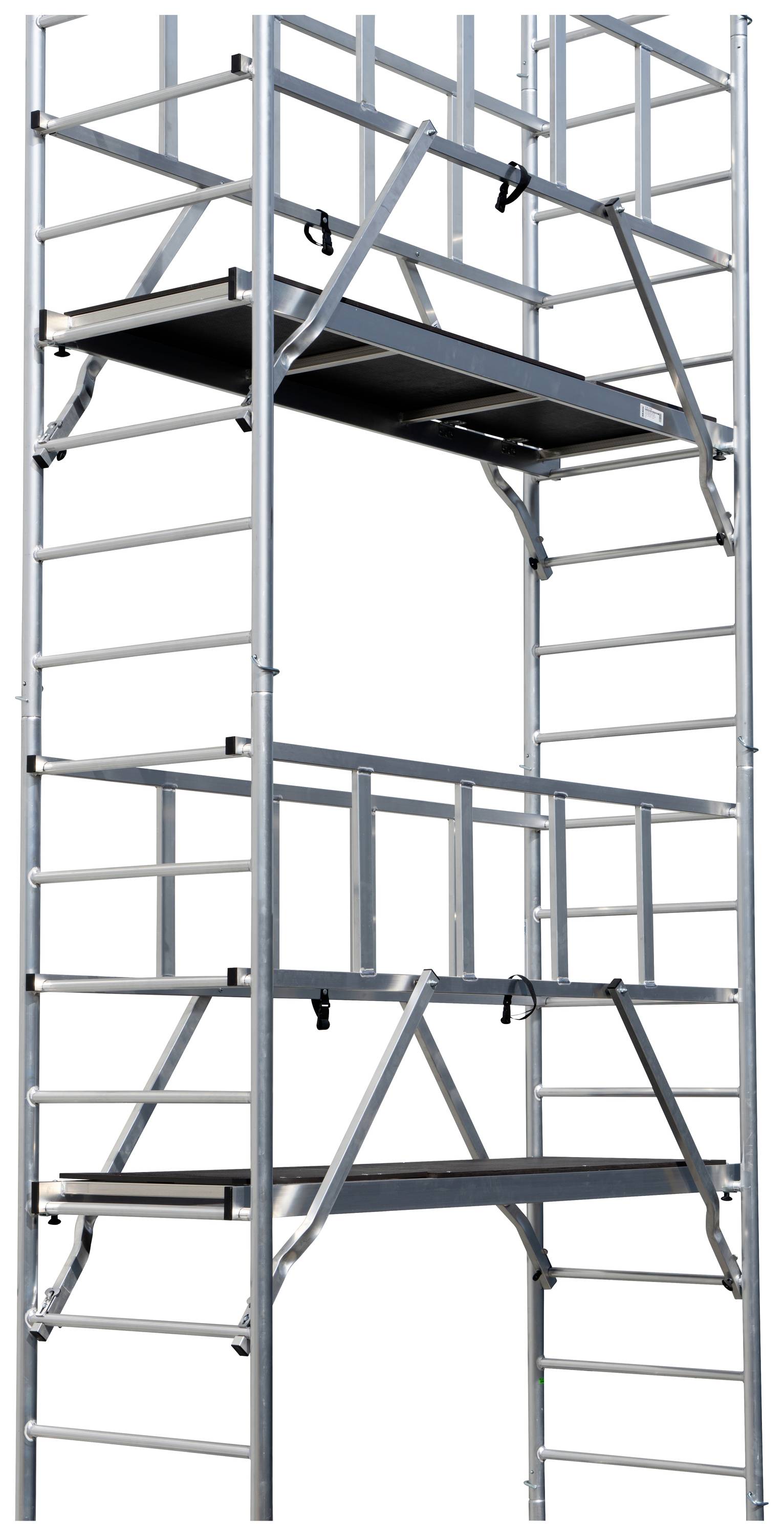

A tall, portable metal scaffolding with two platforms for working at height. Ideal for construction and renovation work.

1/6

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

MONTO ProTec XS aluminum folding frame, working height approx. 4.80 m.

TUV-tested, load capacity 200 kg/m² according to DIN EN 1004-1
Folding base unit for faster assembly
The basic unit fits at a height of 1.80 m with door frame and can be raised up to a working height of 11.80 m.
The 6-point fixing of the GuardMatic system provides for maximum stability in height. Power-positive semi-automatic diagonal connections enable simple, fast and safe construction.
The innovative shape of the diagonals offers a maximum usable surface on the surface stage and does not disturb in any way
Maximum spacing of 2 m for comfortable and safe construction without auxiliary equipment
Secure inner ascent through non-slip profiled rungs
Two 1-meter vertical frames included in the delivery, which can be plugged together to form a 2-meter vertical frame, enable flexible construction
Weatherproof and anti-slip platforms (2.00 x 0.60 m)
Braked wheel casters are height adjustable to compensate for uneven ground surfaces
Easy-to-install radial arms provide additional stability from a working height of 6.80 m.
Optimum stability thanks to high-strength steel cross rail from a working height of 3.80 m.

Technical specifications

Product type: Folding scaffold

Max. load: 200 kg/m²

Working height range: 4.1 m - 5 m

Factory colour: Silver

Material: Aluminium

Weight: 111 kg

Operating height (max.): 4.80 m

Features: Mobile
Folding

Platform width: 2.00 m

Platform depth: 0.60 m

Maximum height: 2.80 m

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Working height range

Krause 942128 FahrGerüst Aluminium Folding scaffold Mobile, Folding Operating height (max.): 4.80 m Silver 111 kg

Item no:2521517

Unavailable

Conrad Electronic

This article

4.1 m - 5 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 942104 FahrGerüst Aluminium Folding scaffold Mobile, Folding Operating height (max.): 2.90 m Silver 39 kg

Item no:2521519

Unavailable

Conrad Electronic

2.1 m - 3 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 942111 FahrGerüst Aluminium Folding scaffold Mobile, Folding Operating height (max.): 3.80 m Silver 93 kg

Item no:2521518

Unavailable

Conrad Electronic

3.1 m - 4 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 942135 FahrGerüst Aluminium Folding scaffold Mobile, Folding Operating height (max.): 5.80 m Silver 127 kg

Item no:2521516

Unavailable

Conrad Electronic

5.1 m - 6 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 942142 FahrGerüst Aluminium Folding scaffold Mobile, Folding Operating height (max.): 6.80 m Silver 141 kg

Item no:2521515

Unavailable

Conrad Electronic

6.1 m - 7 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 942159 FahrGerüst Aluminium Folding scaffold Mobile, Folding Operating height (max.): 7.80 m Silver 181 kg

Item no:2521514

Unavailable

Conrad Electronic

7.1 m - 8 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 942166 FahrGerüst Aluminium Folding scaffold Mobile, Folding Operating height (max.): 8.80 m Silver 199 kg

Item no:2521513

Unavailable

Conrad Electronic

8.1 m - 9 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 942173 FahrGerüst Aluminium Folding scaffold Mobile, Folding Operating height (max.): 9.80 m Silver 215 kg

Item no:2521512

Unavailable

Conrad Electronic

9.1 m - 10 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 942180 FahrGerüst Aluminium Folding scaffold Mobile, Folding Operating height (max.): 10.80 m Silver 233 kg

Item no:2521511

Unavailable

Conrad Electronic

10.1 m - 11 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Krause 942197 FahrGerüst Aluminium Folding scaffold Mobile, Folding Operating height (max.): 11.80 m Silver 249 kg

Item no:2521510

Unavailable

Conrad Electronic

11.1 m - 12 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2521517 Krause 942128 FahrGerüst Aluminium Folding scaffold Mobile, Folding Operating height (max.): 4.80 m Silver 111 kg

Description

The fast-growing and easy-to-transport aluminum folding frame with braked castors for indoor and outdoor work. The secure structure is ensured by the attachment of the GuardMatic system railing frame before the next higher lining stage is suspended. When climbing through the belagbühne, a complete railing and thus a fall protection is available. The integration of the diagonals in the GuardMatic system ensures a simple and safe installation. For transport or storage, the rail frame can be folded together to save space.

This text is machine translated.
