Krause 942159 FahrGerüst Aluminium Folding scaffold Mobile, Folding Operating height (max.): 7.80 m Silver 181 kg
EAN:
Part number:
Item no:
Highlights & Details

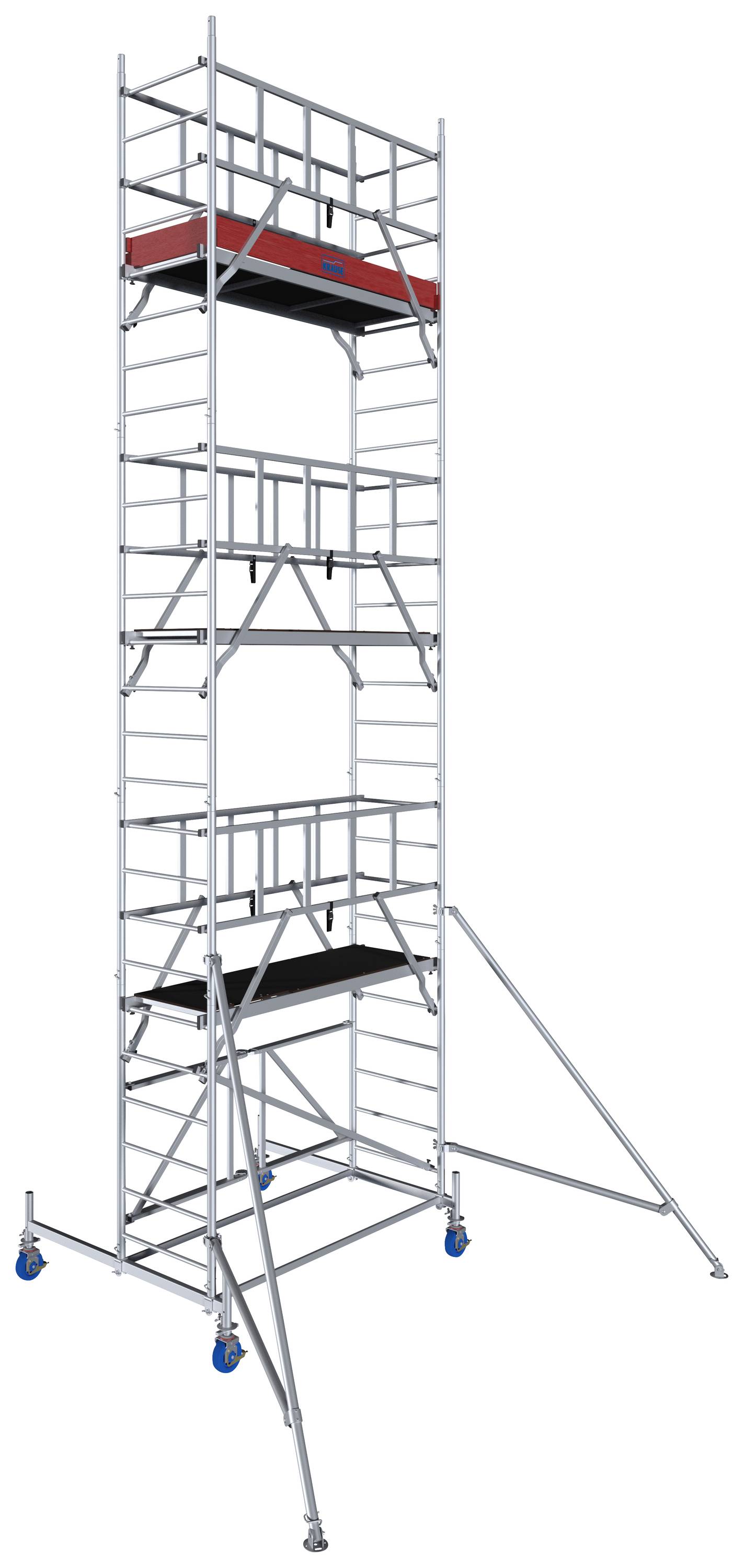

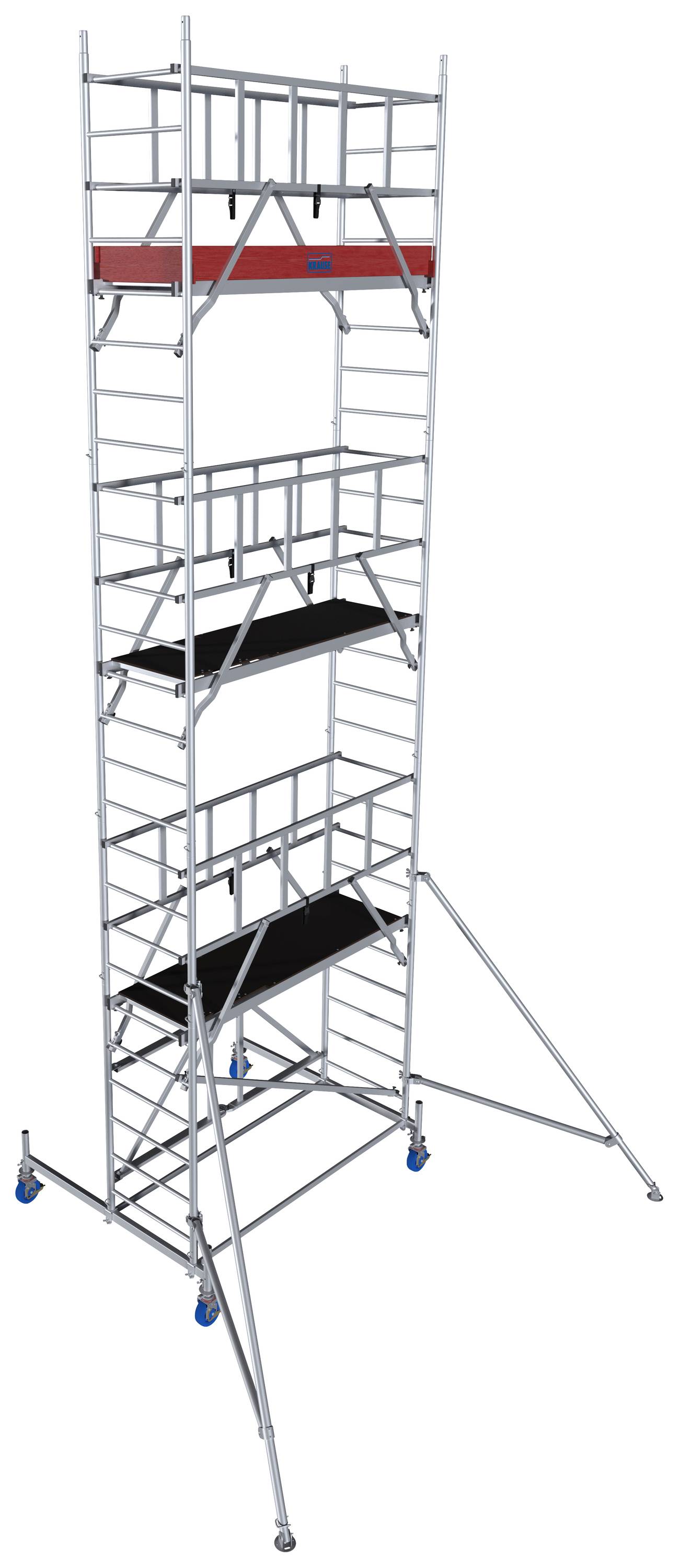

MONTO ProTec XS aluminum folding frame, working height approx. 7.80 m.
- TUV-tested, load capacity 200 kg/m² according to DIN EN 1004-1
- Folding base unit for faster assembly

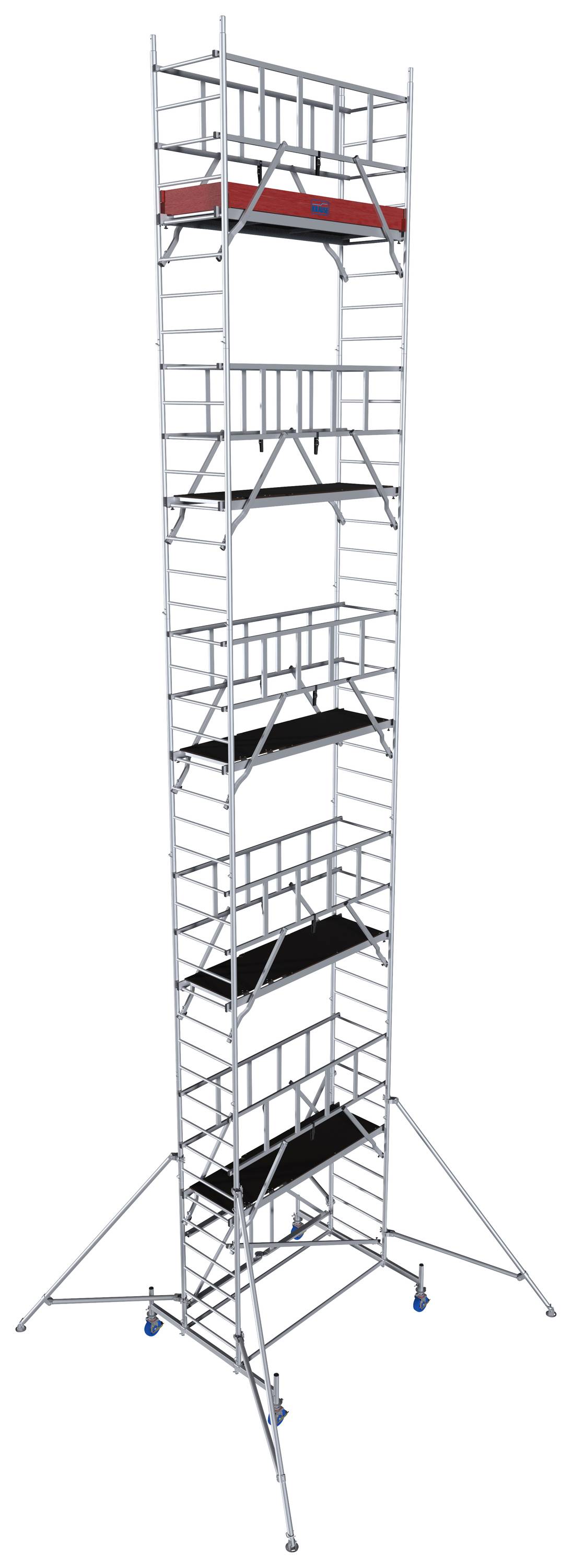

- The basic unit fits at a height of 1.80 m with door frame and can be raised up to a working height of 11.80 m.

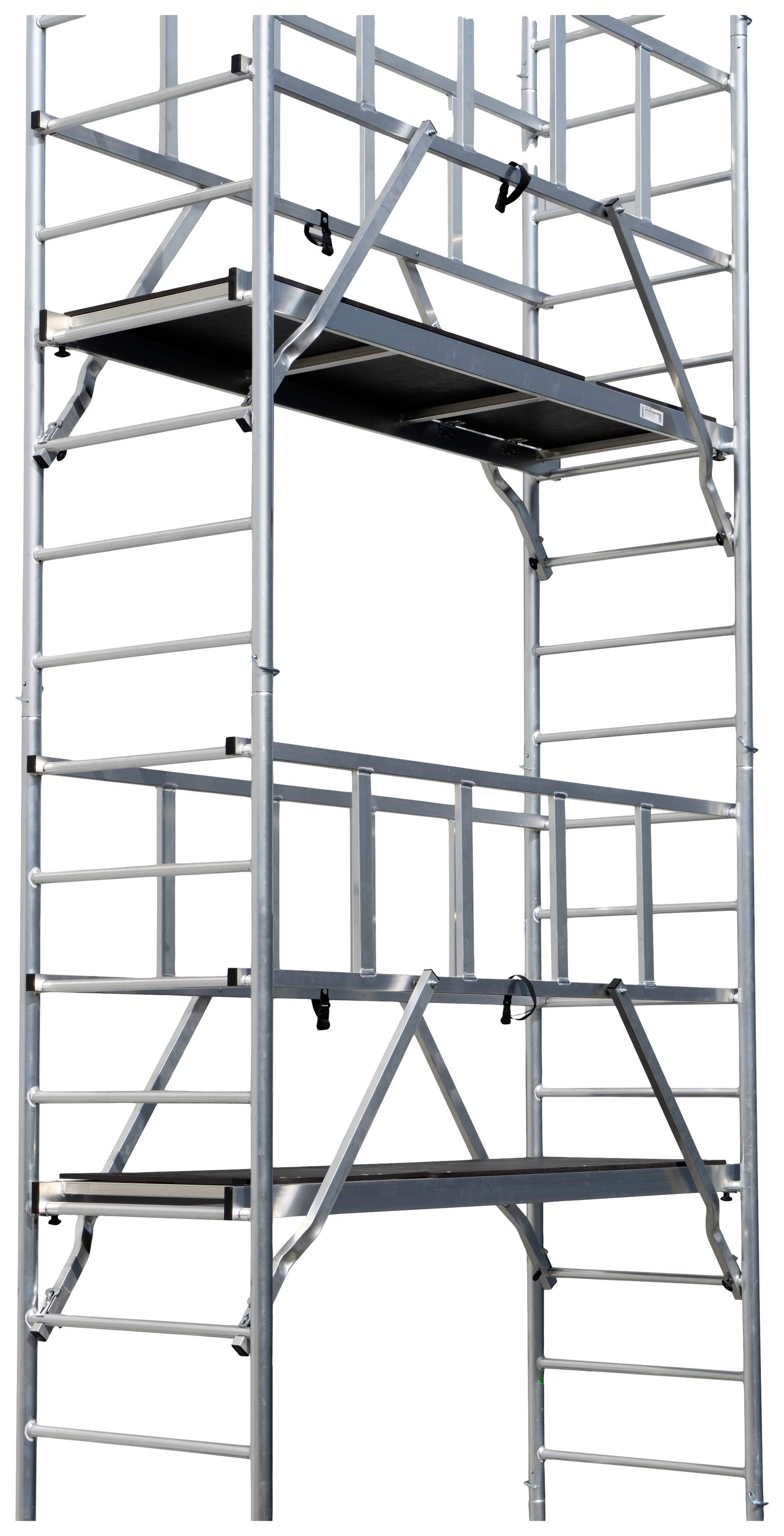

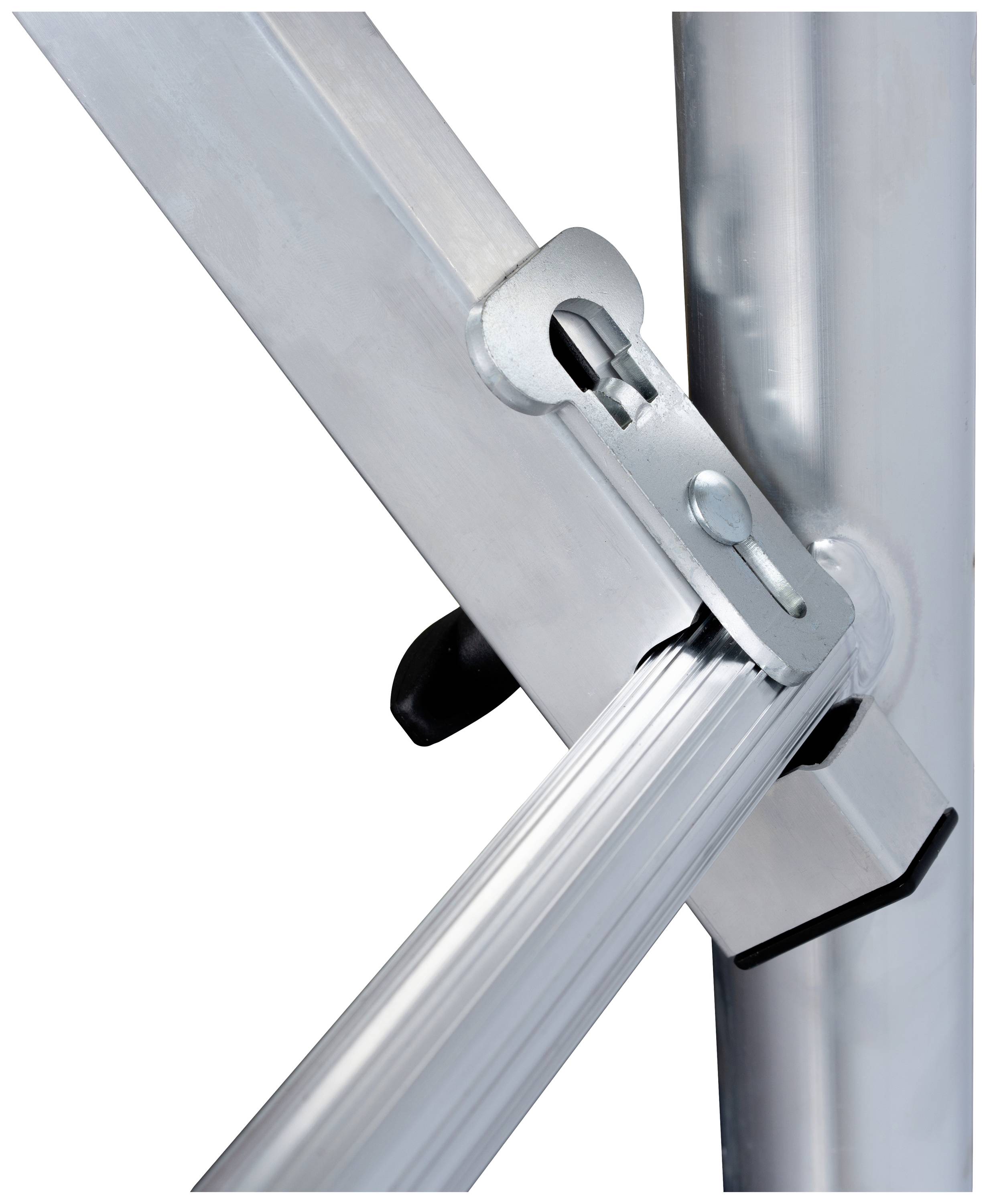

- The 6-point fixing of the GuardMatic system provides for maximum stability in height. Power-positive semi-automatic diagonal connections enable simple, fast and safe construction.

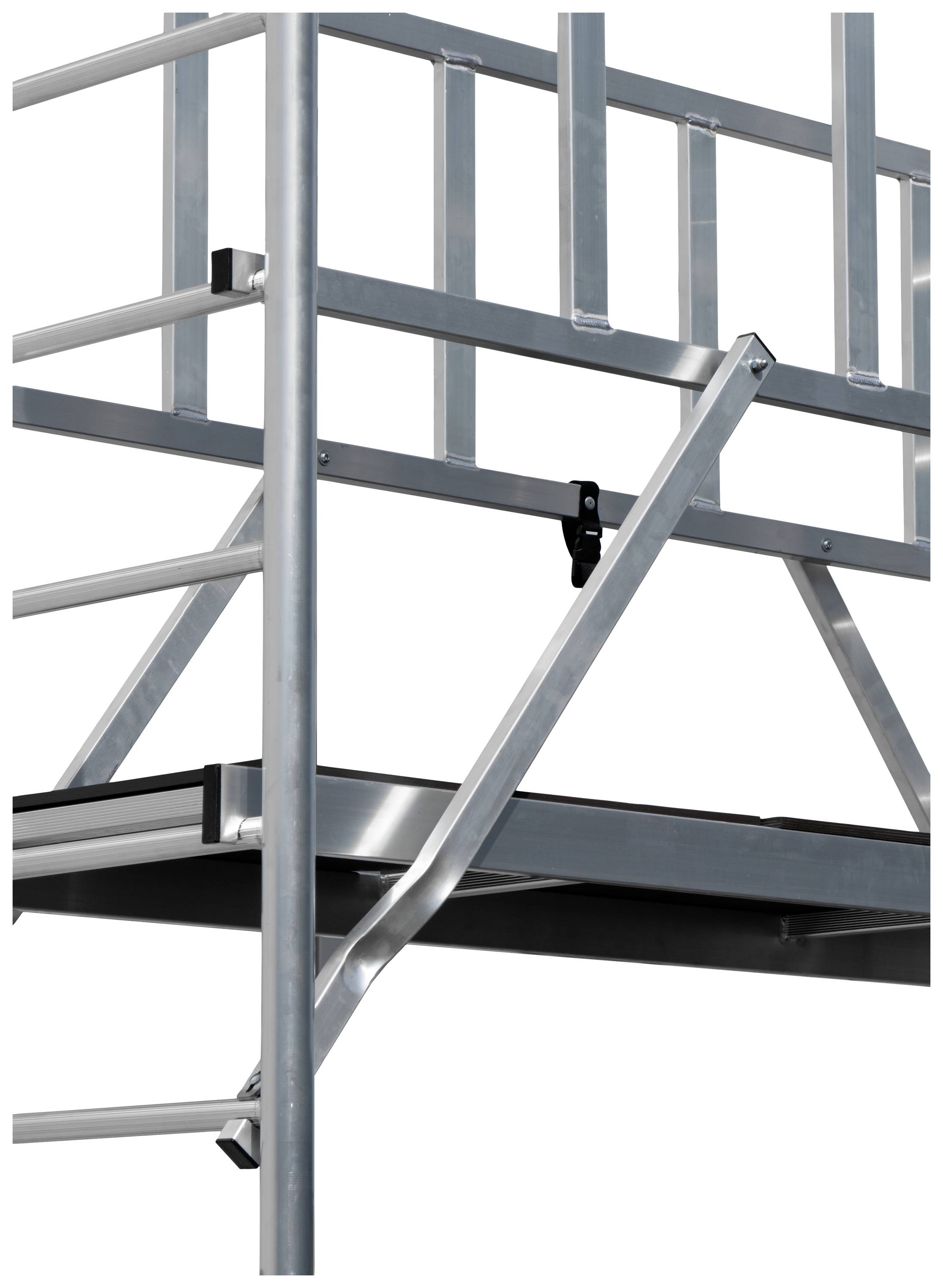

- The innovative shape of the diagonals offers a maximum usable surface on the surface stage and does not disturb in any way
- Maximum spacing of 2 m for comfortable and safe construction without auxiliary equipment
- Secure inner ascent through non-slip profiled rungs
- Two 1-meter vertical frames included in the delivery, which can be plugged together to form a 2-meter vertical frame, enable flexible construction
- Weatherproof and anti-slip platforms (2.00 x 0.60 m)
- Braked wheel casters are height adjustable to compensate for uneven ground surfaces
- Easy-to-install radial arms provide additional stability from a working height of 6.80 m.
- Optimum stability thanks to high-strength steel cross rail from a working height of 3.80 m.
Technical specifications
- Product type
Folding scaffold
- Max. load
200 kg/m²
- Working height range
7.1 m - 8 m
- Factory colour
Silver
- Material
Aluminium
- Weight
181 kg
- No. of side arms
2
- Operating height (max.)
7.80 m
- Features
Mobile
Folding
- Platform width
2.00 m
- Platform depth
0.60 m
- Maximum height
5.80 m
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2521514 Krause 942159 FahrGerüst Aluminium Folding scaffold Mobile, Folding Operating height (max.): 7.80 m Silver 181 kg
Description
The fast-growing and easy-to-transport aluminum folding frame with braked castors for indoor and outdoor work. The secure structure is ensured by the attachment of the GuardMatic system railing frame before the next higher lining stage is suspended. When climbing through the belagbühne, a complete railing and thus a fall protection is available. The integration of the diagonals in the GuardMatic system ensures a simple and safe installation. For transport or storage, the rail frame can be folded together to save space.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2x Outlayer
