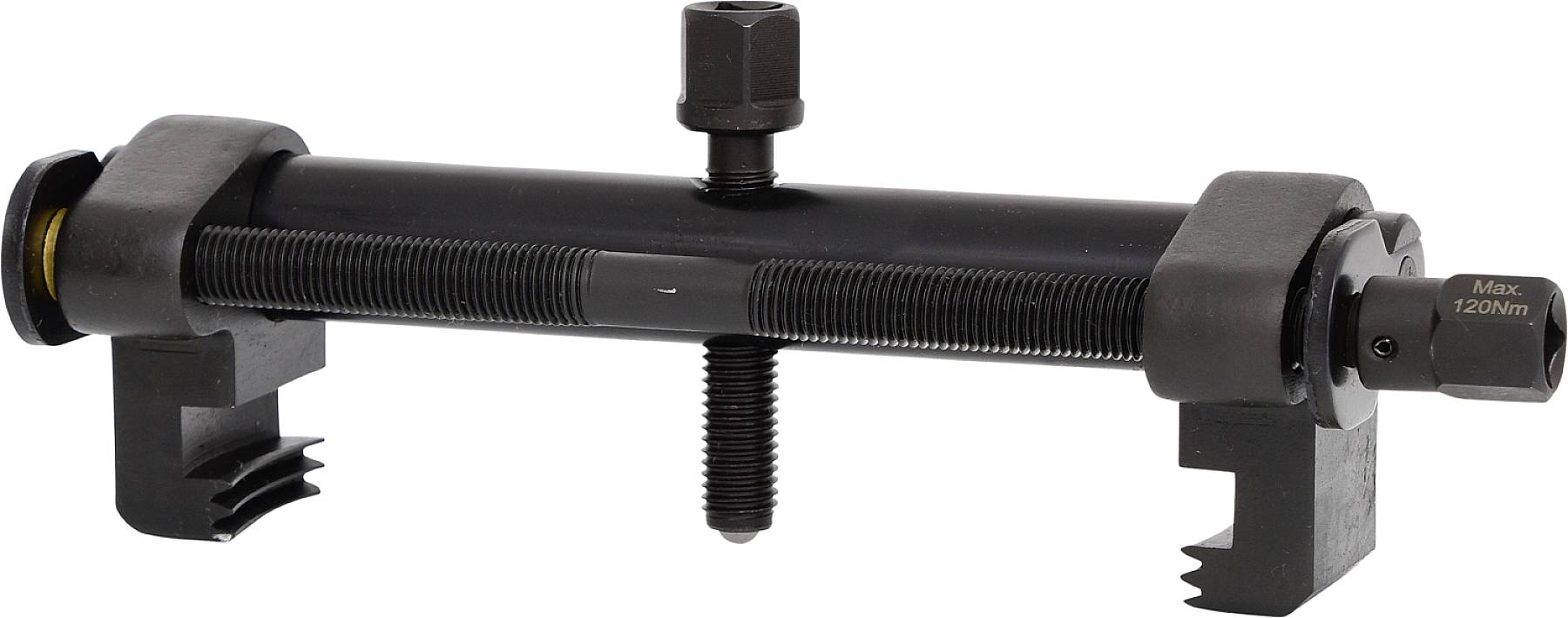

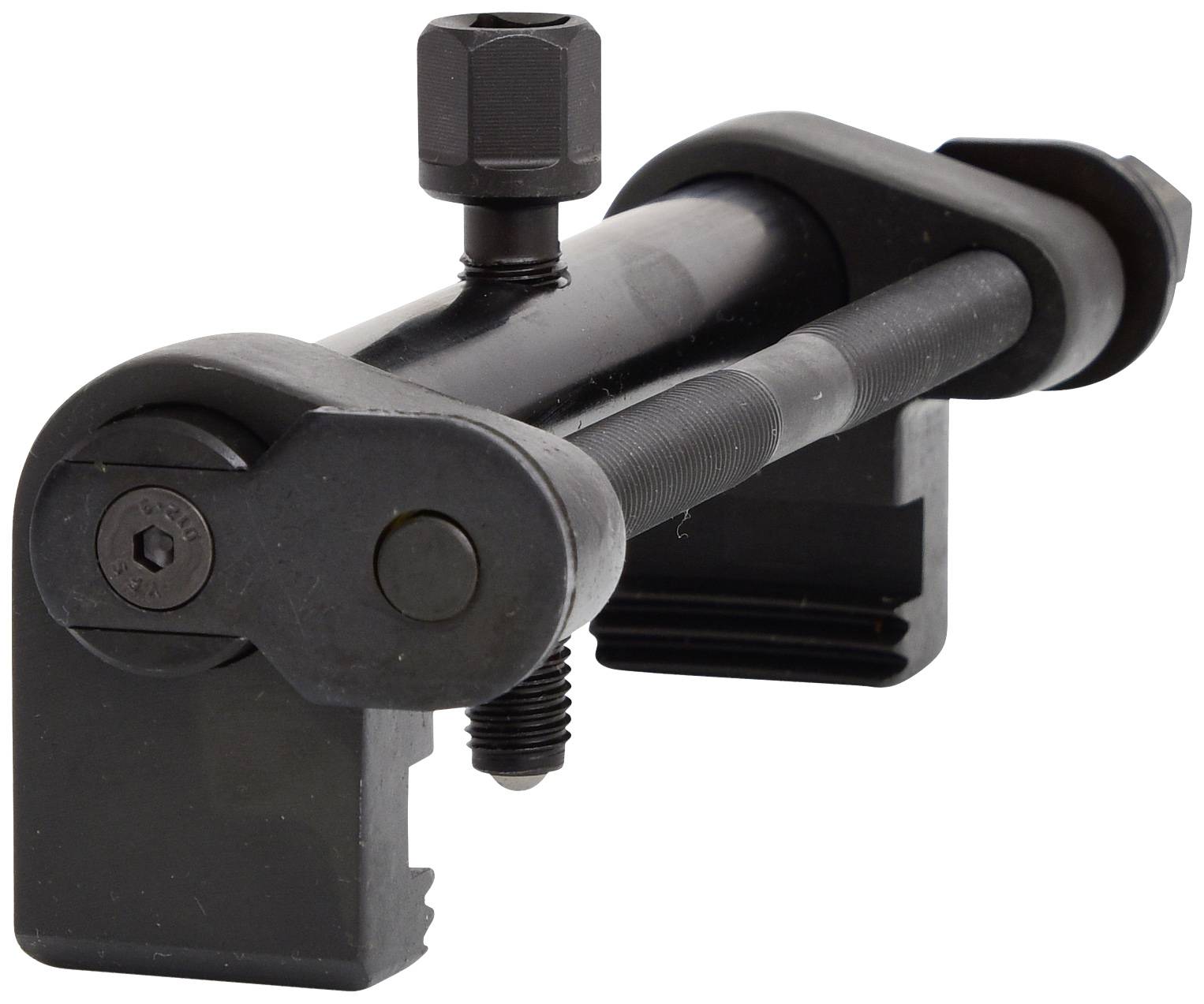

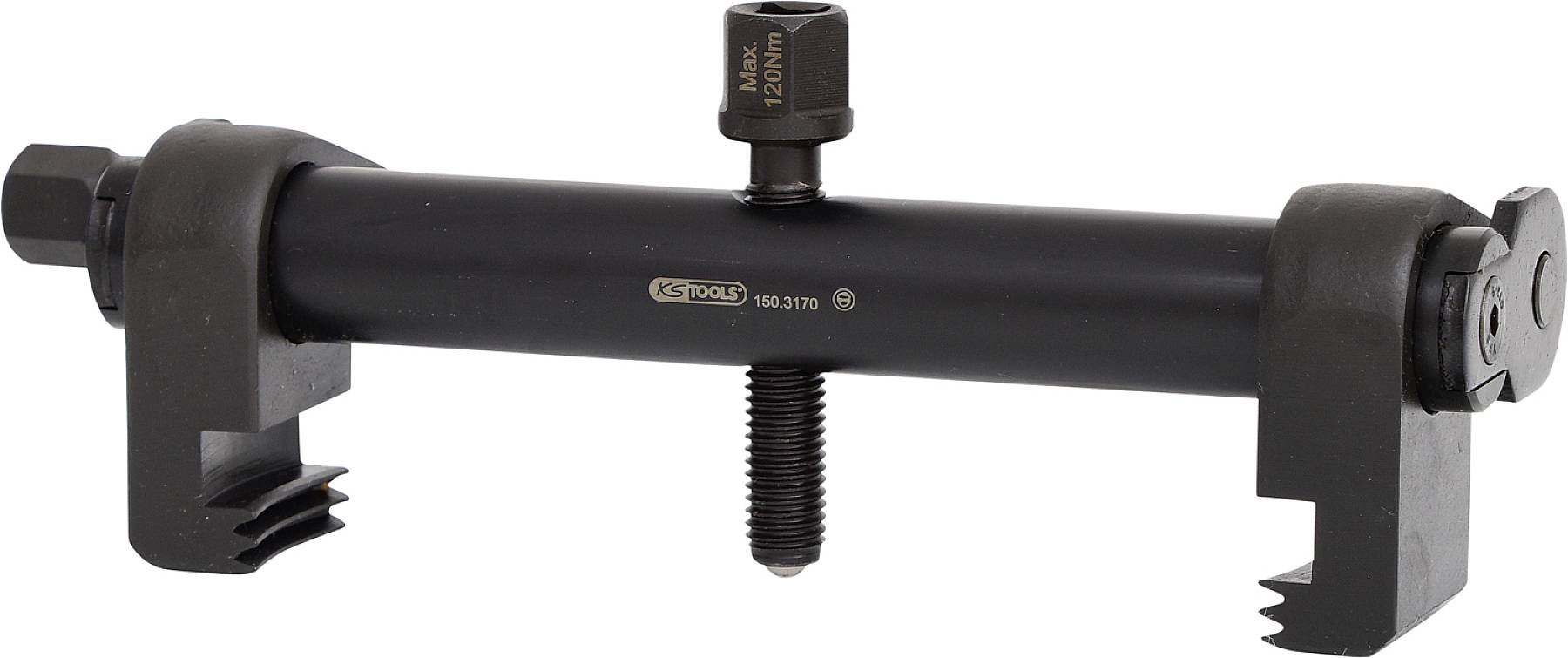

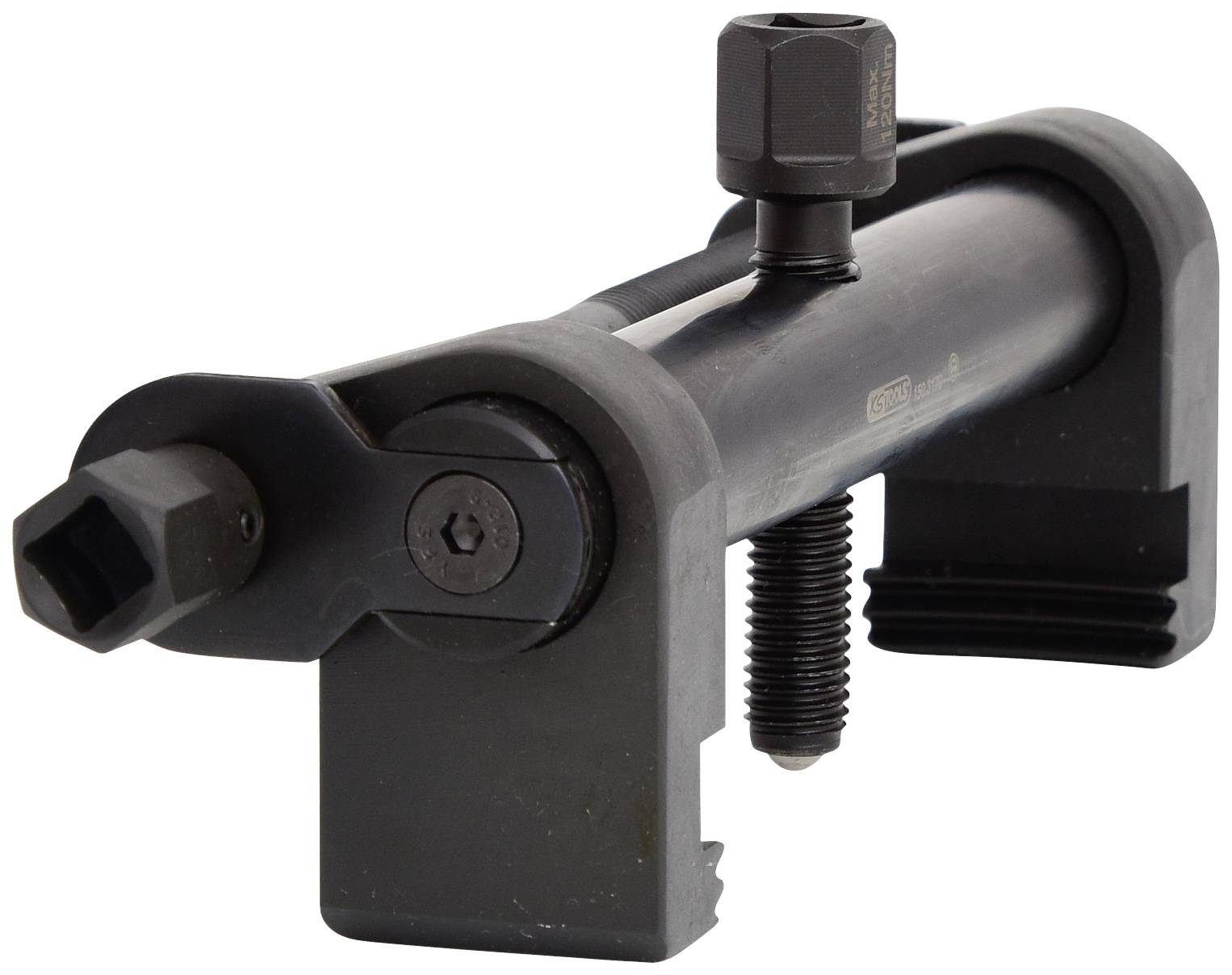

KS Tools 1503170 Belt pulley puller Clamping range (details) 40 - 165 mm No. of hooks 2
EAN:
Part number:
Item no:
Technical specifications

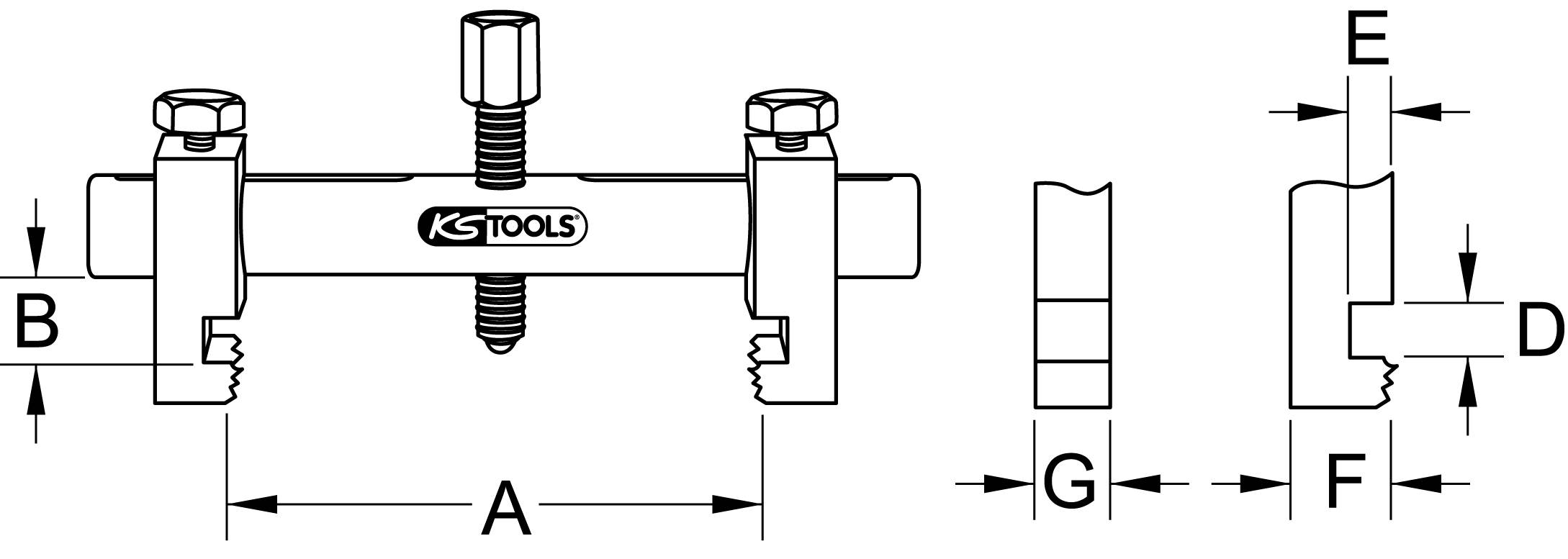

- Pull hook width G: 35 mm
- Pull hook total depth F: 18 mm
- Pull hook height D 10 mm
- Pull hook tip depth E: 9 mm
- Number of pull hooks: With 2 pull-off hooks
- Mounting in mm 17 mm
- Hexagon drive in mm: 17 mm
- Torque max Nm:35 Nm
- Weight 1600 g

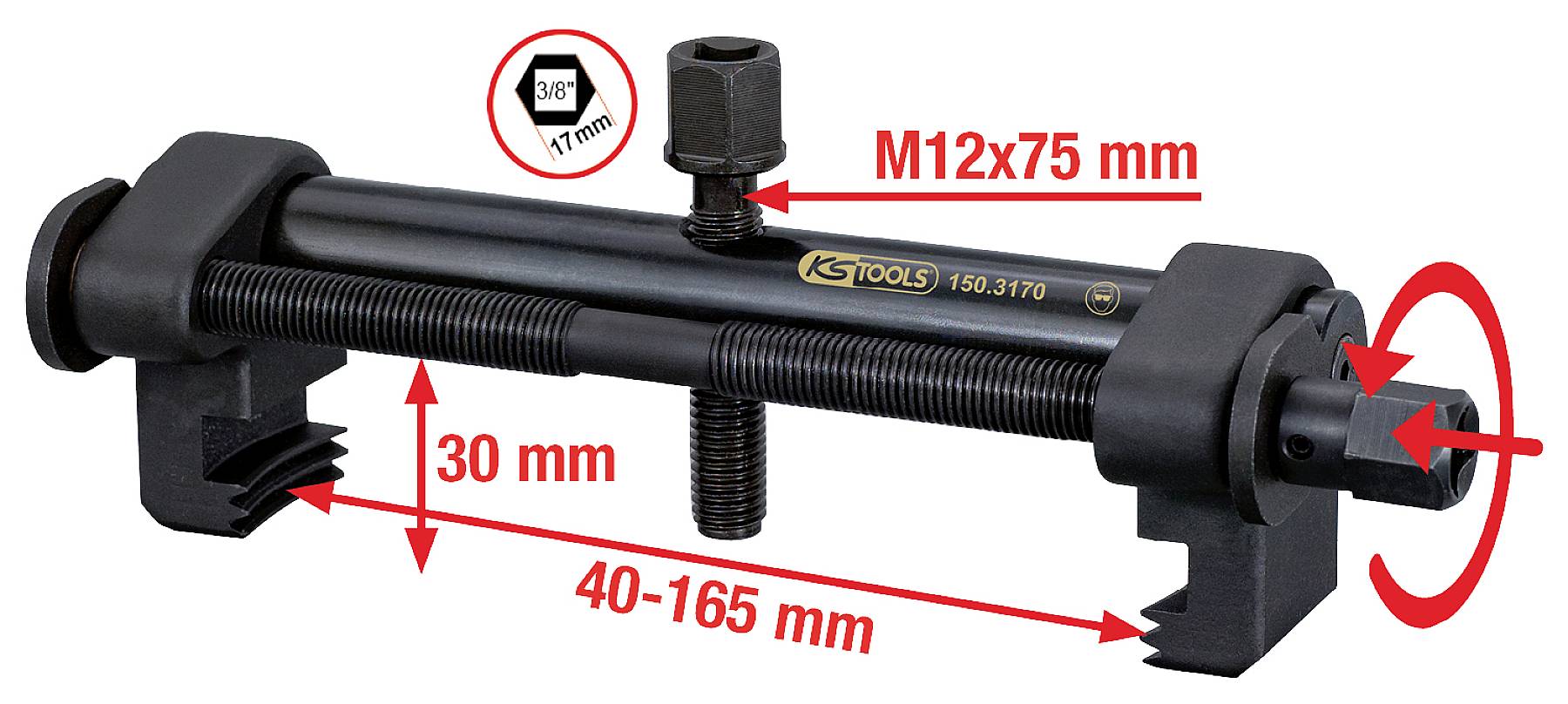

- Size in mm: 40 - 165 mm
- Material1: Special tool steel
- max. Pressure force t: 2.5
- Quick adjustment: No. nein
- Clamping depth B in mm 30 mm
- Span A in mm 40-165 mm

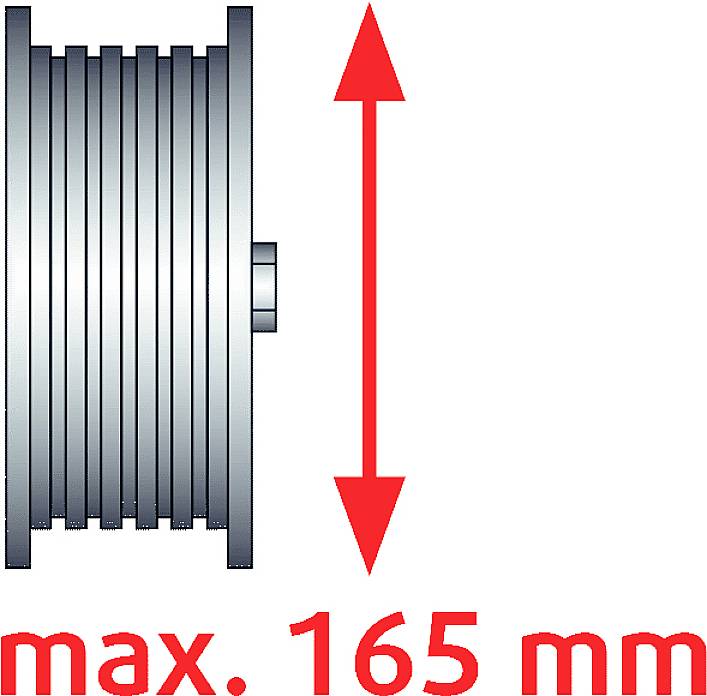

- Span up to [mm]: 165 mm
- Span [mm]: 40 mm
- Spindle size mm M12 x 75
- Clamping range
40 - 165 mm
- Dim
- Weight
1600 g
- Content
1 pc(s)
- Span depth (max.)
30 mm
- Hooks
2
- Product type
Belt pulley puller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2694033 KS Tools 1503170 Belt pulley puller Clamping range (details) 40 - 165 mm No. of hooks 2
Description

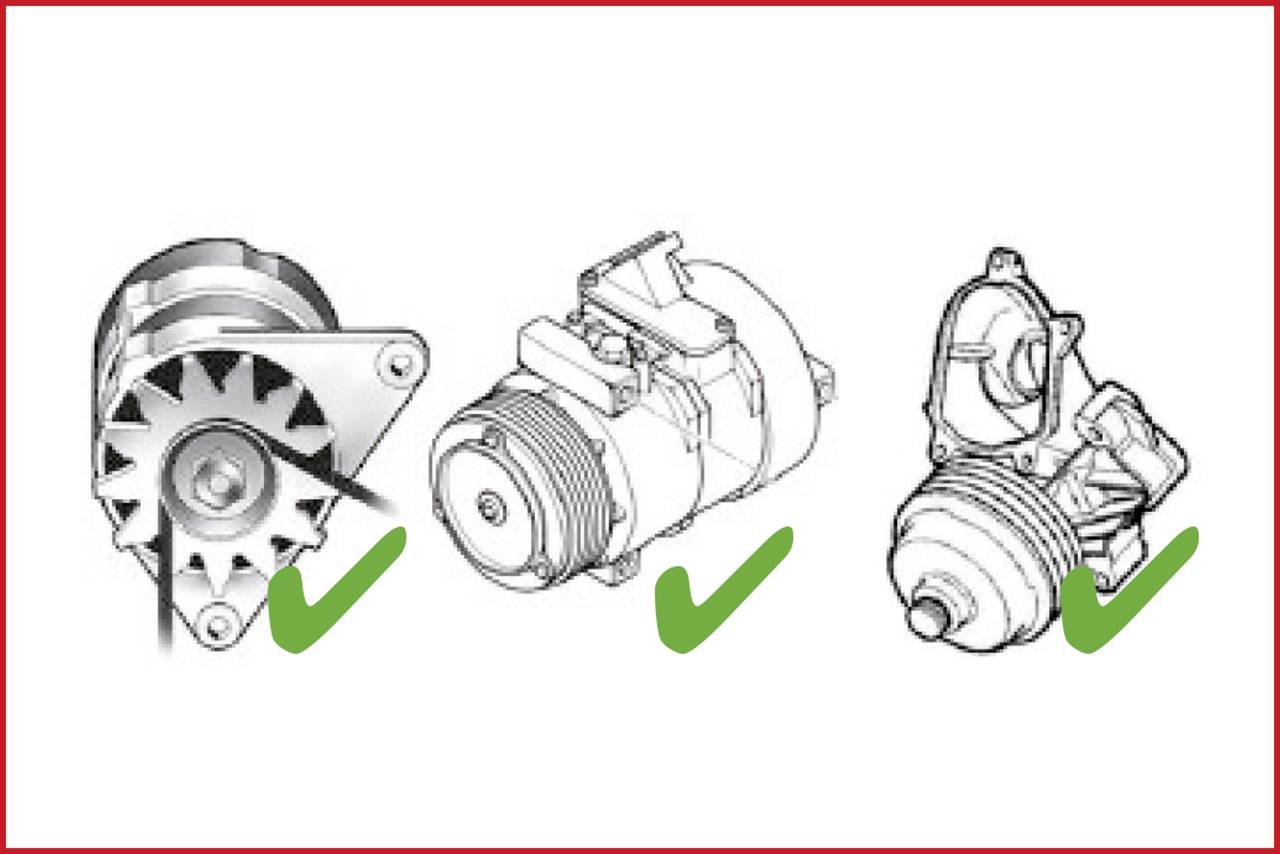

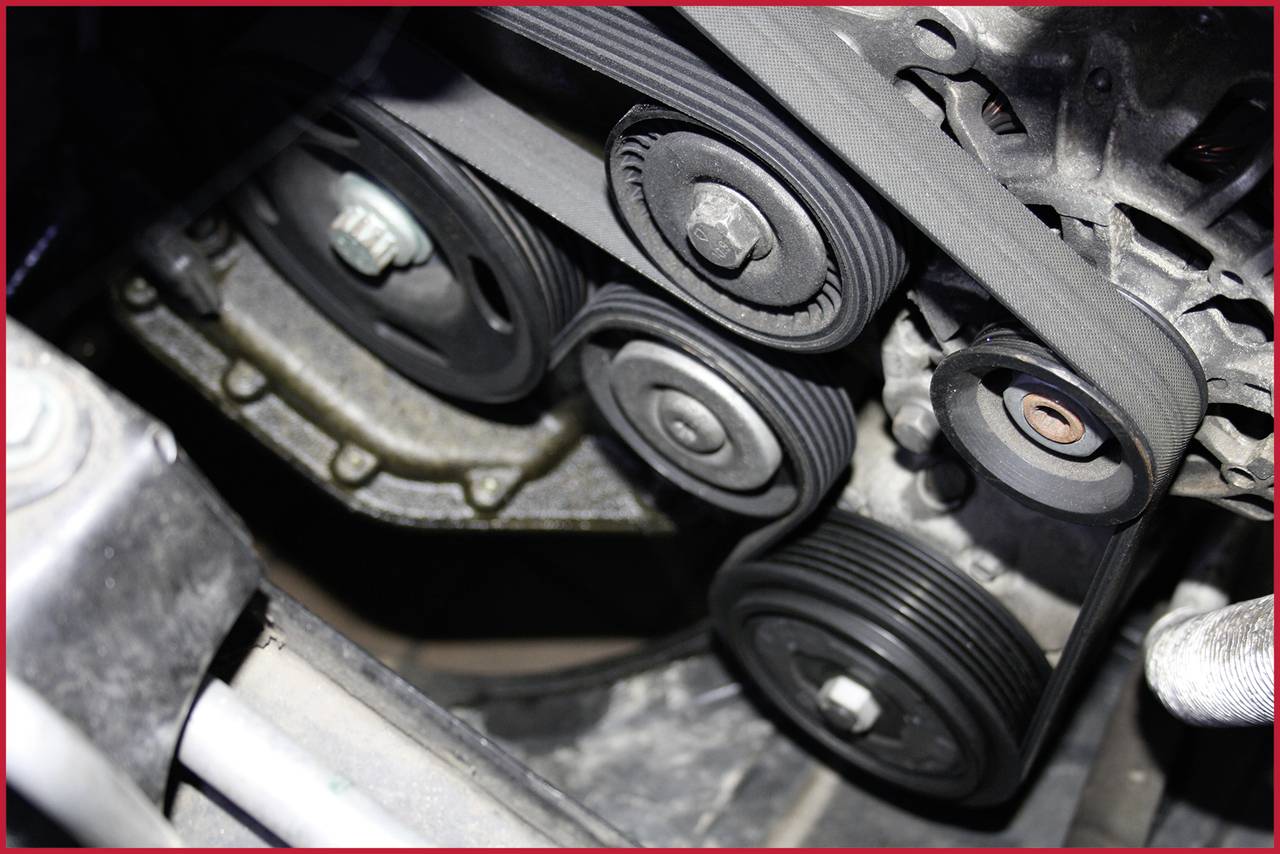

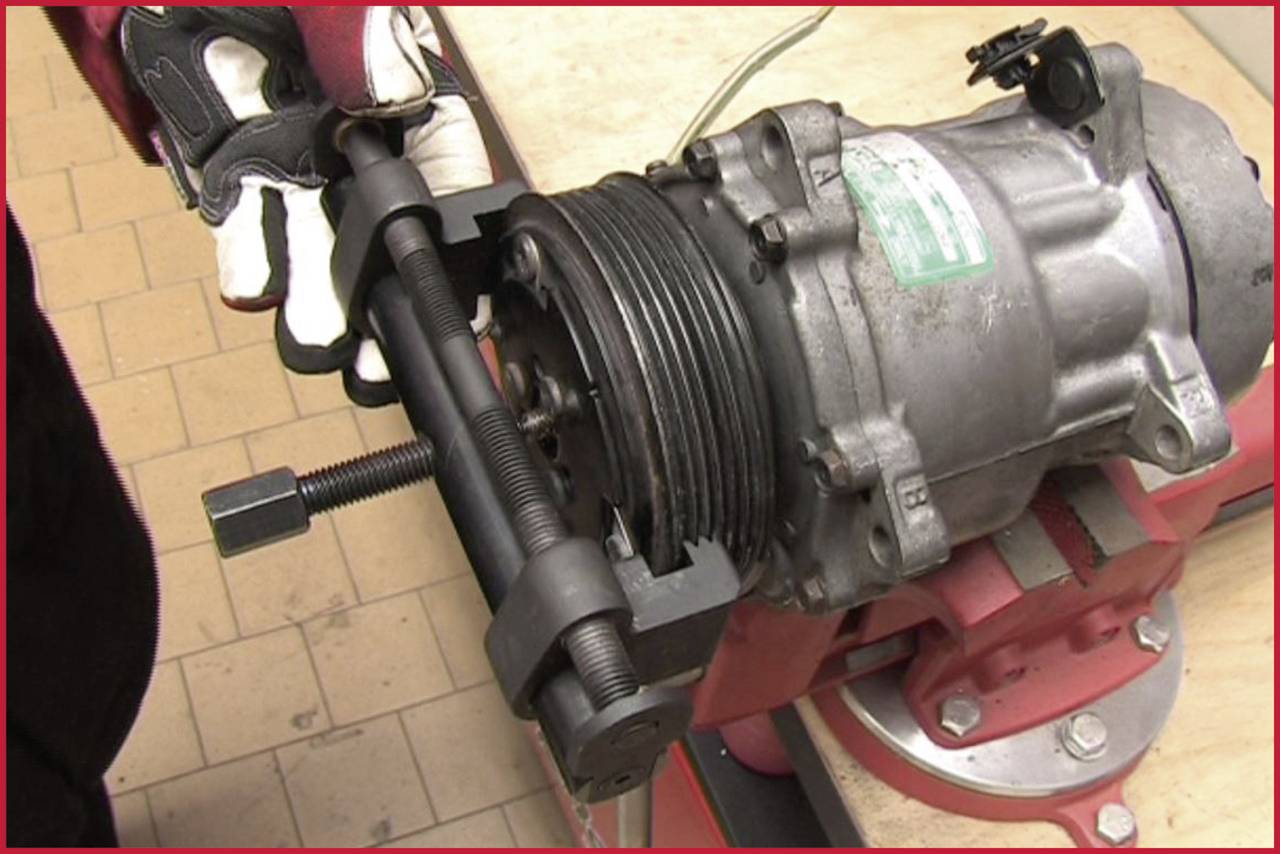

For grooved beltsPull-off arms with lockingClamp securely presses the hook togetherPrevents slippingCompact design means no space requiredSuitable for working on the installed and removed motorSpecial tool steel
