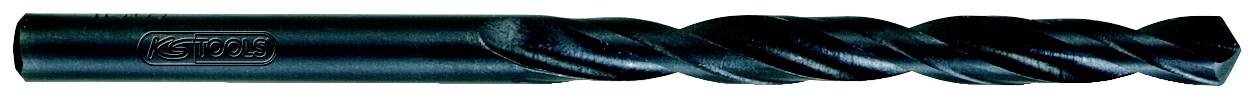

KS Tools 330.1114 330.1114 HSS-R Metal twist drill bit set 11.4 mm Total length 142.0 mm DIN 338 5 pc(s)
EAN:
Part number:
Item no:
Product type
Metal twist drill bit set
Drill hole Ø
11.4 mm
Content
5 pc(s)
Material
HSS-R
Material suitability
Metal
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 5 pc(s))
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Only 8 Set(s) available
Technical specifications
- Material 1: High speed steel Standard DIN 338 type N Weight 385 gApplication area Material: Metal, wood and plastic Total length L1 in mm: 142.0 mmPart length L2 in mm: 94.0 mmDiameter D 11.4 mmColour, black Surface: Steam-started Cutting direction: Right Cutting material HSS-R Span length 48 mmPeak angle 118° Cutting type N
- Product type
Metal twist drill bit set
- DIN standard
DIN 338
- Drill hole Ø
11.4 mm
- Tip angle
118°
- Content
5 pc(s)
- Material
HSS-R
- Material suitability
Metal
- Tensile strength (max.)
900 N/mm²
- Working length
94 mm
- Total length
142.0 mm
- Weight
385 g
- Length
142 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2697000 KS Tools 330.1114 330.1114 HSS-R Metal twist drill bit set 11.4 mm Total length 142.0 mm DIN 338 5 pc(s)
Description
DIN 338 type Nright-handed cuttingCone-shaped section as tip grinding118° tip angle20 - 30° spiral angleBlack, vapor-deposited surfaceHigh-performance steelIdeal can be used in steel, cast steel alloyed and unalloyed up to 900 N/mm² Strength, bronze, brass, short-chipping aluminum alloys, graphite, Nickel silver, sintered iron, gray, temperature, sphere and pressure die casting.
