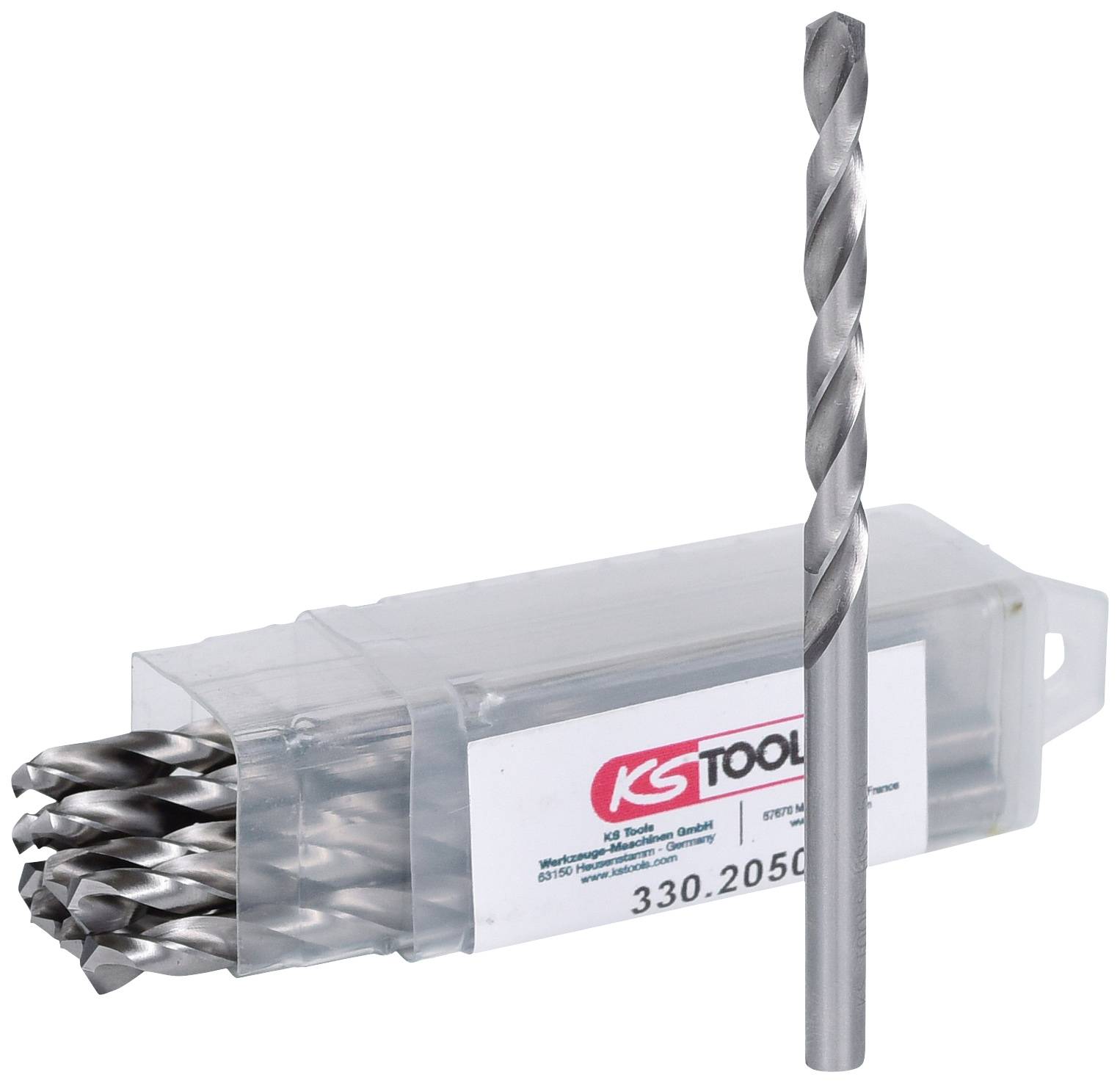

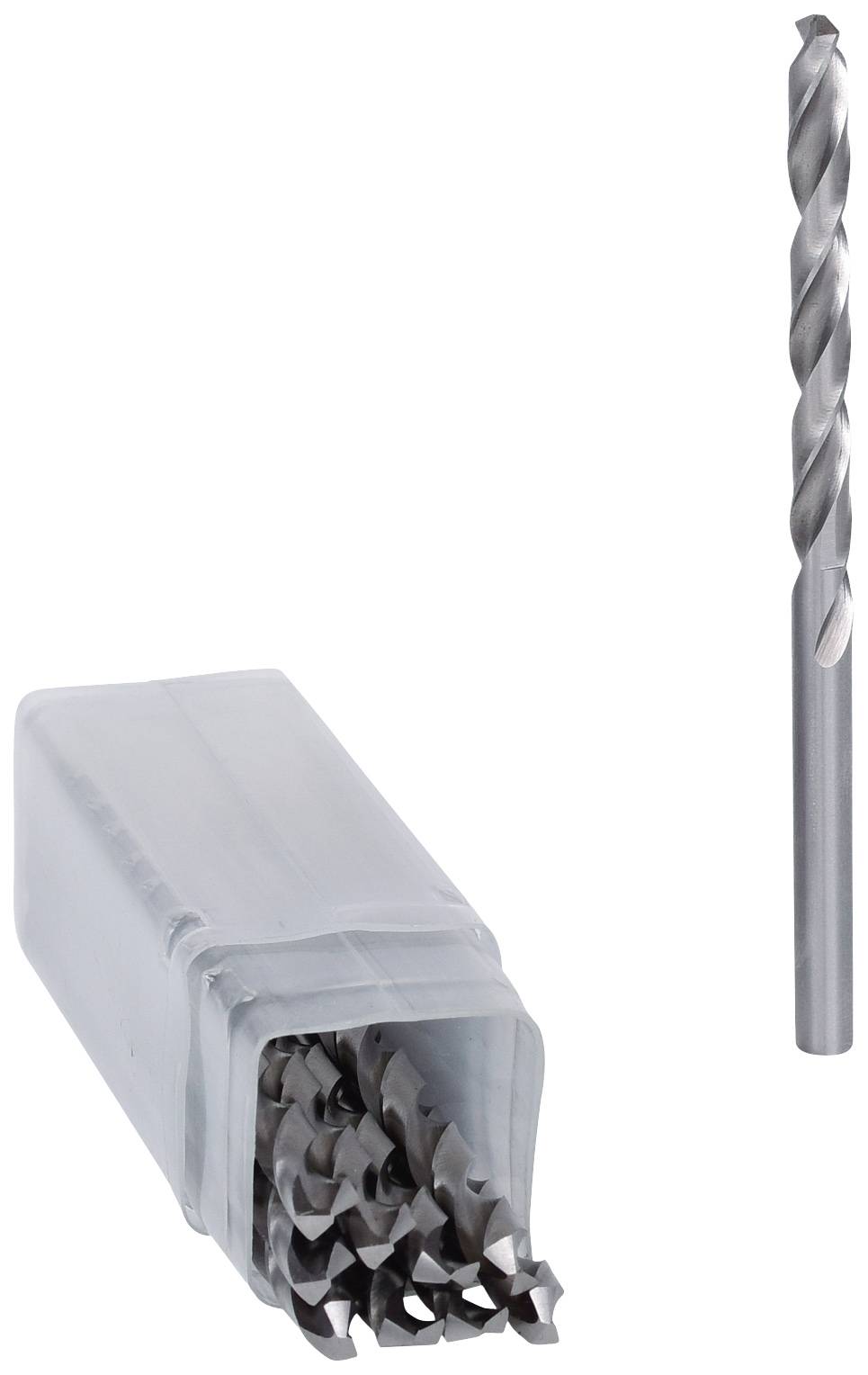

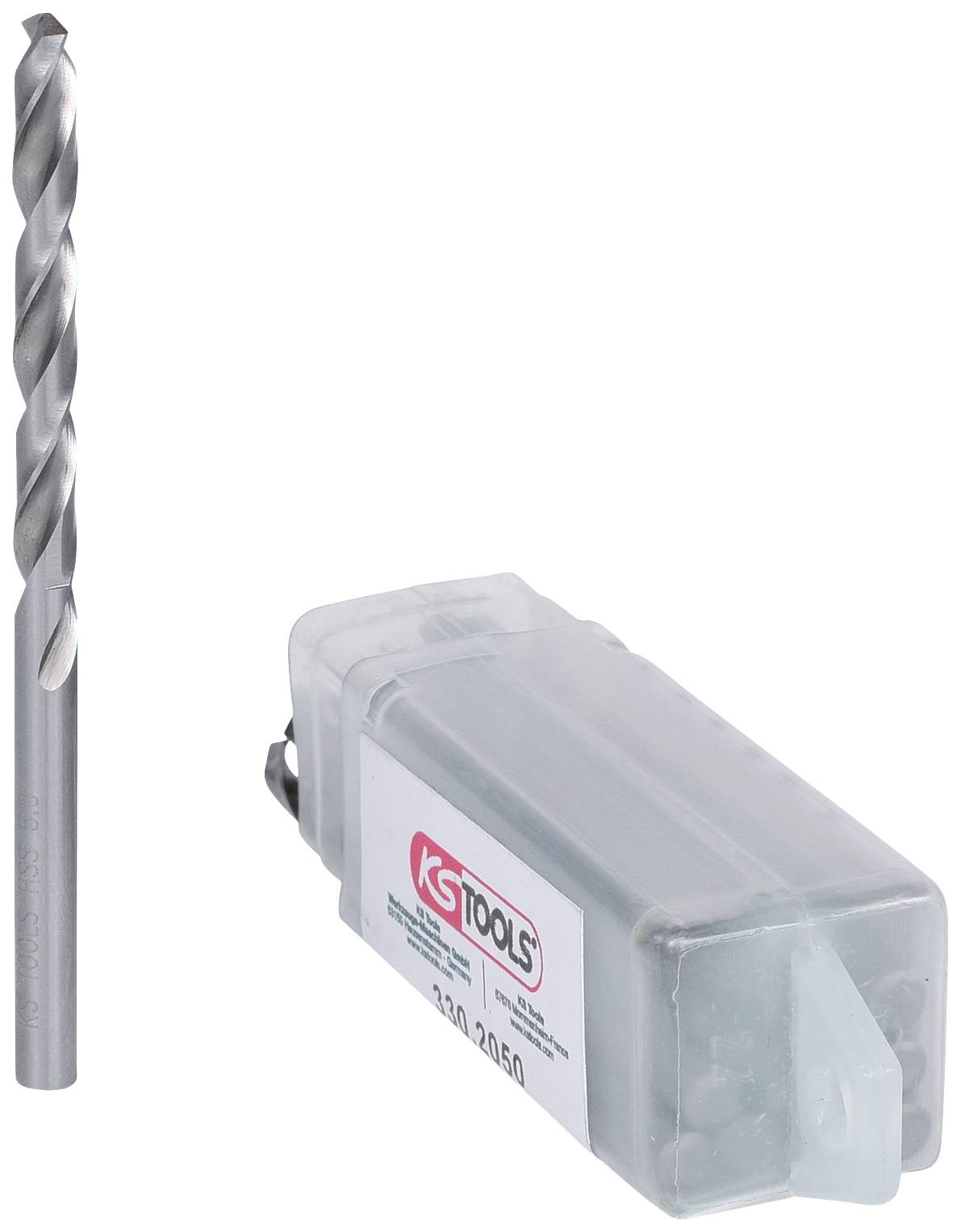

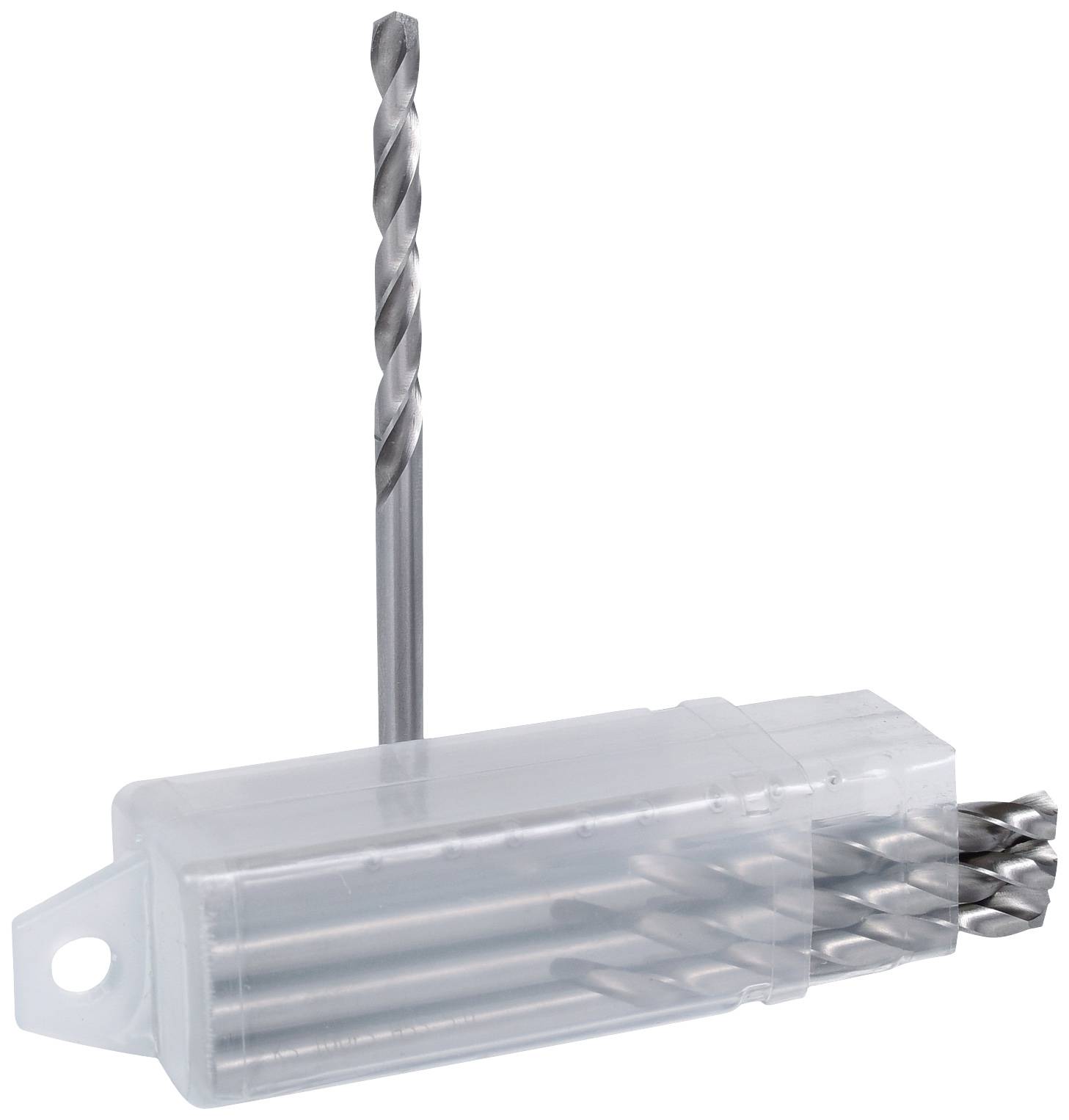

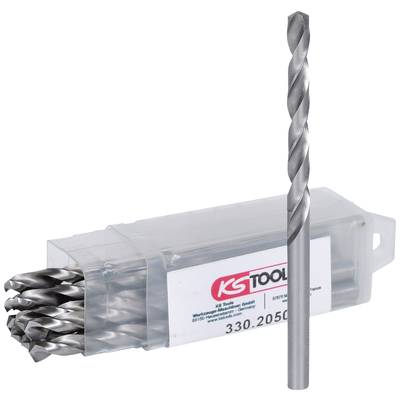

KS Tools 330.2050 330.2050 HSS-G Metal twist drill bit set 5 mm Total length 86.0 mm polished DIN 338 10 pc(s)
EAN:
Part number:
Item no:
Product type
Metal twist drill bit set
Drill hole Ø
5 mm
Content
10 pc(s)
Material
HSS-G
Material suitability
Metal
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Technical specifications
- Material 1: High speed steel Standard DIN 338 type N Weight 100 gApplication area Material: Metal, wood and plastic Total length L1 in mm: 86.0 mmPart length L2 in mm: 52.0 mmDiameter D 5.0 mmColour silver Surface: Bare Cutting direction: Right Cutting material HSS-G Span length 34 mmPeak angle 118° Cutting type N
- Product type
Metal twist drill bit set
- DIN standard
DIN 338
- Drill hole Ø
5 mm
- Tip angle
118°
- Content
10 pc(s)
- Material
HSS-G
- Material properties
polished
- Material suitability
Metal
- Tensile strength (max.)
900 N/mm²
- Working length
52 mm
- Total length
86.0 mm
- Weight
100 g
- Length
86 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2697059 KS Tools 330.2050 330.2050 HSS-G Metal twist drill bit set 5 mm Total length 86.0 mm polished DIN 338 10 pc(s)
Description
DIN 338 type Nright-handed cuttingCone-shaped section as tip grindingCross polished section as a recess118° tip angle20 - 30° spiral angleHigh concentricityBlank surfaceHigh-performance steelIdeal can be used in steel, cast steel alloyed and unalloyed up to 900 N/mm² Strength, bronze, brass, short-chipping aluminum alloys, graphite, Nickel silver, sintered iron, gray, temperature, sphere and pressure die casting.
