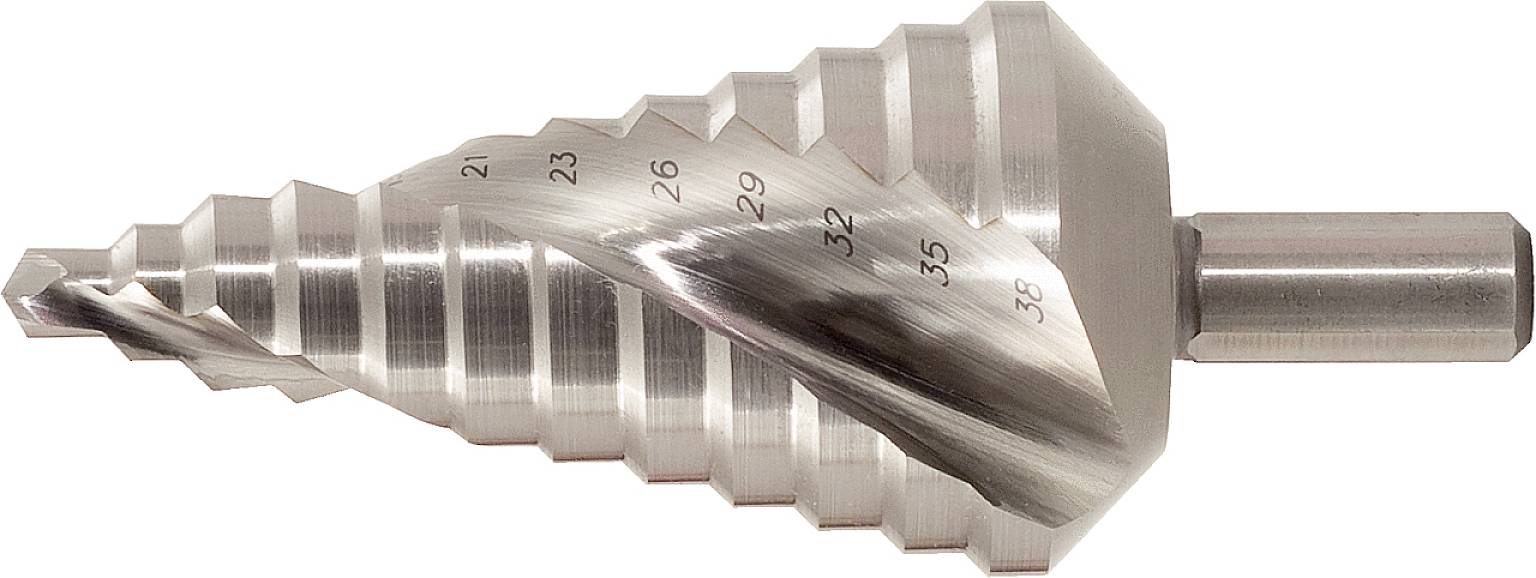

KS Tools 330.2311 3302311 HSS Step drill bit 1 pc(s)
EAN:
Part number:
Item no:
Product type
Step drill bit
Content
1 pc(s)
Material
HSS
Material suitability
Metal
Drill hole diameter
6 - 27.8 mm
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
14-day return policy included
Technical specifications

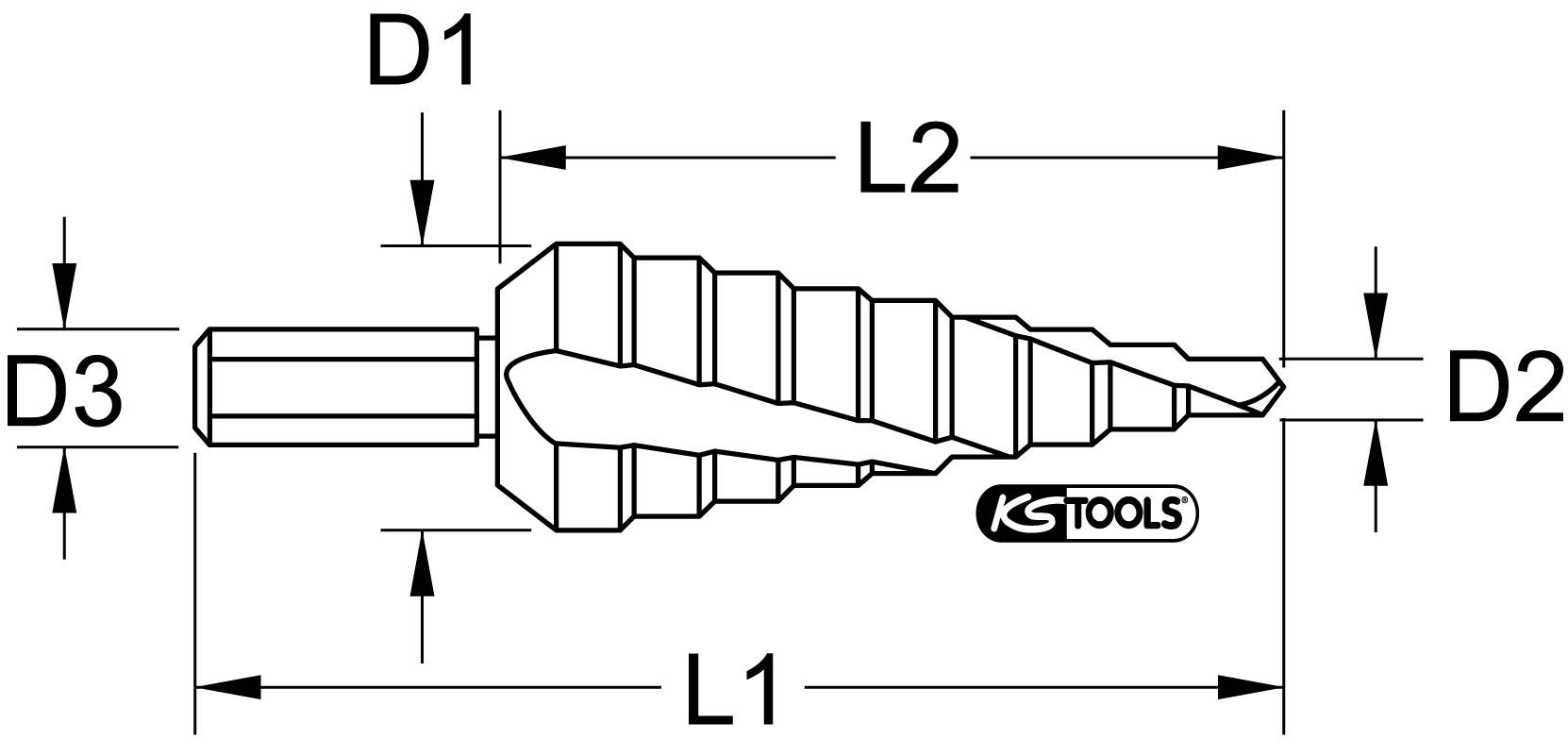

- Material 1: High speed steel Standard DIN 1412 C Weight 110 gApplication area Material: Sheet and non-ferrous metals Total length L1 in mm: 75 mmPart length L2 in mm: 53 mmDiameter D1 26.8 mmDiameter D2: 6 mmColour silver Surface: Bare Cutting direction: Right Cutting material HSS Diameter in mm 6 - 27.8 mmSpan length 22 mmPeak angle 118° Shaft diameter D3: 10 mmNumber of steps: 8
- Product type
Step drill bit
- Content
1 pc(s)
- Material
HSS
- Material suitability
Metal
- Weight
110 g
- Length
75 mm
- Drill hole diameter
6 - 27.8 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2698842 KS Tools 330.2311 3302311 HSS Step drill bit 1 pc(s)
Description
Notching according to DIN 1412 C.Cross polished section as a recessright-handed cuttingspiral flute118° tip angle90° step angleCompletely smooth runningHigh cutting performanceBlank surfaceHigh-performance steelThe cone simplifies the pulling back with through drilled metal plates.Higher feed rate possible especially with non-ferrous metals through low cutting load.
