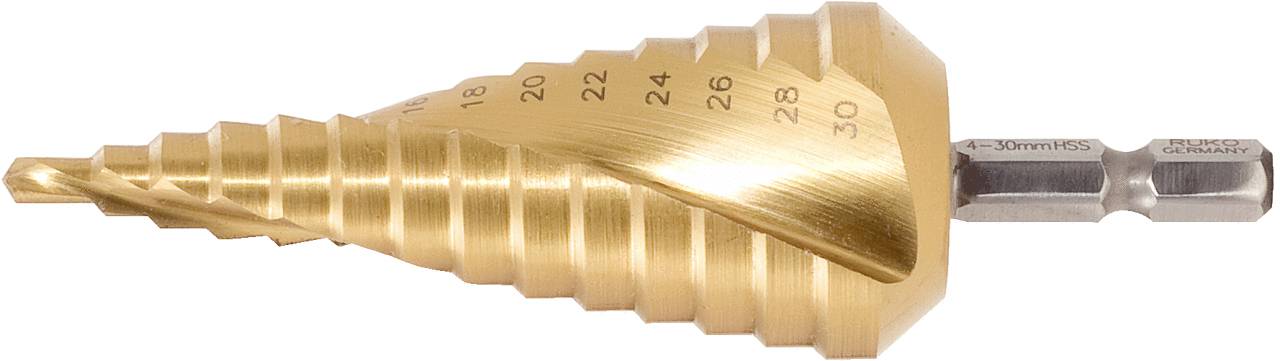

KS Tools 330.2347 3302347 HSS TiN Step drill bit Total length 100 mm TiN DIN 1412 C 1 pc(s)
EAN:
Part number:
Item no:
Product type
Step drill bit
Content
1 pc(s)
Material
HSS TiN
Material suitability
Sheet metal
Non-ferrous metal
Total length
100 mm
Technical specifications
- Product type
Step drill bit
- DIN standard
DIN 1412 C
- Tip angle
118°
- Content
1 pc(s)
- Material
HSS TiN
- Material properties
TiN
- Material suitability
Sheet metal
Non-ferrous metal
- Shank Ø
10 mm
- Total length
100 mm
- Weight
245 g
- Drill hole diameter
6 - 37 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3206625 KS Tools 330.2347 3302347 HSS TiN Step drill bit Total length 100 mm TiN DIN 1412 C 1 pc(s)
Description
• Corrugation according to DIN 1412 C.
• Cross-polished section as a tip
• right-handed cutting
• spiral flute
• 118° tip angle
• 90° step angle
• Absolute smoothness
• High cutting performance
• With TiN coated surface
• High-performance steel
The cone simplifies the pulling back with through drilled metal plates.
Higher feed rate possible especially with non-ferrous metals through low cutting load.
This text is machine translated.
• Cross-polished section as a tip
• right-handed cutting
• spiral flute
• 118° tip angle
• 90° step angle
• Absolute smoothness
• High cutting performance
• With TiN coated surface
• High-performance steel
The cone simplifies the pulling back with through drilled metal plates.
Higher feed rate possible especially with non-ferrous metals through low cutting load.
This text is machine translated.
