KS Tools 330.2356 3302356 HSS TIN-TIP Step drill bit 1 pc(s)
EAN:
Part number:
Item no:
Product type
Step drill bit
Content
1 pc(s)
Material
HSS TIN-TIP
Material suitability
Metal
Drill hole diameter
5 - 28 mm
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
Only 7 Piece(s) available
Technical specifications

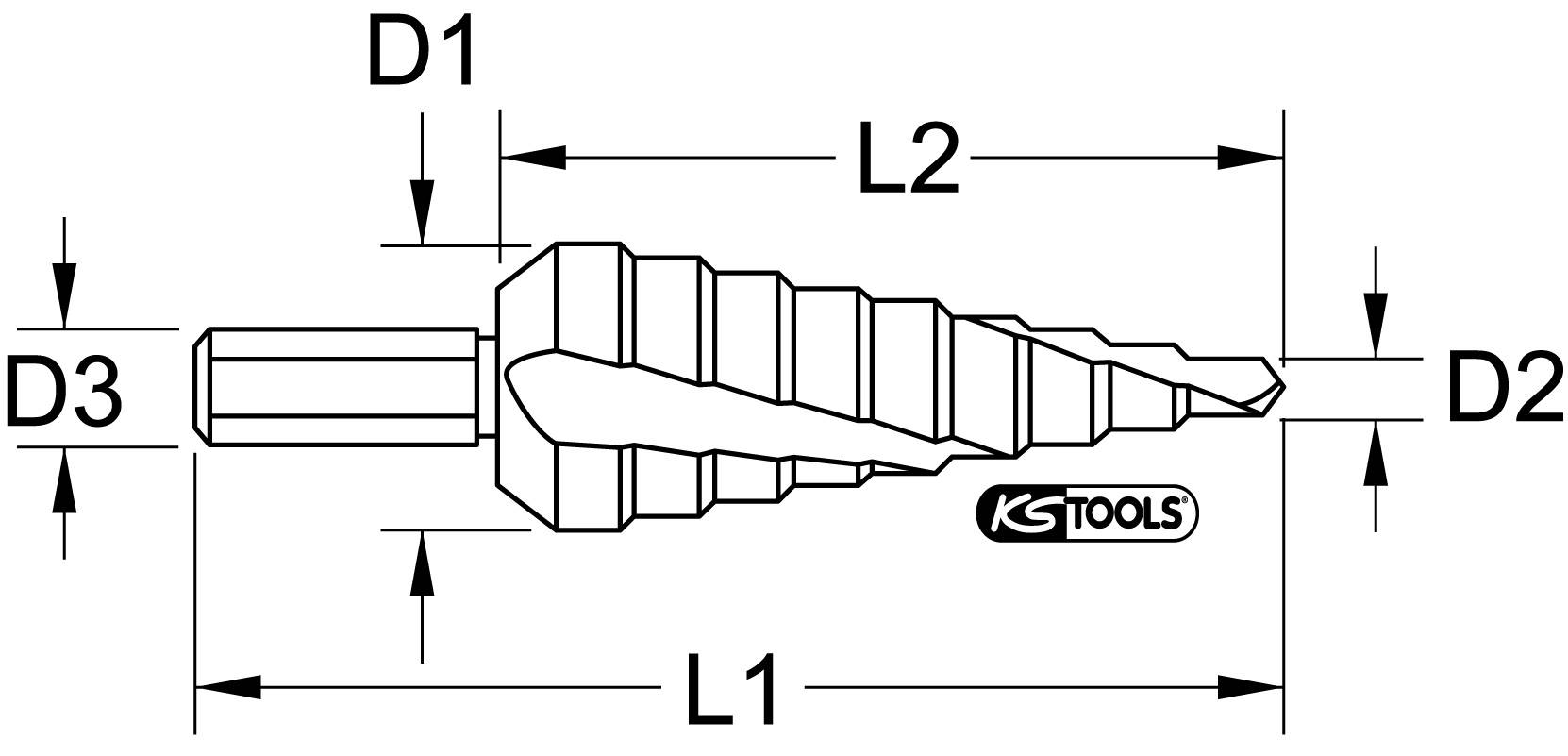

- Material 1: High speed steel Standard DIN 1412 C Weight 86 gApplication area Material: Sheet and non-ferrous metals Total length L1 in mm: 69 mmPart length L2 in mm: 47 mmDiameter D1 28 mmDiameter D2: 5 mmColour: Gold Surface:TiN Cutting direction: Right Cutting material HSS TiN Diameter in mm 5 - 28 mmSpan length 22 mmPeak angle 118° Shaft diameter D3: 9 mmNumber of steps: 7
- Product type
Step drill bit
- Content
1 pc(s)
- Material
HSS TIN-TIP
- Material suitability
Metal
- Weight
86 g
- Length
69 mm
- Drill hole diameter
5 - 28 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2698882 KS Tools 330.2356 3302356 HSS TIN-TIP Step drill bit 1 pc(s)
Description
Notching according to DIN 1412 C.Cross polished section as a recessright-handed cuttingspiral flute118° tip angle90° step angleCompletely smooth runningHigh cutting performanceTiN-coated surfaceHigh-performance steelThe cone simplifies the pulling back with through drilled metal plates.Higher feed rate possible especially with non-ferrous metals through low cutting load.
