Buy KS Tools 330.2623 HSS-G Metal twist drill bit set 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm,

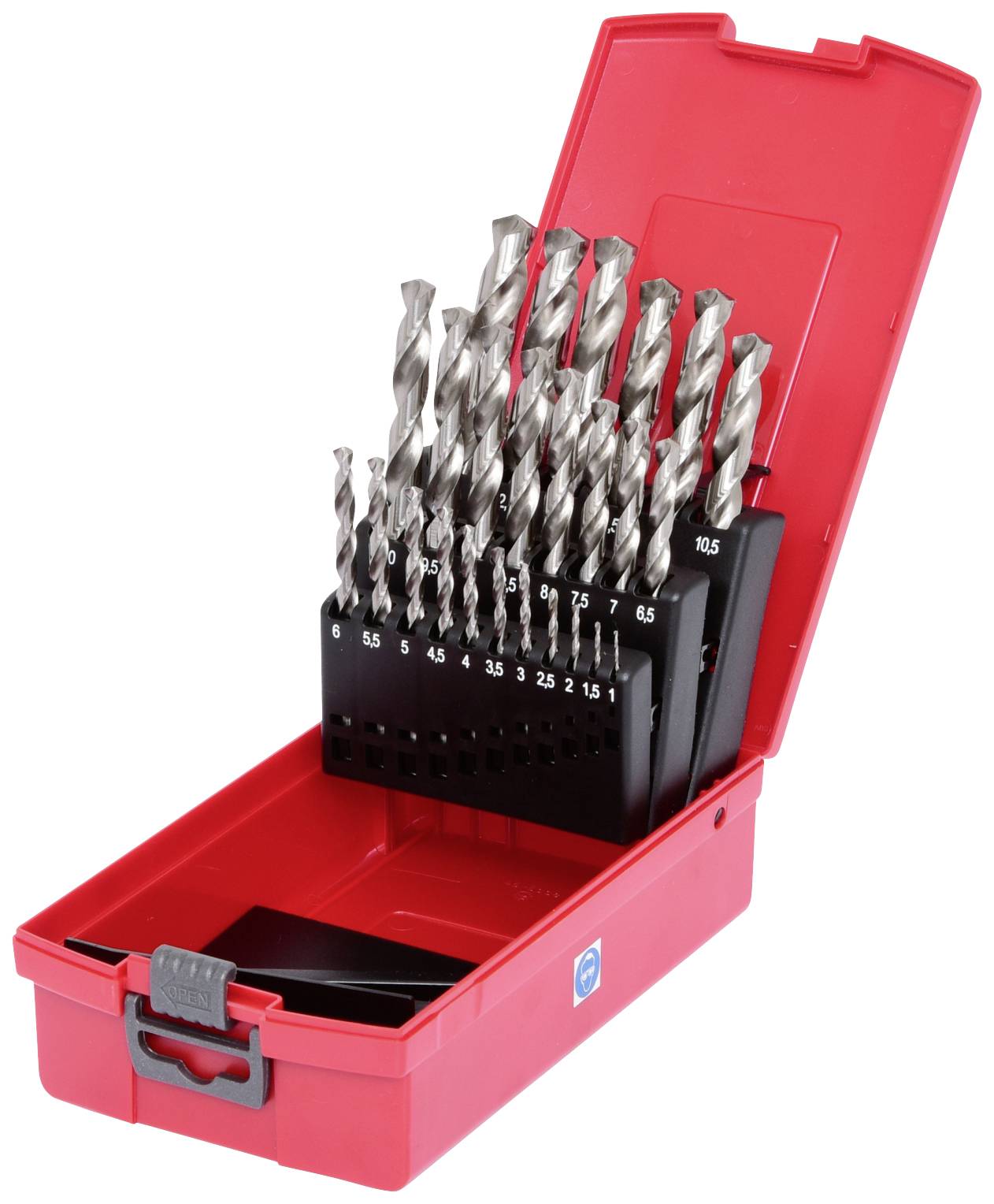

A set of metal drill bits in a red box. Various sizes are arranged in ascending order.

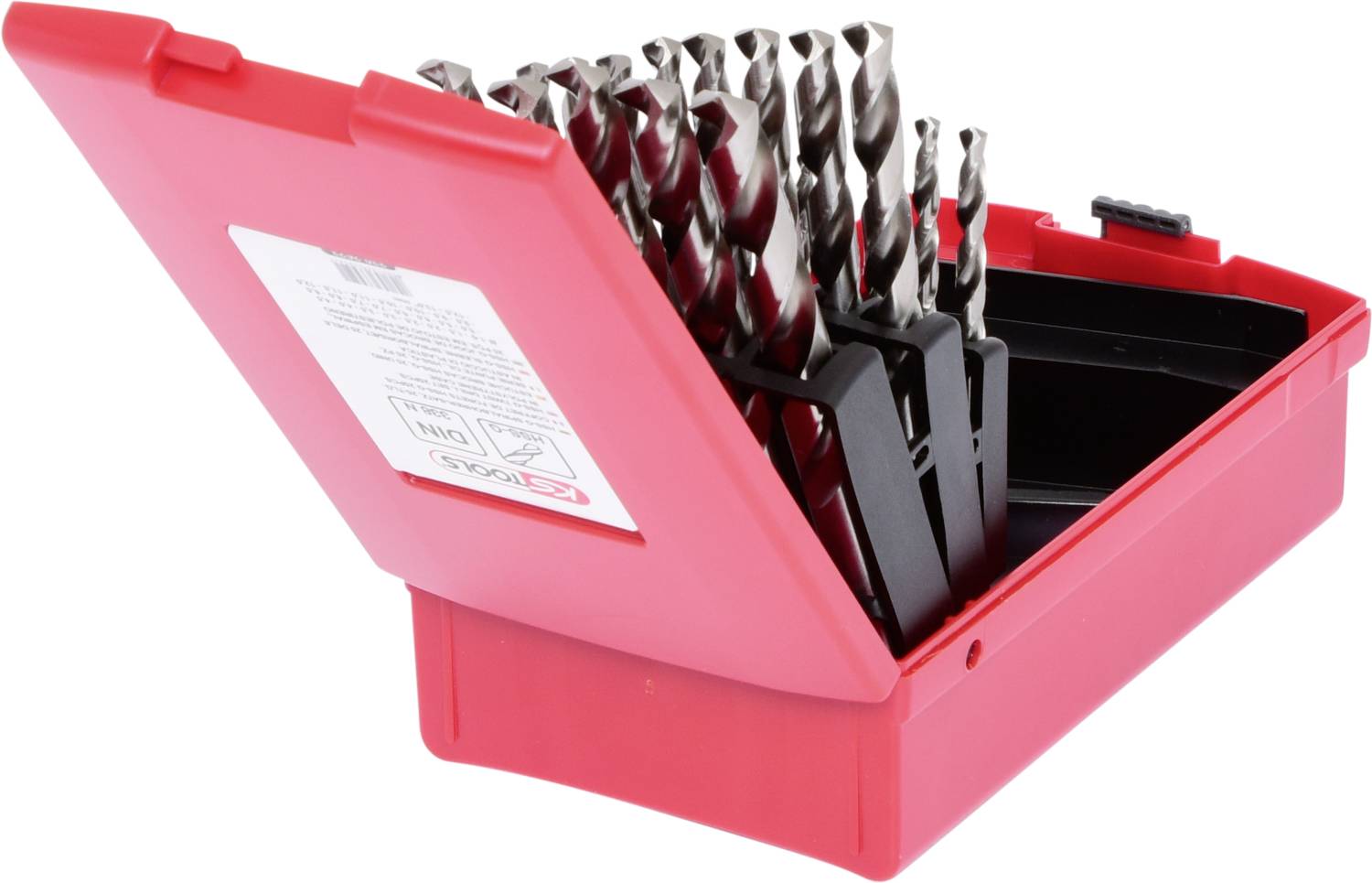

Red plastic box with metal drill bits in various sizes, some standing upright. Suitable for DIY tasks.

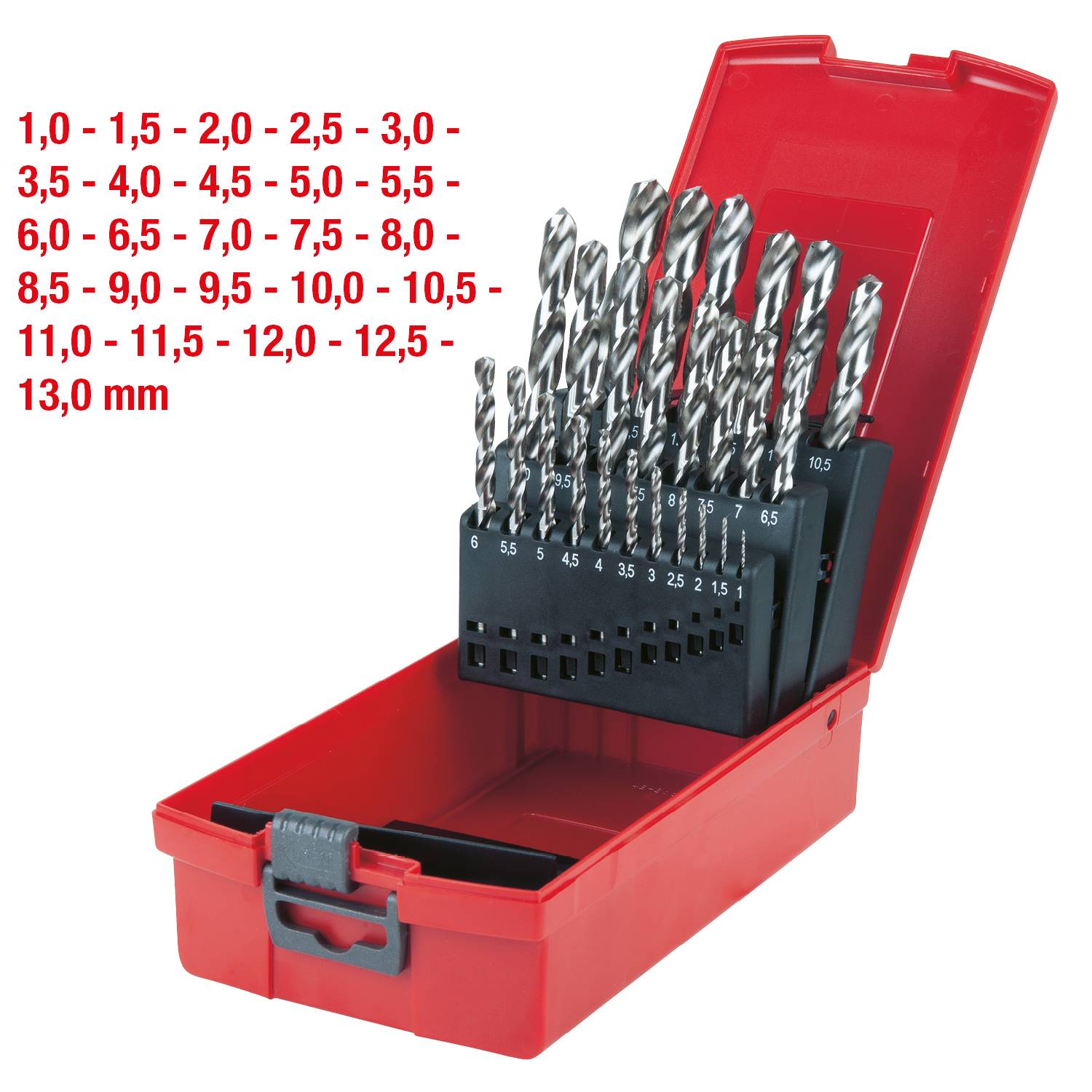

A red plastic case containing a 19-piece drill bit set. The drill bit sizes range from 1.0 mm to 13.0 mm, arranged in order of size.

1/3

Fast track dispatch on Wed, 7 Oct

70 Piece

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece

Total (€ 105.03 / piece)

€ 105.03

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Material 1: High speed steel Standard DIN 338 type N Weight 1300 gApplication area Material: Metal, wood and plastic Packaging: Plastic cartridge Colour silver 25 -piece set.Surface: Bare Cutting direction: Right Cutting material HSS-G Peak angle 118° Cutting type N max. Drilling range 13.0 mmmin Drilling range 1.0 mm

Material: HSS-G

Material suitability: Metal

Drill hole Ø: 1 mm
1.5 mm
2 mm
2.5 mm
3 mm
3.5 mm
4 mm
4.5 mm
5 mm
5.5 mm
6 mm
6.5 mm
7 mm
7.5 mm
8 mm
8.5 mm
9 mm
9.5 mm
10 mm
10.5 mm
11 mm
11.5 mm
12 mm
12.5 mm
13 mm
Show more

Tip angle: 118°

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2789190 KS Tools 330.2623 HSS-G Metal twist drill bit set 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm,

Description

excellent stackingWith integral fastenerHigh-strength hingesDIN 338 type Nright-handed cuttingCone-shaped section as tip grindingCross polished section as a recess118° tip angle20 - 30° spiral angleHigh concentricityBlank surfaceHigh-performance steelCan be used in steel, cast steel alloyed and unalloyed up to 900 N/mm² Strength, bronze, brass, short-chipping aluminum alloys, graphite, Nickel silver, sintered iron, gray, temperature, sphere and pressure die casting

This text is machine translated.
