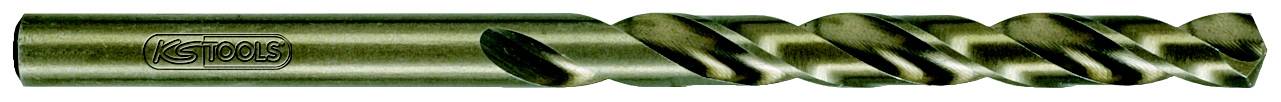

KS Tools 330.3102 330.3102 HSS-G-Co 5 Metal twist drill bit set 10.2 mm Total length 133.0 mm cobalt DIN 338 5 pc(s)
EAN:
Part number:
Item no:
Product type
Metal twist drill bit set
Drill hole Ø
10.2 mm
Content
5 pc(s)
Material
HSS-G-Co 5
Material suitability
Metal
Number (Package size 5 pc(s))
Total (€ 42.01 / piece)
€ 42.01
plus VAT.
14-day return policy included
Technical specifications
- Material 1: Cobalt-alloy high-performance steel Standard DIN 338 type N Weight 300 gApplication area Material: Metal, wood and plastic Total length L1 in mm: 133.0 mmPart length L2 in mm: 87.0 mmDiameter D 10.2 mmColour: Gold Surface: Other Cutting direction: Right Cutting material HSS-G Co 5 Span length 46 mmPeak angle 130° Cutting type N
- Product type
Metal twist drill bit set
- DIN standard
DIN 338
- Drill hole Ø
10.2 mm
- Tip angle
130°
- Content
5 pc(s)
- Material
HSS-G-Co 5
- Material properties
cobalt
- Material suitability
Metal
- Tensile strength (max.)
1100 N/mm²
- Working length
87 mm
- Total length
133.0 mm
- Weight
300 g
- Length
133 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2697202 KS Tools 330.3102 330.3102 HSS-G-Co 5 Metal twist drill bit set 10.2 mm Total length 133.0 mm cobalt DIN 338 5 pc(s)
Description
DIN 338 type Nright-handed cuttingCone-shaped section as tip grindingCross polished section as a recess130° tip angle20 - 30° spiral angleHigh heat resistanceFor the most demanding jobs!Golden brown surfaceCobalt-alloy high-performance steelIdeal can be used in unalloyed and alloyed steels up to 1100 N/mm² strength, coating and working steels, stainless and acid-resistant steels and hot and cold work steels.
