KS Tools 3301216 330.1216 Centre drill bit 4 mm polished 1 pc(s)
EAN:
Part number:
Item no:
Product type
Centre drill bit
Drill hole Ø
4 mm
Material
Premium steel
Material suitability
HPQ premium steel
Working length
20.0 mm
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
Only 1 Piece(s) available
Technical specifications

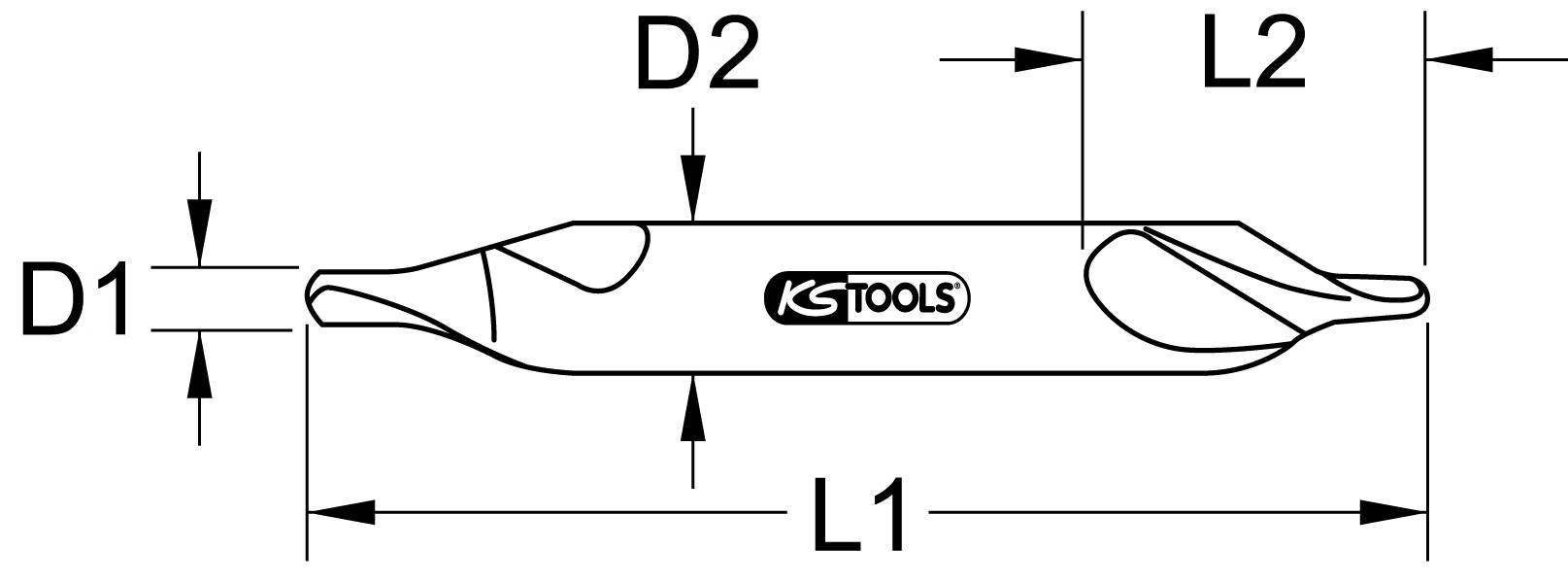

- Material 1: High speed steel Standard DIN 333 Form R Weight 22 gShape R Total length L1 in mm: 56.0 mmPart length L2 in mm: 20.0 mmColour silver Surface: Bare Cutting direction: Right Cutting material HSS Peak angle 120° Diameter of centering drill D2: 10.0 mmDiameter center drill D1 4.0 mm
- Product type
Centre drill bit
- Drill hole Ø
4 mm
- Material
Premium steel
- Material properties
polished
- Material suitability
HPQ premium steel
- Working length
20.0 mm
- Total length
56.0 mm
- Length
56 mm
- Weight
22 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2698833 KS Tools 3301216 330.1216 Centre drill bit 4 mm polished 1 pc(s)
Description
DIN 333 shape Rright-handed cutting60° centering angle120° tip angleFor making centering boresBlank surfaceHigh-performance steelIdeal suitable for producing centering bores according to DIN 332 form R.
