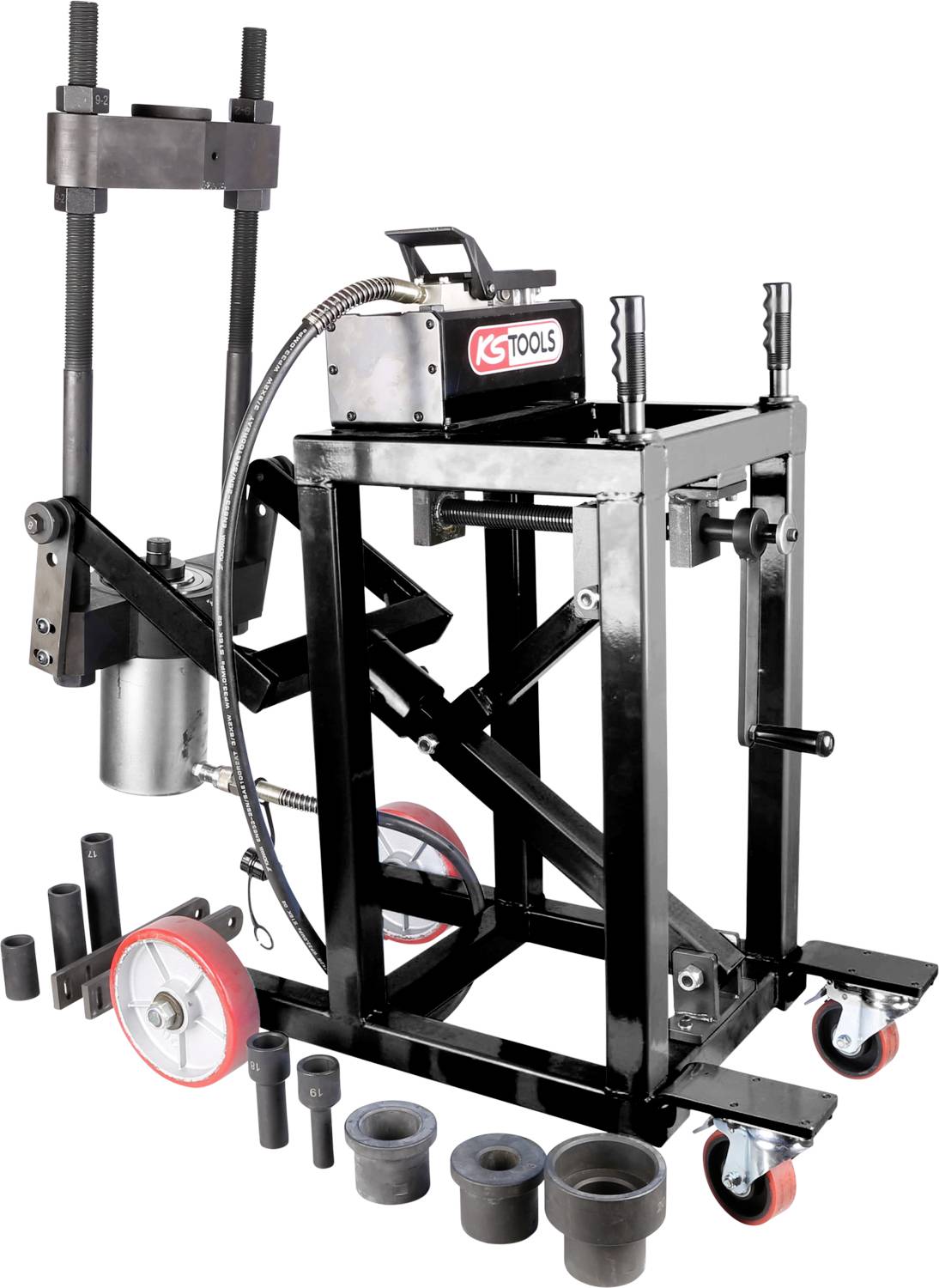

A hydraulic tool trolley with various attachments and castors, used for vehicle maintenance and repair.

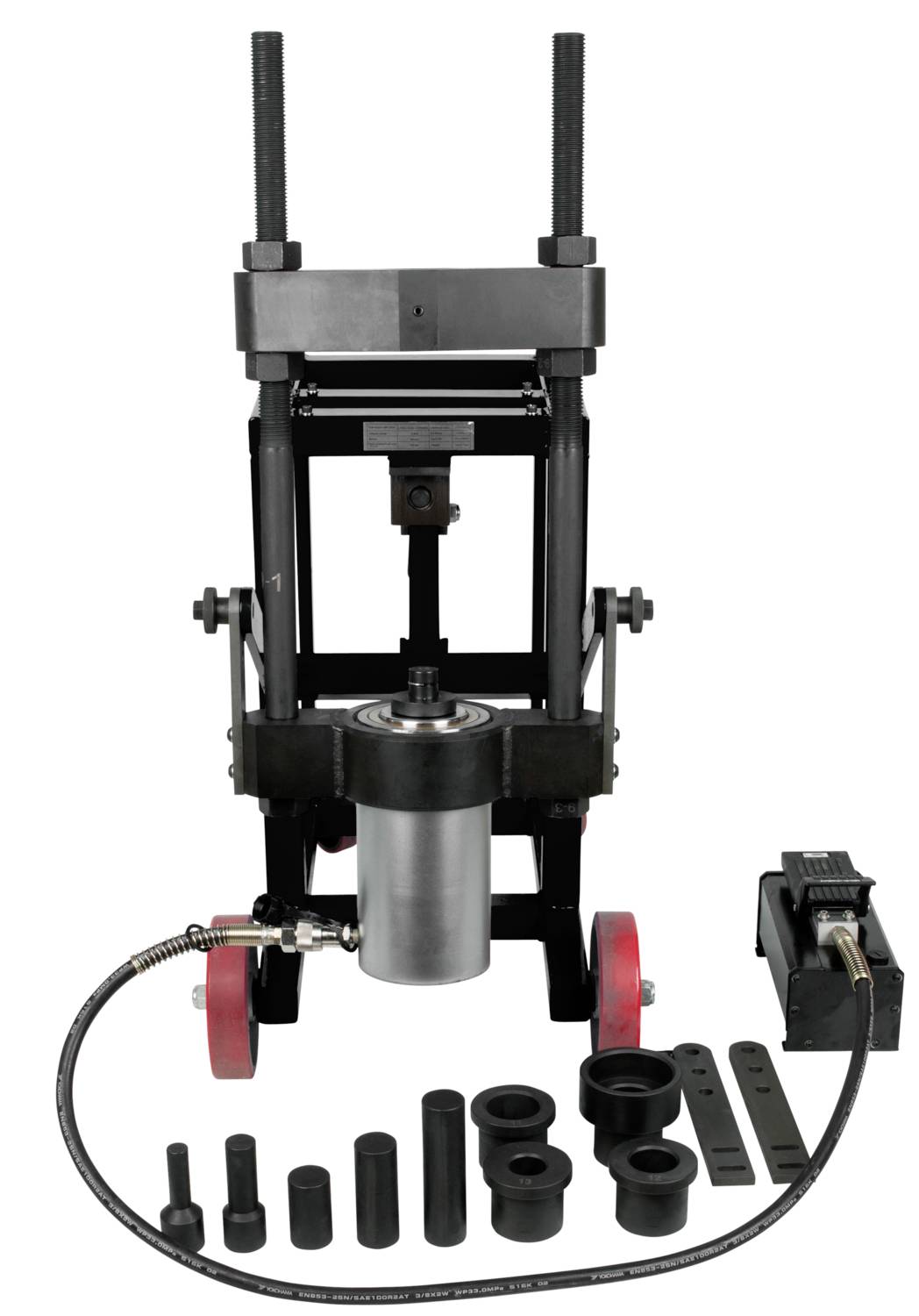

A hydraulic press with accessories, including various attachments and a pump, for the repair and maintenance of metal parts.

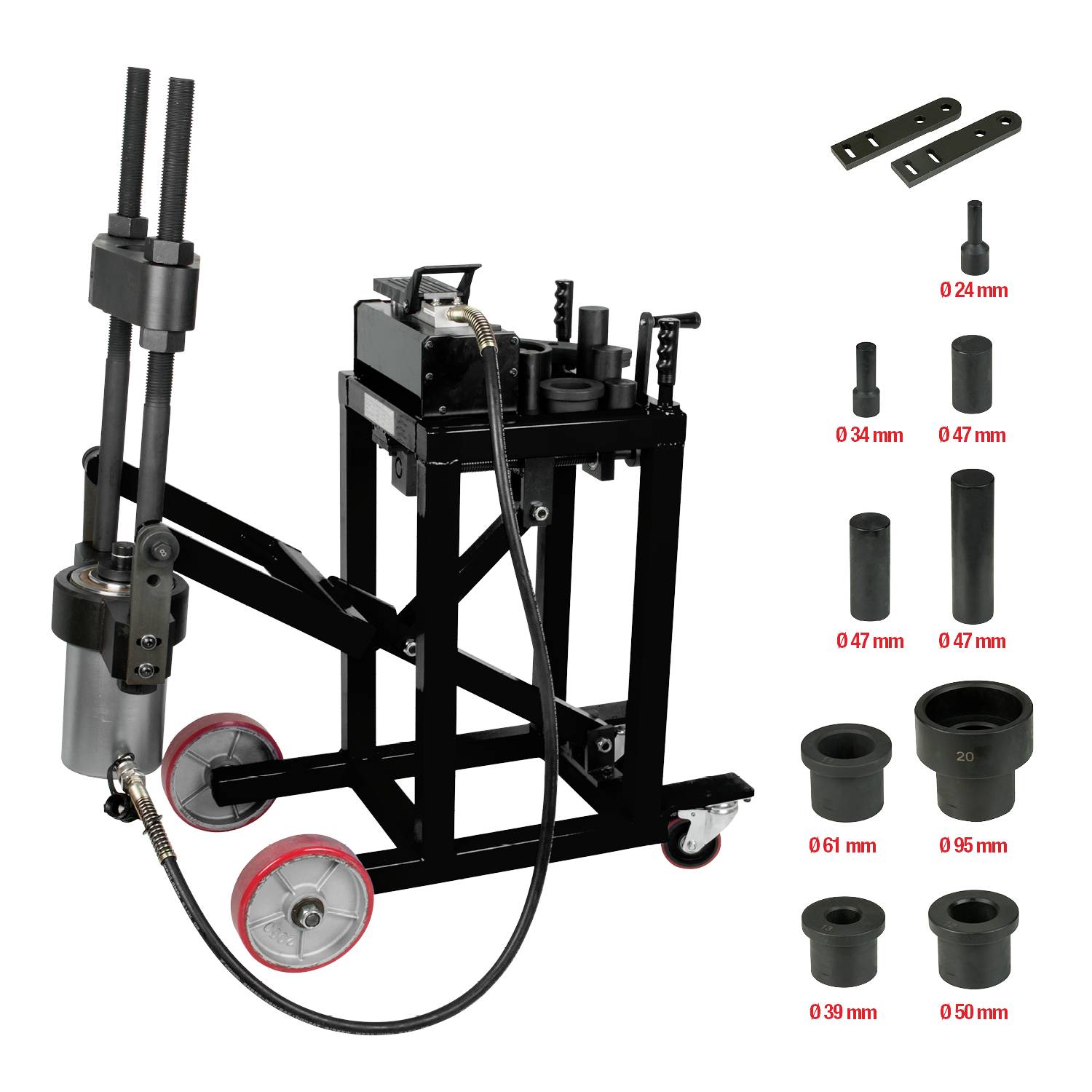

Hydraulic pipe bending machine on wheels, with various attachments and size specifications ranging from 24 mm to 61 mm on the right-hand side.

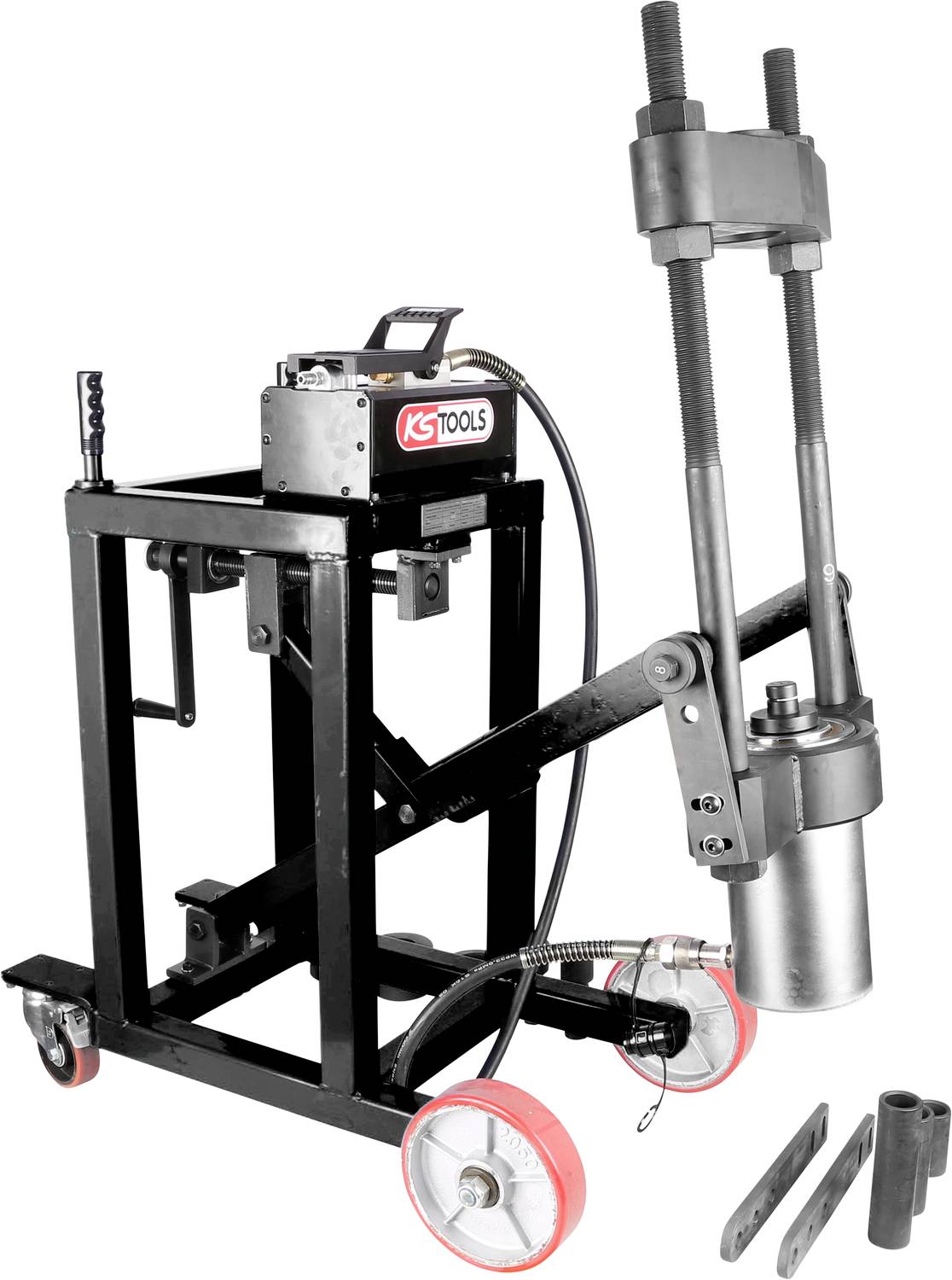

Hydraulic bush extractor on rollers, comprising a frame and two large screws, used for vehicle bodywork.

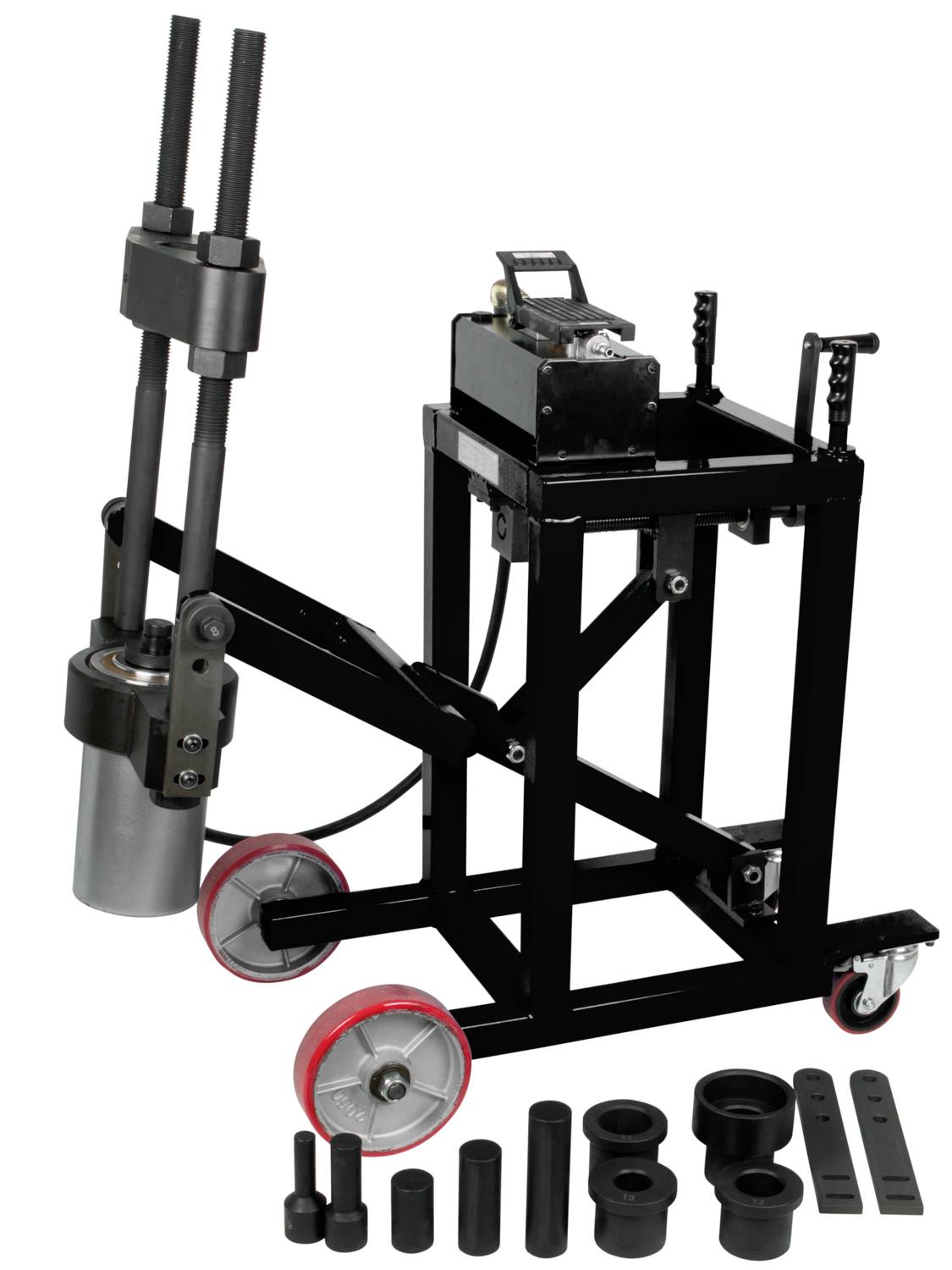

Hydraulic press on a trolley with red wheels, surrounded by interchangeable parts and metalworking tools.

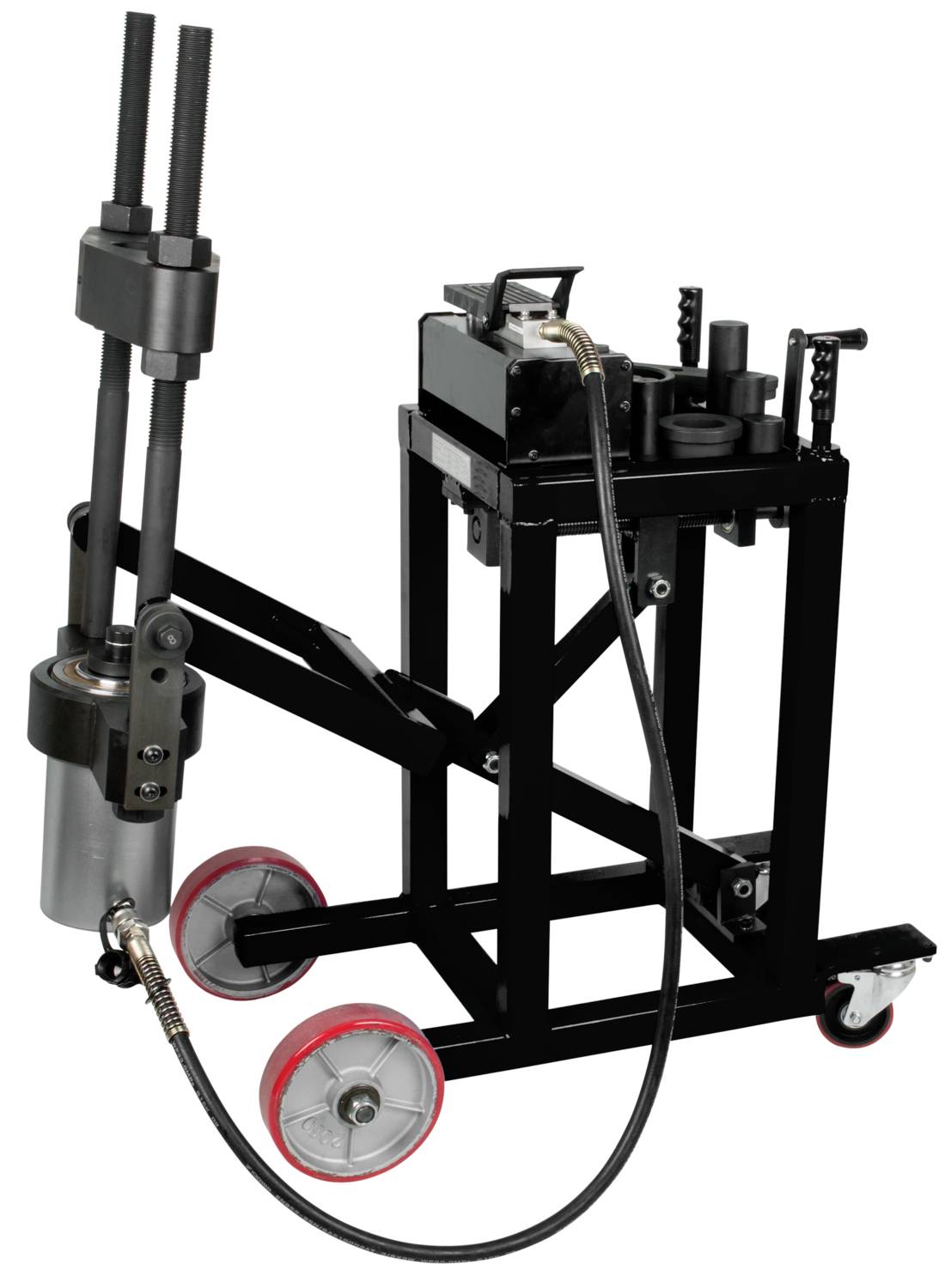

Machine for pipe processing with wheels for transport, hydraulic lever arm and hoses for versatile applications.

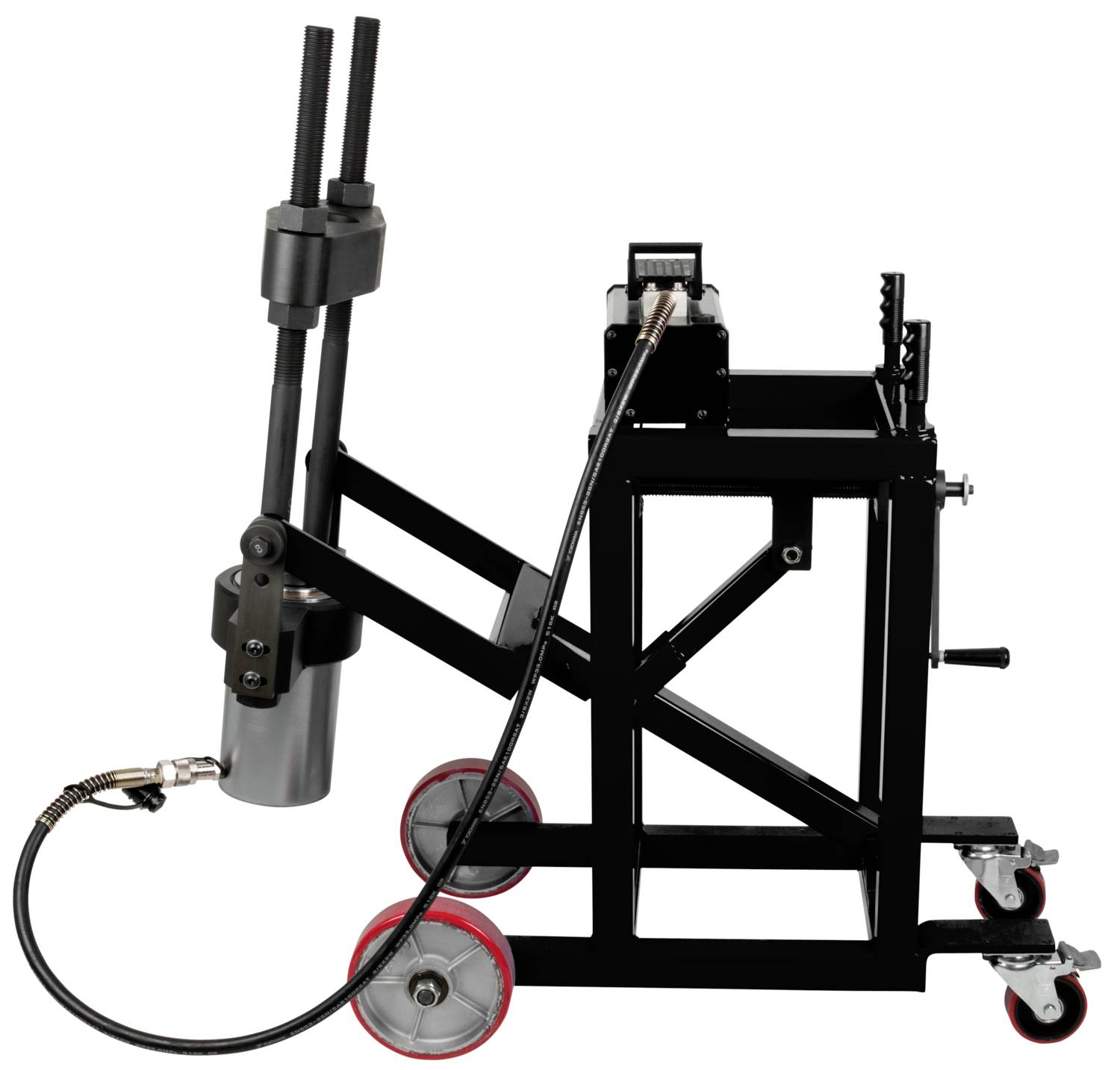

A hydraulic lifting device with two support rods, red tyres and a black steel frame on castors. Suitable for precise lifting and transportation in workshops.

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

KS Tools 460.3620 N/A

Stub axle pin press, 75t, with sleeve set, 29-piece

Technical specifications

Operating pressure max (bar): 700 bar
Weight 217000 g
Stroke mm 160.0 mm
Capacity 75 t
29 -piece set.
Volume in liters: 1.8 liters

Product type: Knuckle arm bolt extractor

Weight: 217000 g

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3163121 KS Tools 460.3620 KS Tools 460.3620 N/A

Description

Suitable for fast pressing in and out of the stub axle bolts. Ideal for cylindrical and conical bolt.
No removal of the axle required. Press unit rotates through 360°. Clear width 260 mm. Swivelling, rotating and with height adjustment for difficult to access components. Includes pneumatic hydraulic foot pump with high-speed lift, hydraulic cylinder, most common sleeves and pressure pieces. Simple and safe handling. Special and compact design High cost and time saving.

This text is machine translated.

Scope of delivery

460.3621 - Base frame
460.3622 - 700 bar hydraulic pump
460.3623 - Hydraulic cylinder 75 tons
460.3624-piece press frame set, 8-piece
460.3627 - Holding rod set long, 2-piece
460.3628 - Fixing screws set for press frames, 2-piece
460.3629 - Mounting adapter for pressure pieces
460.3633 - Pressure piece outer-Ø 24 mm
460.3634 - Pressure piece outer-Ø 34 mm
460.3636 - Pressure piece outer-Ø 47 mm, short
460.3637 - Pressure piece outer-Ø 47 mm, long
460.3638 - Pressure piece outer-Ø 47 mm, extra long
460.3639 - Sleeve interior-Ø 39.0 mm
460.3641 - Sleeve interior-Ø 50.0 mm
460.3642 - Sleeve interior-Ø 61.0 mm
460.3643 - Sleeve interior-Ø 95.0 mm
460.3626 - Support rod set short, 2-piece
