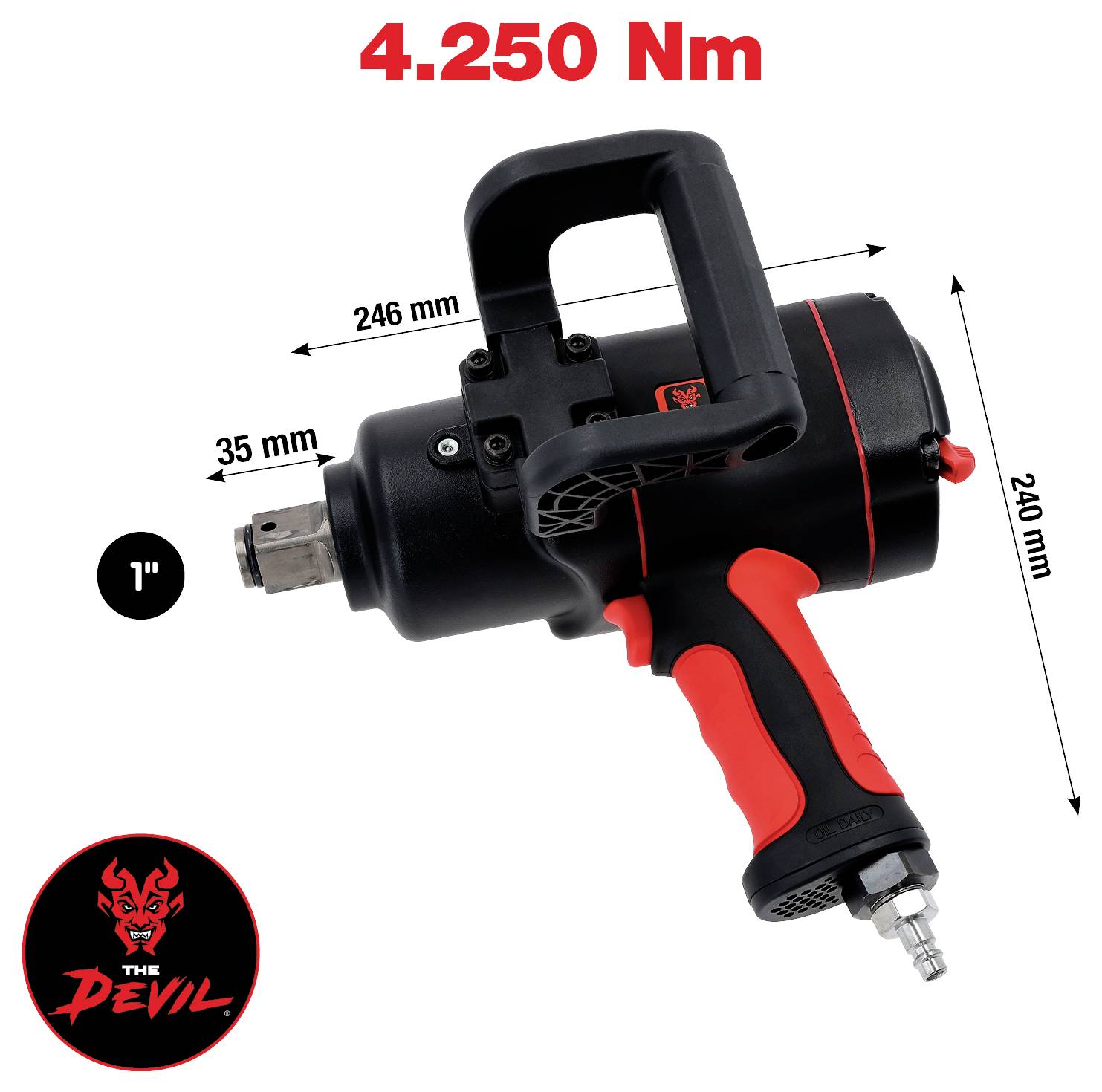

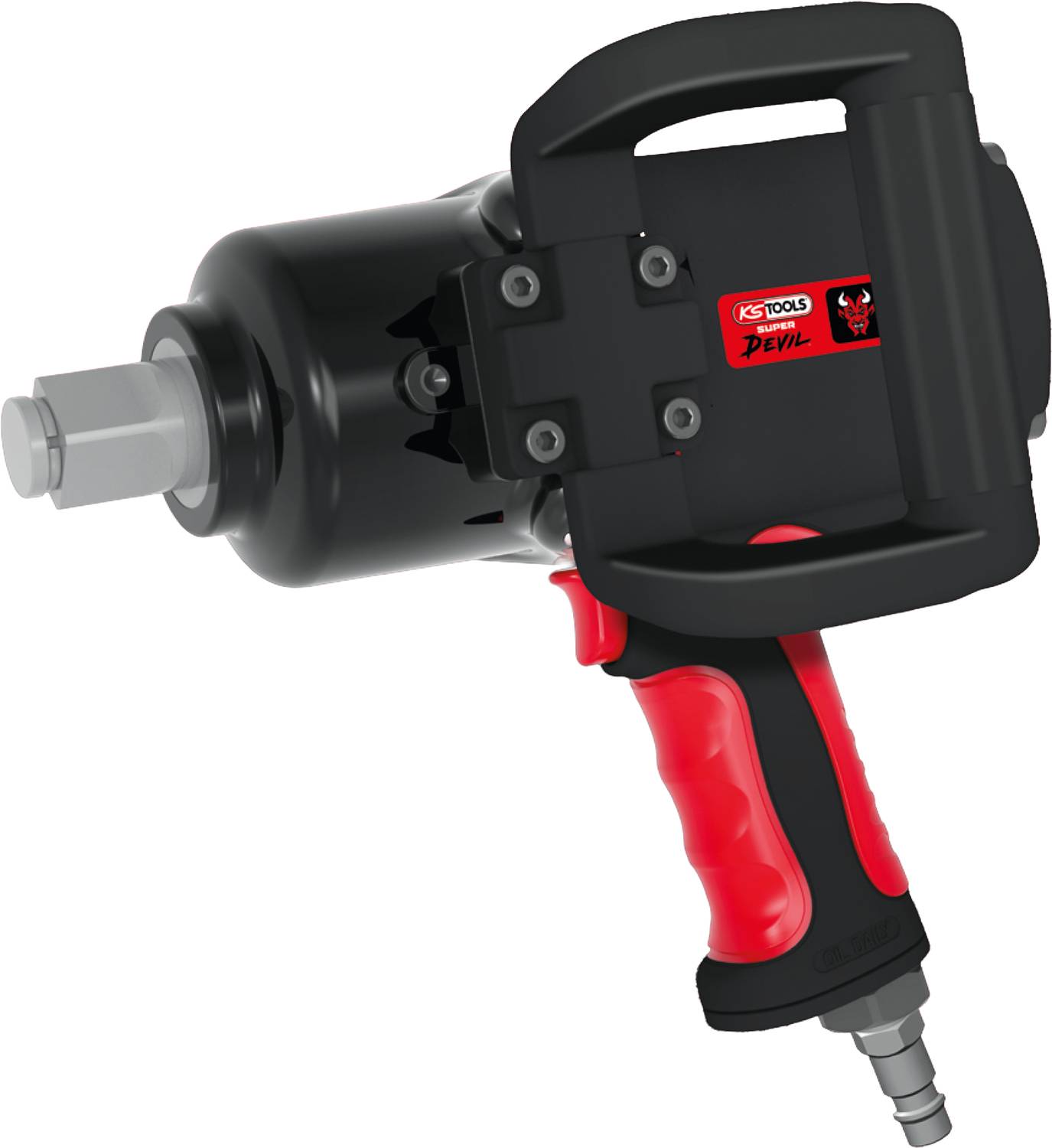

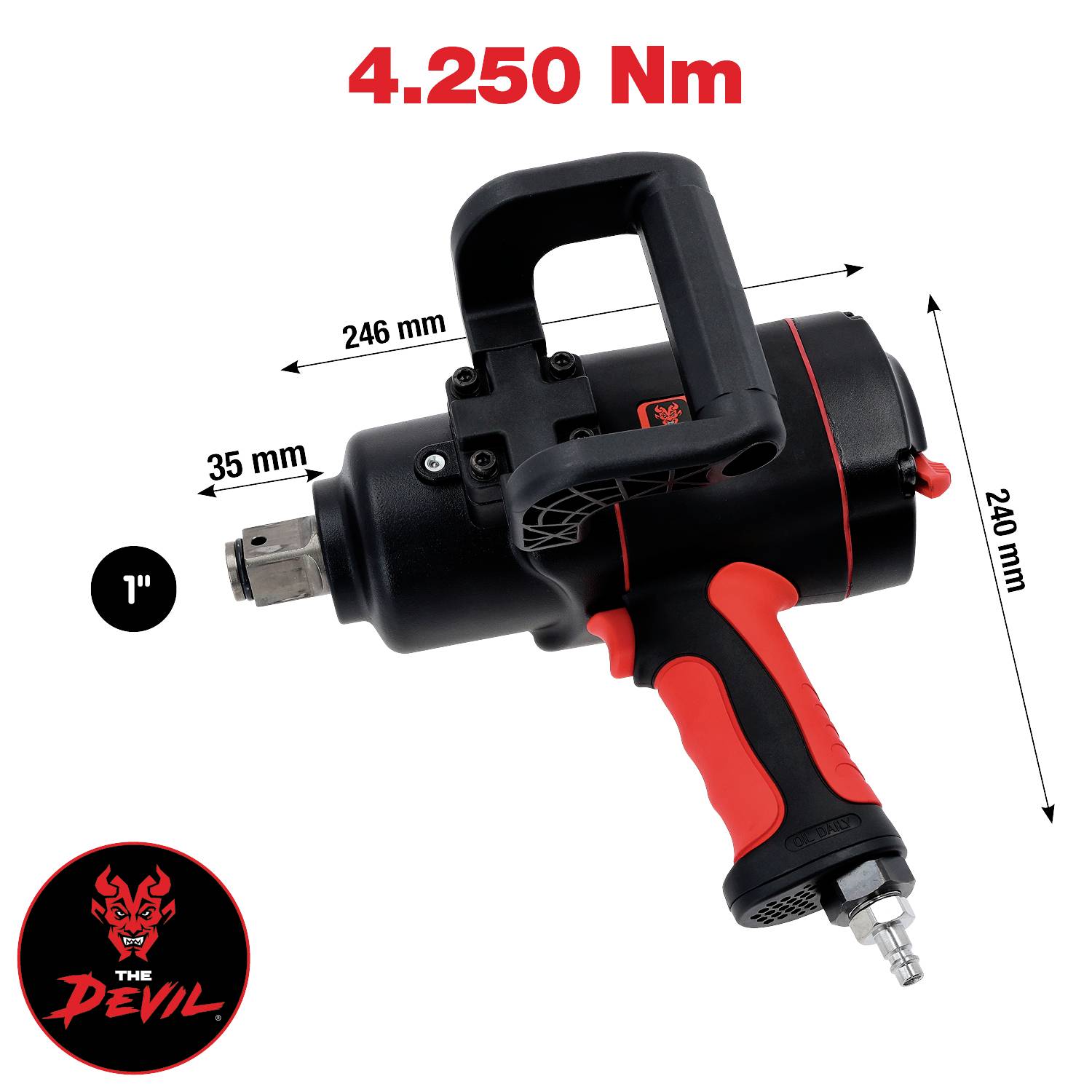

KS Tools 512.1015 Pneumatic impact driver Torque (max.): 4250 Nm
EAN:
Part number:
Item no:
Highlights & Details
1" THE DEVIL high-power compressed air impact screw, 4250Nm
- Short spindle
- With non-slip soft-grip handle
- Air exhaust by pushing down the handle
- With practical switchover lever (left/right)
- Easy to operate
- 3-way torque pre-selection
- High-performance double hammer impact
- High durability
- Cold-insulated handle
- Including 1/2" coupling connector
- Ultra-light aluminum casing
- This text is machine translated.
Technical specifications
- Connection thread 1/2" PT
- Inclusion in inches: 1
- Operating pressure in bar: Max. 8.0 bar
- Width B: 240
- Total length L in mm: 246
- Handle: Cold-insulated handle
- Idle speed in rpm: 5500
- Air consumption in l/min: 170
- Sound pressure level (DBA): 96.09
- Sound power level (DBA): 108.8
- Vibration acceleration 12.96
- Square drive: 1
- max. Release torque: 4250
- max. Clockwise rotation torque 1 = 1600 Nm
- max. Clockwise torque 2 = 2730 Nm
- max. Right-hand turning torment3:3 = 3110 Nm
- min Hose diameter 3/8" - 10 mm
- Product type
Pneumatic impact driver
- Connector
1" (25,4 mm)
- Torque (max.)
4250 Nm
- Weight
7300 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3477865 KS Tools 512.1015 Pneumatic impact driver Torque (max.): 4250 Nm
