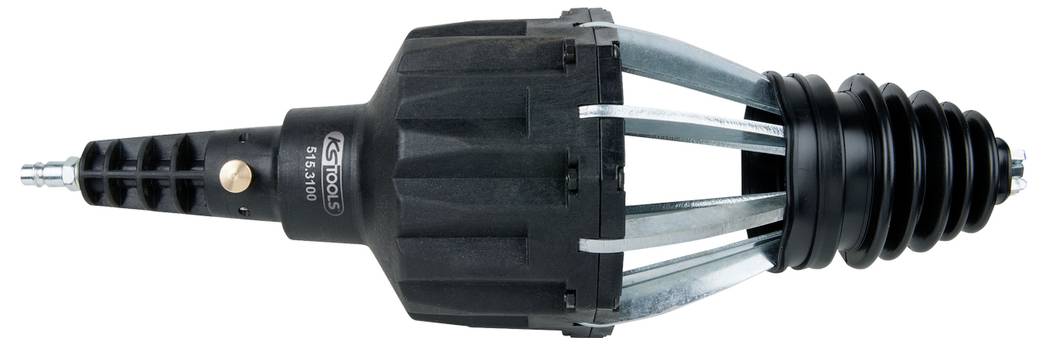

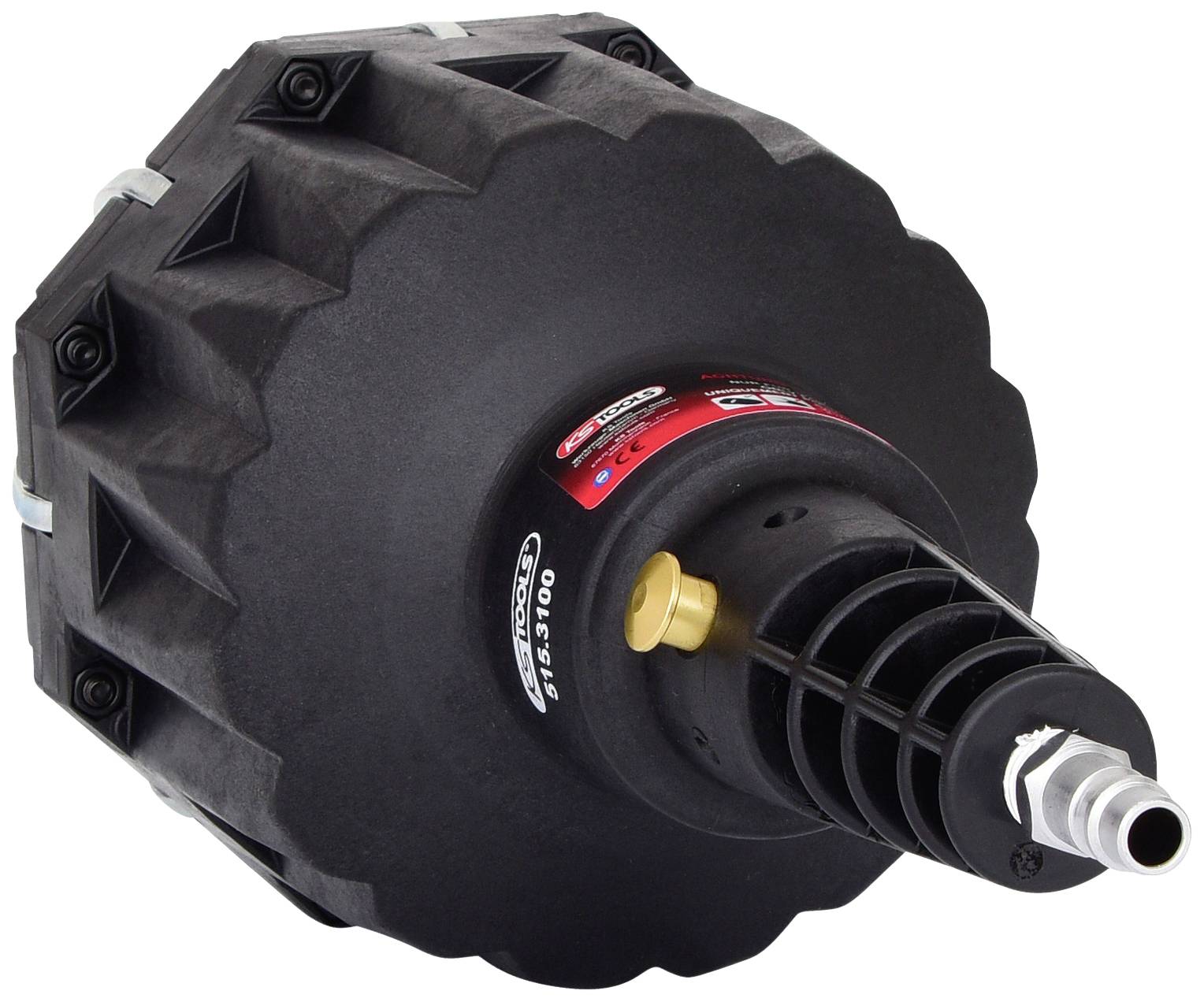

KS Tools 5153100 Pneumatic axle boot fitting tool 8 bar
EAN:
Part number:
Item no:
Number
Total (€ 109.24 / piece)
€ 251.52
-57 %
€ 109.24
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Connection thread 1/4" PT
- General application area: For axle sleeves
- Width in mm 200.0 mm
- Handle: Cold-insulated handle

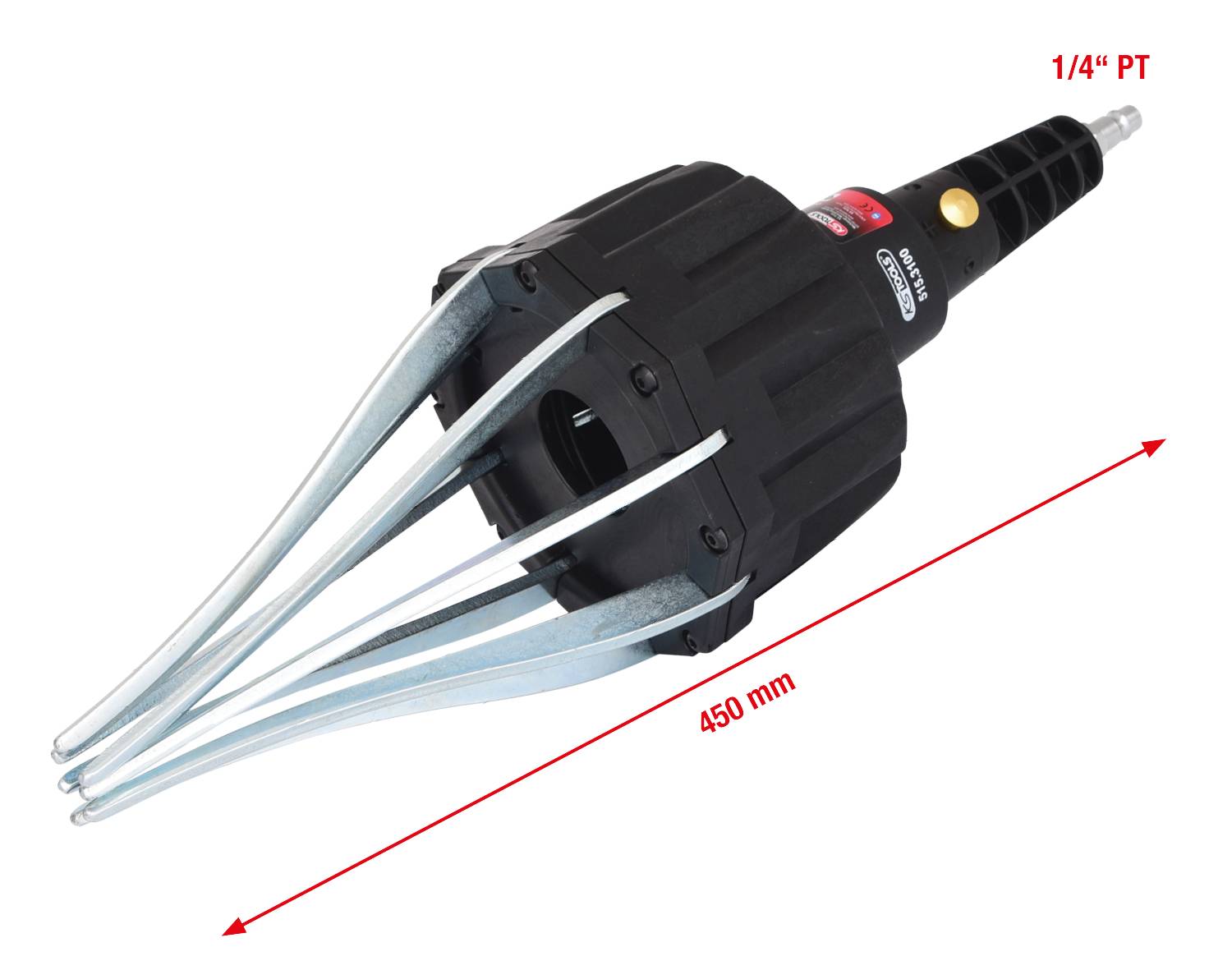

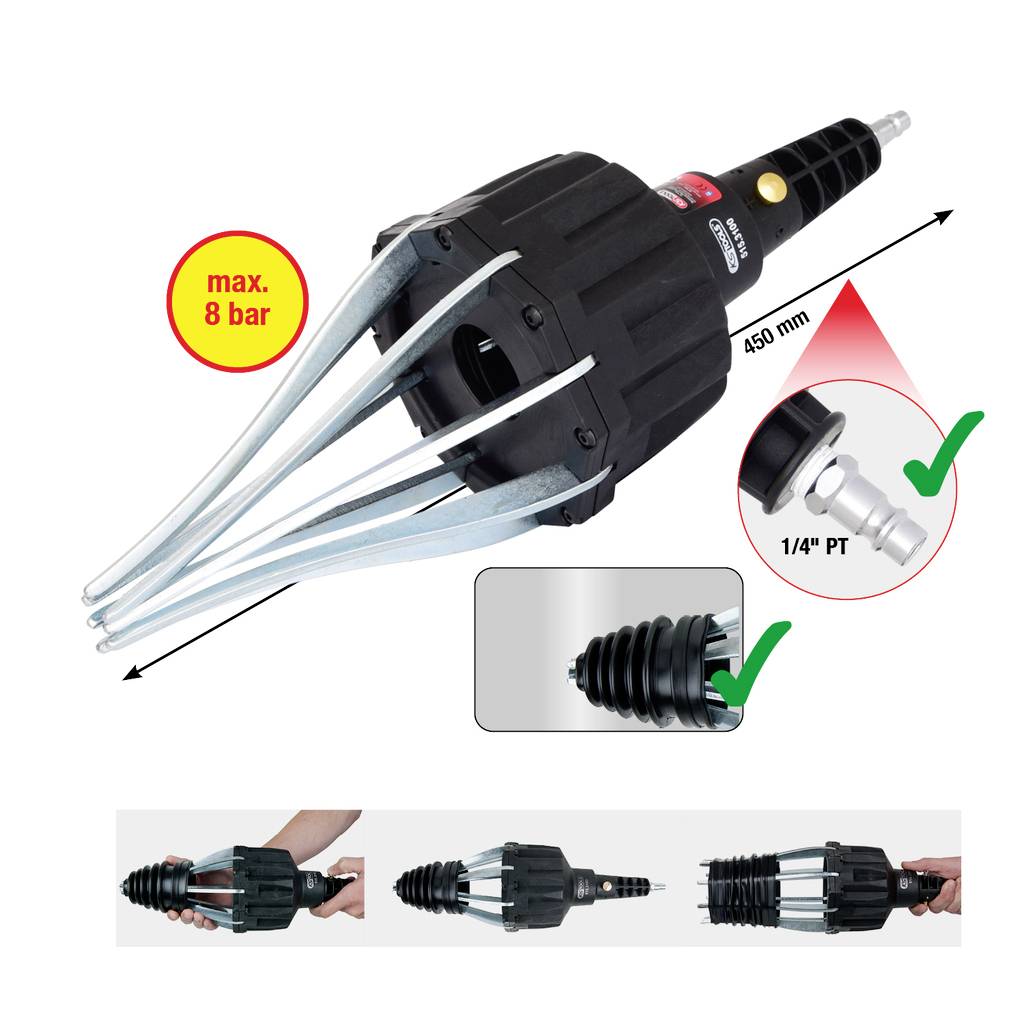

- Length mm 450 mm
- Material1: Special plastic
- max. Expanding diameter 25 - 110 mm
- Uncertainty Vibration acceleration: 0.2 m/s²
- min Hose diameter 3/8" - 10 mm
- DIN EN ISO 28662-1 STANDARD
- Vibration acceleration : < 0.37 m/s²
- Product type
Pneumatic axle boot fitting tool
- Max. operating pressure
8 bar
- Operation pressure
8 bar
- Weight
2265 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2618177 KS Tools 5153100 Pneumatic axle boot fitting tool 8 bar
Description

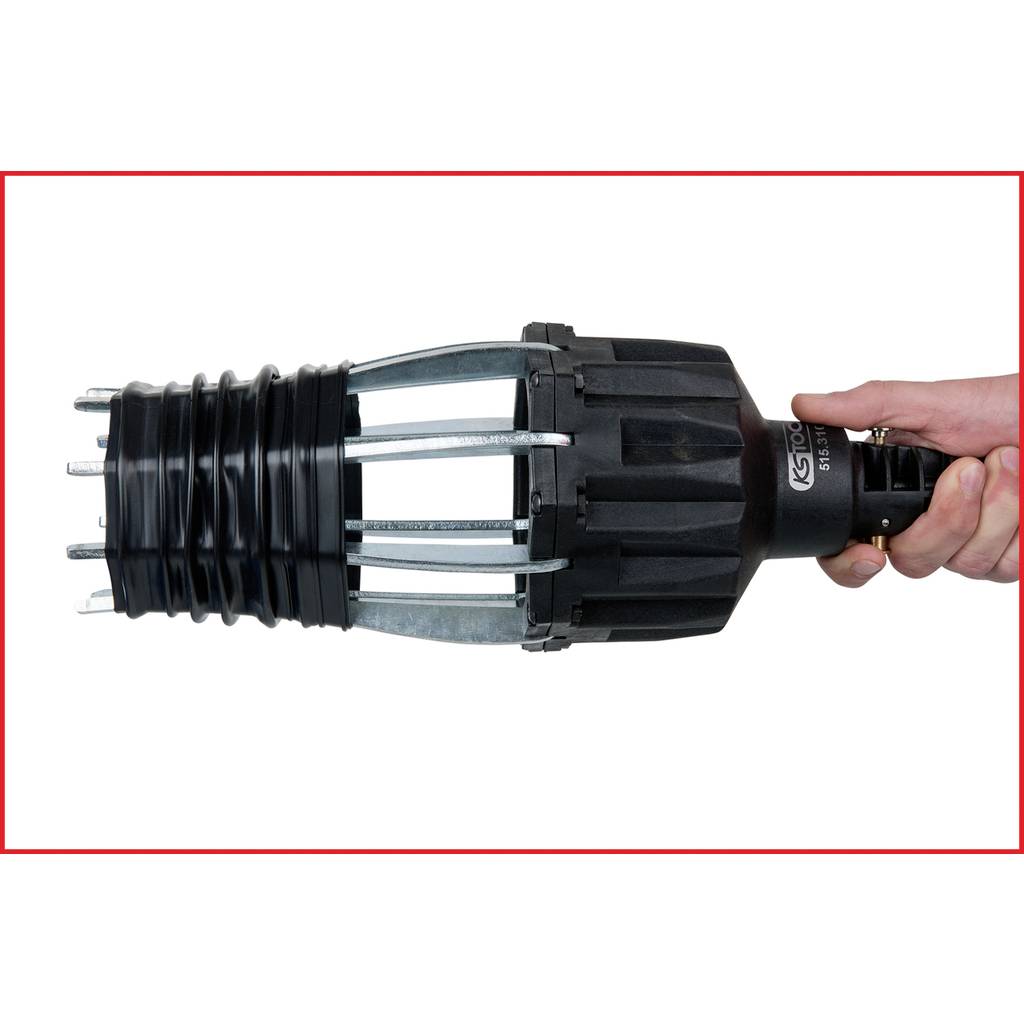

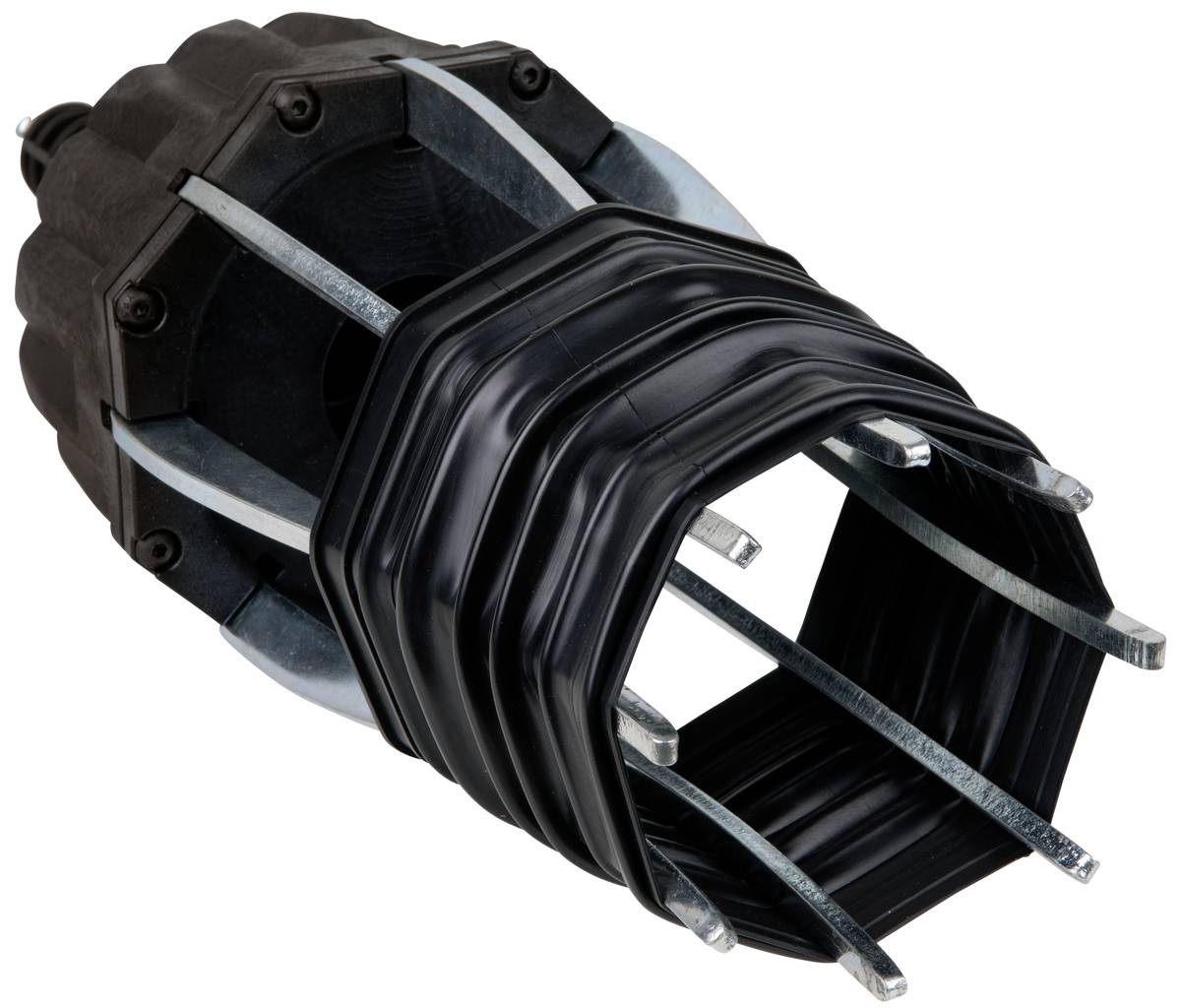

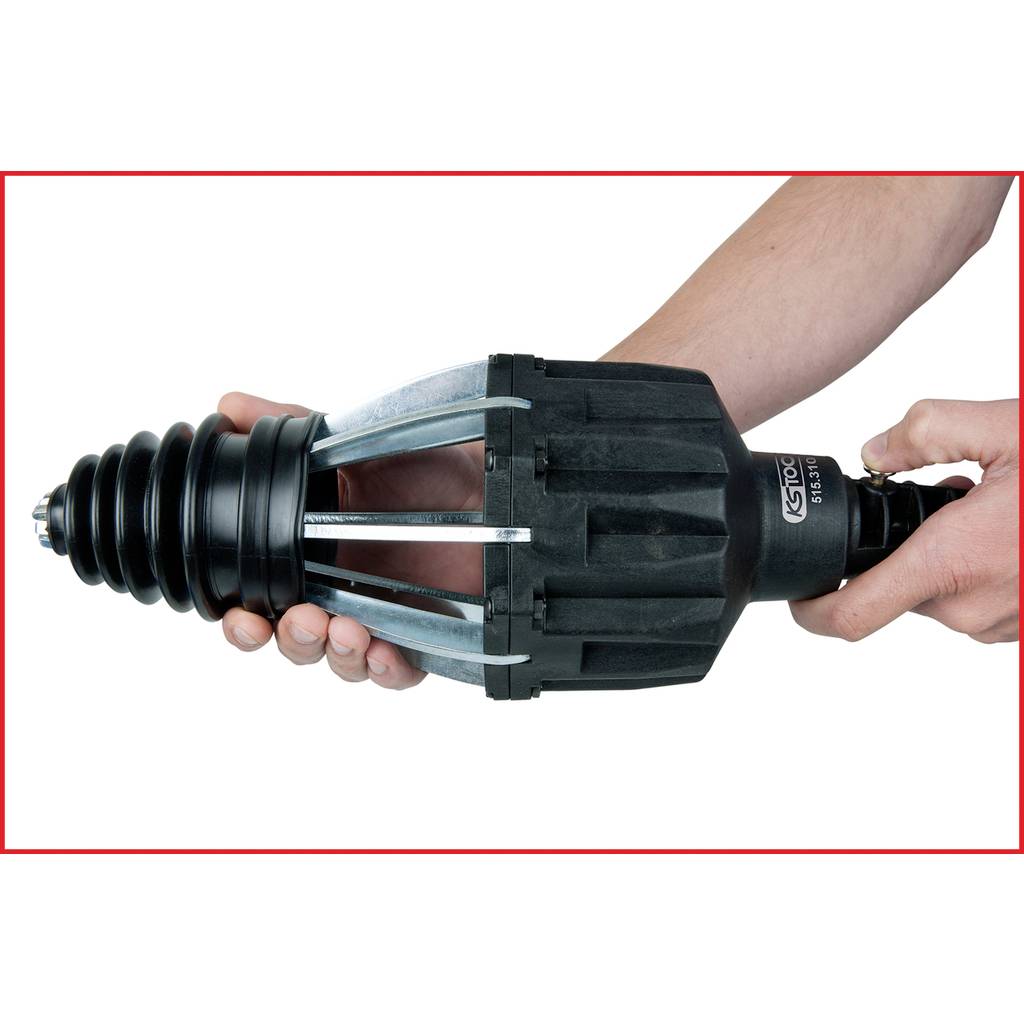

Exhaust air flow through the handle. Suitable for all universal car axle covers (soft). Also suitable for all-wheel vehicles and vans. For drive shaft joint diameter of 25 - 110 mm. With 8 extremely robust spreading arms. Compressed air spreads the joint arms. Compressed air can be easily dosed by push button. No additional lubricant required. With integrated safety valve. Including 1/4" coupling connector. Light, robust design.
