KS Tools 516.9105 Torque wrench Calibrated to (ISO standards) For bit sets 14 x 18 mm socket square
EAN:
Part number:
Item no:
Highlights & Details

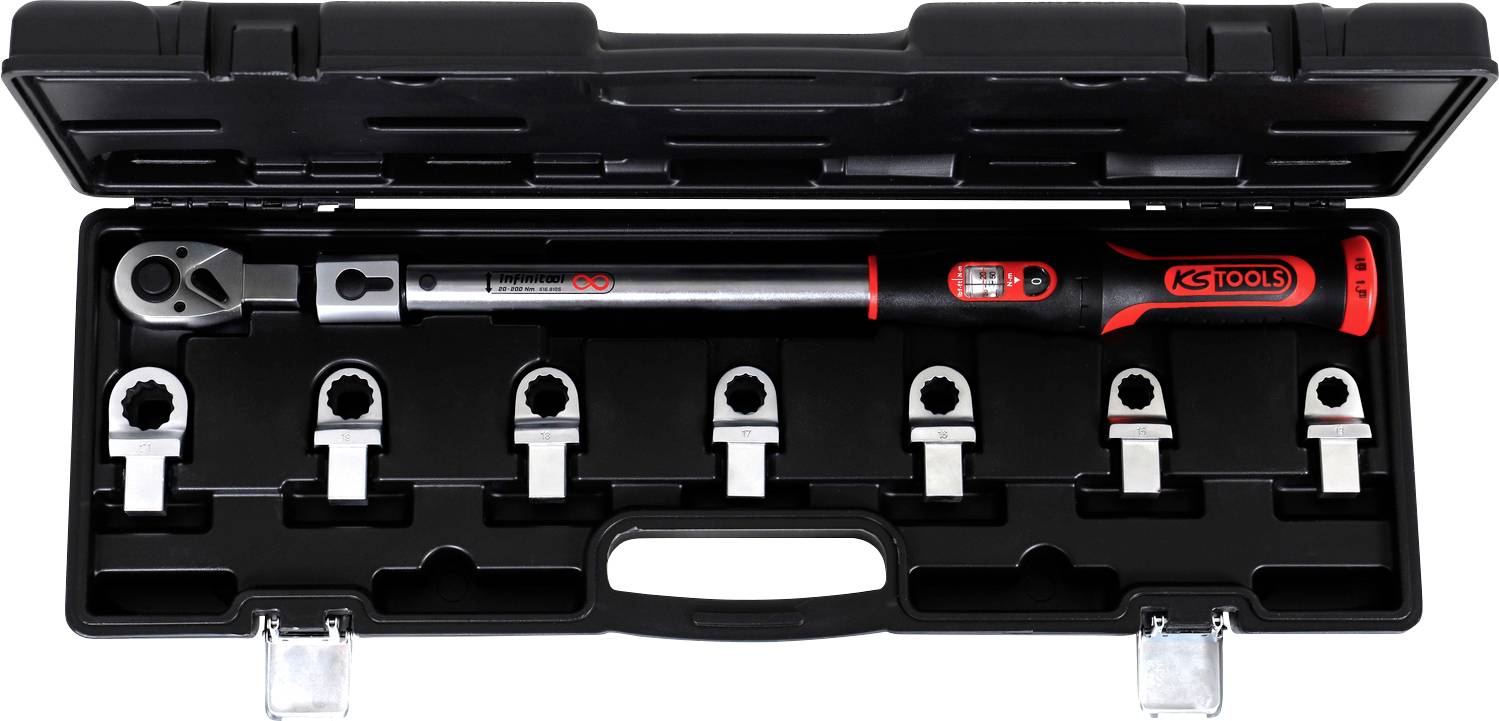

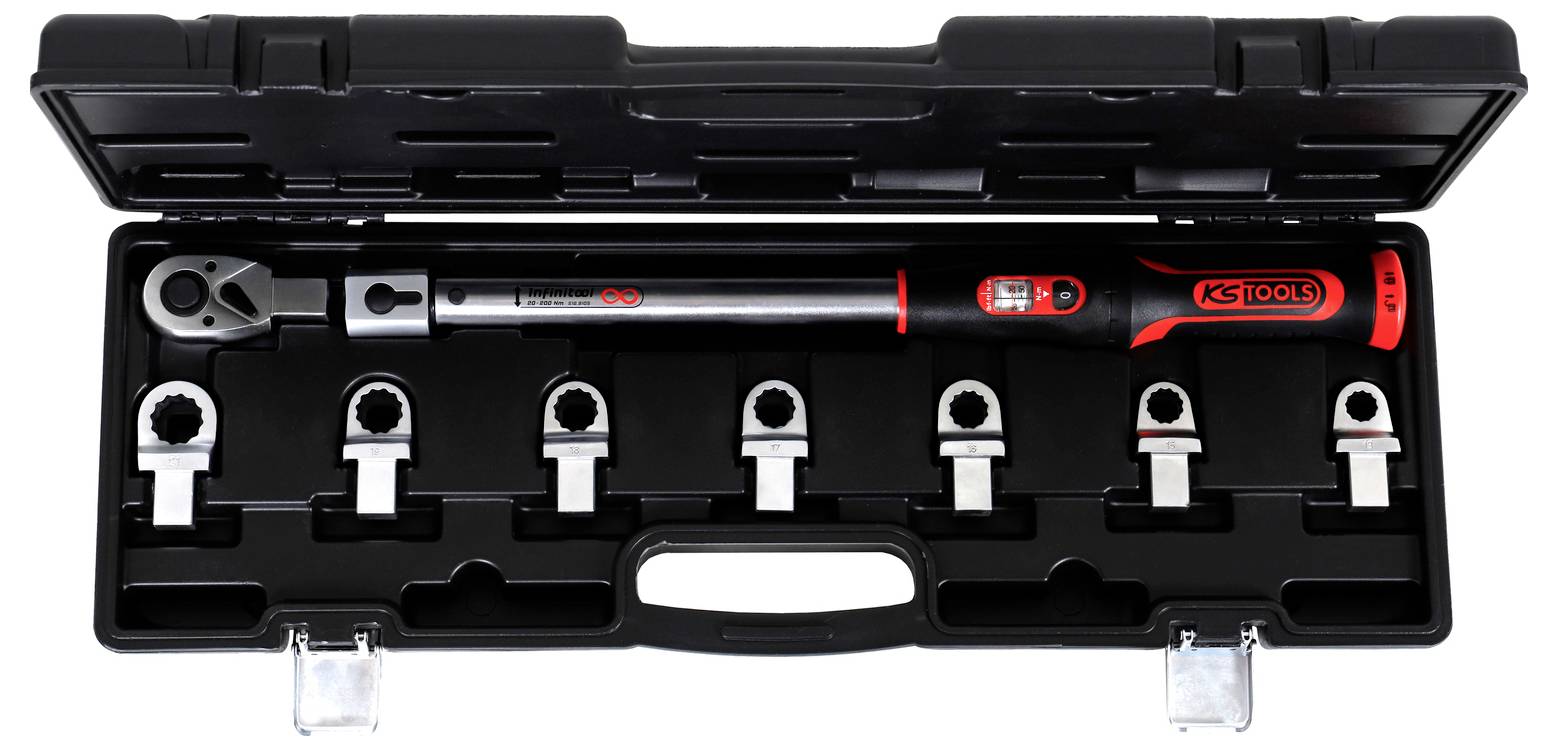

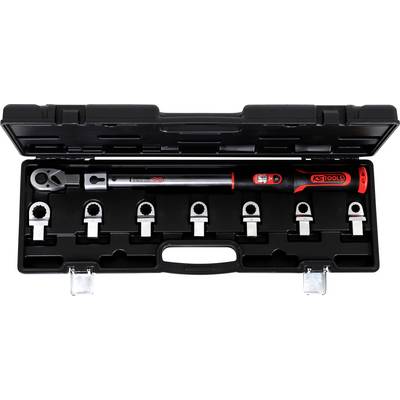

14x18mm INFINITool push-in torque wrench set 20-200Nm, 9-piece
- • Tripping accuracy: ±3% tolerance of the set scale value for tightening
- • Tripping accuracy: ±6 % tolerance of the set scale value when left-hand tightening
- • Accurate and precise with at least 5,000 load changes
- • For controlled right and left suit
- • Double scale in Nm and lbf•ft division for precise adjustment
- • Including finely divisible Nm micrometer scale for fine and precise adjustment
- • Large viewing window with magnifying glass function optimizes the readability
- • Clearly audible and perceptible rotational torque triggered by triggering a short distance
- • With robust 36-tooth ratchet mechanism
- • With push-button quick release function at the ratchet head
- • Torque can be adjusted quickly and safely by turning the handle
- • Secure locking option on handle
- • Ergonomic and handy 2-component grip with soft zone
- • With quick-locking plug-in connection for 14x18 insertion tools
- • Individual serial number for clear product identification
- • Includes calibration declaration of conformity according to DIN EN ISO 6789:2017(E) - traceable to national normal

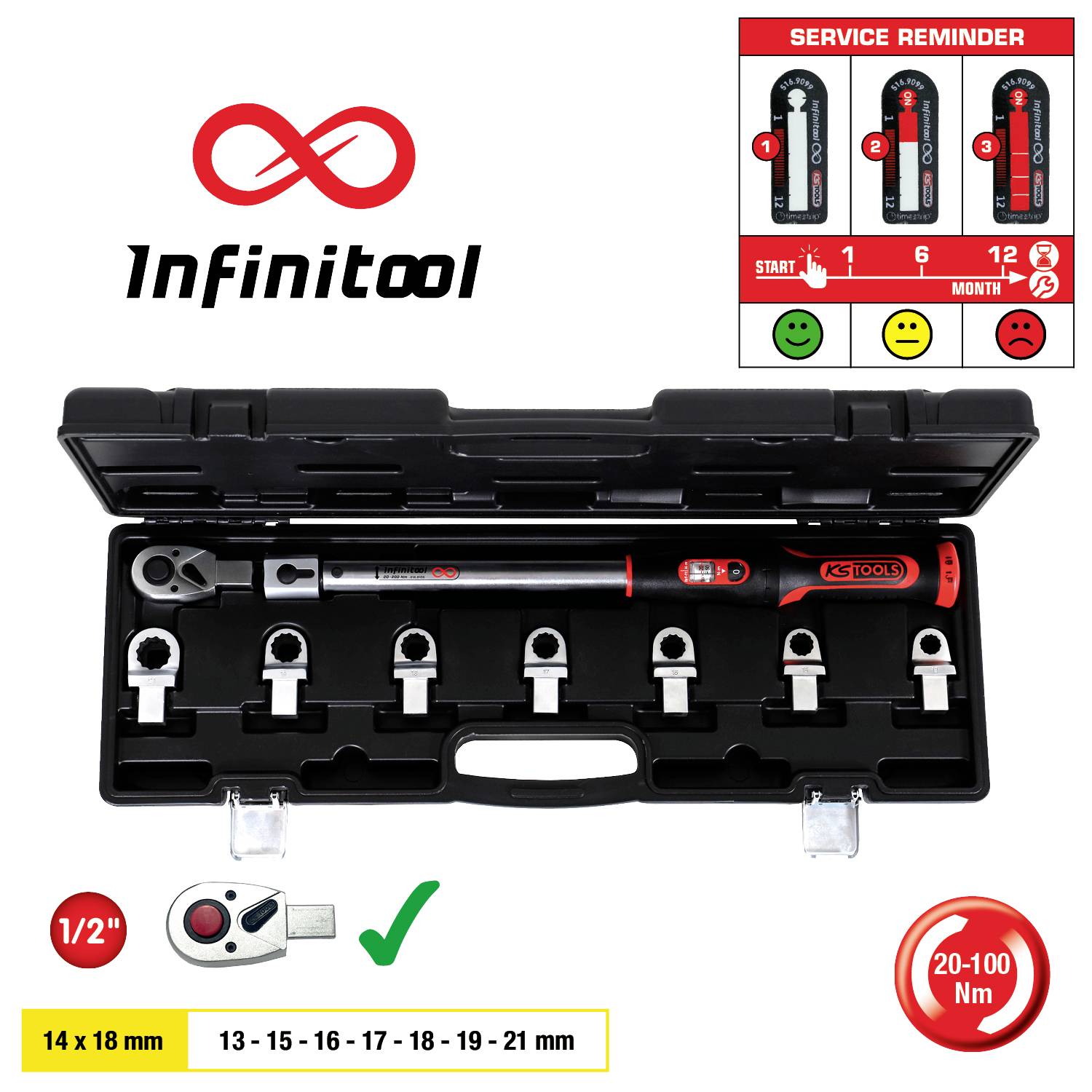

- • Including service reminder
- • In sturdy plastic case
- This text is machine translated.
Technical specifications
- Product type
Torque wrench
- Features
For bit sets
- Downforce
14 x 18 mm socket square
- Trigger accuracy
3 %
- DIN standard
DIN EN ISO 6789
ISO standards
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3387511 KS Tools 516.9105 Torque wrench Calibrated to (ISO standards) For bit sets 14 x 18 mm socket square
