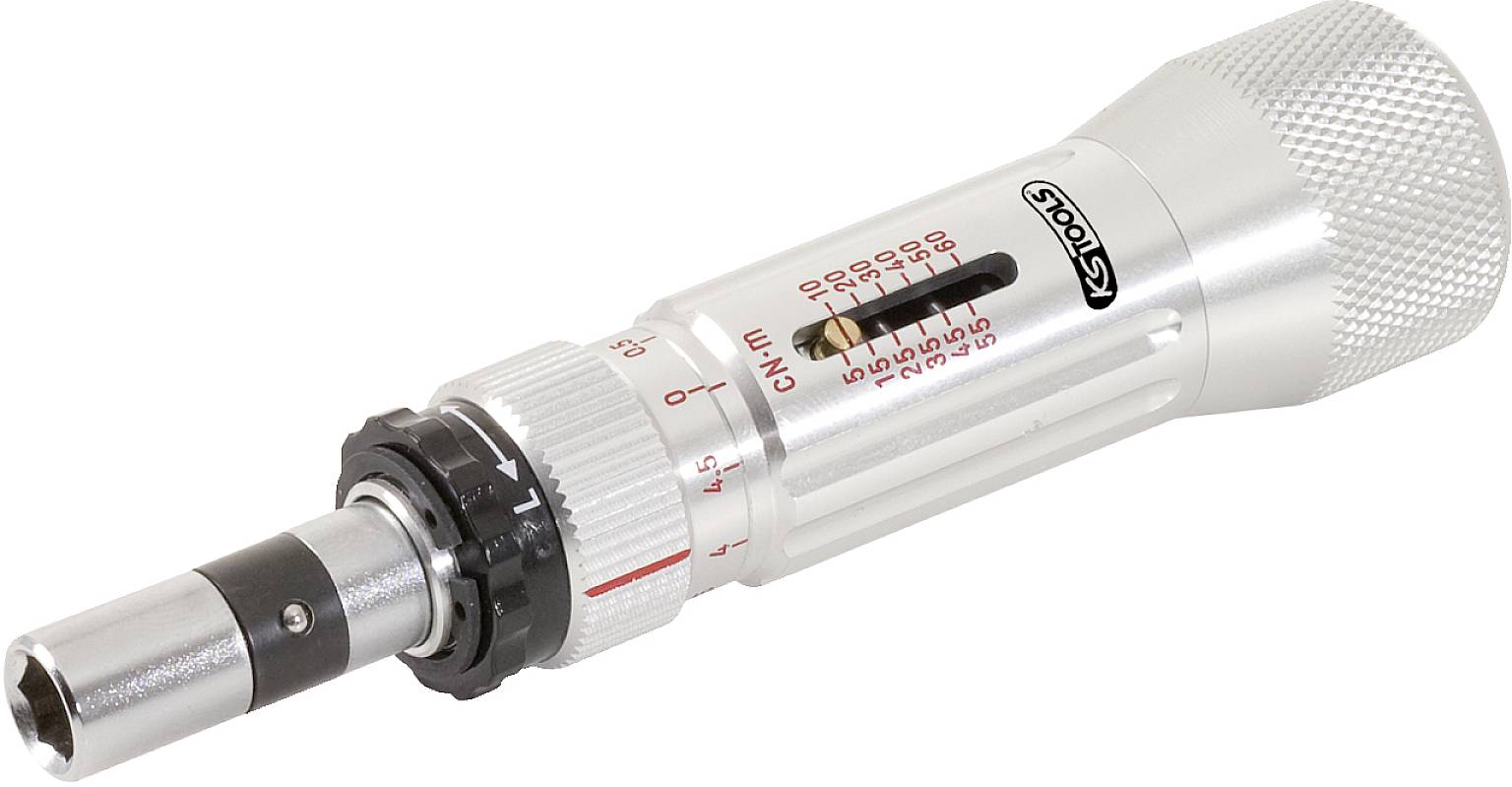

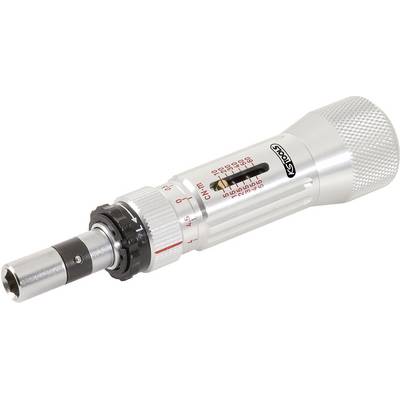

KS Tools 5163220 ESD Torque screwdriver 5 - 60 cNm DIN EN ISO 6789
EAN:
Part number:
Item no:
Number
Total (€ 293.28 / piece)
€ 293.28
plus VAT.
Only 1 Piece(s) available
Technical specifications

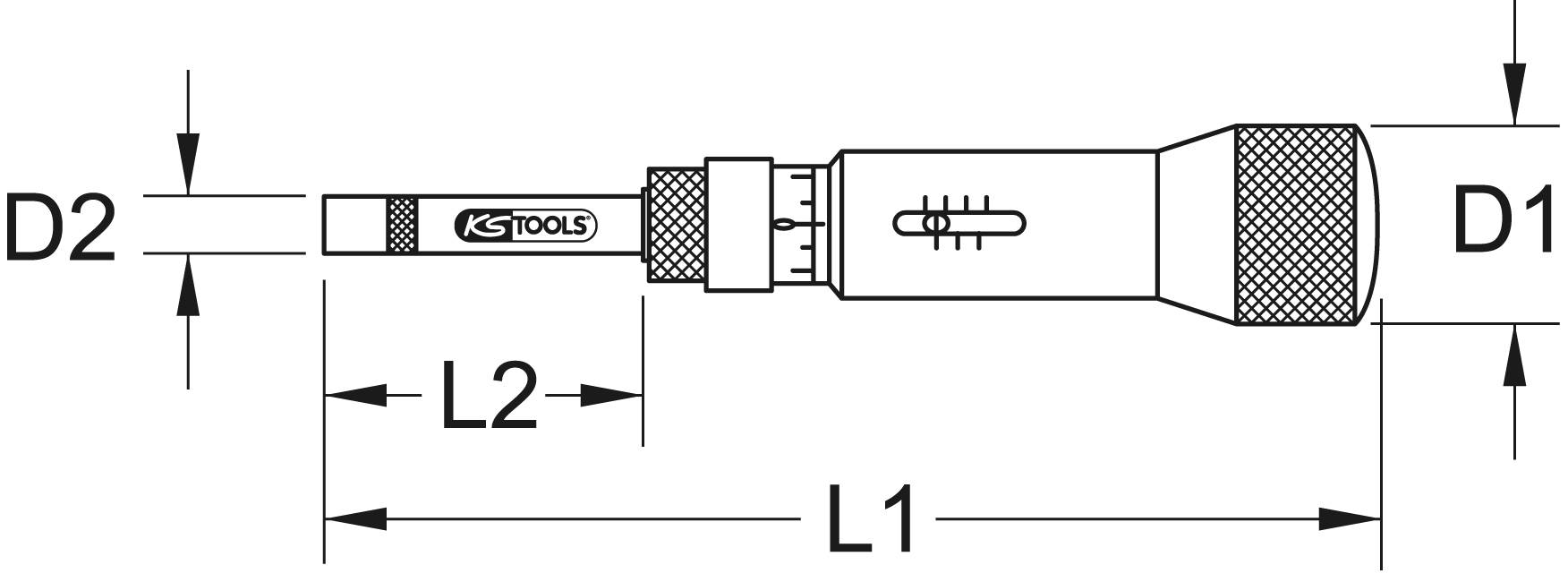

- Standard DIN 3126 - E 6.3 Weight 99 gFunctional attribute 1: Electrically conductive ESD Total length L1 in mm: 111.0 mmPart length L2 in mm: 26.0 mmDiameter D1 25.0 mmDiameter D2: 10.0 mmDisplay: Scale (mechanical) Screw driver type Torque tool attachment: Bit Trigger accuracy +/-6% Measuring range cNm: 5-60 Hexagonal admission in mm 6.3 mmHexagonal admission in inches: 1/4"Division cNm: 0.5
- Product type
Torque screwdriver
- Range of use
ESD
- Drive
1/4"
- Size
1/4"
- Torque (min.)
5 cNm
- Torque (max.)
60 cNm
- Tolerance ±
6 %
- Length
111 mm
- Material
Aluminium
- Weight
99 g
- DIN standard
DIN EN ISO 6789
- Screwdriver features
insulated
- EN standard
EN ISO 6789
- Spanner size
6.3 mm
ISO standards
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2700127 KS Tools 5163220 ESD Torque screwdriver 5 - 60 cNm DIN EN ISO 6789
Description
Tripping accuracy: ±6% tolerance of the set scale valueAccurate and precise with at least 5,000 load changesFor the controlled suitWith precision screw springClearly tactile torque tripping due to over-gratingIt is not possible to override the set valueIncluding divisible Nm micrometer scale for a fine and precise adjustmentErgonomic shape of the handle for secure torque transmissionHexagon socket to DIN 3126 - E 6.3Electrostatic protectionLightweight design due to aluminum gripsIndividual serial number for clear product identificationIncludes calibration declaration of conformity to DIN EN ISO 6789:2017(E) – traceable to national normal
