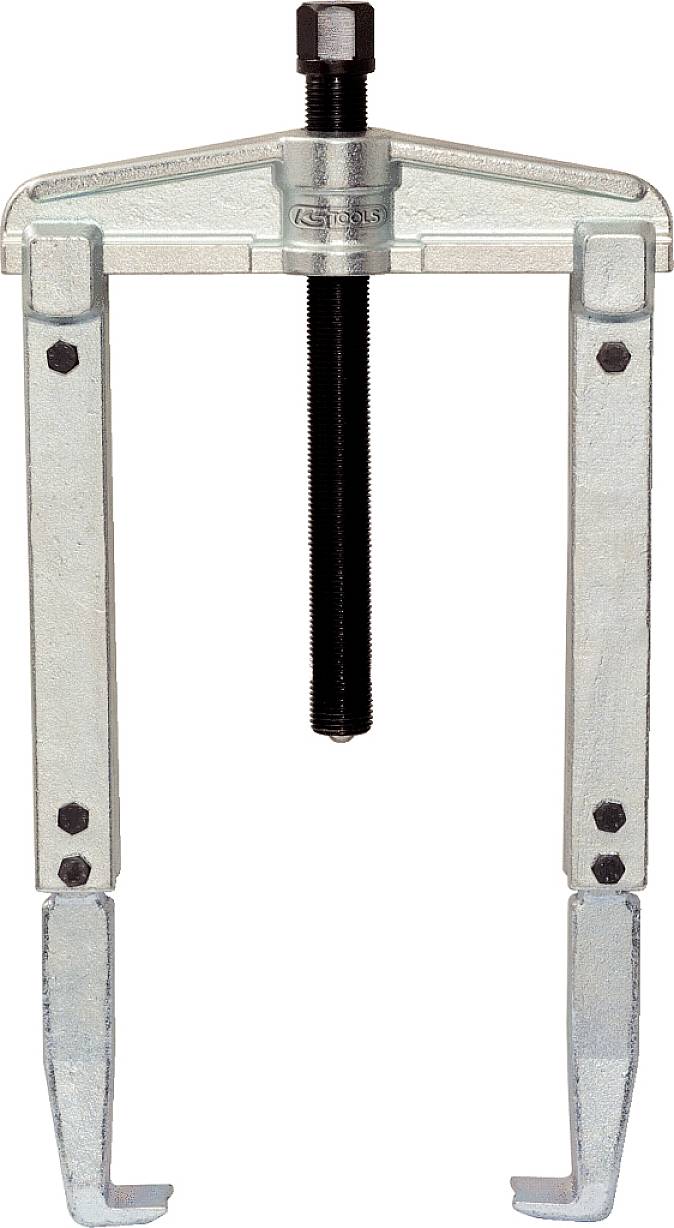

KS Tools 620.0504 Puller Clamping range (details) 60 - 200 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
Only 2 Piece(s) available
Technical specifications

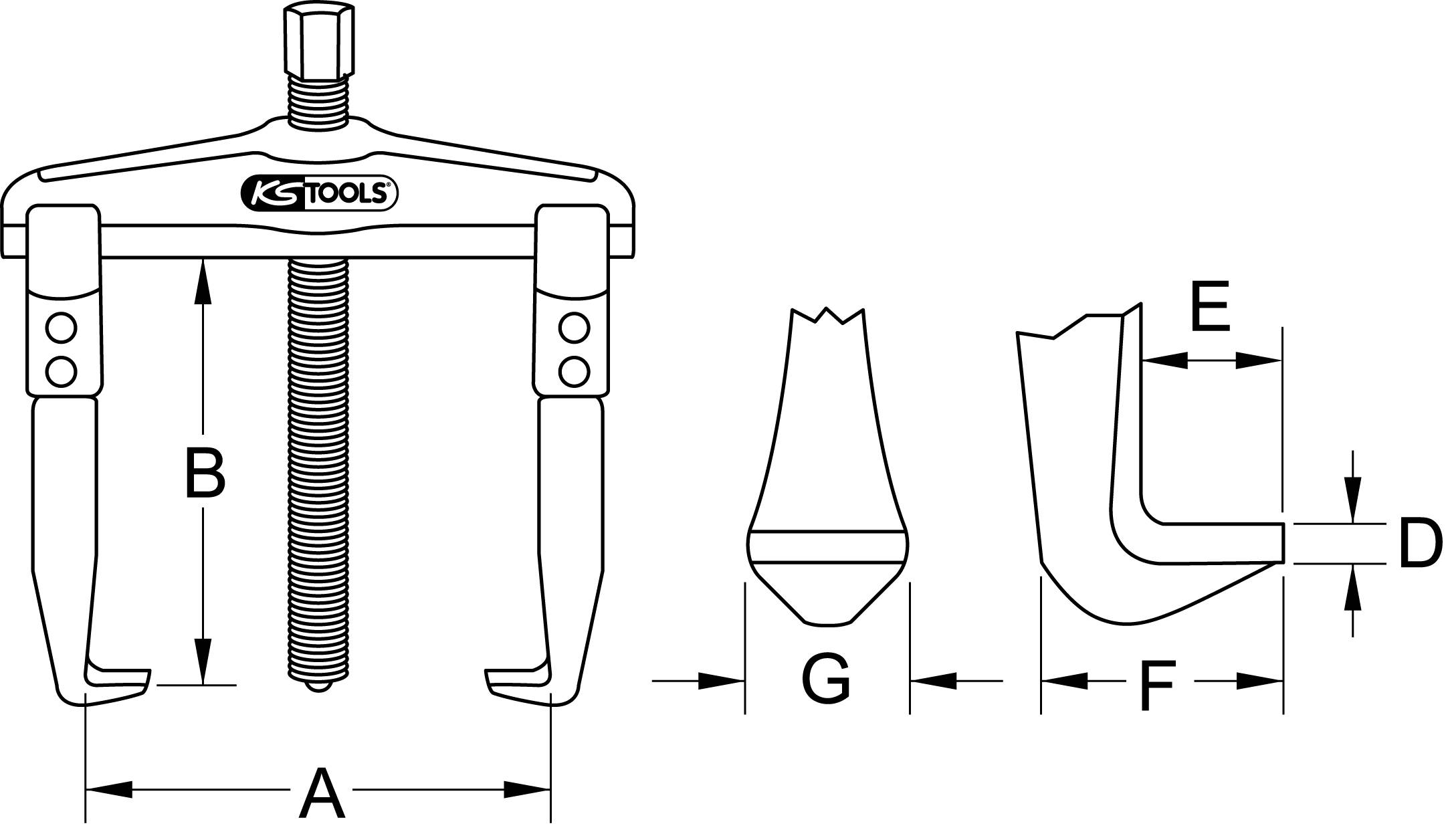

- Pull hook width G: 25 mm
- Pull hook total depth F: 35 mm
- Pull hook height D 4 mm
- Pull hook tip depth E: 16 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 22 mm
- Torque max Nm:150 Nm
- Function attribute 1: Reversible, interior/exterior removal
- Weight 4300 g
- Material1: Special tool steel
- max. Compressive strength KN: 65.0
- max. Compression force Nm: 150
- max. Pressure force t: 6.5
- Quick adjustment: No. nein
- Clamping depth B in mm 300 mm
- Span A in mm 60-200 mm
- Wingspan exterior puller C: 120-270
- Span up to [mm]: 200 mm
- Span [mm]: 60 mm
- Spindle size mm: G1/2"x14g x 210
- Variant items : 620.0501
- Clamping range
60 - 200 mm
- Tension/pressure capacity
6.5 t
- Weight
4300 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
200 mm
- Span depth (max.)
300 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695327 KS Tools 620.0504 Puller Clamping range (details) 60 - 200 mm No. of hooks 2
Description
It can be used as inside or outside puller by changing the hookHydraulic spindle can be retrofitted for thread G1/2" / G3/4"Extremely robust spindle with inductively hardened threadSpecial tool steel
