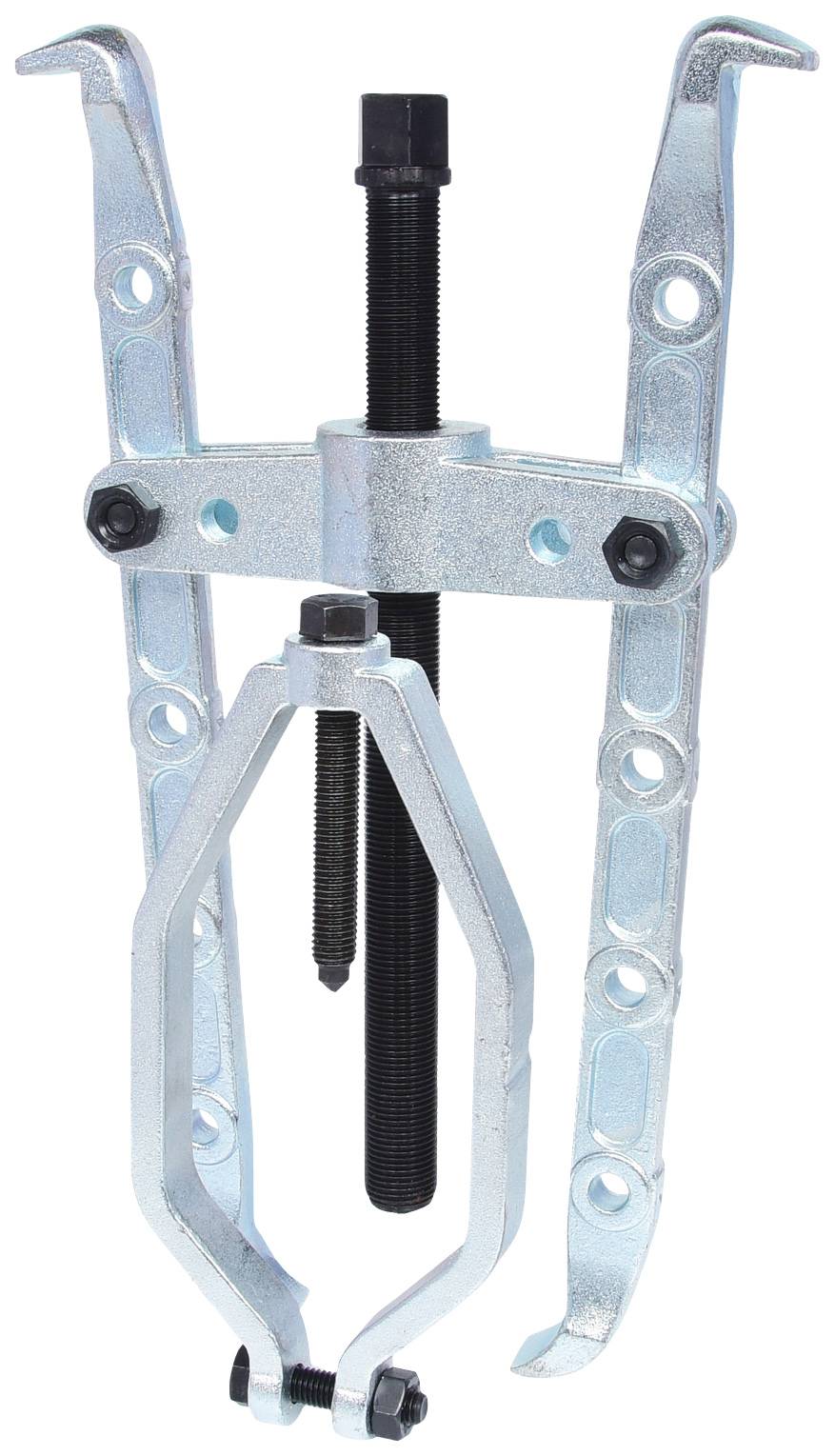

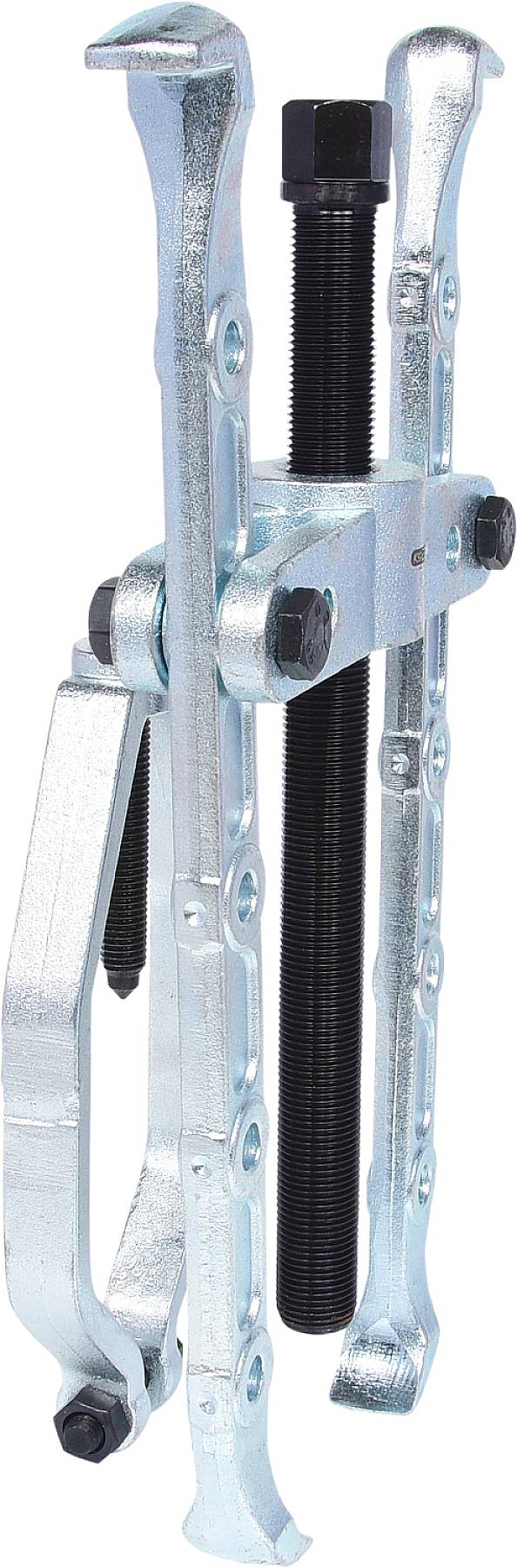

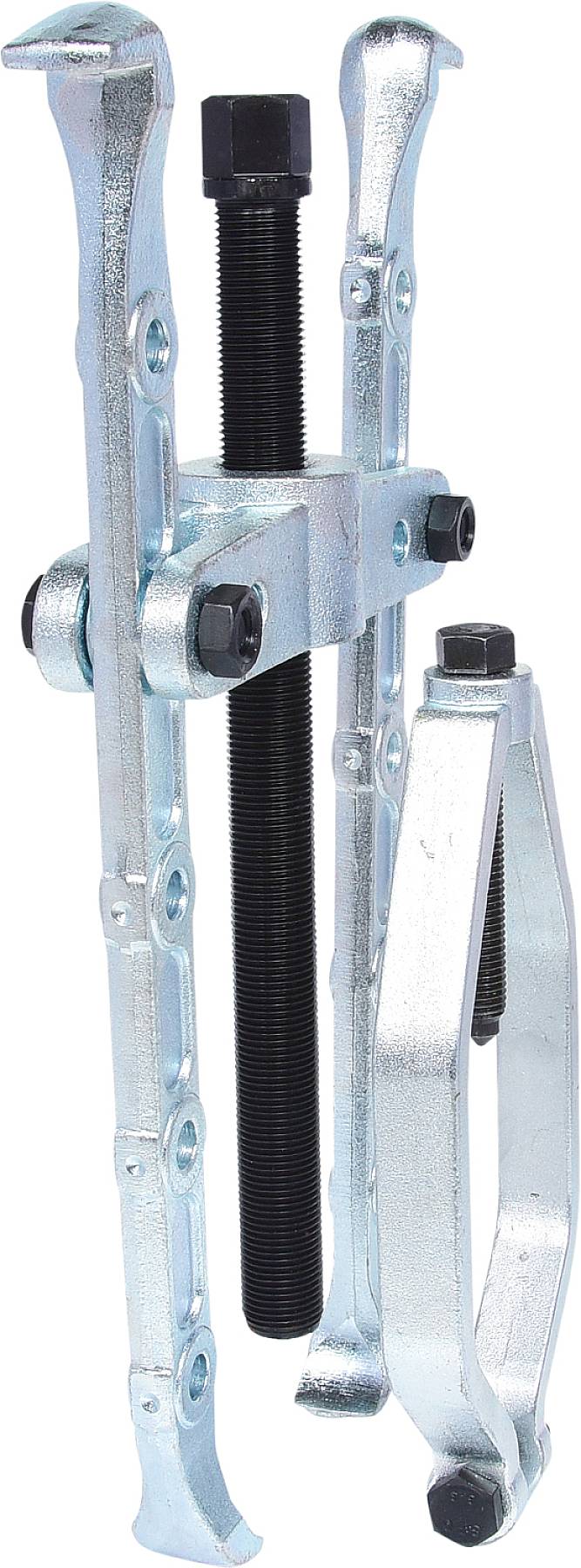

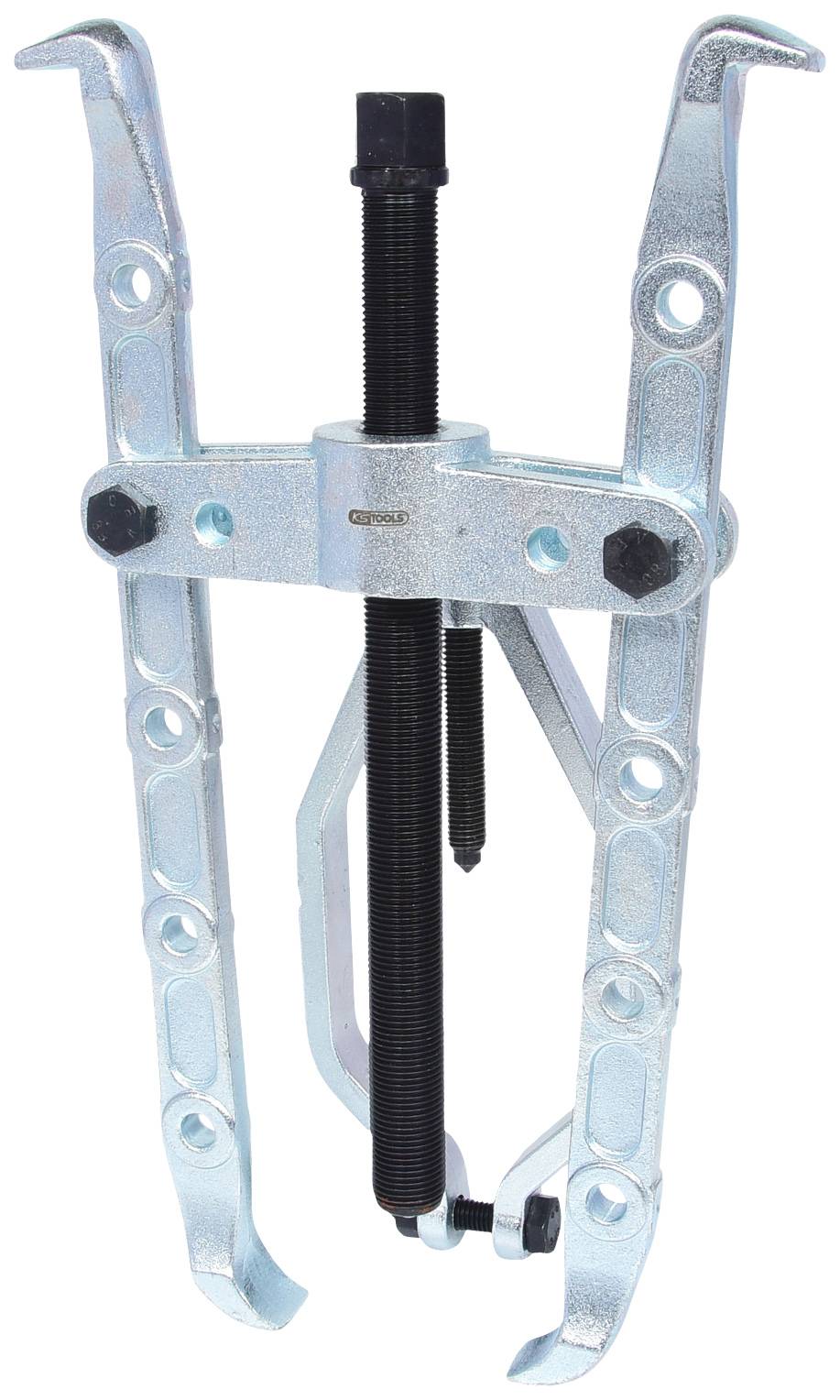

KS Tools 620.5502 Puller Clamping range (details) 150 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 210.08 / piece)
€ 210.08
plus VAT.
14-day return policy included
Technical specifications

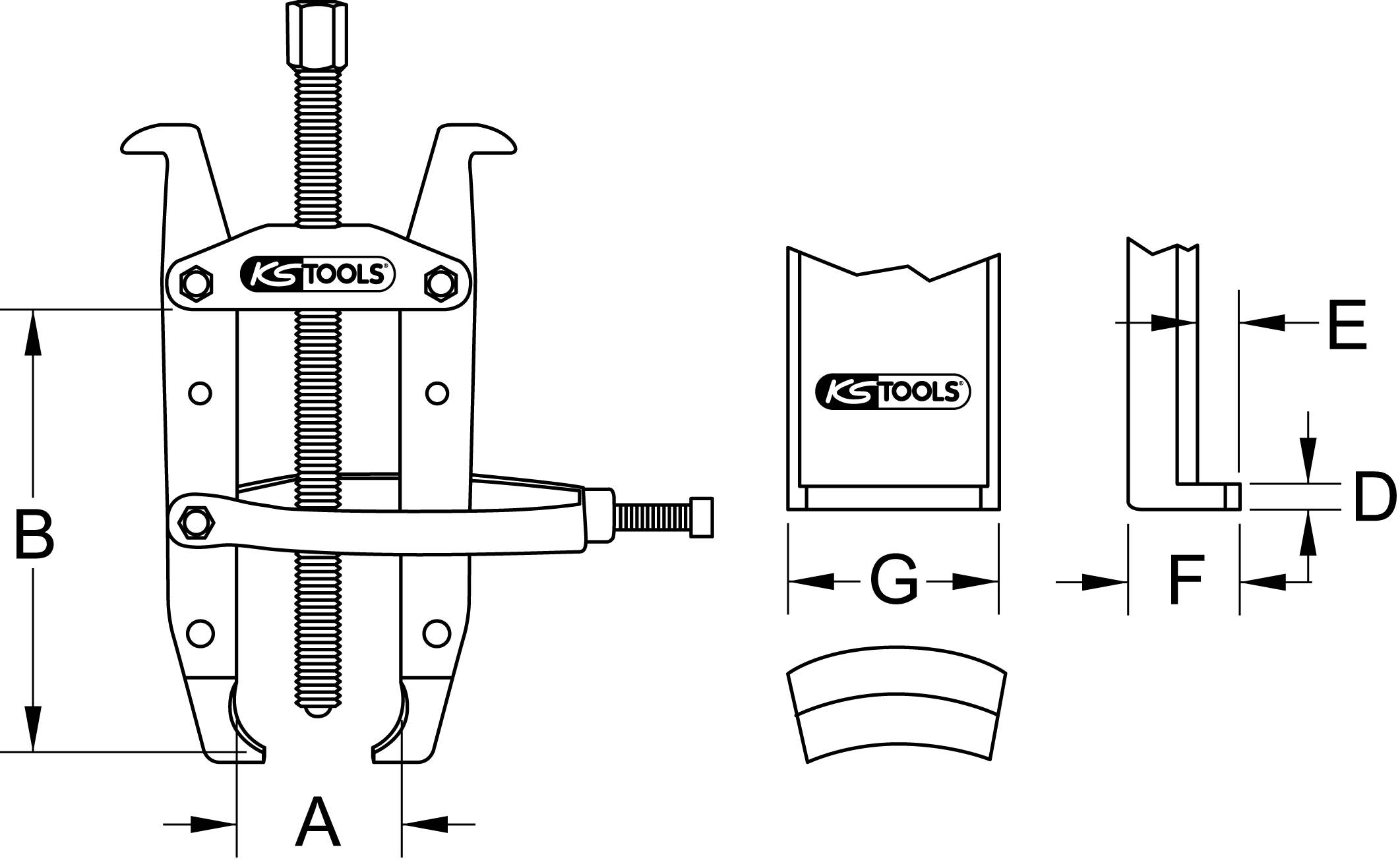

- Pull hook width G: 24 mm
- Pull hook total depth F: 25 mm
- Pull hook height D 3 mm
- Pull hook tip depth E: 14 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 22 mm
- Torque max Nm:120 Nm
- Feature 1: With clamp
- Weight 4100 g
- Material1: Special tool steel
- max. Compressive strength KN: 60.0
- max. Compression force Nm: 120
- max. Pressure force t: 6
- Quick adjustment: No. nein
- Clamping depth B in mm 270 mm
- Span A in mm 150 mm
- Spindle size mm: G1/2"x14g x 270
- Variant items : 620.5501
- Clamping range
150 mm
- Tension/pressure capacity
6 t
- Weight
4100 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
150 mm
- Span depth (max.)
270 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695409 KS Tools 620.5502 Puller Clamping range (details) 150 mm No. of hooks 2
Description
The clamping depth of hooks can be adjustedHook can be used on both sidesClamp securely presses the hook togetherPrevents slippingIdeal suitable for flush-fitting bearings and socketsExtremely robust spindle with inductively hardened threadSpecial tool steel
