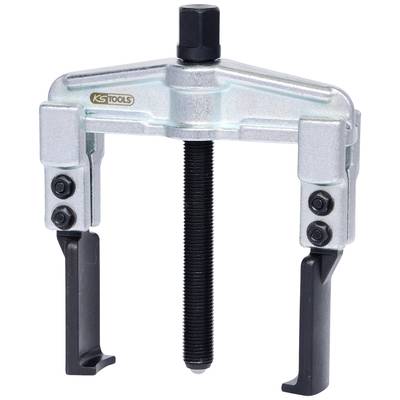

KS Tools 6200046 Puller Clamping range (details) 80 - 180 mm No. of hooks 2
EAN:
Part number:
Item no:
Technical specifications
- Pull hook width G: 14 mm
- Pull hook total depth F: 14 mm
- Pull hook height D 3.6 mm
- Pull hook tip depth E: 8 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 17 mm
- Weight 1200 g
- Material1: Special tool steel
- max. Pressure force t: 2.5
- Quick adjustment: Yes
- Clamping depth B in mm 100 mm
- Span A in mm 25-130 mm
- Wingspan exterior puller C: 80-180
- Span up to [mm]: 130 mm
- Span [mm]: 25 mm
- Spindle size mm: M14x1.5 x 130
- Variant items : 620.0045
- Clamping range
80 - 180 mm
- Tension/pressure capacity
2.5 t
- Weight
1200 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
180 mm
- Span depth (max.)
100 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695278 KS Tools 6200046 Puller Clamping range (details) 80 - 180 mm No. of hooks 2
Description
With quick clamping functionSlim designExtremely pointed hook baseIdeally suited for narrow spacesEven load distribution and centered tighteningIt can be used as inside or outside puller by changing the hookVarious hook variants and hydraulic spindle can be retrofittedExtremely robust spindle with inductively hardened threadSpecial tool steel
