KS Tools 6200076 Hydraulic puller Clamping range (details) 160 - 330 mm No. of hooks 2
EAN:
Part number:
Item no:
Technical specifications

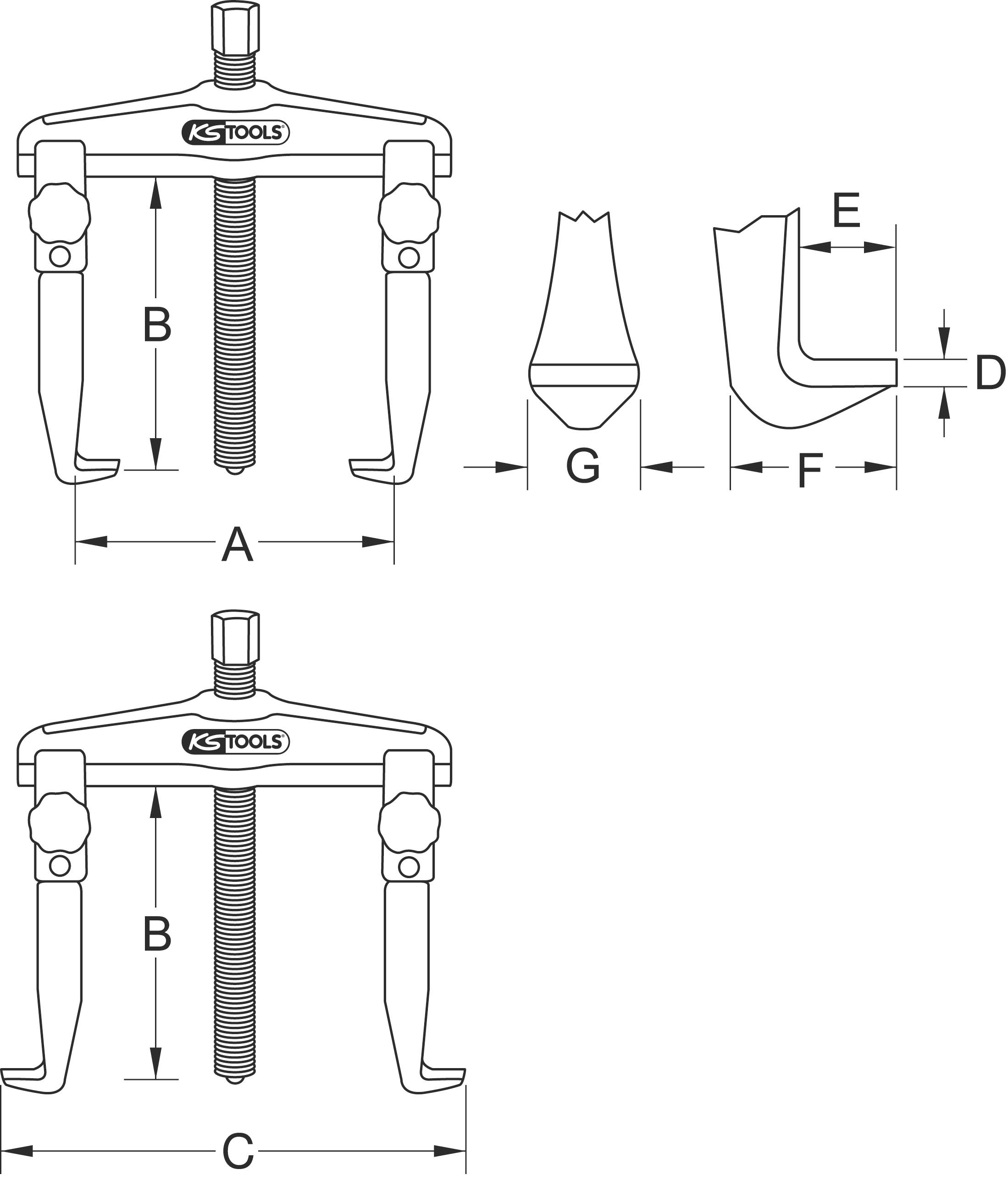

- Pull hook width G: 35 mm
- Pull hook total depth F: 54 mm
- Pull hook height D 5 mm
- Pull hook tip depth E: 25 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 13 mm
- Torque max Nm:60 Nm
- Function attribute 1: Reversible, interior/exterior removal
- Weight 11100 g
- Hydraulic spindle no.: 615.0003
- Material1: Special tool steel
- max. Compressive strength KN: 120.0
- max. Compression force Nm: 60
- max. Pressure force t: 12
- Quick adjustment: Yes
- Clamping depth B in mm 325 mm
- Span A in mm 80-250 mm
- Wingspan exterior puller C: 160-330
- Span up to [mm]: 250 mm
- Span [mm]: 80 mm
- Variant items : 620.0075
- Clamping range
160 - 330 mm
- Tension/pressure capacity
12 t
- Weight
11100 g
- Content
1 pc(s)
- Hooks
2
- Product type
Hydraulic puller
- Span width (max.)
330 mm
- Span depth (max.)
325 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695297 KS Tools 6200076 Hydraulic puller Clamping range (details) 160 - 330 mm No. of hooks 2
Description
With quick clamping functionLong styleEven load distribution and centered pullingIt can be used as inside or outside puller by changing the hookDifferent hook variants can be retrofittedIncluding hydraulic pressure spindleLow force requiredSpecial tool steel
