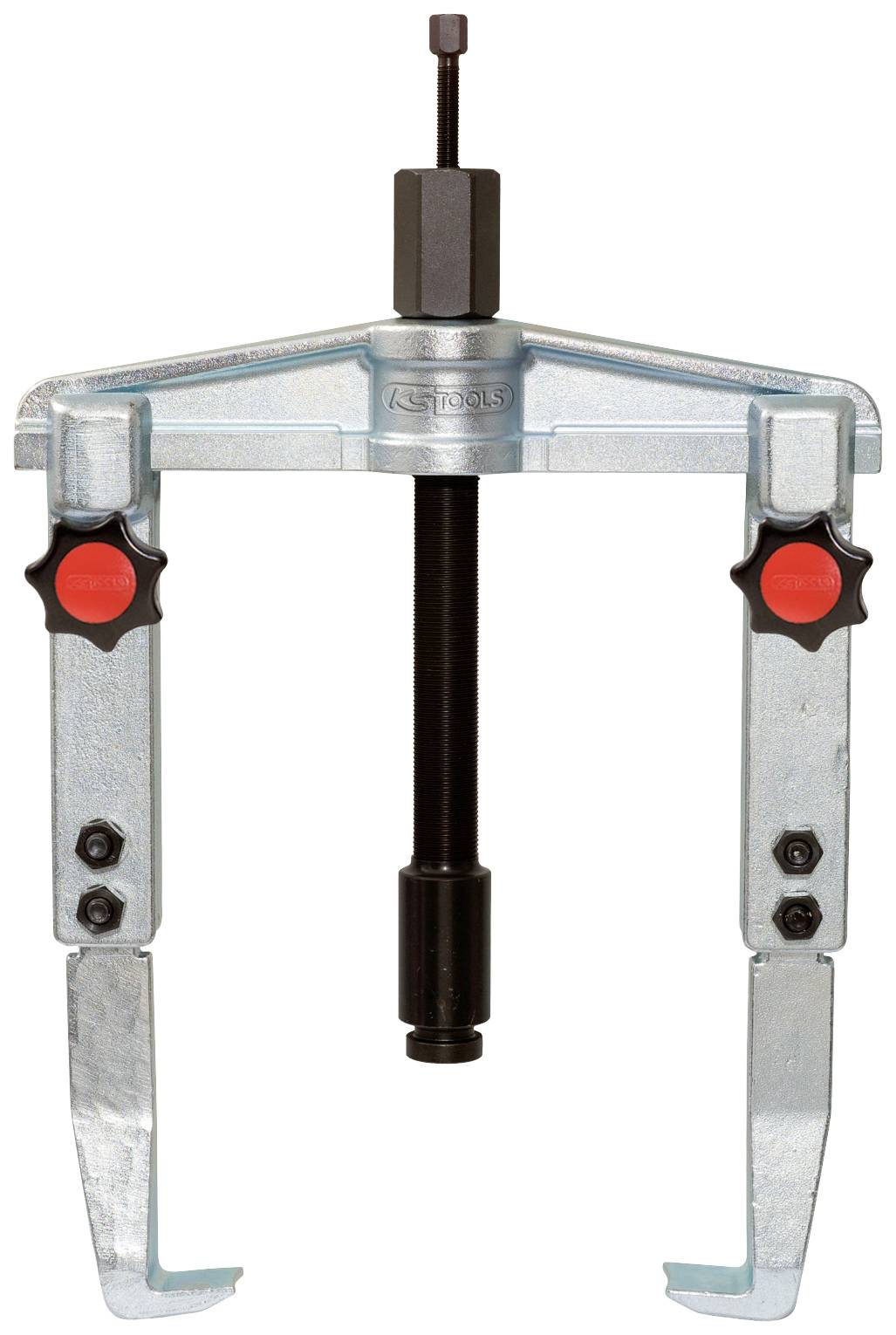

KS Tools 6200087 Hydraulic puller Clamping range (details) 140 - 640 mm No. of hooks 2
EAN:
Part number:
Item no:
Total (€ 1,180.67 / piece)
€ 1,180.67
plus VAT.
Technical specifications

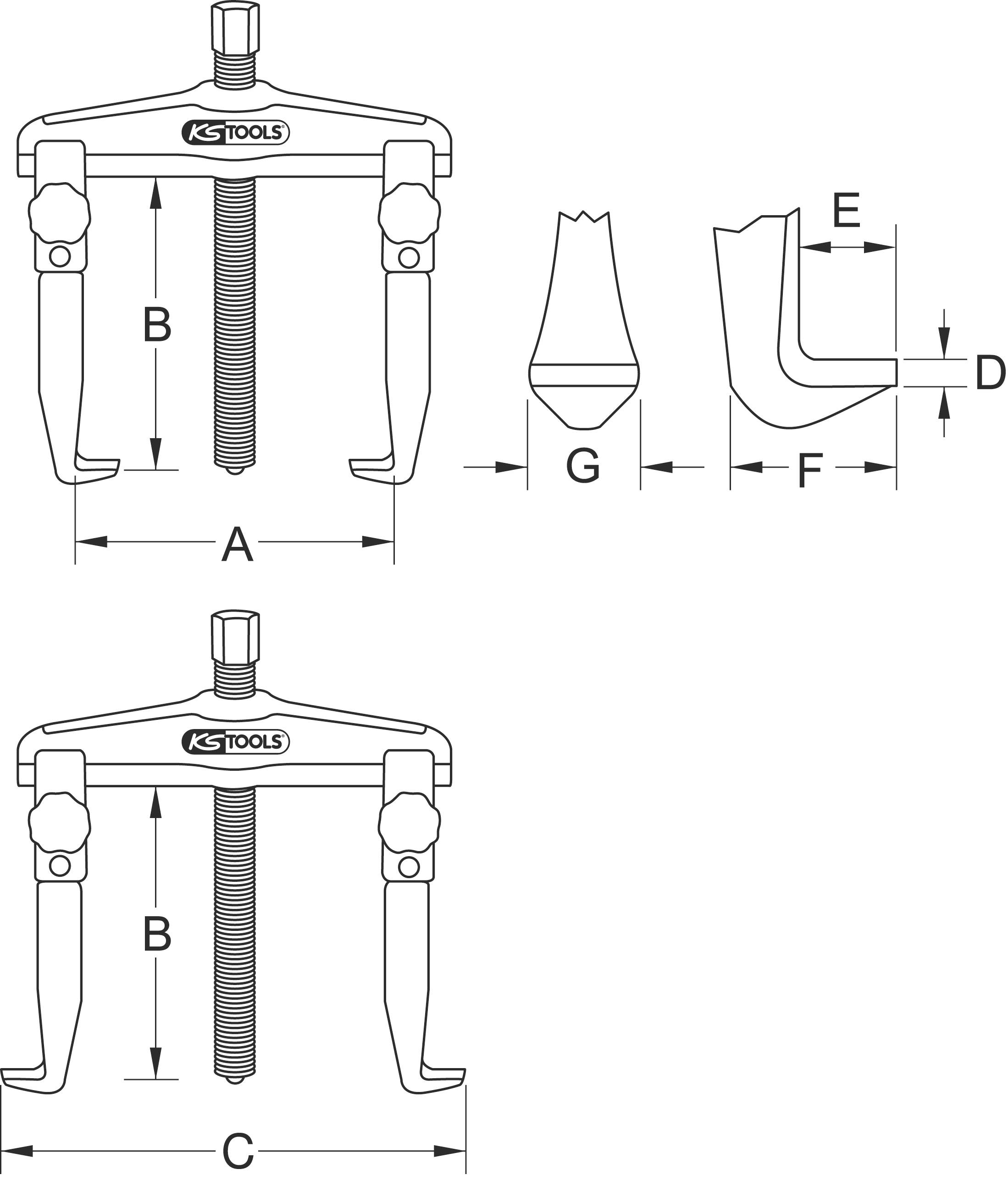

- Pull hook width G: 35 mm
- Pull hook total depth F: 54 mm
- Pull hook height D 5 mm
- Pull hook tip depth E: 25 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 13 mm
- Torque max Nm:60 Nm
- Function attribute 1: Reversible, interior/exterior removal
- Weight 22500 g
- Hydraulic spindle no.: 615.0003
- Material1: Special tool steel
- max. Compressive strength KN: 120.0
- max. Compression force Nm: 60
- max. Pressure force t: 12
- Quick adjustment: Yes
- Clamping depth B in mm 425 mm
- Span A in mm 140-640 mm
- Wingspan exterior puller C: 225-715
- Span up to [mm]: 640 mm
- Span [mm]: 140 mm
- Variant items : 620.0075
- Clamping range
140 - 640 mm
- Tension/pressure capacity
12 t
- Weight
22500 g
- Content
1 pc(s)
- Hooks
2
- Product type
Hydraulic puller
- Span width (max.)
640 mm
- Span depth (max.)
425 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695307 KS Tools 6200087 Hydraulic puller Clamping range (details) 140 - 640 mm No. of hooks 2
Description
With quick clamping functionLong styleEven load distribution and centered pullingIt can be used as inside or outside puller by changing the hookDifferent hook variants can be retrofittedIncluding hydraulic pressure spindleLow force requiredSpecial tool steel
