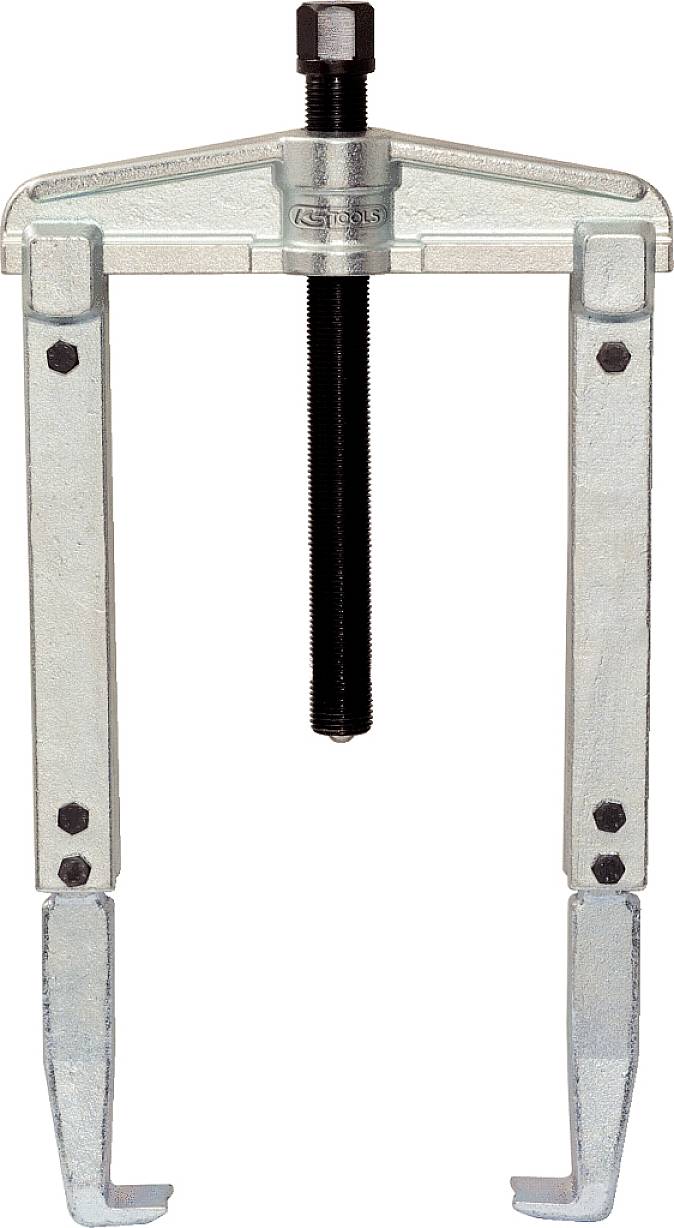

KS Tools 6200507 Puller Clamping range (details) 110 - 520 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 415.97 / piece)
€ 415.97
plus VAT.
Only 2 Piece(s) available
Technical specifications

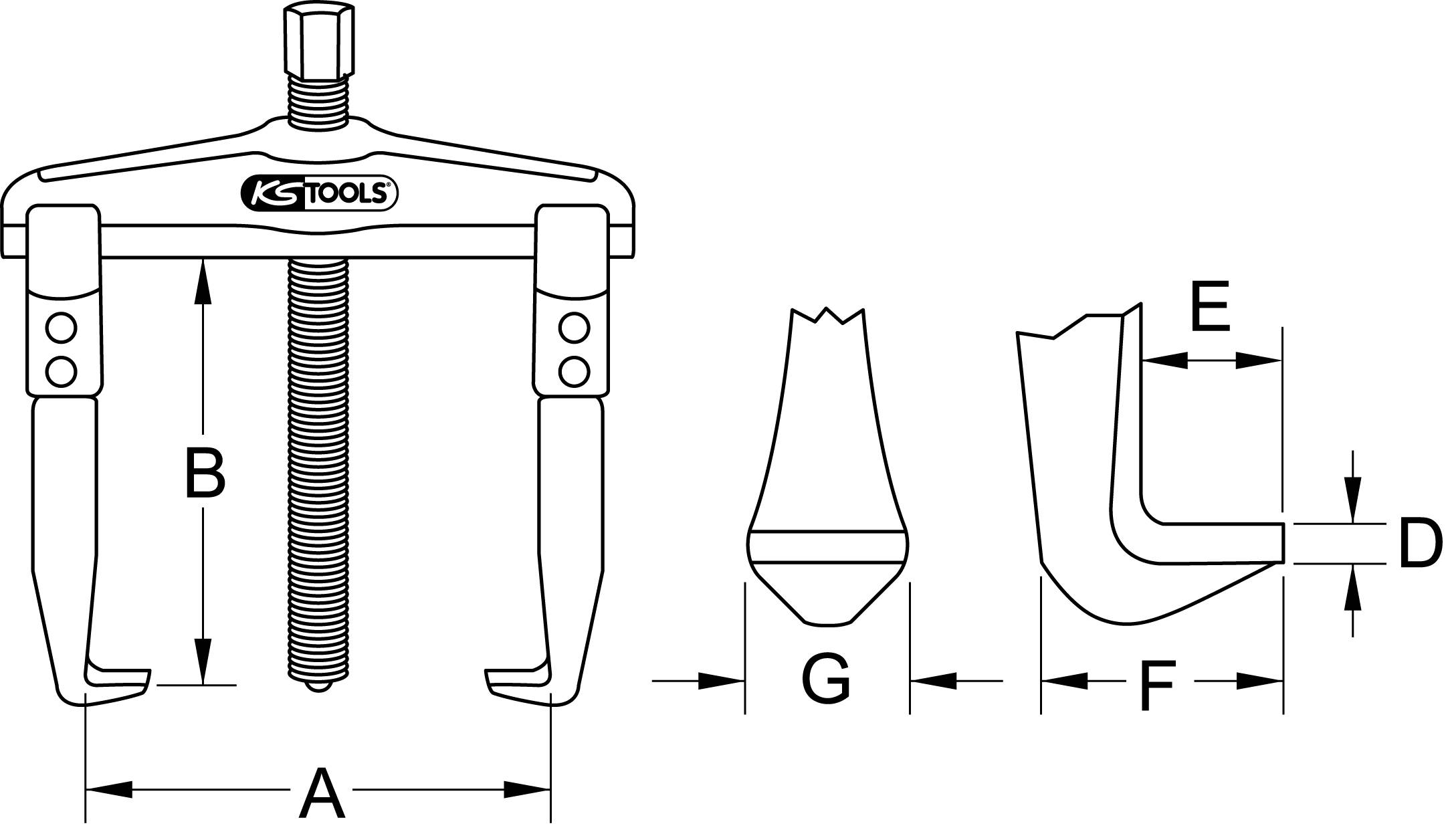

- Pull hook width G: 35 mm
- Pull hook total depth F: 54 mm
- Pull hook height D 5 mm
- Pull hook tip depth E: 25 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 27 mm
- Torque max Nm:360 Nm
- Function attribute 1: Reversible, interior/exterior removal
- Weight 14800 g
- Material1: Special tool steel
- max. Compressive strength KN: 130.0
- max. Compression force Nm: 360
- max. Pressure force t: 13
- Quick adjustment: No. nein
- Clamping depth B in mm 300 mm
- Span A in mm 110-520 mm
- Wingspan exterior puller C: 195-600
- Span up to [mm]: 520 mm
- Span [mm]: 110 mm
- Spindle size MM: G3/4"x14g x 280
- Variant items : 620.0501
- Clamping range
110 - 520 mm
- Tension/pressure capacity
13 t
- Weight
14800 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
520 mm
- Span depth (max.)
300 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695330 KS Tools 6200507 Puller Clamping range (details) 110 - 520 mm No. of hooks 2
Description
It can be used as inside or outside puller by changing the hookHydraulic spindle can be retrofitted for thread G1/2" / G3/4"Extremely robust spindle with inductively hardened threadSpecial tool steel
