KS Tools 6200901 Puller Clamping range (details) 20 - 90 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
Only 5 Piece(s) available
Technical specifications

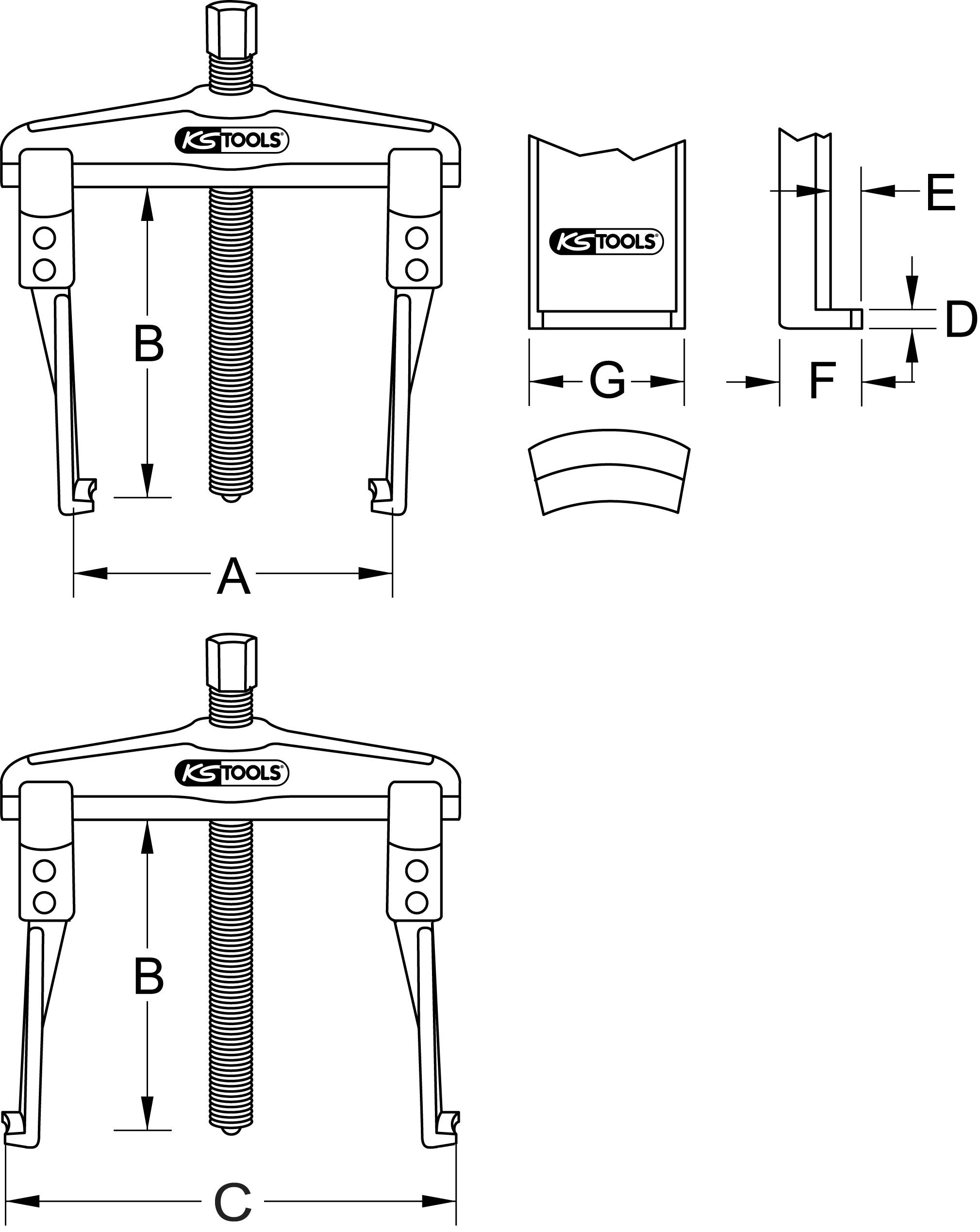

- Pull hook width G: 27 mm
- Pull hook total depth F: 13 mm
- Pull hook height D 3.6 mm
- Pull hook tip depth E: 6 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 17 mm
- Torque max Nm:80 Nm
- Shape: Slim design
- Function attribute 1: Reversible, interior/exterior removal
- Weight 1000 g
- Material1: Special tool steel
- max. Compressive strength KN: 45.0
- max. Compression force Nm: 80
- max. Pressure force t: 4.5
- Quick adjustment: No. nein
- Clamping depth B in mm 100 mm
- Span A in mm 20-90 mm
- Wingspan exterior puller C: 70-130
- Span up to [mm]: 90 mm
- Span [mm]: 20 mm
- Spindle size mm: M14x1.5 x 140
- Variant items : 620.0901
- Clamping range
20 - 90 mm
- Weight
1000 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span depth (max.)
100 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695348 KS Tools 6200901 Puller Clamping range (details) 20 - 90 mm No. of hooks 2
Description
Ideally suited for narrow spacesEven load distribution and centered tighteningIt can be used as inside or outside puller by changing the hookVarious hook variants and hydraulic spindle can be retrofittedExtremely robust spindle with inductively hardened threadSpecial tool steel
