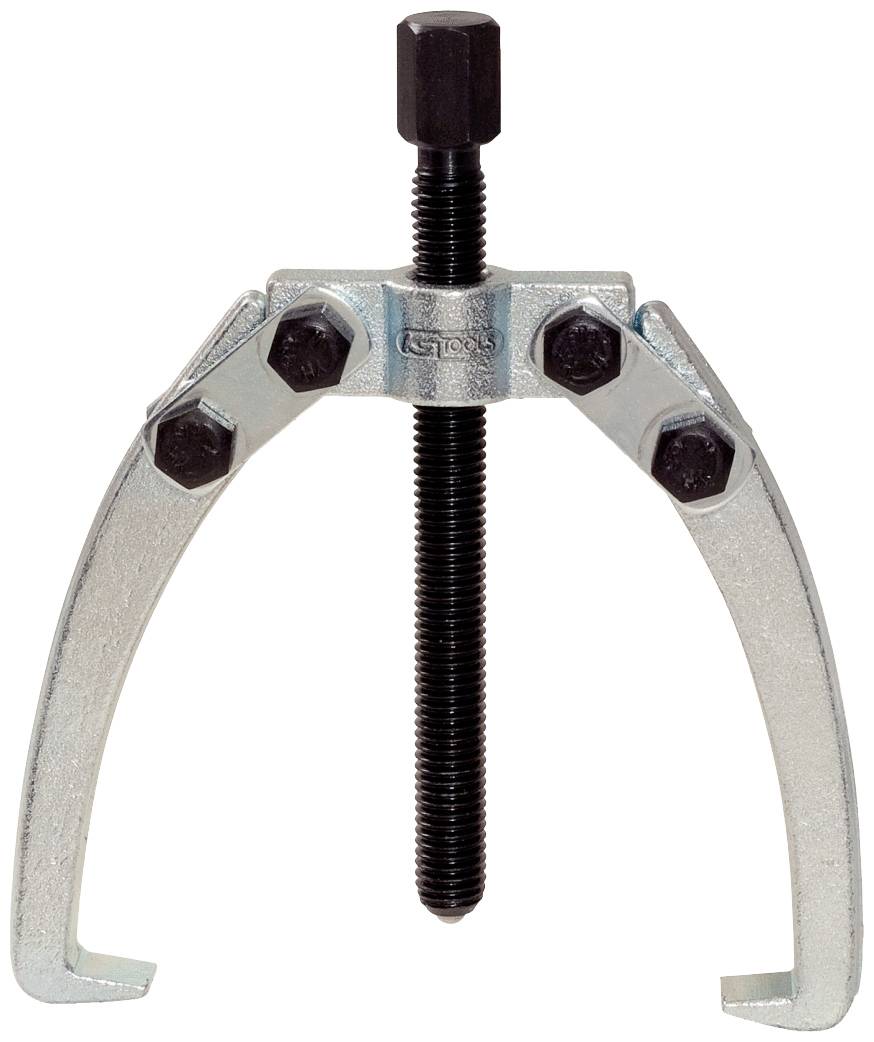

KS Tools 6203102 Battery clip puller Clamping range (details) +10 - +70 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Only 5 Piece(s) available

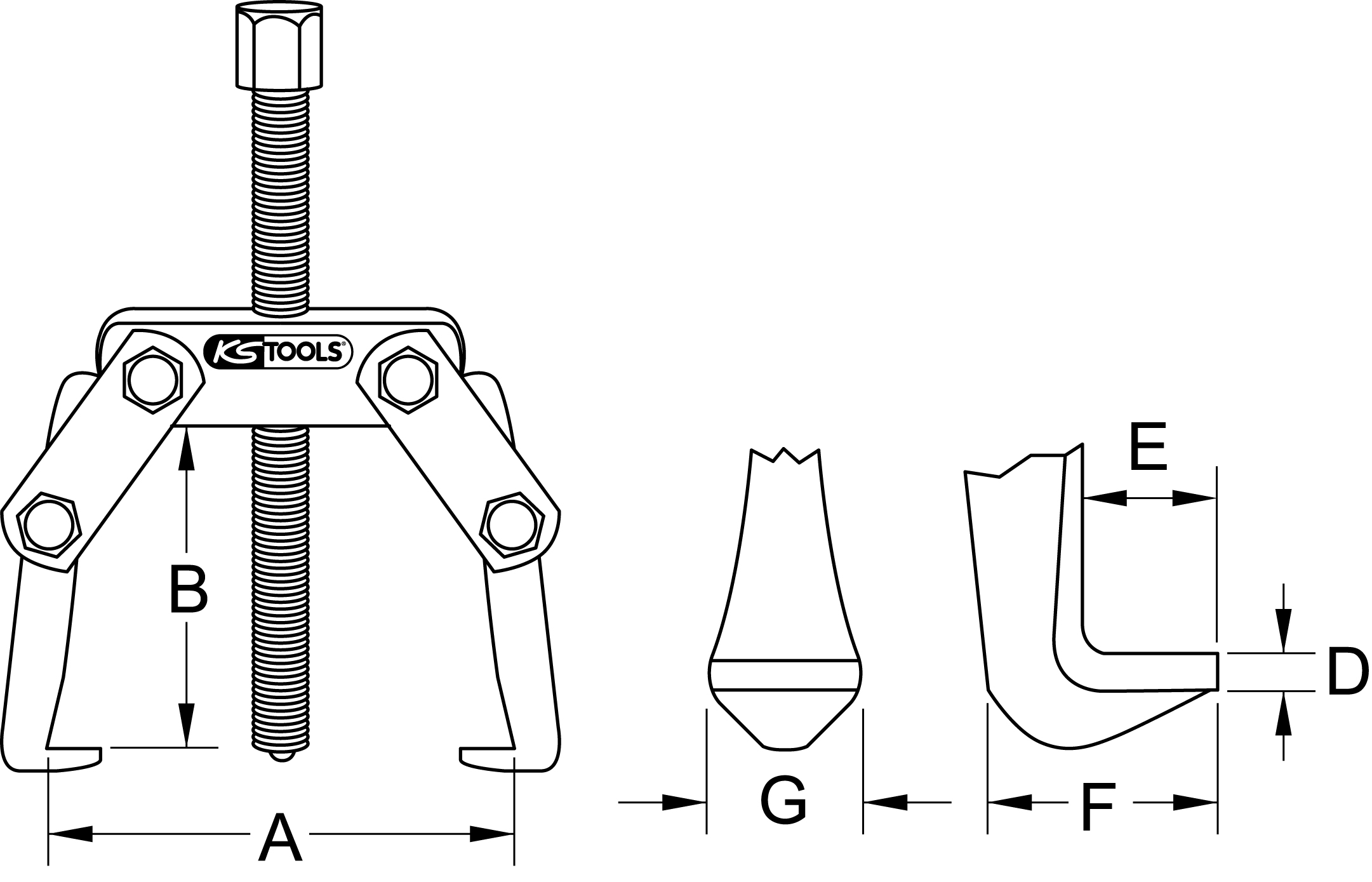

Technical specifications
- Pull hook width G: 8 mm
- Pull hook total depth F: 12 mm
- Pull hook height D 1 mm
- Pull hook tip depth E: 5 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 10 mm
- Torque max Nm:20 Nm
- Weight 200 g
- Material1: Special tool steel
- max. Compressive strength KN: 12.0
- max. Compression force Nm: 20
- max. Pressure force t: 1.2
- Quick adjustment: No. nein
- Clamping depth B in mm 44/74 mm
- Span A in mm 10-70 mm
- Span up to [mm]: 70 mm
- Span [mm]: 10 mm
- Spindle size mm: M8x85
- Variant items : 620.3101
- Clamping range
+10 - +70 mm
- Weight
200 g
- Content
1 pc(s)
- Hooks
2
- Product type
Battery clip puller
- Span depth (max.)
74 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695376 KS Tools 6203102 Battery clip puller Clamping range (details) +10 - +70 mm No. of hooks 2
Description

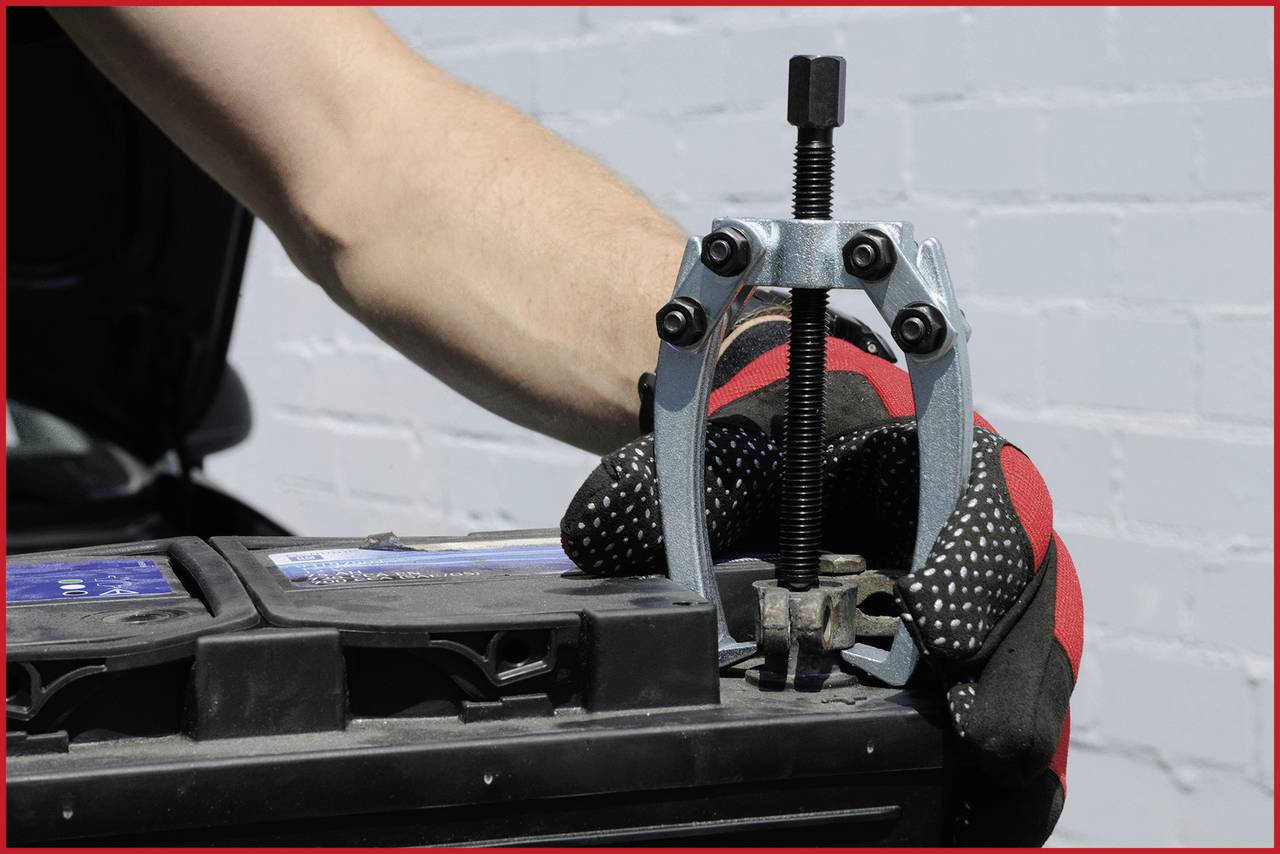

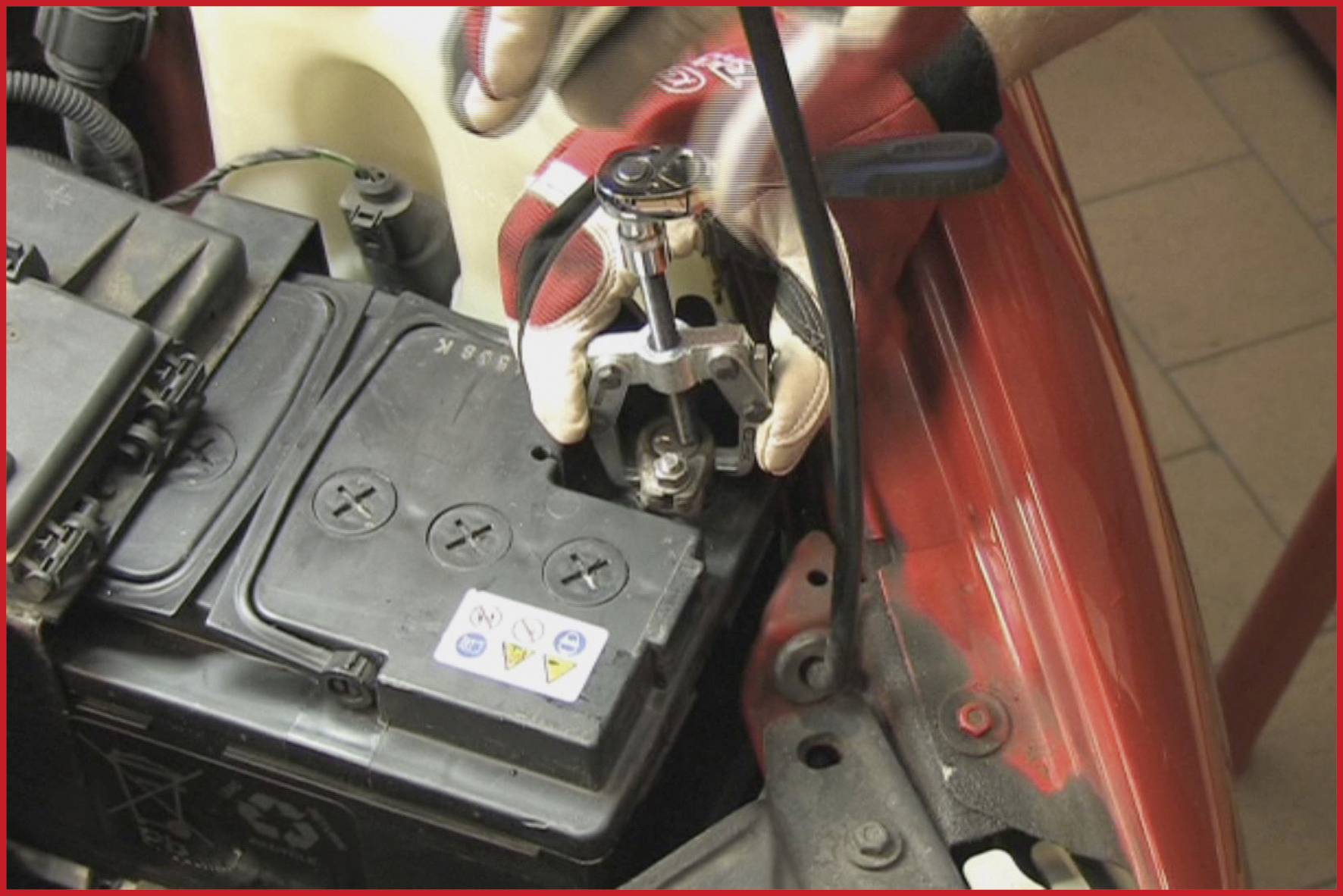

2-hookIdeal for removing the battery terminal clampAutomatic pressing of hooksExtremely robust spindle with inductively hardened threadscrewSturdy hookSpecial tool steel
