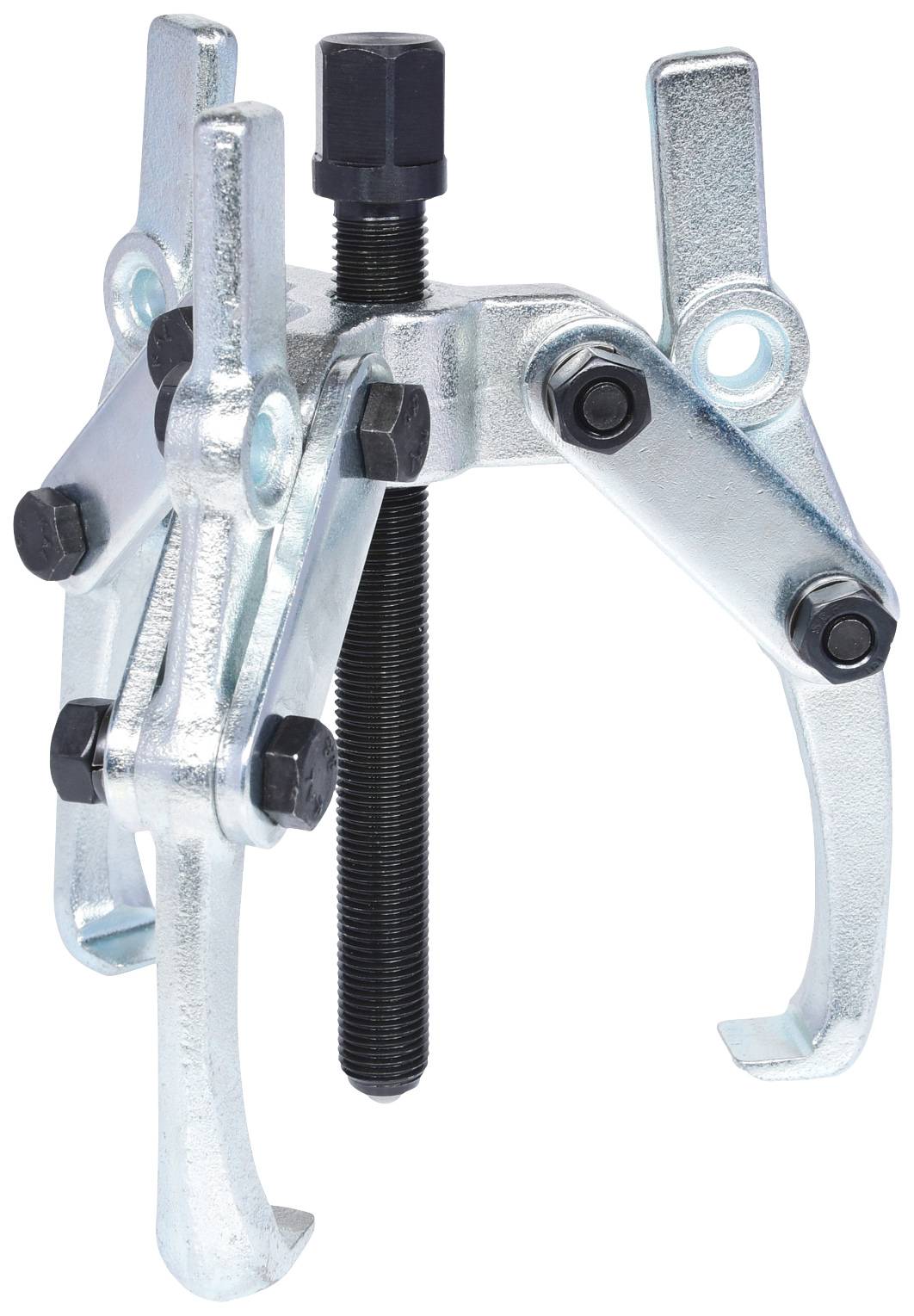

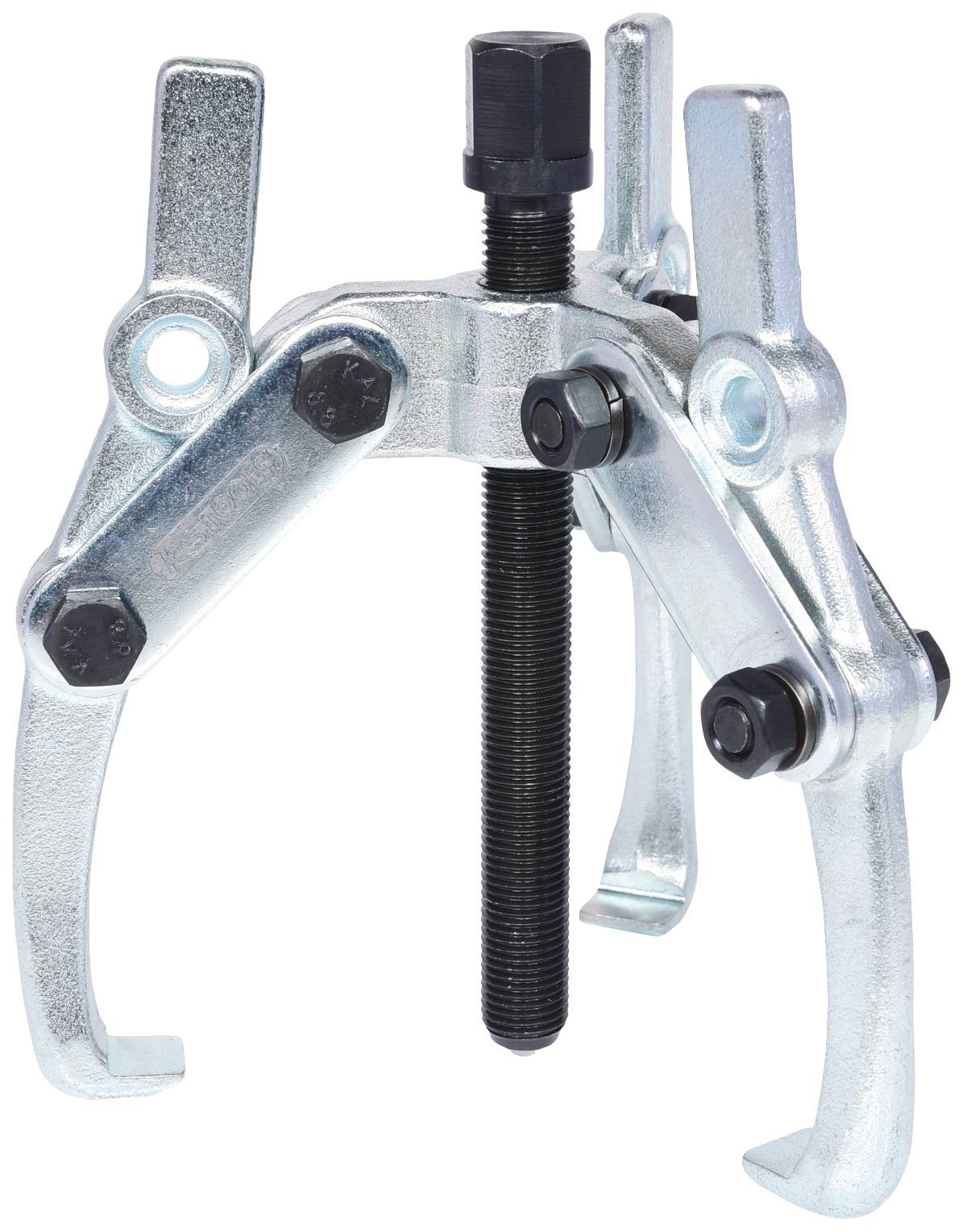

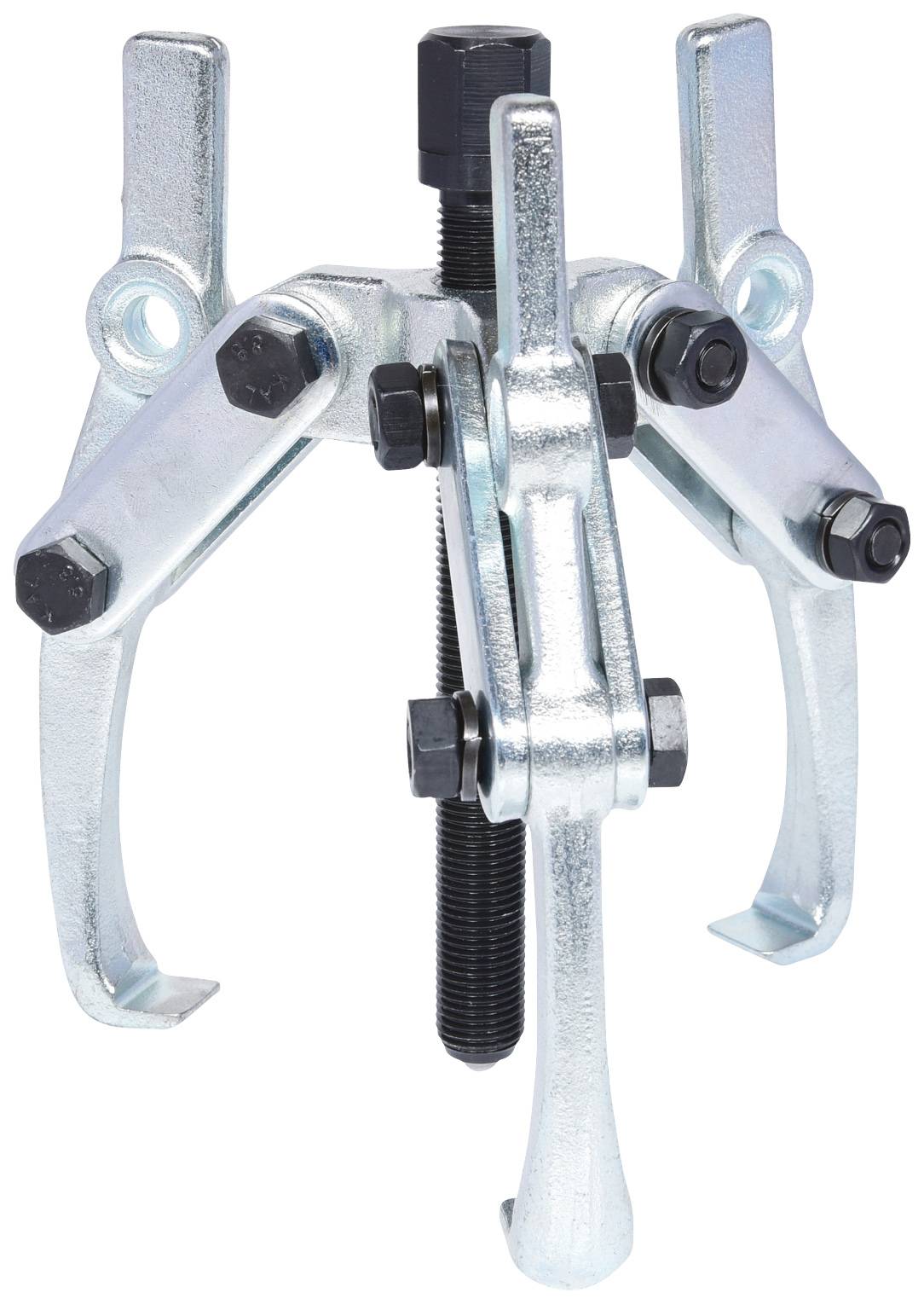

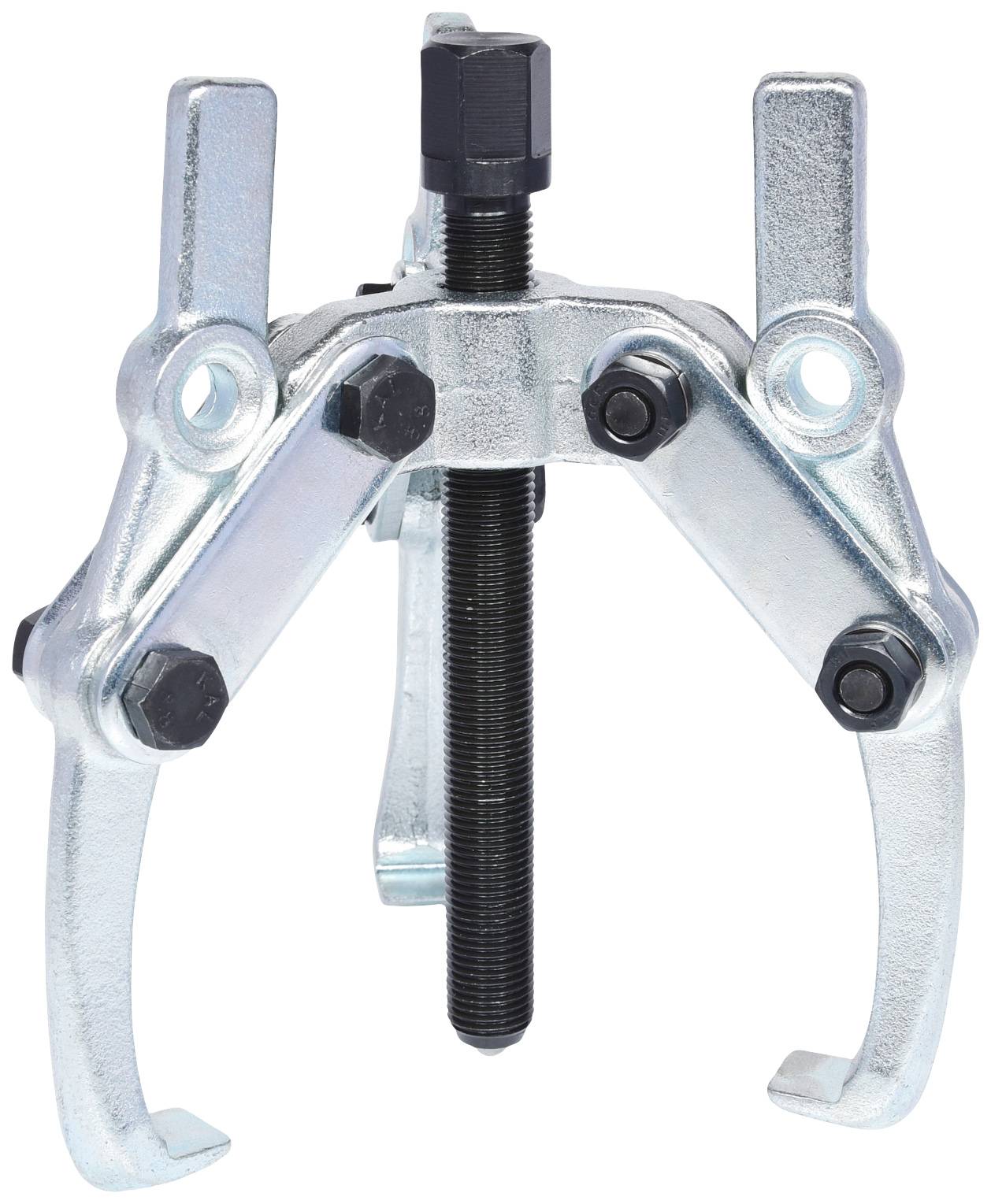

KS Tools 630.3401 Puller Clamping range (details) 20 - 170 mm No. of hooks 3
EAN:
Part number:
Item no:
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Only 8 Piece(s) available
Technical specifications

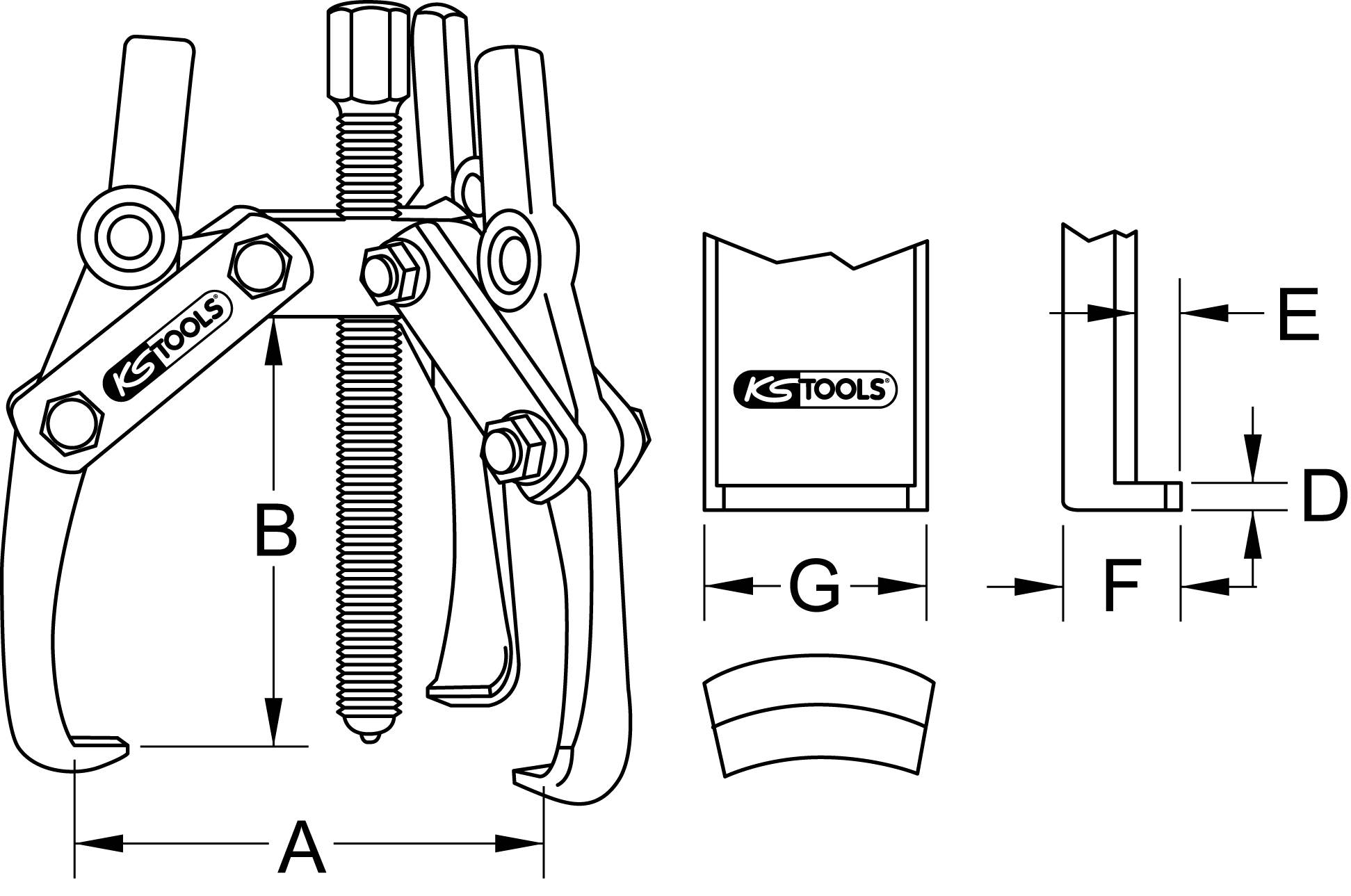

- Pull hook width G: 16 mm
- Pull hook total depth F: 23 mm
- Pull hook height D 2 mm
- Pull hook tip depth E: 11 mm
- Number of pull hooks: With 3 pull-off hooks
- Hexagon drive in mm: 17 mm
- Torque max Nm:60 Nm
- Functional attribute 1: Adjustable clamping depth
- Weight 1300 g
- Material1: Special tool steel
- max. Compressive strength KN: 40.0
- max. Compression force Nm: 60
- max. Pressure force t: 4
- Quick adjustment: No. nein
- Clamping depth B in mm 130 mm
- Span A in mm 20-170 mm
- Span up to [mm]: 170 mm
- Span [mm]: 20 mm
- Spindle size mm: M14x1.5 x 130
- Variant items : 630.3401
- Clamping range
20 - 170 mm
- Tension/pressure capacity
4 t
- Weight
1300 g
- Content
1 pc(s)
- Hooks
3
- Product type
Puller
- Span width (max.)
170 mm
- Span depth (max.)
130 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695471 KS Tools 630.3401 Puller Clamping range (details) 20 - 170 mm No. of hooks 3
Description
The clamping depth of hooks can be adjustedEven load distribution and centered tighteningExtremely robust spindle with inductively hardened threadSpecial tool steel
