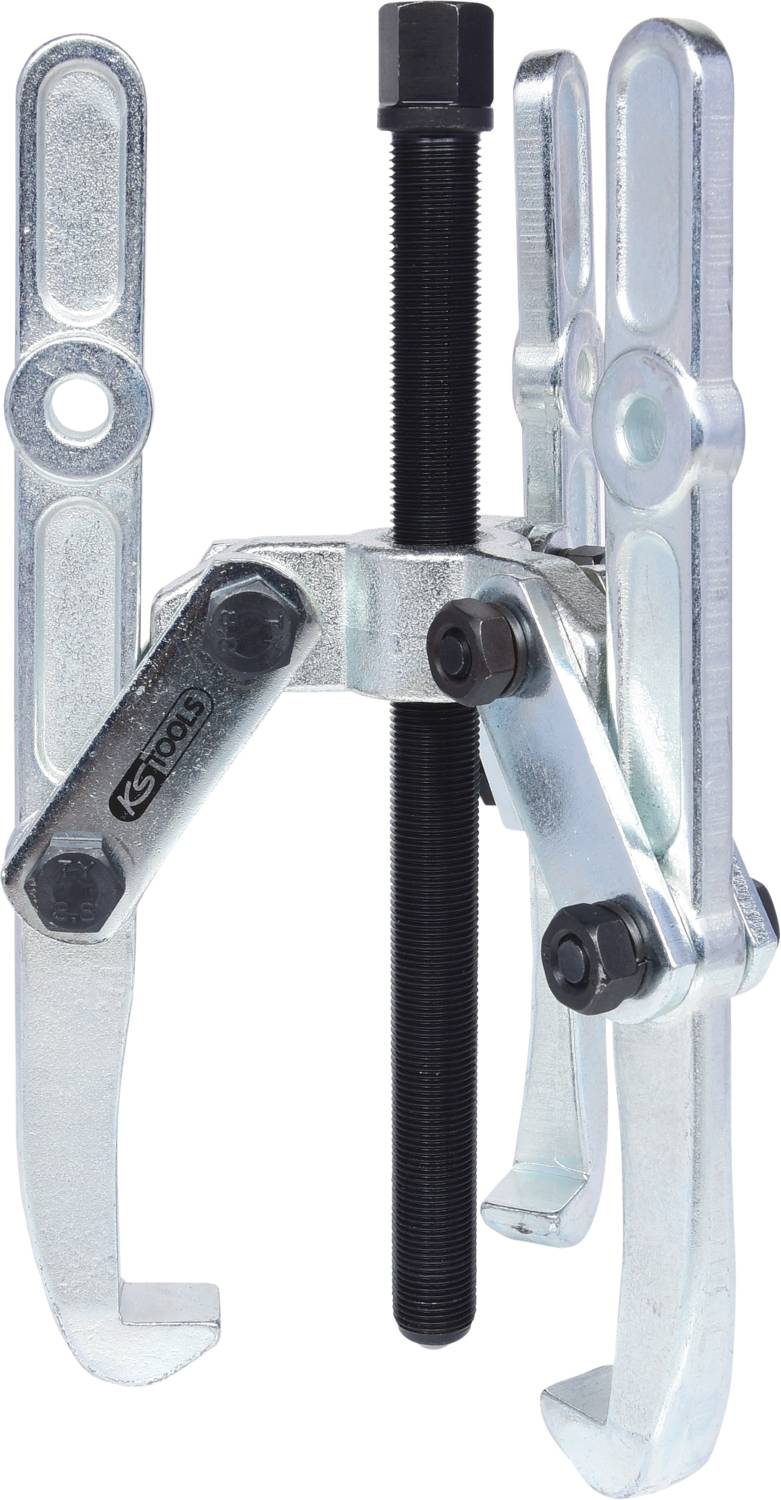

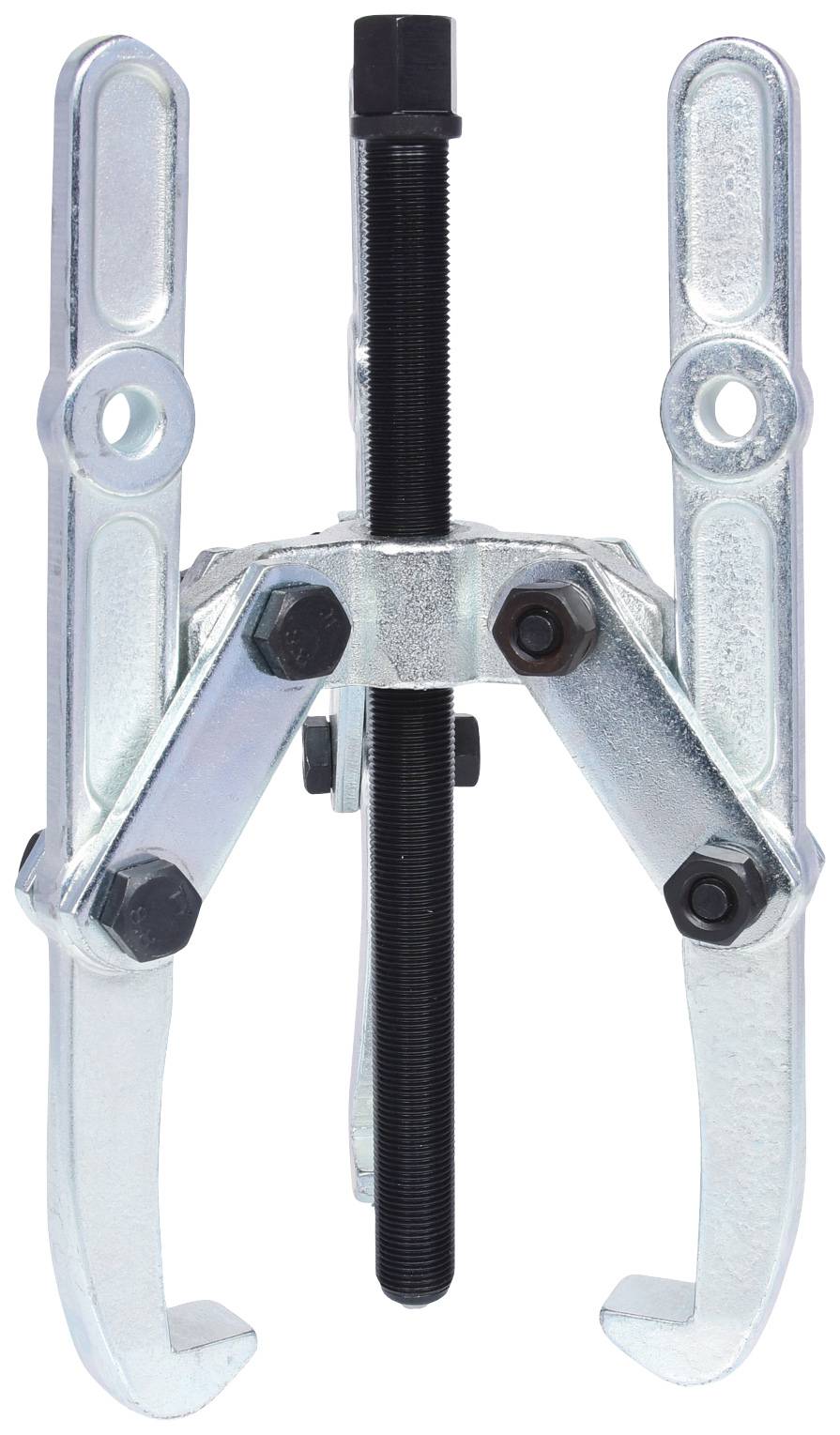

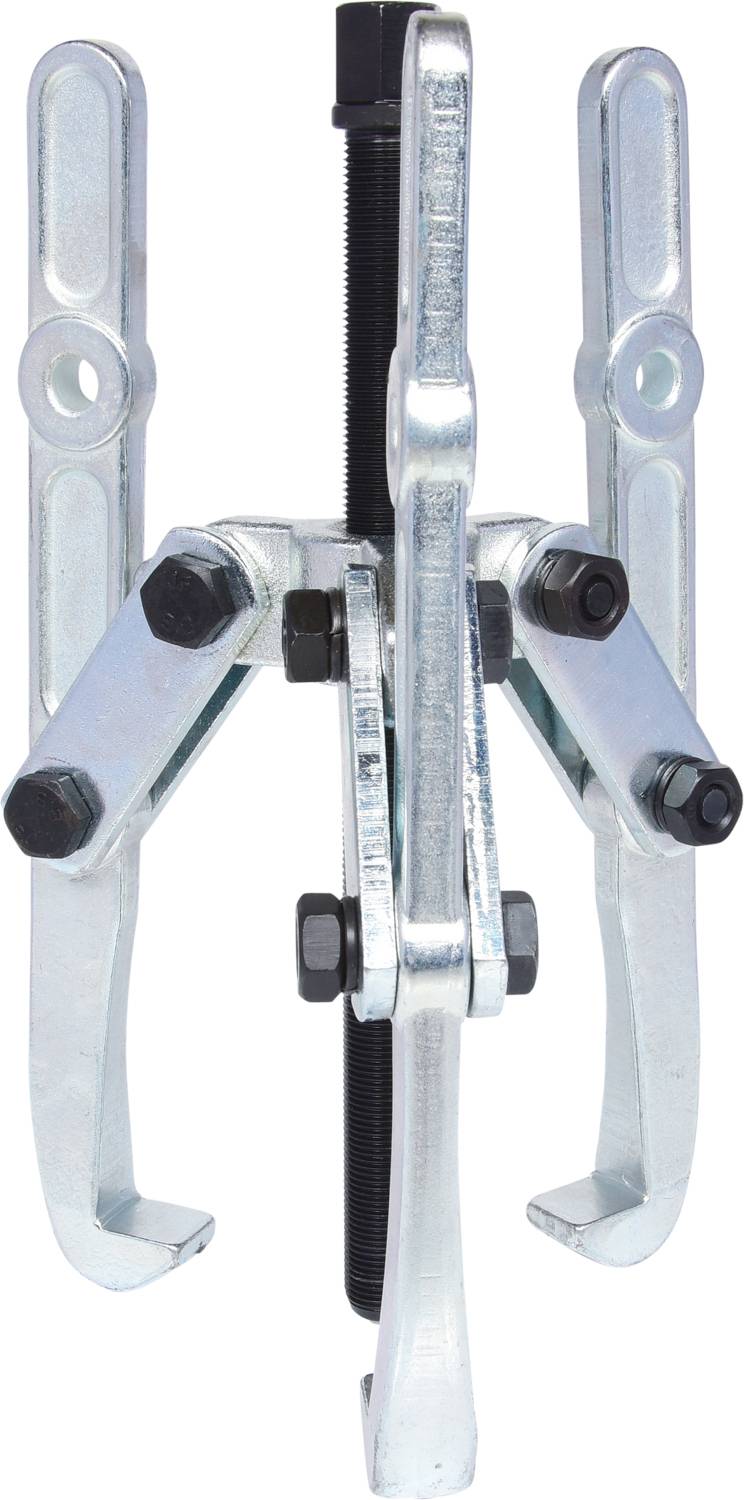

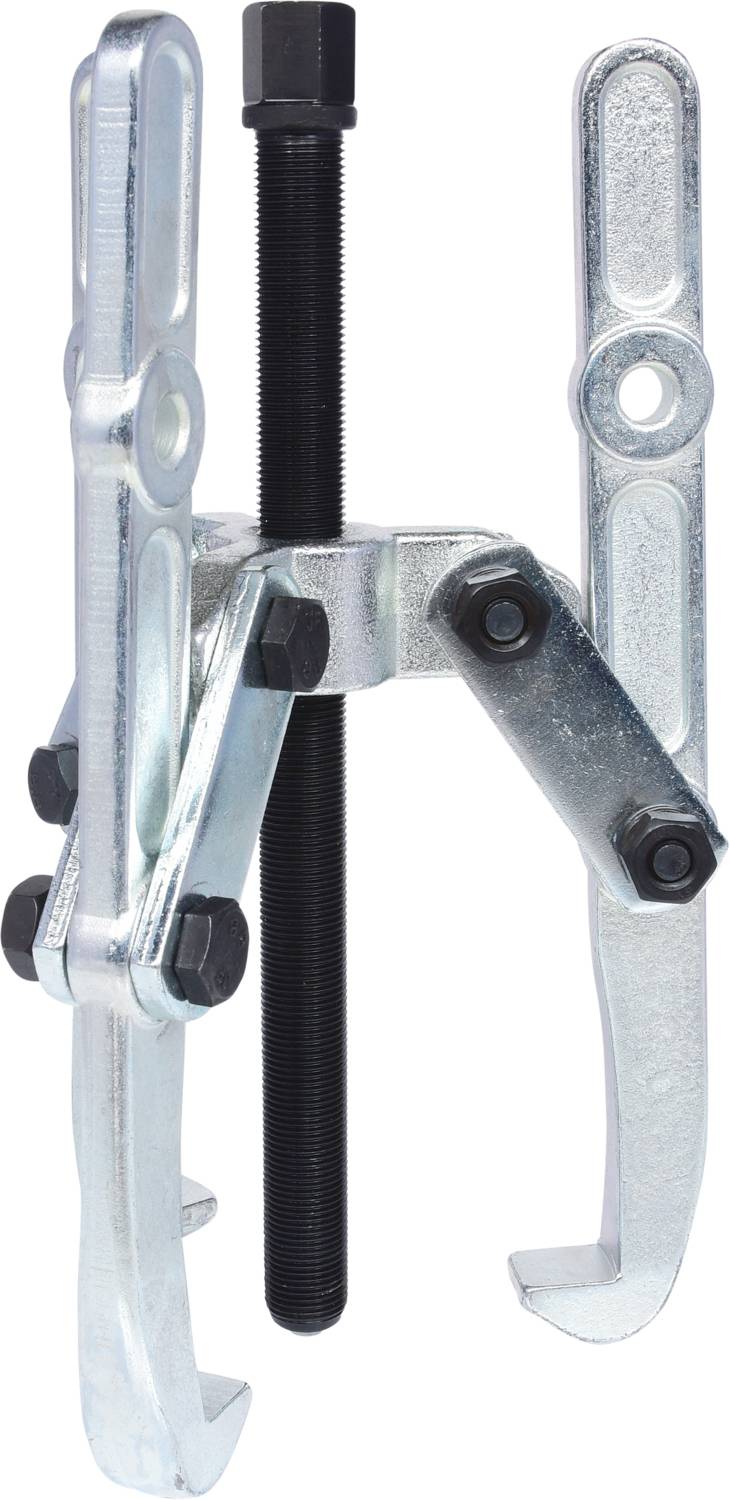

KS Tools 630.3603 Puller Clamping range (details) 35 - 250 mm No. of hooks 3
EAN:
Part number:
Item no:
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
14-day return policy included
Technical specifications

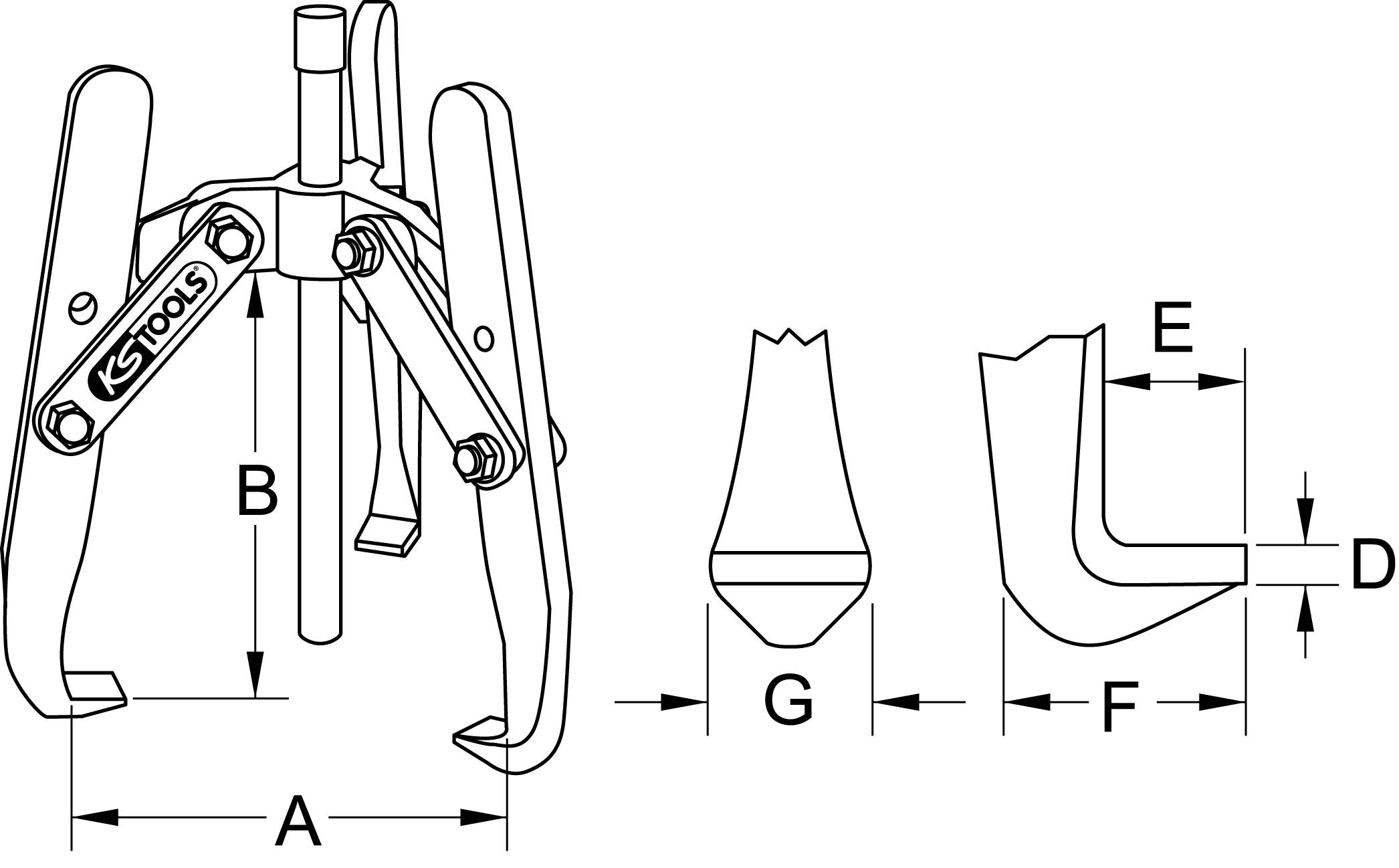

- Pull hook width G: 25 mm
- Pull hook total depth F: 36 mm
- Pull hook height D 4 mm
- Pull hook tip depth E: 20 mm
- Number of pull hooks: With 3 pull-off hooks
- Hexagon drive in mm: 19 mm
- Torque max Nm:70 Nm
- Functional attribute 1: Adjustable clamping depth
- Weight 3900 g
- Material1: Special tool steel
- max. Compressive strength KN: 45.0
- max. Compression force Nm: 70
- max. Pressure force t: 4.5
- Quick adjustment: No. nein
- Clamping depth B in mm 220 mm
- Span A in mm 35-250 mm
- Span up to [mm]: 250 mm
- Span [mm]: 35 mm
- Spindle size mm: M18x1.5 x240
- Variant items : 630.3601
- Clamping range
35 - 250 mm
- Tension/pressure capacity
4.5 t
- Weight
3900 g
- Content
1 pc(s)
- Hooks
3
- Product type
Puller
- Span width (max.)
250 mm
- Span depth (max.)
220 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695475 KS Tools 630.3603 Puller Clamping range (details) 35 - 250 mm No. of hooks 3
Description
The clamping depth of hooks can be adjustedEven load distribution and centered tighteningHydraulic spindle can be retrofitted for G1/2" threadExtremely robust spindle with inductively hardened threadSpecial tool steel
