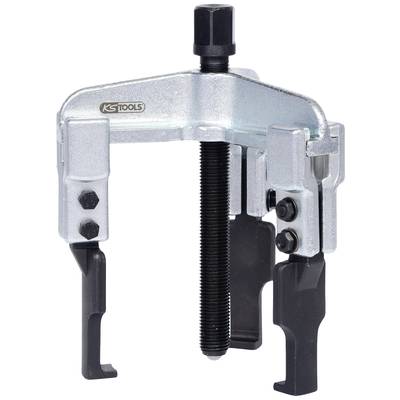

KS Tools 6300003 Puller Clamping range (details) 20 - 90 mm No. of hooks 3
EAN:
Part number:
Item no:
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Pull hook width G: 14 mm
- Pull hook total depth F: 14 mm
- Pull hook height D 8 mm
- Pull hook tip depth E: 14 mm
- Number of pull hooks: With 3 pull-off hooks
- Hexagon drive in mm: 17 mm
- Weight 1300 g
- Material1: Special tool steel
- max. Pressure force t: 3
- Quick adjustment: No. nein
- Clamping depth B in mm 100 mm
- Span A in mm 20-90 mm
- Wingspan exterior puller C: 120-260
- Span up to [mm]: 90 mm
- Span [mm]: 20 mm
- Spindle size mm: M14x1.5 x 130
- Variant items : 630.0003
- Clamping range
20 - 90 mm
- Weight
1300 g
- Content
1 pc(s)
- Hooks
3
- Product type
Puller
- Span depth (max.)
100 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695415 KS Tools 6300003 Puller Clamping range (details) 20 - 90 mm No. of hooks 3
Description
Slim designExtremely pointed hook baseIdeally suited for narrow spacesEven load distribution and centered tighteningIt can be used as inside or outside puller by changing the hookVarious hook variants and hydraulic spindle can be retrofittedExtremely robust spindle with inductively hardened threadSpecial tool steel
