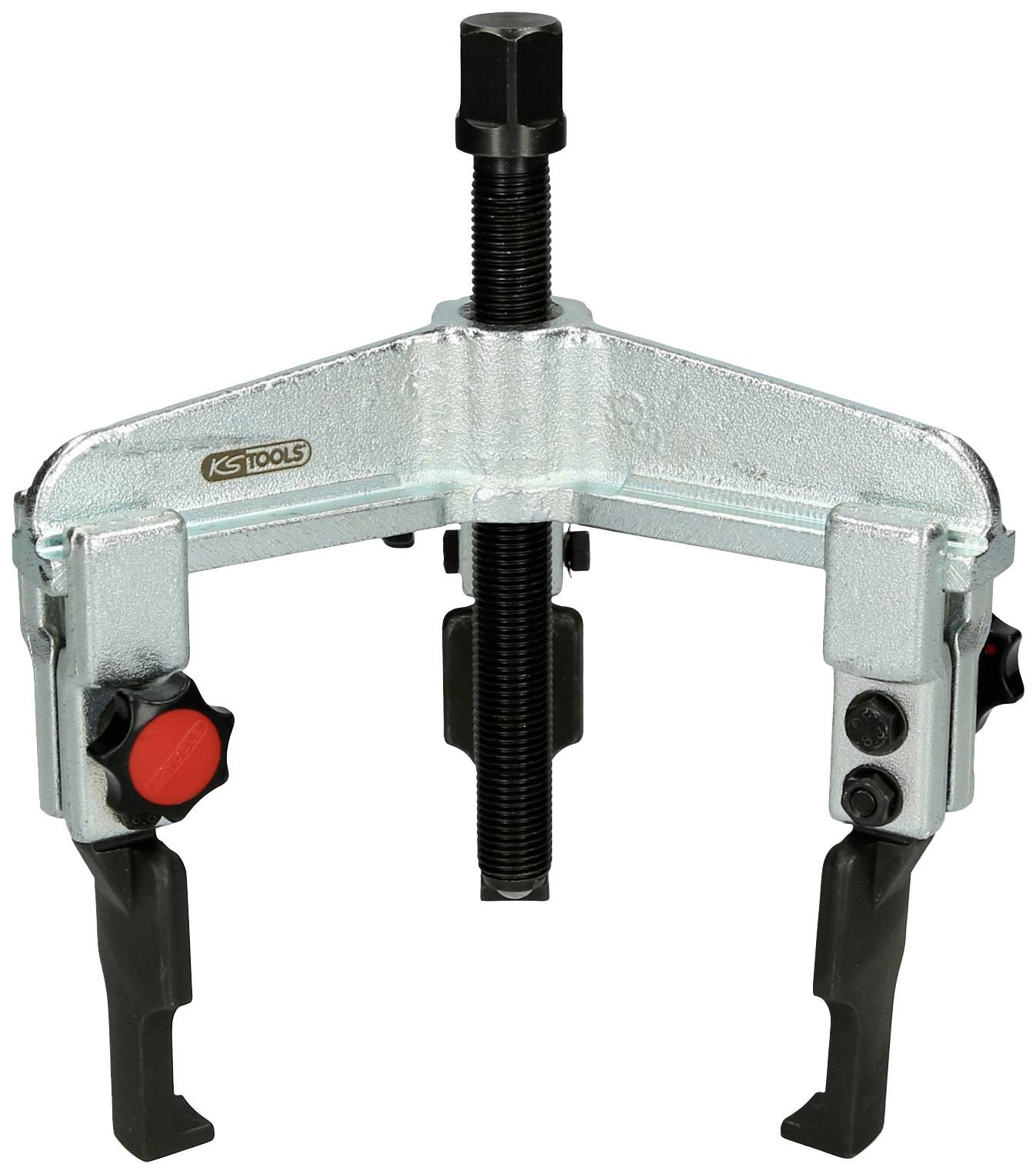

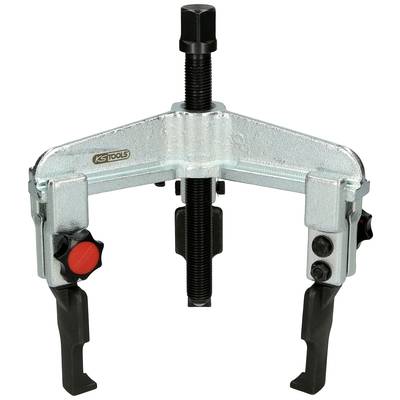

KS Tools 6300011 Puller Clamping range (details) 60 - 200 mm No. of hooks 3
EAN:
Part number:
Item no:
Technical specifications

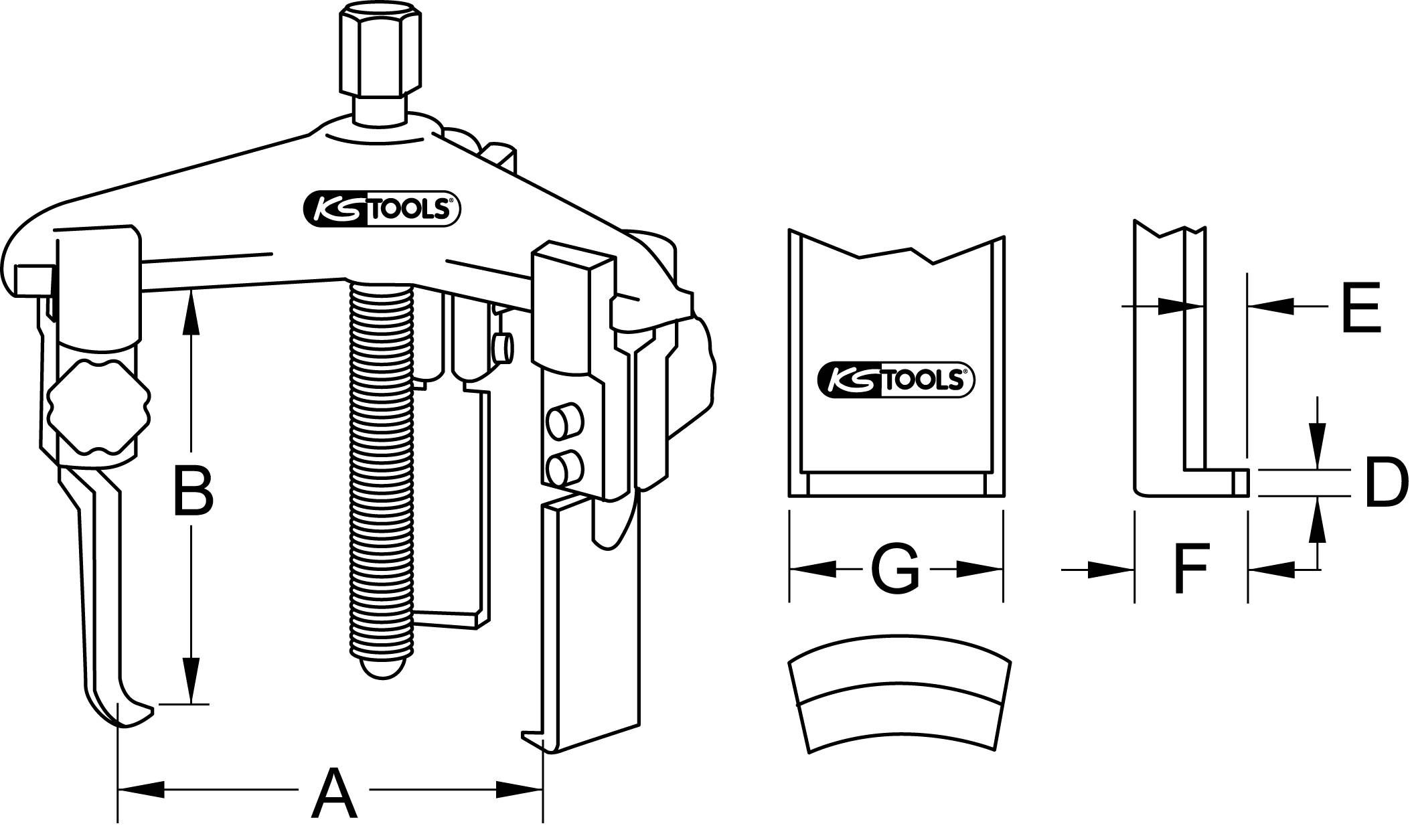

- Pull hook width G: 27 mm
- Pull hook total depth F: 27 mm
- Pull hook height D 5 mm
- Pull hook tip depth E: 15 mm
- Number of pull hooks: With 3 pull-off hooks
- Hexagon drive in mm: 22 mm
- Weight 4000 g
- Material1: Special tool steel
- max. Pressure force t: 5
- Quick adjustment: Yes
- Clamping depth B in mm 150 mm
- Span A in mm 60-200 mm
- Wingspan exterior puller C: 120-260
- Span up to [mm]: 200 mm
- Span [mm]: 60 mm
- Spindle size mm G1/2"x14 x 210
- Variant items : 630.0007
- Clamping range
60 - 200 mm
- Dim
- Weight
4000 g
- Content
1 pc(s)
- Span depth (max.)
150 mm
- Hooks
3
- Product type
Puller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695421 KS Tools 6300011 Puller Clamping range (details) 60 - 200 mm No. of hooks 3
Description
With quick clamping functionSlim designExtremely pointed hook baseIdeally suited for narrow spacesEven load distribution and centered tighteningIt can be used as inside or outside puller by changing the hookVarious hook variants and hydraulic spindle can be retrofittedExtremely robust spindle with inductively hardened threadSpecial tool steel
This text is machine translated.
This text is machine translated.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
