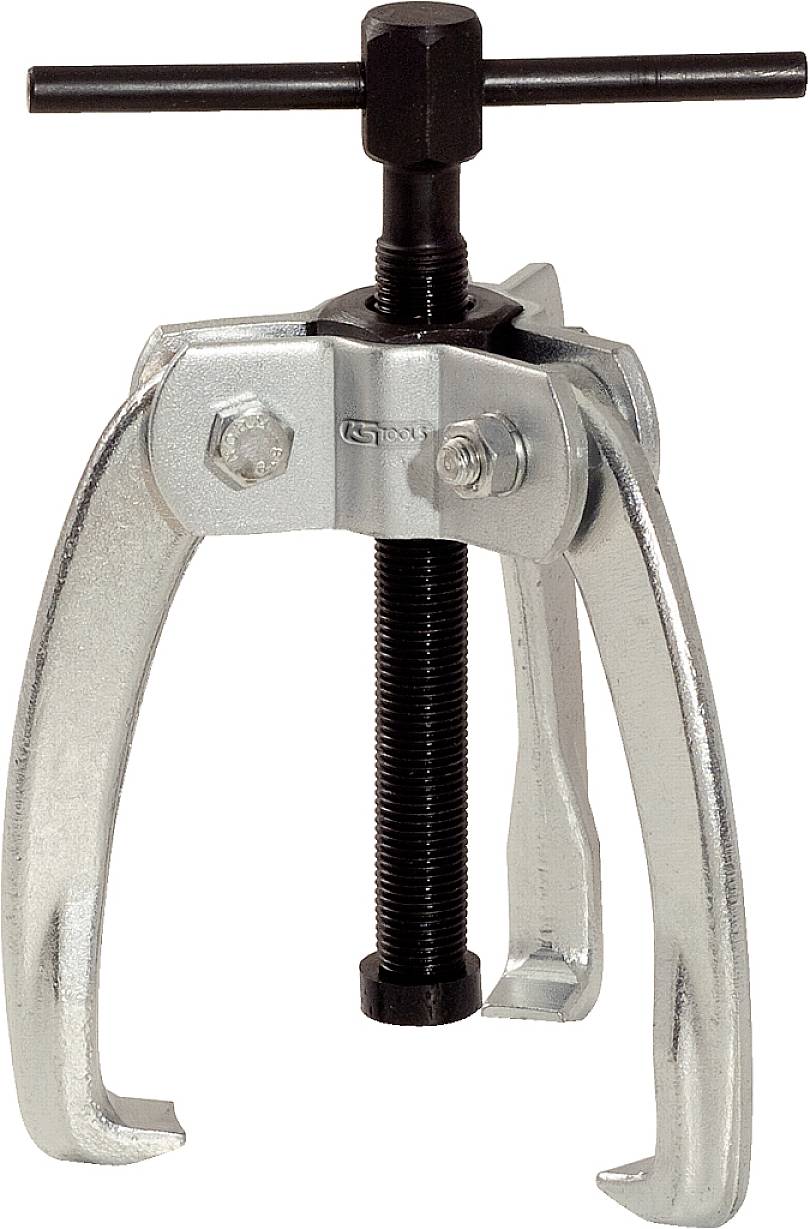

KS Tools 6304101 Puller Clamping range (details) +10 - +60 mm No. of hooks 3
EAN:
Part number:
Item no:
Number
Total (€ 47.05 / piece)
€
Only 3 Piece(s) available
Technical specifications

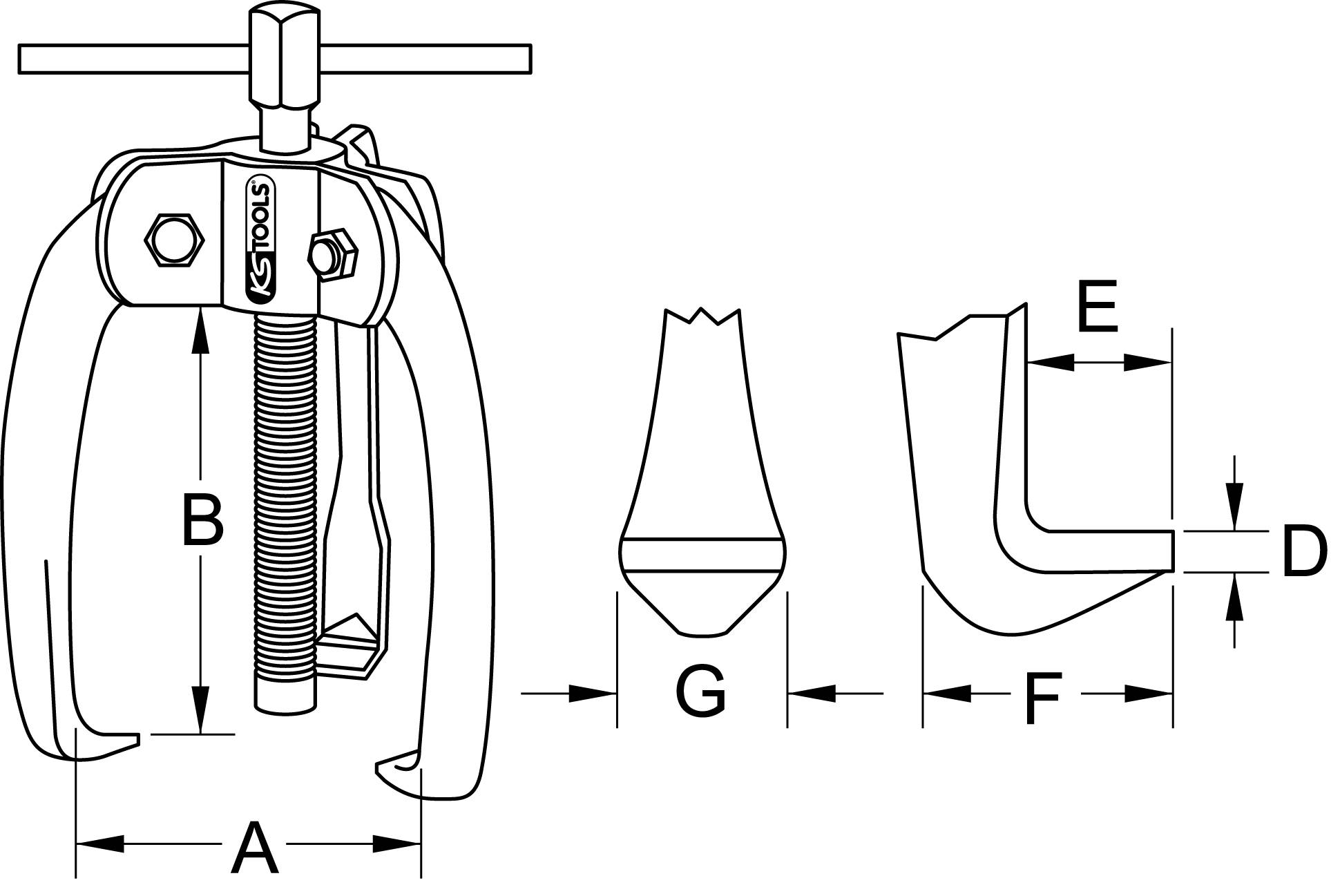

- Pull hook width G: 10 mm
- Pull hook total depth F: 18 mm
- Pull hook height D 2 mm
- Pull hook tip depth E: 9 mm
- Number of pull hooks: With 3 pull-off hooks
- Hexagon drive in mm: 12 mm
- Torque max Nm:25 Nm
- Function attribute 1: With knob
- Weight 300 g
- Material1: Special tool steel
- max. Compressive strength KN: 25.0
- max. Compression force Nm: 25
- max. Pressure force t: 2.5
- Quick adjustment: No. nein
- Clamping depth B in mm 45 mm
- Span A in mm 10-60 mm
- Span up to [mm]: 60 mm
- Span [mm]: 10 mm
- Spindle size mm M10x1 x 90
- Variant items : 630.4101
- Clamping range
+10 - +60 mm
- Dim
- Weight
300 g
- Content
1 pc(s)
- Span depth (max.)
45 mm
- Hooks
3
- Product type
Puller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695493 KS Tools 6304101 Puller Clamping range (details) +10 - +60 mm No. of hooks 3
Description
With knobEven load distribution and centered tighteningIdeal suitable for removing small partsAutomatic pressing of hooksExtremely robust spindle with inductively hardened threadSpecial tool steel
This text is machine translated.
This text is machine translated.
