KS Tools 640.0350 Puller No. of hooks 3
EAN:
Part number:
Item no:

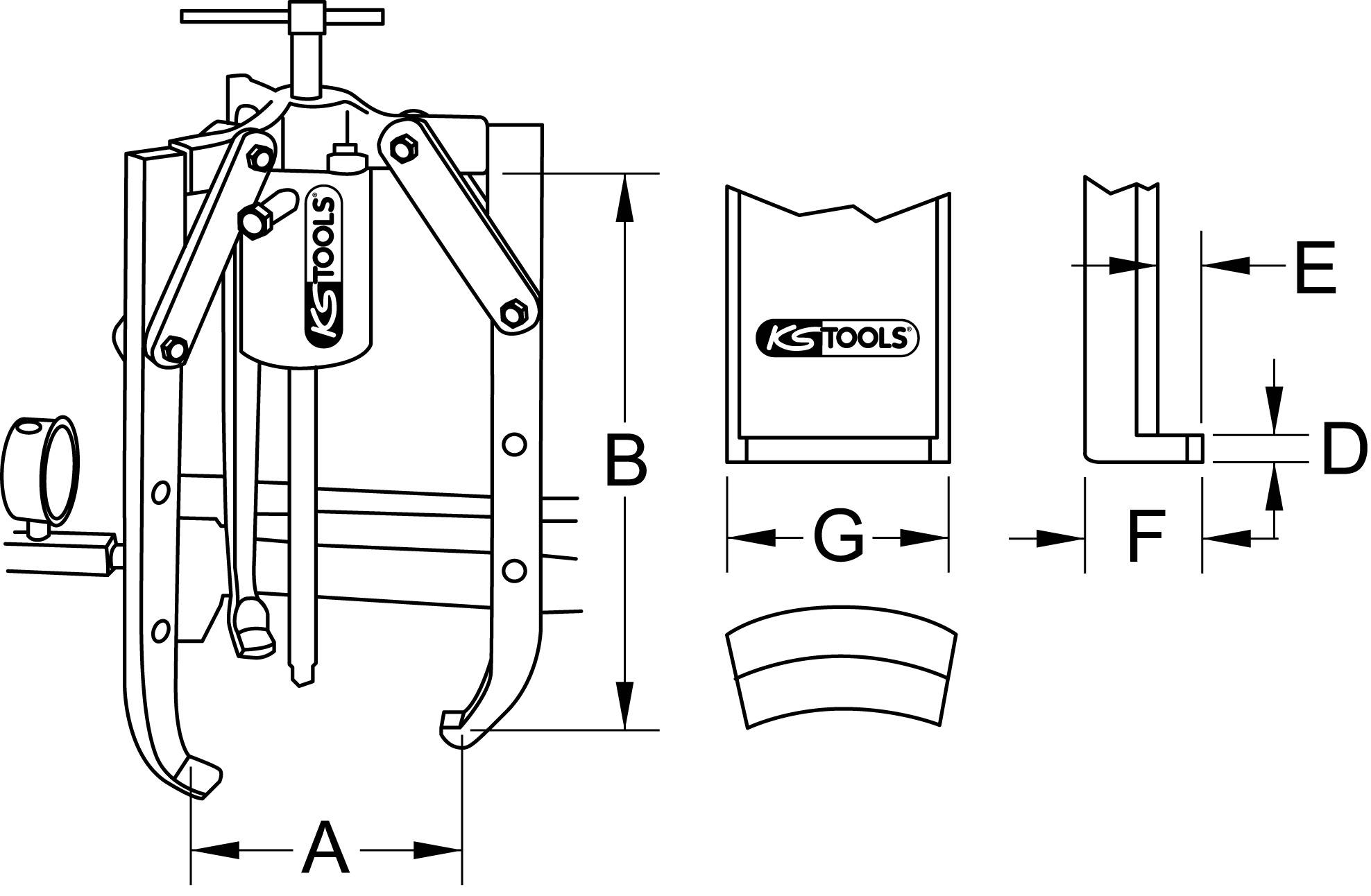

Technical specifications
- Pull hook width G: 50 mm
- Pull hook total depth F: 87 mm
- Pull hook height D 35 mm
- Pull hook tip depth E: 42 mm
- Number of pull hooks: With 3 pull-off hooks
- Torque max. Nm: - Nm
- Functional attribute 1: Adjustable clamping depth
- Weight 70000 g
- Material1: Special tool steel
- max. Compressive strength KN: 500.0
- max. Pressure force t: 50
- Quick adjustment: No.
- Clamping depth B in mm 700 mm
- Span A in mm 1000 mm
- Variant items : 640.0320
- Tension/pressure capacity
50 t
- Weight
70000 g
- Content
1 pc(s)
- Hooks
3
- Product type
Puller
- Span width (max.)
1000 mm
- Span depth (max.)
700 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3163131 KS Tools 640.0350 Puller No. of hooks 3

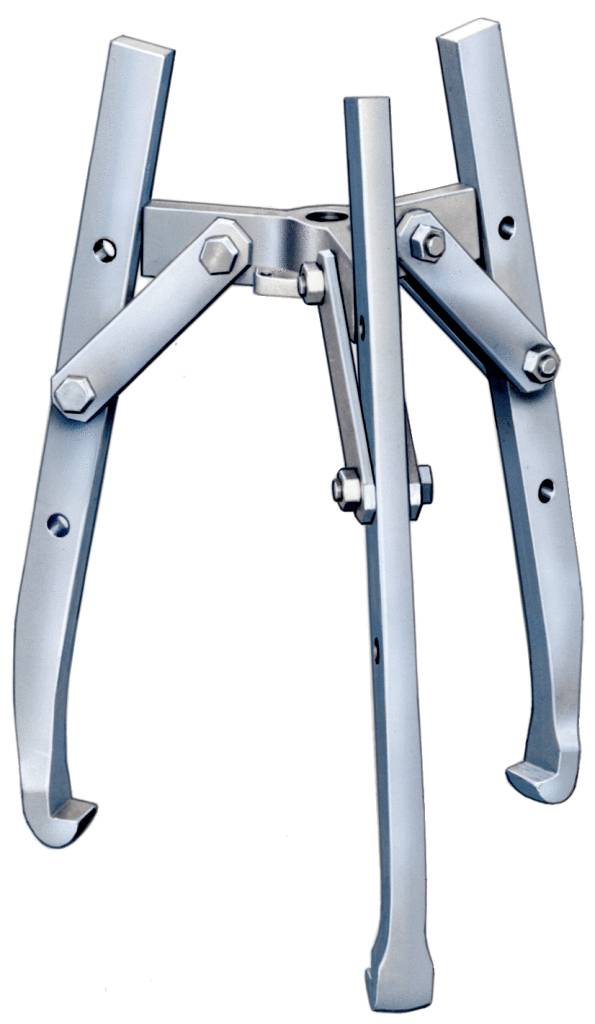

Description
• Consisting of cross beam and hook
The clamping depth can be adjusted • hooks
• Uniform load distribution and centered tightening
• Without hydraulic pressure spindle / without hydraulic cylinder
• Without hydraulic pump
• Special tool steel
This text is machine translated.
The clamping depth can be adjusted • hooks
• Uniform load distribution and centered tightening
• Without hydraulic pressure spindle / without hydraulic cylinder
• Without hydraulic pump
• Special tool steel
This text is machine translated.
