1/6

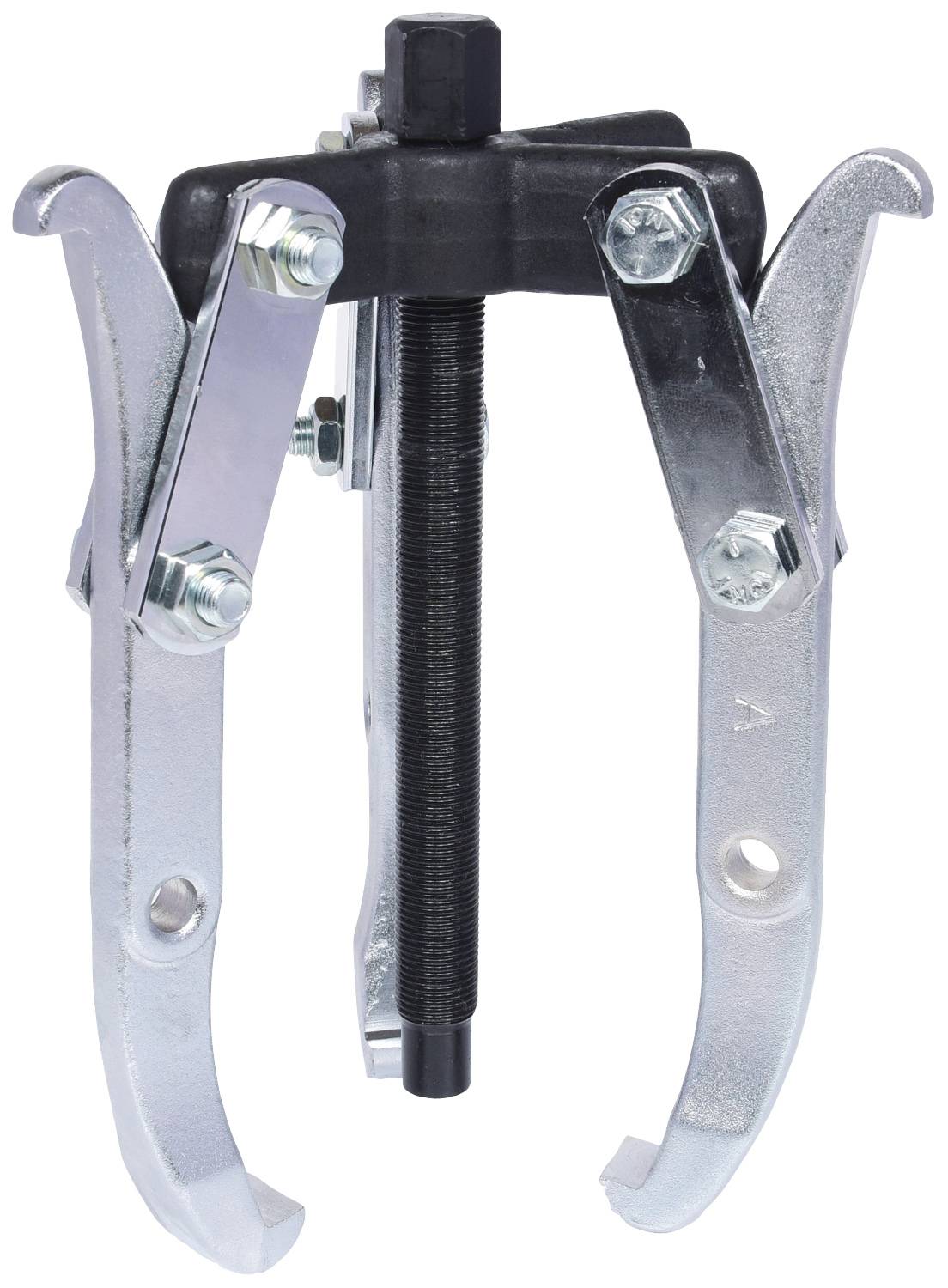

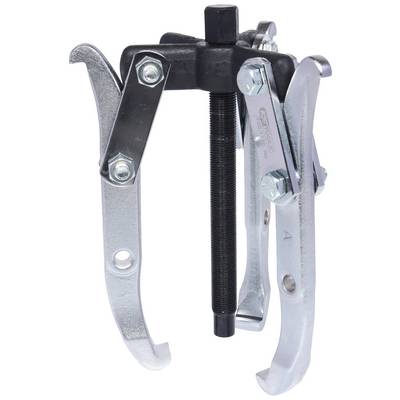

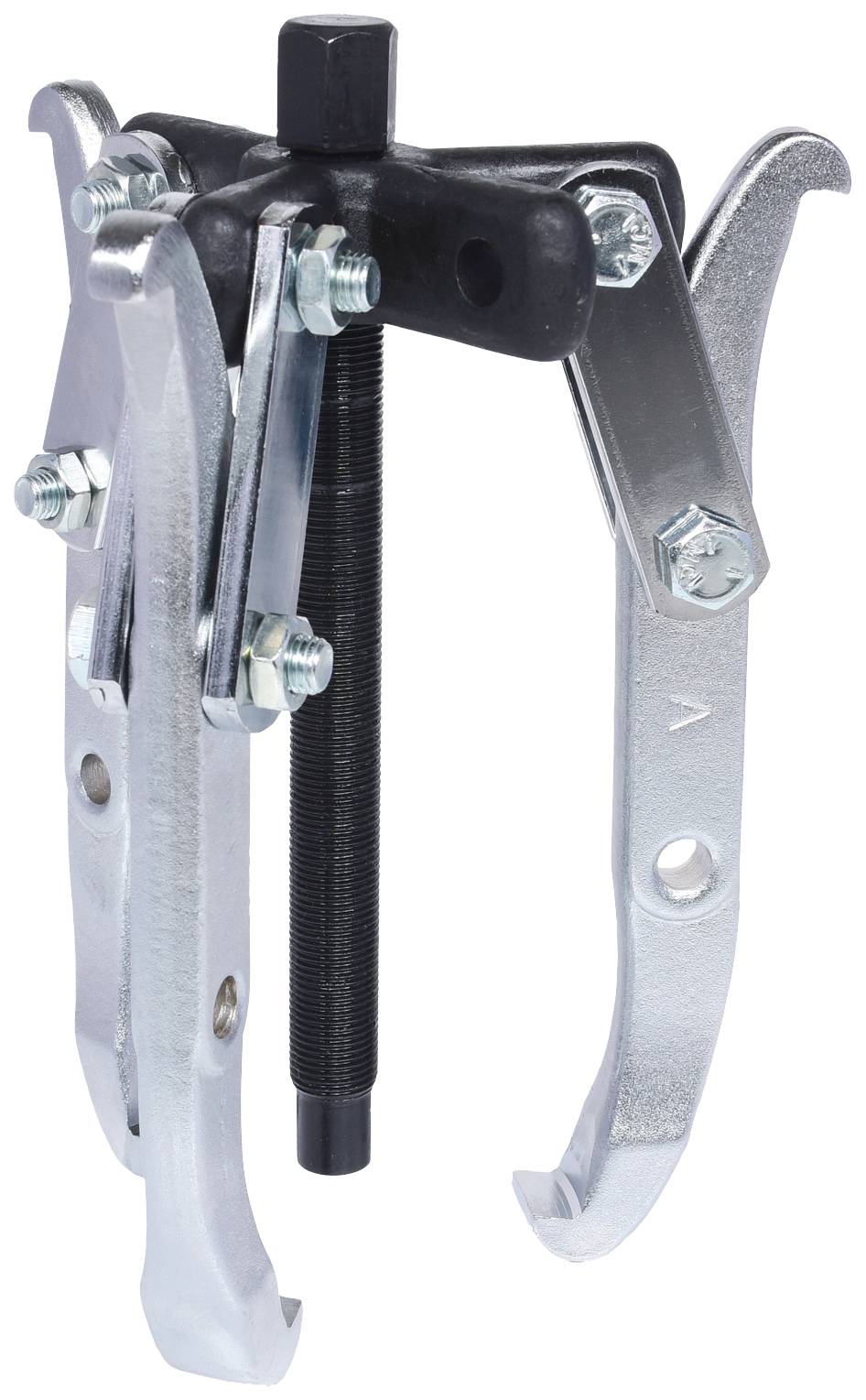

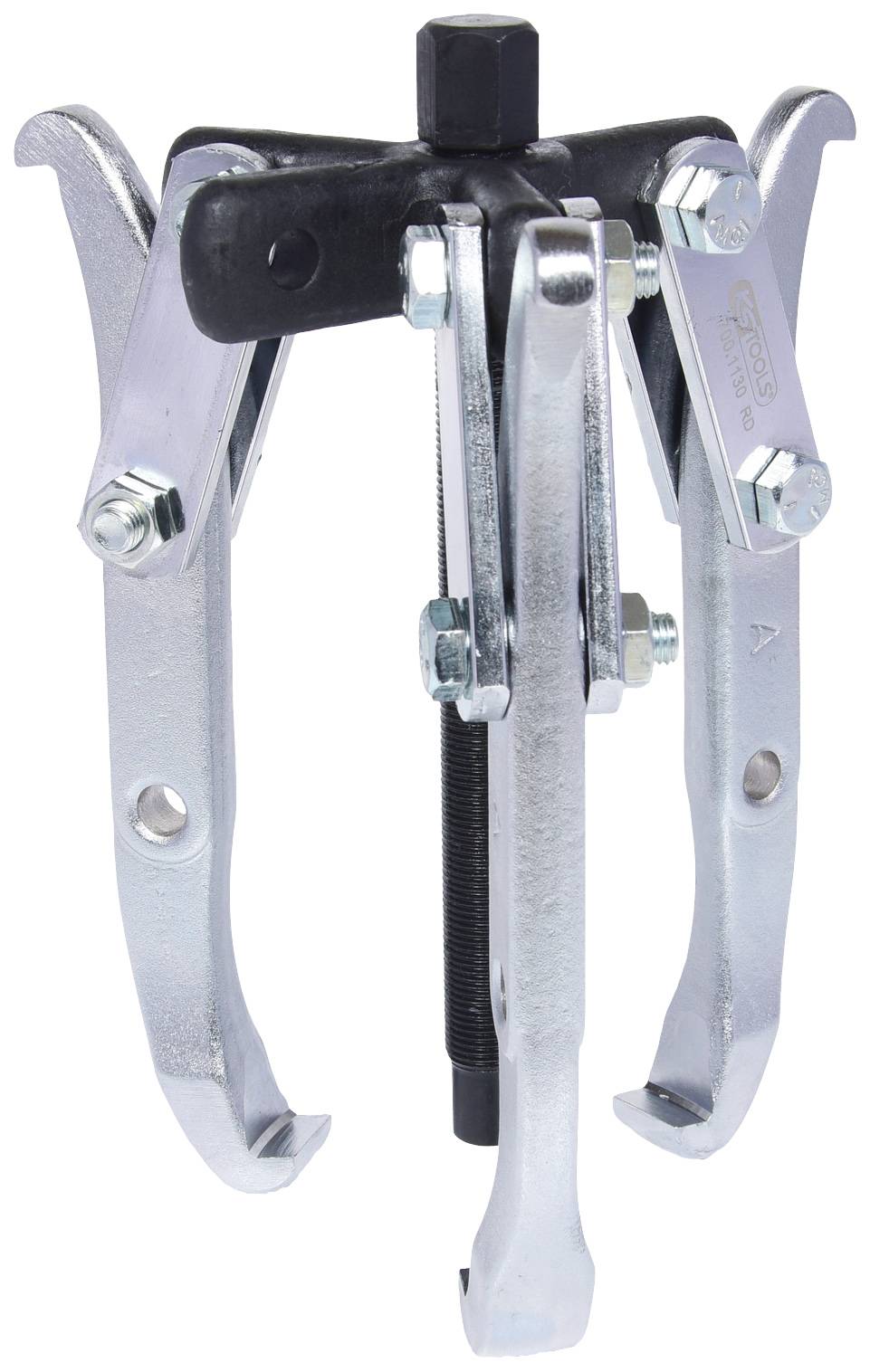

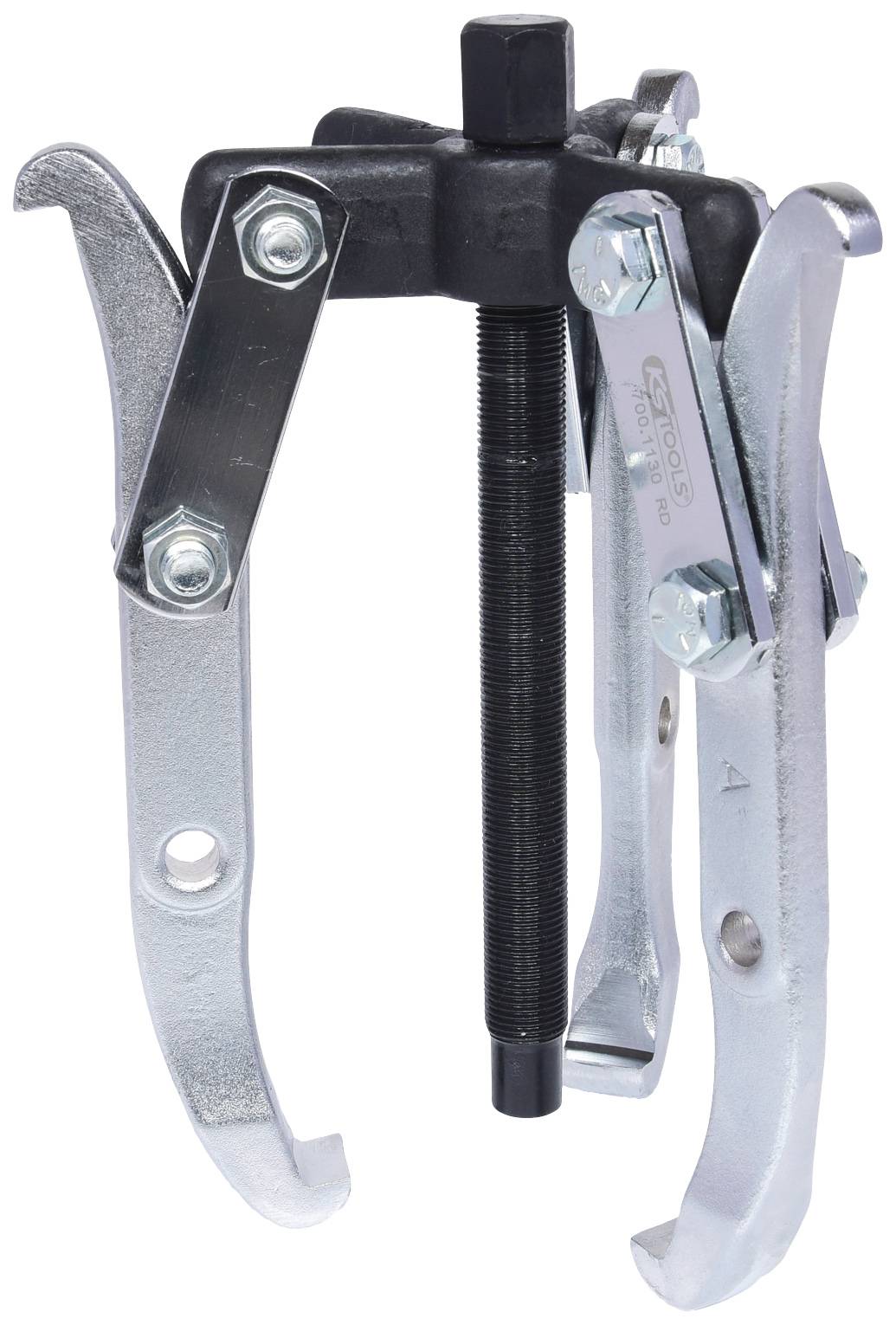

KS Tools 700.1130 Puller Clamping range (details) 120 - 150 mm No. of hooks 3
EAN:
Part number:
Item no:
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Only 3 Piece(s) available
Technical specifications

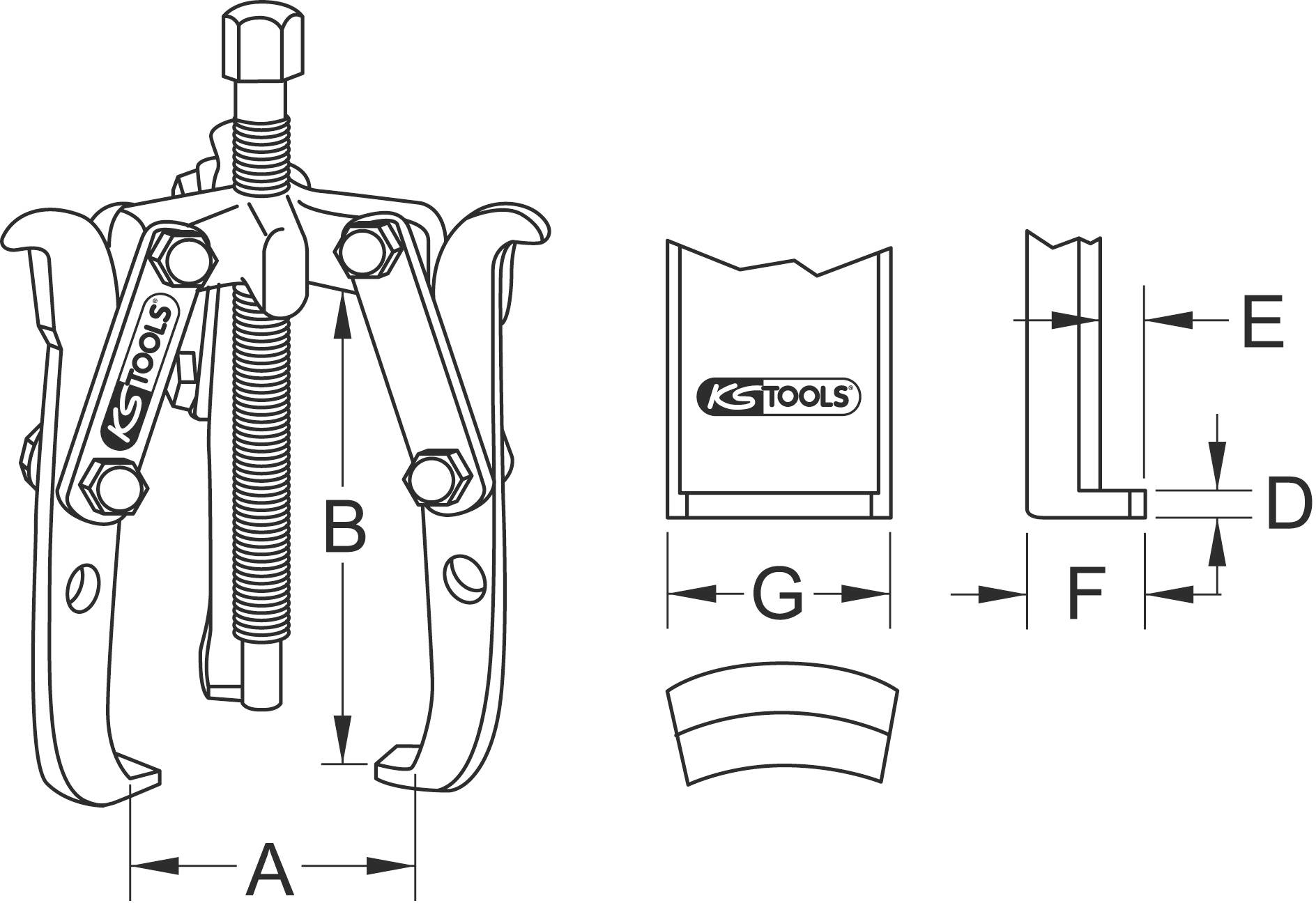

- Pull hook width G: 7.0 mm
- Pull hook total depth F: 17.8 mm
- Pull hook height D 7.2 mm
- Pull hook tip depth E: 7 mm

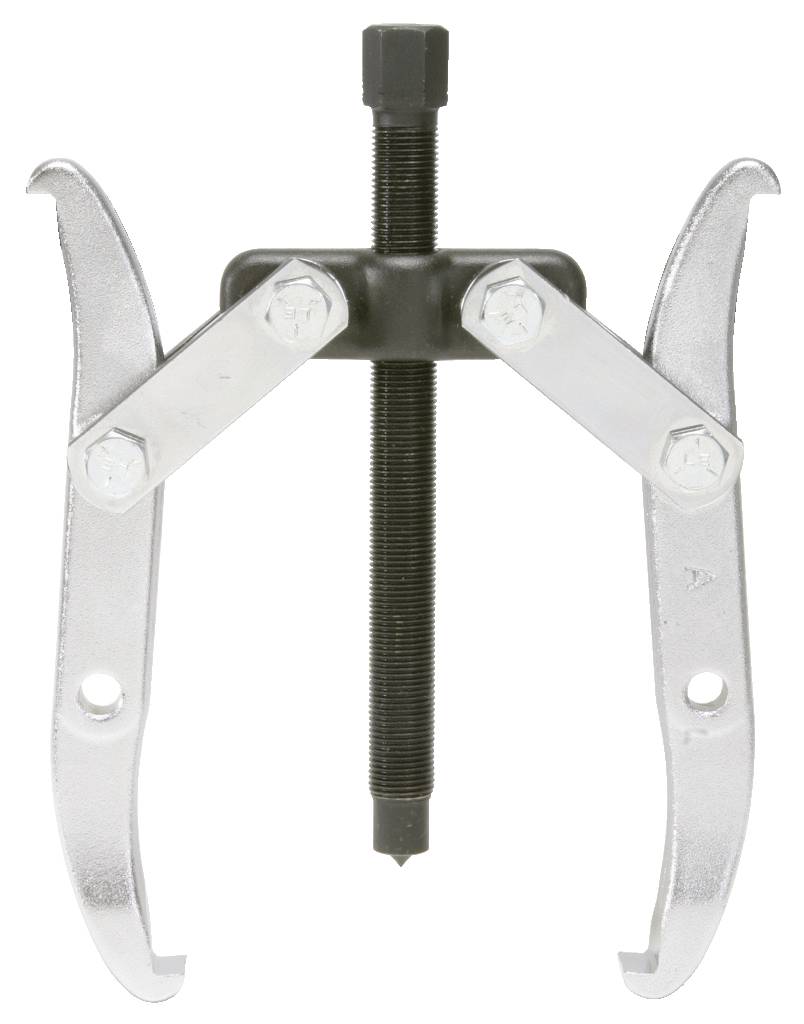

- Number of pull hooks: With 2 or 3 pull-off hooks
- Hexagon drive in mm: 16 mm
- Torque max Nm:30 Nm
- Weight 1830 g
- Material1: Special tool steel
- max. Pressure force t: 1.2
- Quick adjustment: No. nein
- Clamping depth B in mm 150 mm
- Span A in mm 120 mm
- Spindle size mm: M14x1.25 x 175
- Variant items : 700.1120
- Clamping range
120 - 150 mm
- Tension/pressure capacity
1.2 t
- Weight
1830 g
- Content
1 pc(s)
- Hooks
3
- Product type
Puller
- Span width (max.)
150 mm
- Span depth (max.)
150 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695641 KS Tools 700.1130 Puller Clamping range (details) 120 - 150 mm No. of hooks 3
Description
Hook can be used on both sidesRecording center for 2 or 3 hooksExtremely robust spindle with inductively hardened threadSpecial tool steel
