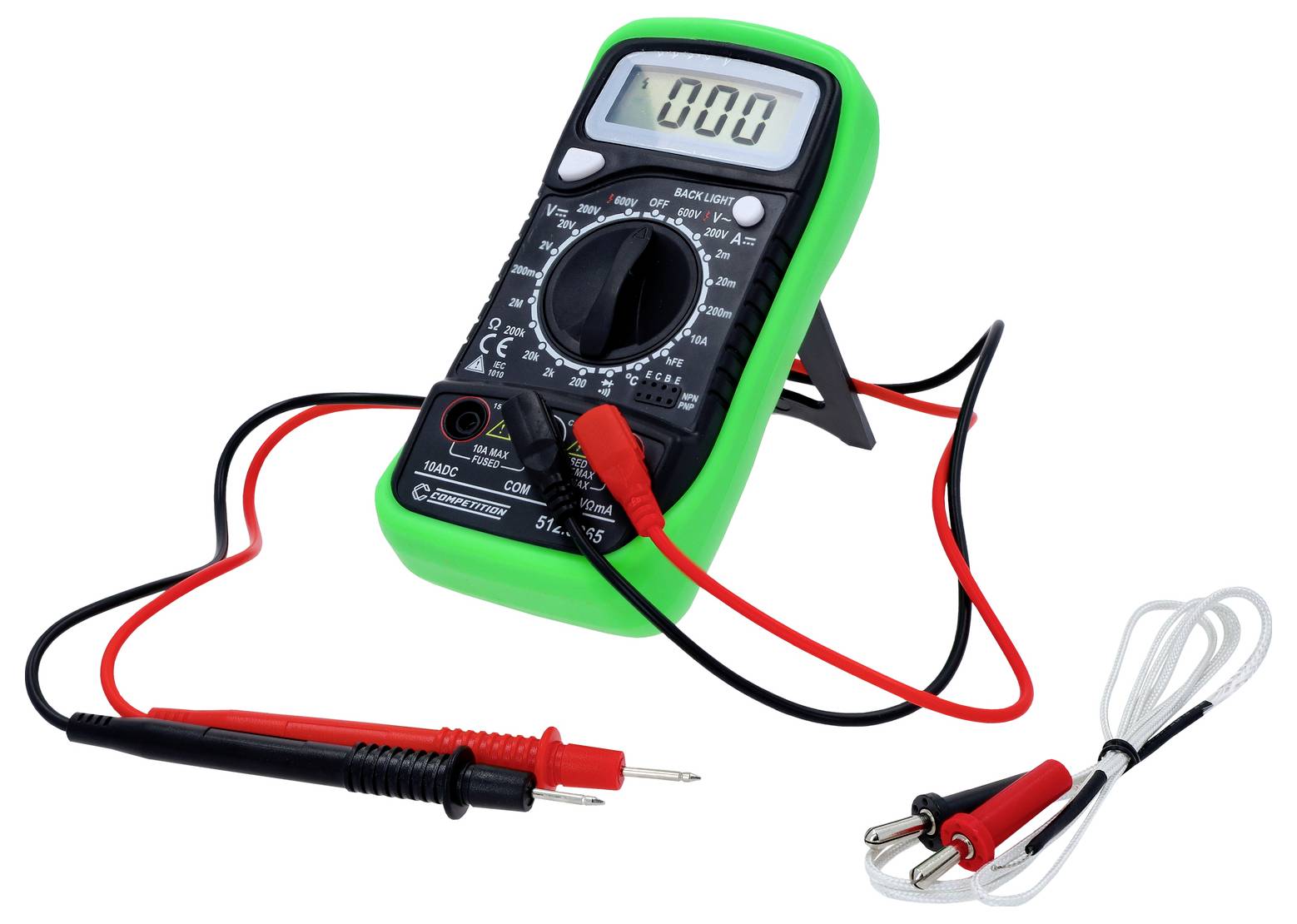

KS Tools Handheld multimeter Digital Vehicle testing
EAN:
Part number:
Item no:
Highlights & Details
Competition digital multimeter
- Specially developed professional multimeter for vehicle and NFZ-electronics and electronics
- Double LCD display with digital display and bar-graph display (32-segment bar graph)
- With automatic overflow and polarity indication
- With safety mechanism for V, µA / mA / A, therefore incorrect connection is impossible

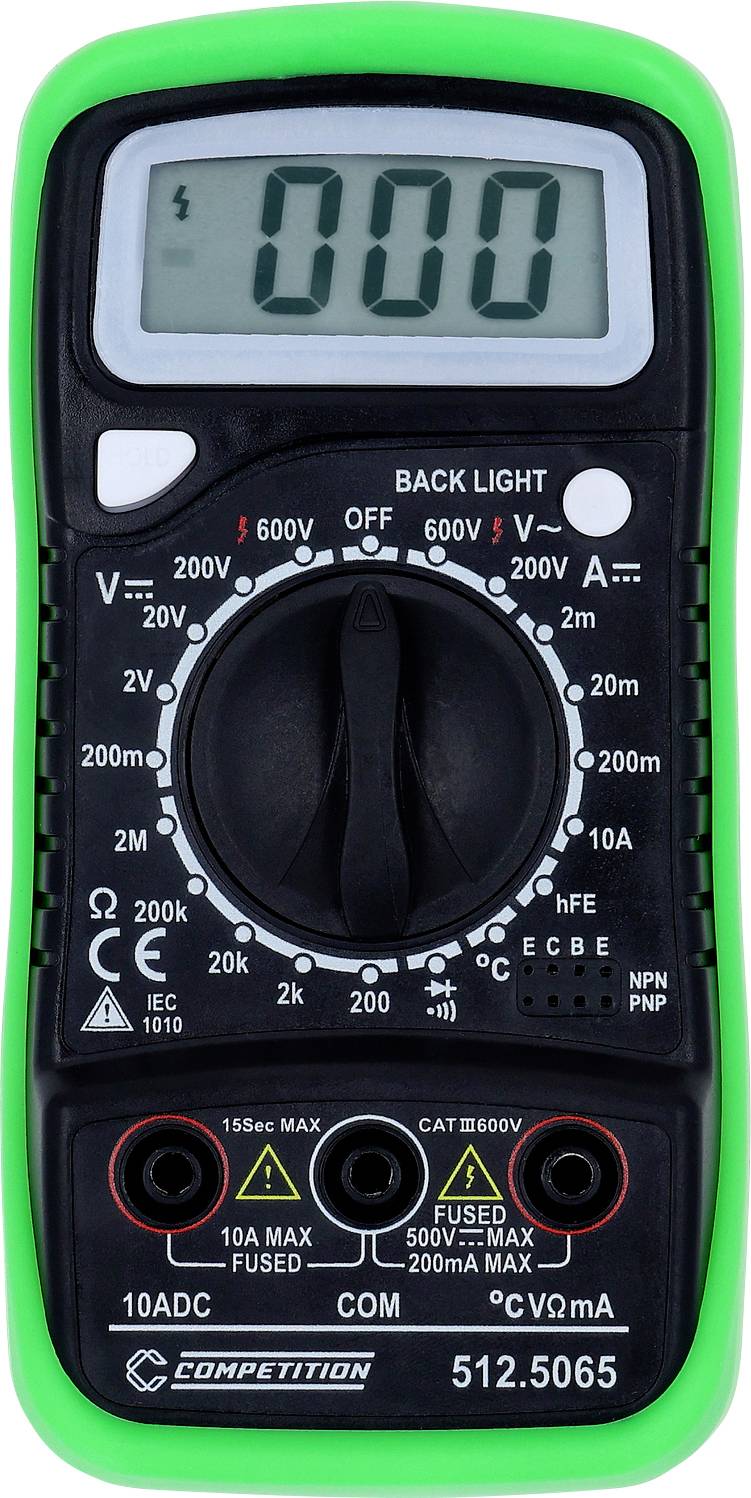

- Central 19-digit rotary switch
- Large LCD display with 3.1/2-digit high-contrast display with backlight
- Display shows the charge status
- With integrated glass fuse 250mA / 600V, 10A / 600V – 32 x 6 mm for protecting the circuits
- Includes test lead set with test tips
- With on/off switch and temperature cut-off function

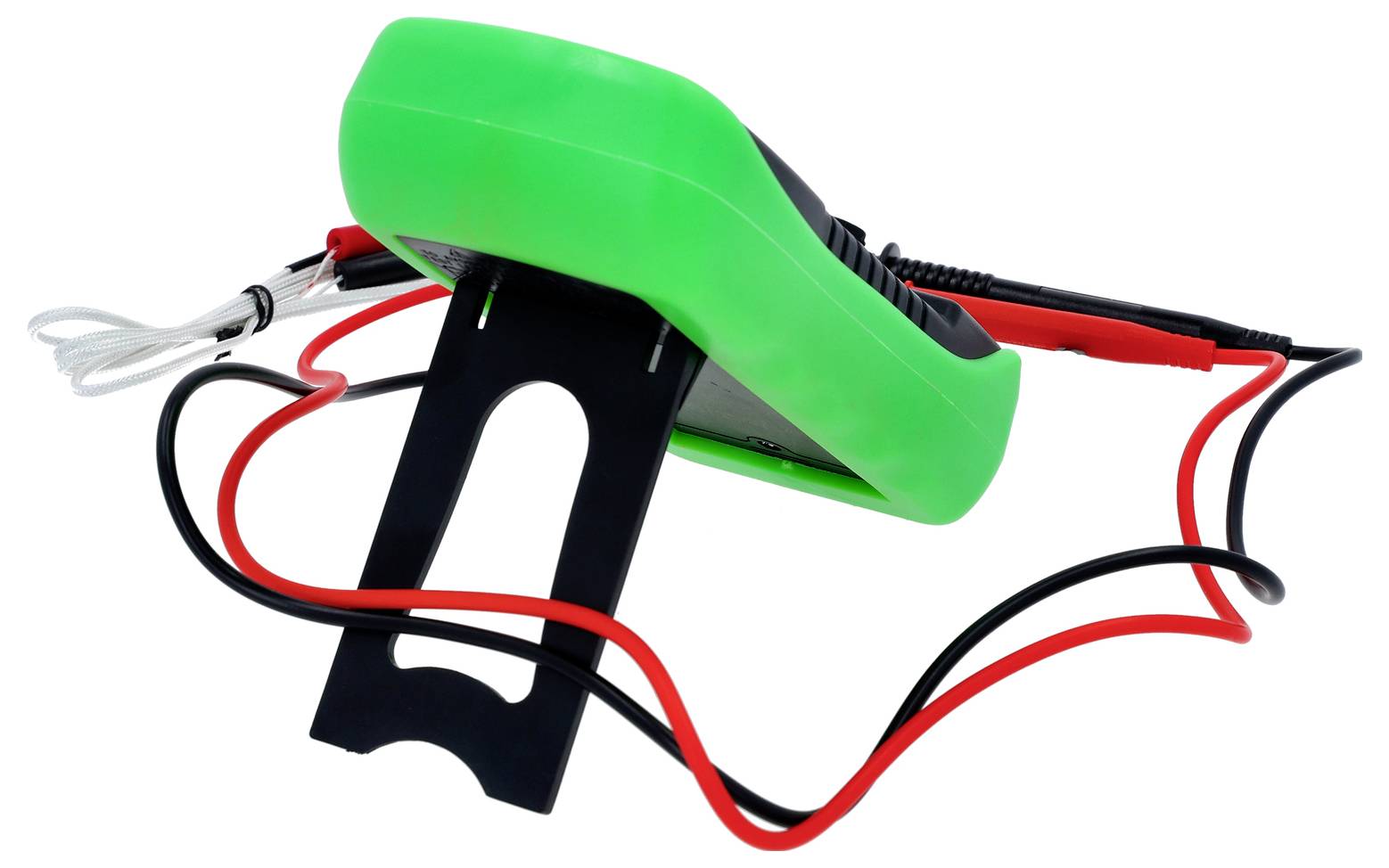

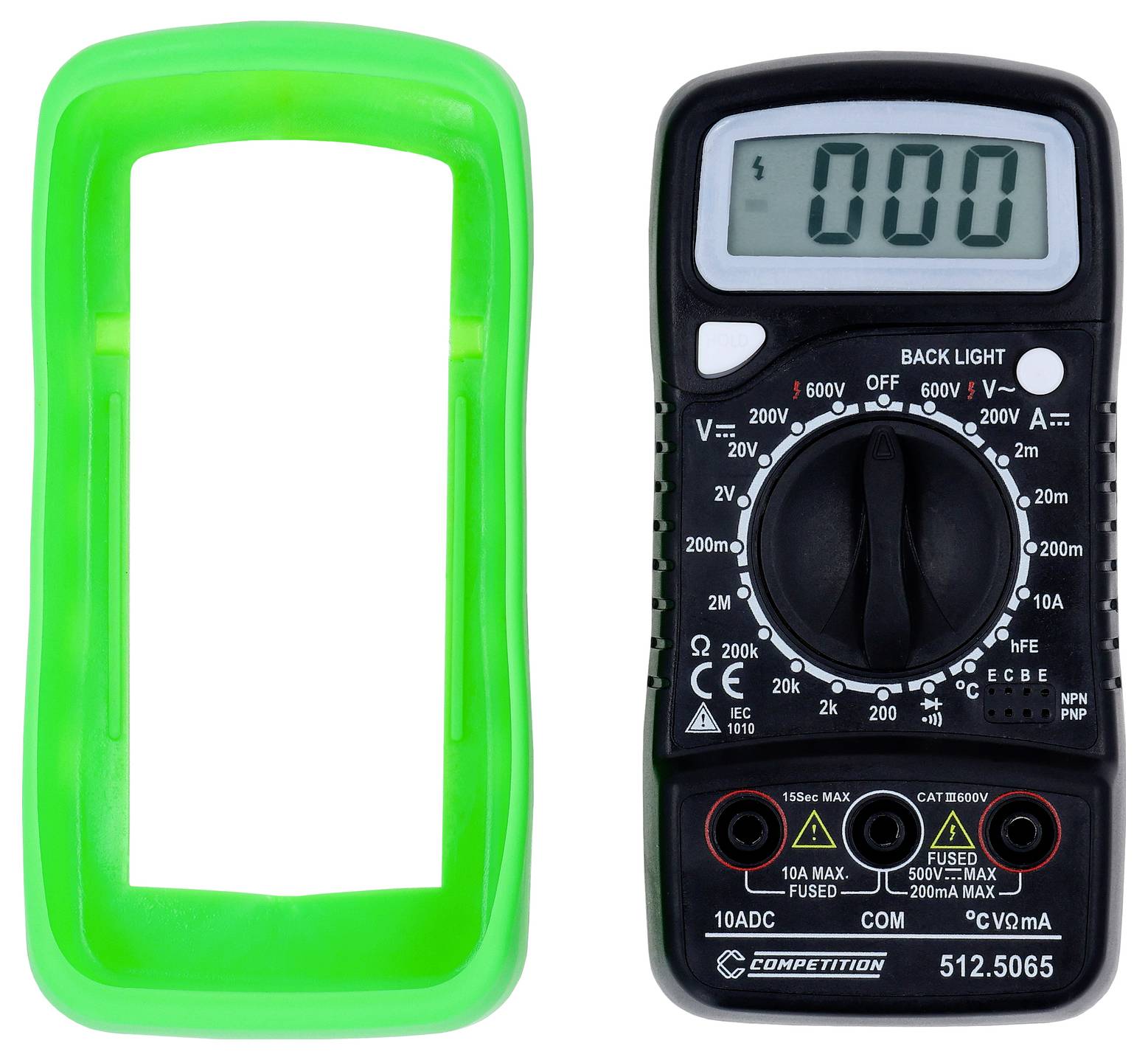

- With fold-out, two adjustable stand in the rubber protective holster
- Stable plastic case
- This text is machine translated.

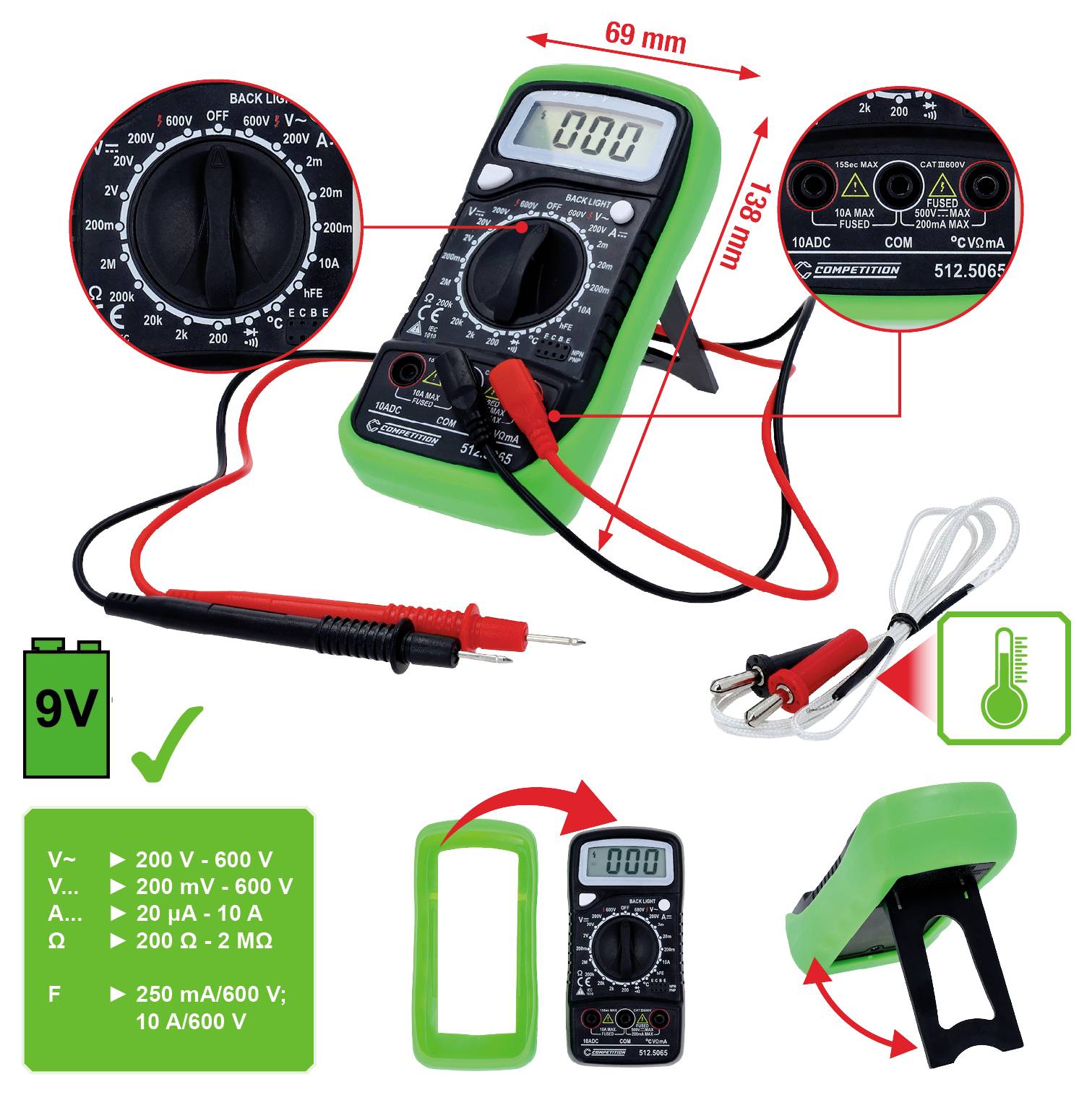

Technical specifications
- Voltage reading range DC (min.)
200 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
200 V
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
20 µA
- A DC reading range (max.)
10 A
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
200 Ohm - 2 Megaohms
- Length
138 mm
- Weight
300 g
Manufacturer's standards (no certificate)
- Type
512.5065
- Display
Digital
- Features
Vehicle testing
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3521566 KS Tools Handheld multimeter Digital Vehicle testing
