KS Tools 1501703 150.1703 Bi-hex Kraft bit 27.0 mm 1/2"
EAN:
Part number:
Item no:
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Technical specifications

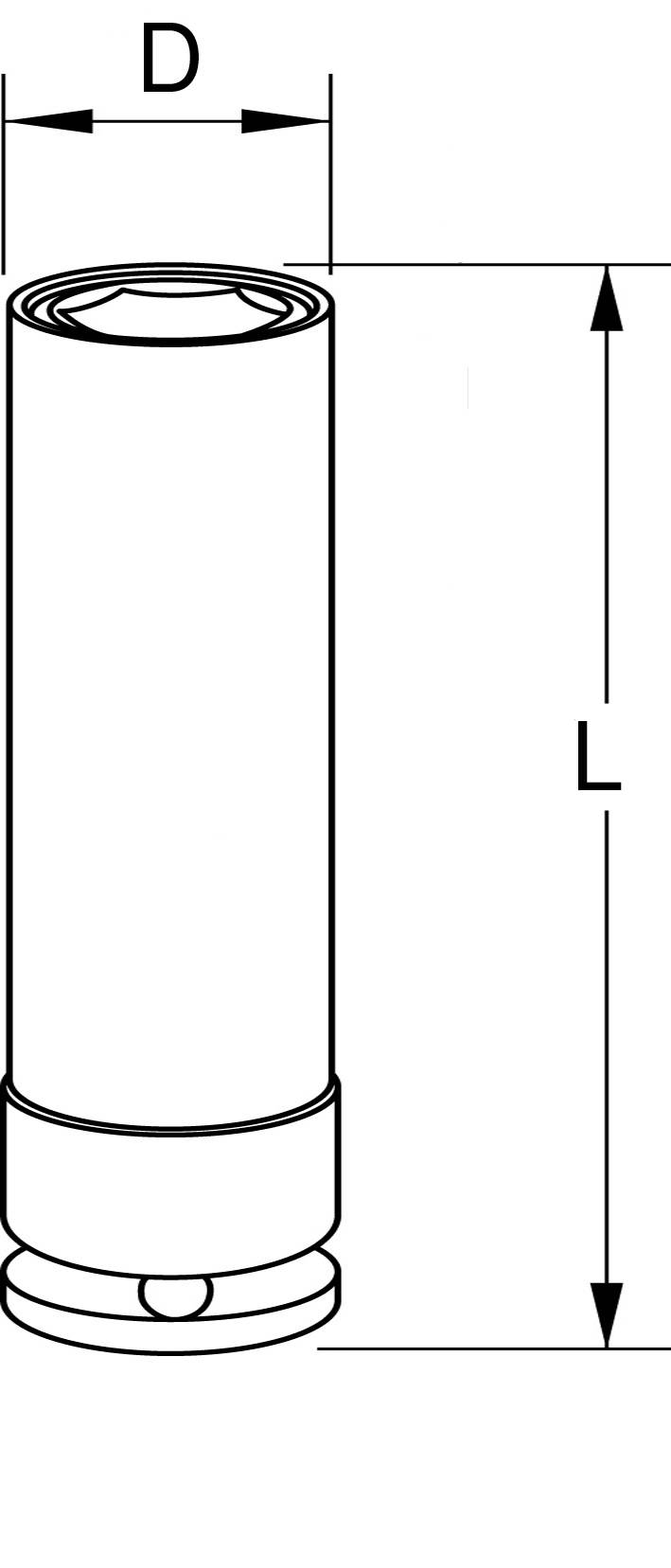

- Weight 350 gMaterial 1: Finest chromium molybdenum steel Variant items : 150.1703 DIN 3120, ISO 1174 standard Profile 1: 12-edge Diameter in mm 40.5 mmMaterial2: Phosphated Length mm 85 mmInclusion in inches: 1/2"General application area: For loosening the nuts of the drive shafts and drive shafts Profile size of outer hexagon 27.0 mm
- Product type
Kraft bit
- Drive
1/2"
- Spanner size
27.0 mm
- Downforce
Bi-hex
- Length
85 mm
- Max. length
85 mm
- Material
Cromoly steel
- Material properties
phosphated
- DIN standard
DIN 3120
DIN ISO 1174
- Width
40.5 mm
- Weight
350 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2687765 KS Tools 1501703 150.1703 Bi-hex Kraft bit 27.0 mm 1/2"
Description

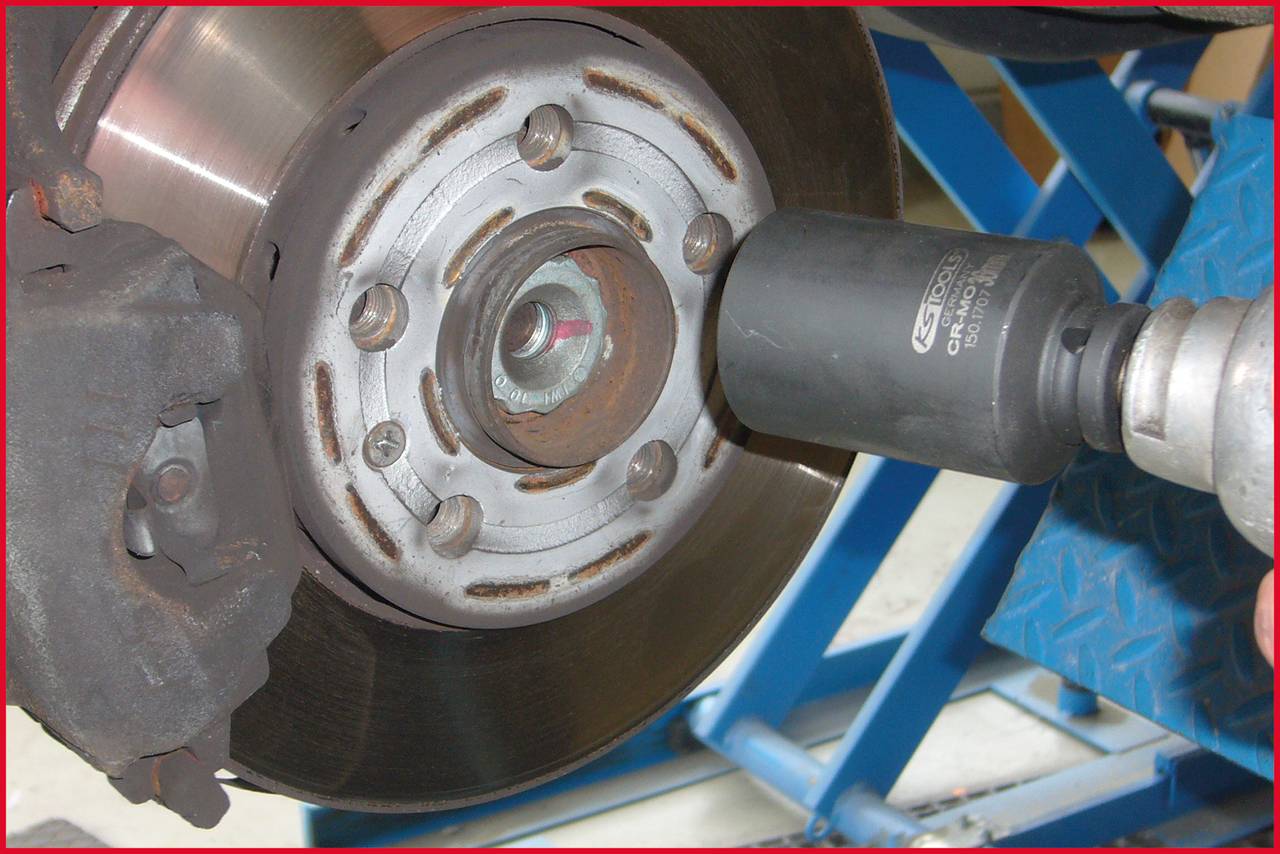

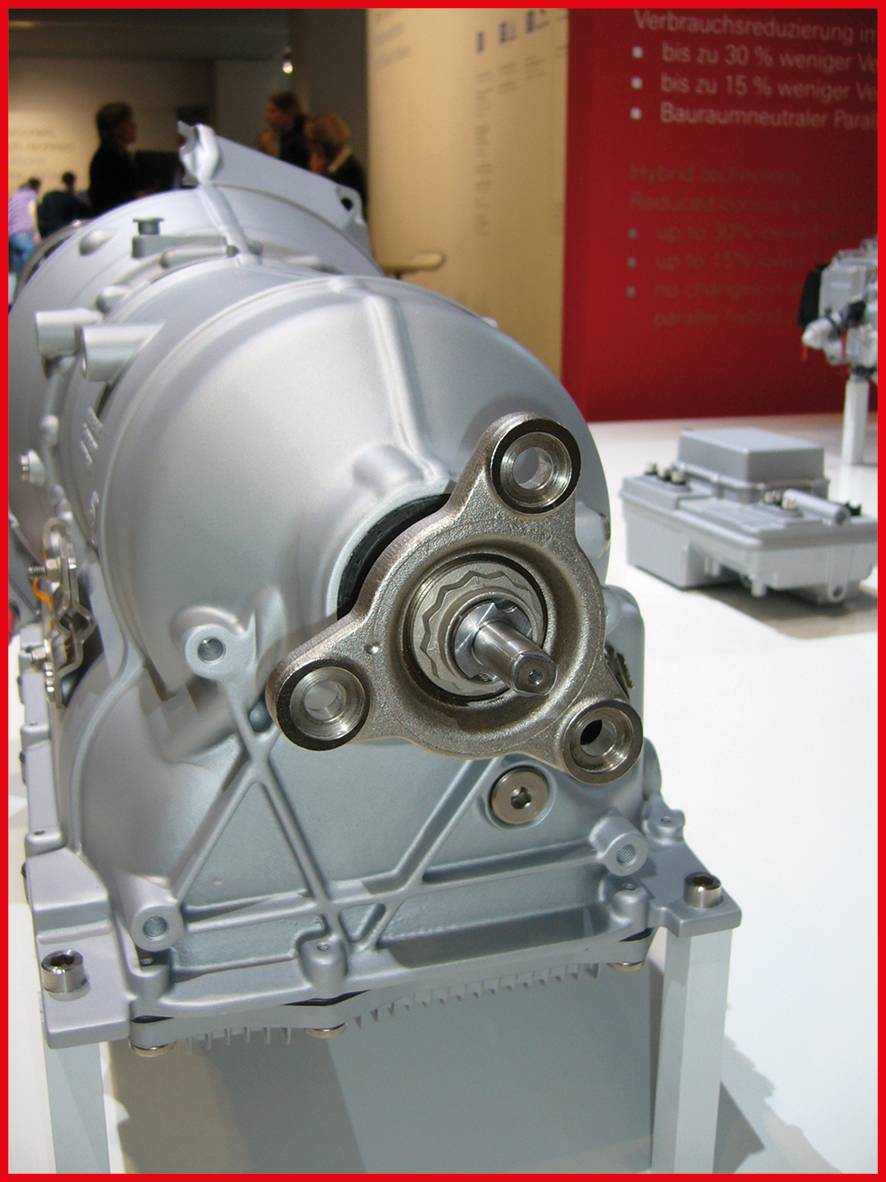

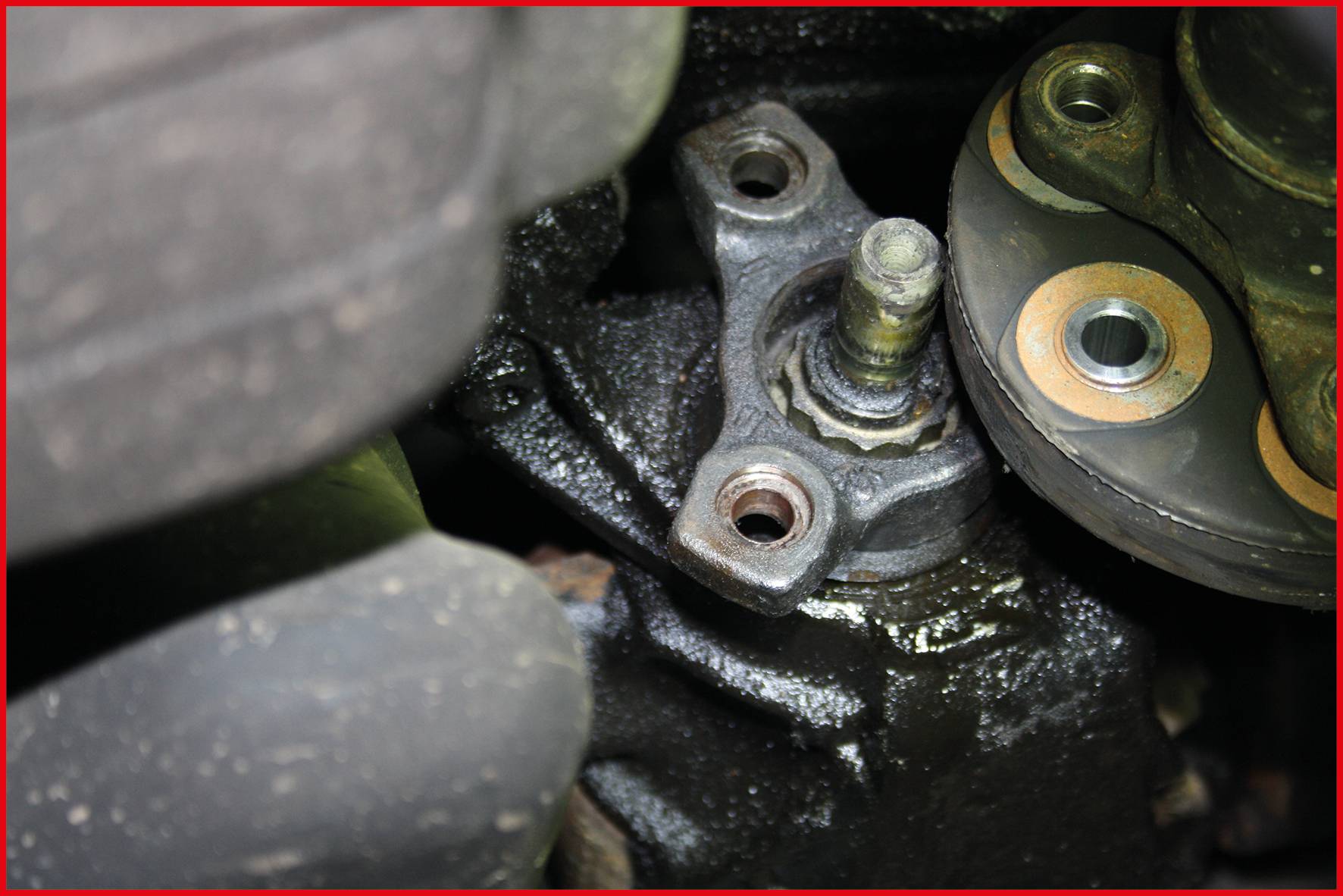

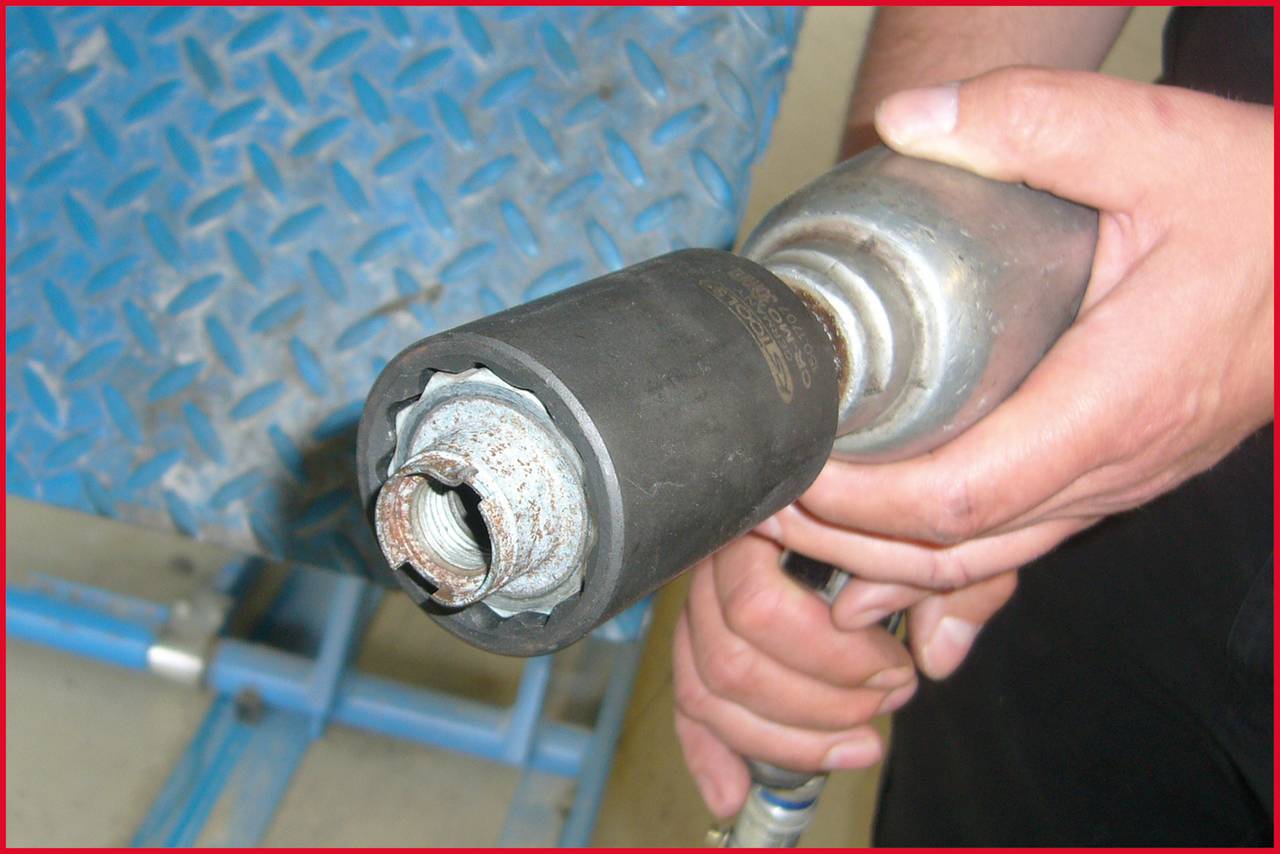

12-edgesSquare socket to DIN 3120 / ISO 1174 with ball grooveFor use in 1/2" impact screwdriversFor machine actuationphosphatedChrome molyApplications: Joint shafts, cardan shaft flange, nozzle holder, Mercedes truck gearbox G2/24/26, Mercedes Actros etc.
