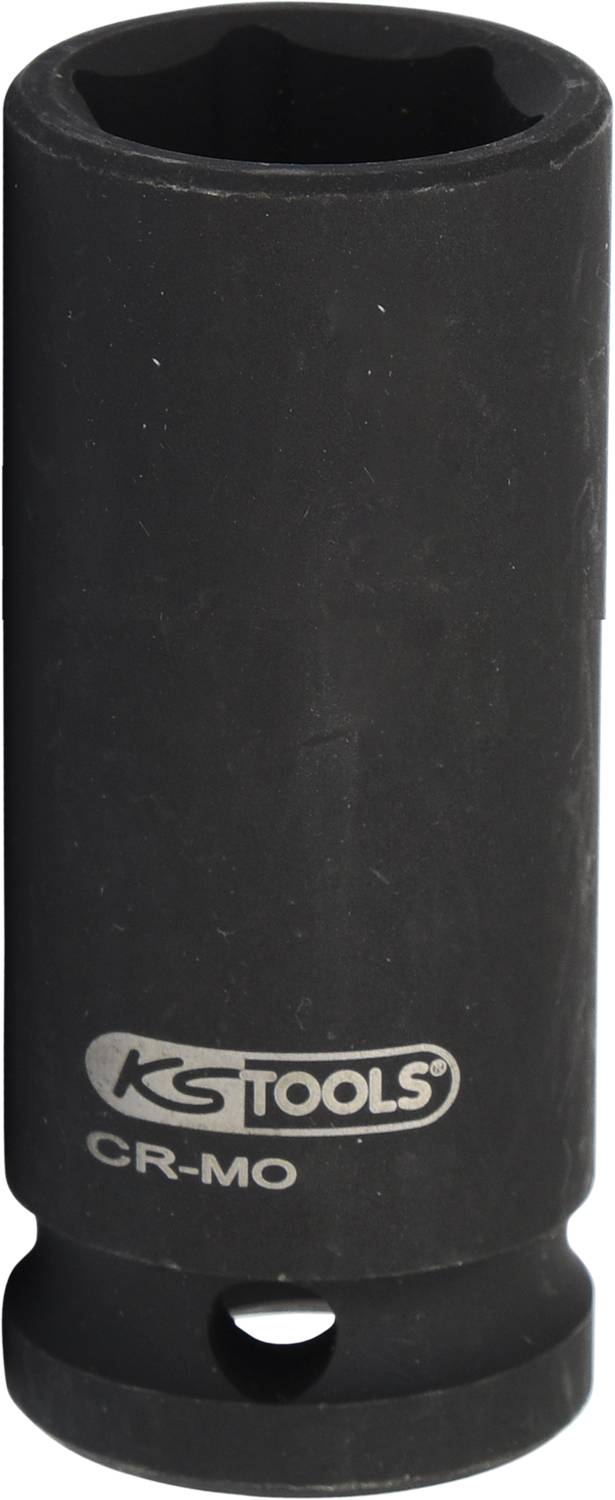

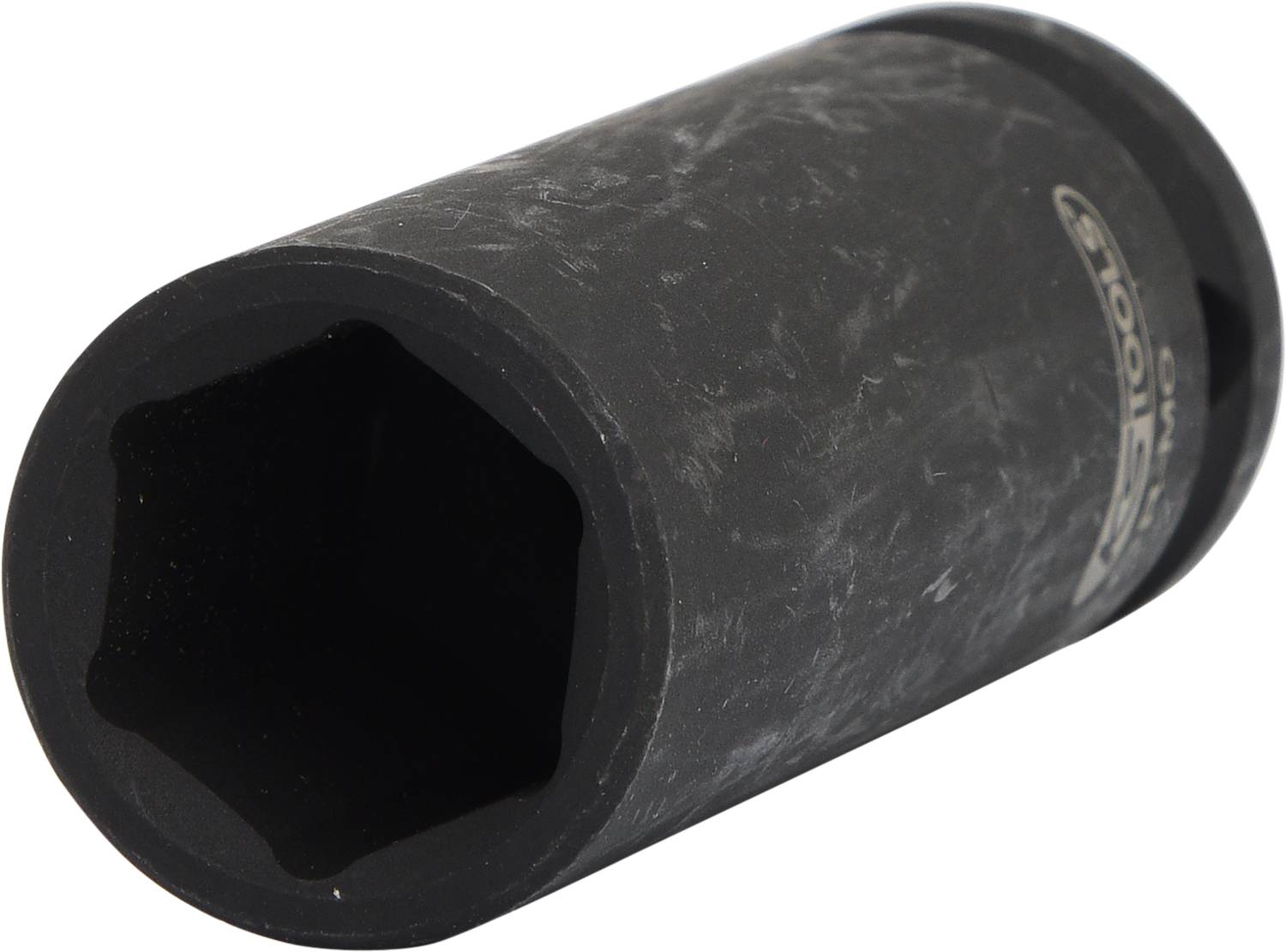

KS Tools 5152174 515.2174 Allen Kraft bit 85 mm 3 3/8" 85 mm 1 1/2" (40 mm)
EAN:
Part number:
Item no:
Number
Total (€ 592.44 / piece)
€ 592.44
plus VAT.
Only 2 Piece(s) available
Technical specifications

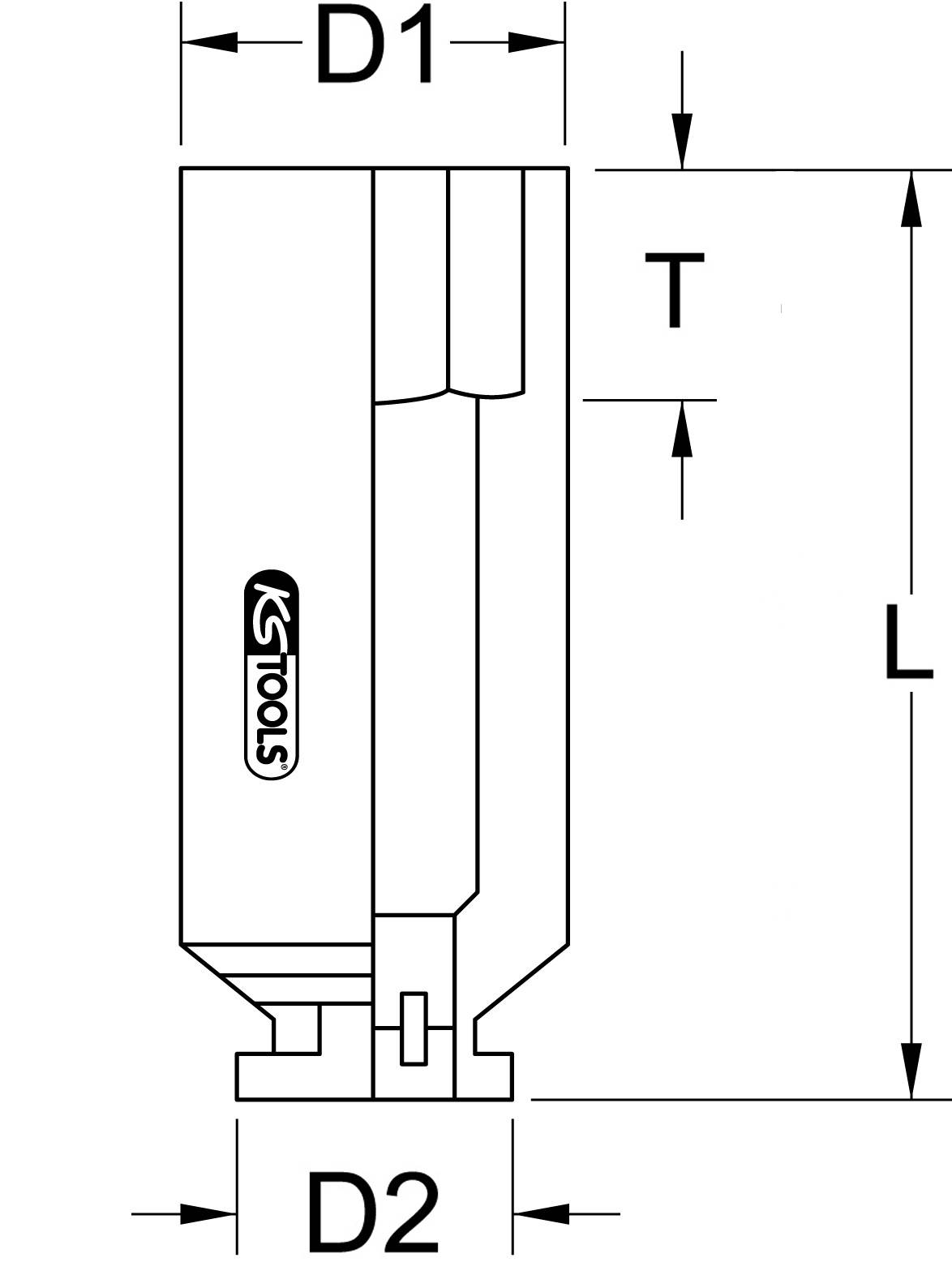

- Weight 8690 gMaterial 1: Finest chromium molybdenum steel Variant items : 515.2159 Total length L in mm: 170.0 mmISO 1174, DIN 3121 standard Profile 1: 6-edge Square drive in inches: 1.1/2" Width across mm 85.0 mmDepth T in mm: 45.0 mmDiameter D1 125.0 mmDiameter D2: 86.0 mmWidth across inches: 3.3/8"
- Product type
Kraft bit
- Drive
1 1/2" (40 mm)
- Spanner size
85 mm
- Ratchet bits (inch)
3 3/8"
- Size
85 mm
- Downforce
Allen
- Length
170 mm
- Max. length
170.0 mm
- Material
Cromoly steel
- Material properties
phosphated
- DIN standard
DIN ISO 1174
DIN 3121
- Width
125.0 mm
- Weight
8690 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2689327 KS Tools 5152174 515.2174 Allen Kraft bit 85 mm 3 3/8" 85 mm 1 1/2" (40 mm)
Description
6-edgesAccording to DIN 3129 / ISO 2725-2Square socket to DIN 3121 / ISO 1174Long styleFor machine actuationphosphatedChrome moly
