Kübler Group 901 Preset counter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
Only 2 Piece(s) available
Highlights & Details

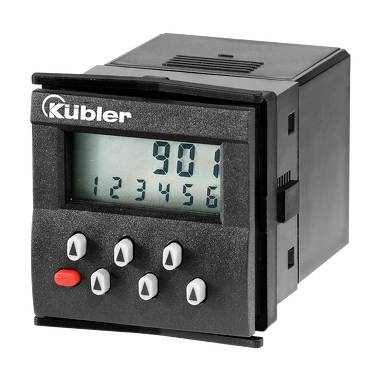

Kübler 901 LCD preset counter, summing or subtracting (battery)
- Powerful
- Count and reset input electrically by the counter separated: Input level 12...250 V AC/DC or NPN input signal
- 2-line LCD display for counter and preset switching state of the output and active time measurement are displayed
- Data protection by replaceable lithium batteries
- Service life approx. 8 years
- Output: relay
- Nc or no function can be programd
- Simply
- Easy programming
- Simple code input
- For each decade a button
- Pluggable Screw terminals
- Replacement for electromechanical preset counter
- No separate power supply necessary
- Clock function
Technical specifications
- Number of places: 2 x 6
- Size Front (mm): 48 x 48
- Control panel cut-out (mm): 45 x 45
- Depth (mm): 63.2
- Temperature range: -10 … +50 (°C)
- Protection class IP65 max.
- Product type
Preset counter
- Reading type
Pulse
- Type
901
- Display technology
LCD
- Recess width
45 mm
- Display (counts)
6
- Recess height
45 mm
- Dim
(W x H x D) 48 x 48 x 80 mm
- Weight
0.2 kg
- Features
Dual reading dial
- Recess depth
63.2 mm
- Width
48 mm
- Height
48 mm
- Frame width
48 mm
- Interfaces
Screw terminal
- Depth
80 mm
Documents & Downloads
Datasheet
Datasheet 1602795 Kübler Group 901 Preset counter
User & Safety Instructions
User & Safety Instructions 1602795 Kübler Group 901 Preset counter
Description
The Type 901 is a battery-operated simple pulse and time preset counter with counting and reset input for 12...250 V AC/DC or with NPN input. Using the 6-digit, 2-line LCD display are the actual and setpoint value, relay status and active time measurement is displayed.
